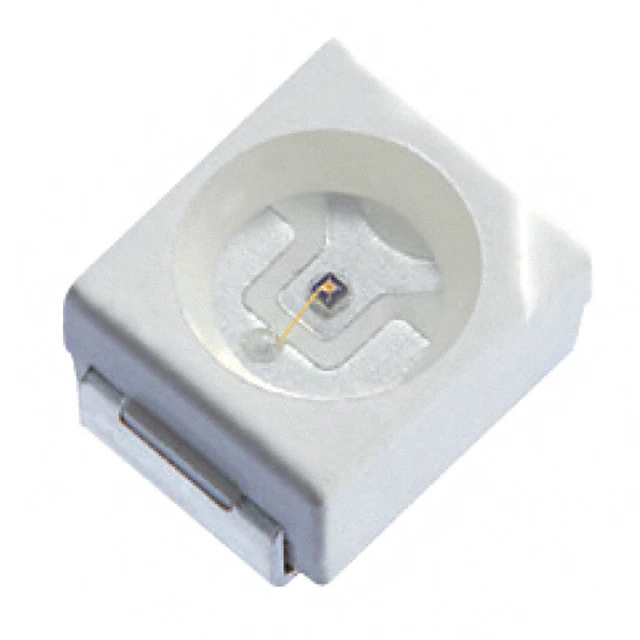

XZTHI45S

Part Number: XZTHI45S 3.5x2.8 mm INFRARED EMITTING DIODE Features Package Schematics ● Long life and robust package ● Standard Package: 2000pcs/ Reel ● MSL (Moisture Sensitivity Level): 3 ● RoHS compliant Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3. Specifications are subject to change without notice. Absolute Maximum Ratings (TA=25°C) THI (GaAlAs) Unit Reverse Voltage VR 5 V Forward Current IF 50 mA Operating Characteristics (TA=25°C) THI (GaAlAs) Unit Forward Voltage (Typ.) (IF=20mA) VF 1.3 V Forward Voltage (Max.) (IF=20mA) VF 1.6 V Forward Current (Peak) 1/100 Duty Cycle 10us Pulse Width iFS 1200 mA Reverse Current (Max.) (VR=5V) IR 10 uA Power Dissipation PD 80 mW Operating Temperature TA -40 ~ +85 Wavelength of Peak Emission CIE127-2007* (Typ.) (IF=20mA) λP 880* nm Tstg -40 ~ +85 Spectral Line Full Width At Half-Maximum (Typ.) (IF=20mA) △λ 50 nm C 90 pF Storage Temperature °C A Relative Humidity between 40% and 60% is recommended in ESD-protected work areas to reduce static build up during assembly process (Reference JEDEC/JESD625-A and JEDEC/J-STD-033) Part Number XZTHI45S Emitting Material GaAlAs Lens-color Water Clear Capacitance (Typ.) (VF=0V, f=1MHz) Radiant Intensity CIE127-2007* (Po=mW/sr) @20mA min. typ. 1.2* 1.8* Wavelength CIE127-2007* nm λP Viewing Angle 2θ 1/2 880* 120° *Radiant intensity value and wavelength are in accordance with CIE127-2007 standards. Oct 11,2016 XDSB5013 V4-Z Layout: Maggie L. P. 1/5 Part Number: XZTHI45S 3.5x2.8 mm INFRARED EMITTING DIODE Handling Precautions Compare to epoxy encapsulant that is hard and brittle, silicone is softer and flexible. Although its characteristic significantly reduces thermal stress, it is more susceptible to damage by external mechanical force. As a result, special handling precautions need to be observed during assembly using silicone encapsulated LED products. Failure to comply might lead to damage and premature failure of the LED. 1. Handle the component along the side surfaces by using forceps or appropriate tools. 2. Do not directly touch or handle the silicone lens surface. It may damage the internal circuitry. 3. Do not stack together assembled PCBs containing exposed LEDs. Impact may scratch the silicone lens or damage the internal circuitry. 4.1. The inner diameter of the SMD pickup nozzle should not exceed the size of the LED to prevent air leaks. 4.2. A pliable material is suggested for the nozzle tip to avoid scratching or damaging the LED surface during pickup. 4.3. The dimensions of the component must be accurately programmed in the pick-and-place machine to insure precise pickup and avoid damage during production. 5. As silicone encapsulation is permeable to gases, some corrosive substances such as H2S might corrode silver plating of leadframe. Special care should be taken if an LED with silicone encapsulation is to be used near such substances. Oct 11,2016 XDSB5013 V4-Z Layout: Maggie L. P. 2/5 Part Number: XZTHI45S 3.5x2.8 mm INFRARED EMITTING DIODE ™ THI LED is recommended for reflow soldering and soldering profile is shown below. Oct 11,2016 XDSB5013 V4-Z Layout: Maggie L. P. 3/5 Part Number: XZTHI45S 3.5x2.8 mm INFRARED EMITTING DIODE ™ The device has a single mounting surface. The device must be mounted according to the specifications. ™ Recommended Soldering Pattern (Units : mm; Tolerance: ± 0.1) ™ Reel Dimension ™ Tape Specification (Units : mm) Remarks: If special sorting is required (e.g. binning based on forward voltage or radiant intensity / luminous flux), the typical accuracy of the sorting process is as follows: 1. Radiant Intensity / Luminous Flux: +/-15% 2. Forward Voltage: +/-0.1V Note: Accuracy may depend on the sorting parameters Oct 11,2016 XDSB5013 V4-Z Layout: Maggie L. P. 4/5 Part Number: XZTHI45S 3.5x2.8 mm INFRARED EMITTING DIODE PACKING & LABEL SPECIFICATIONS XZxxx45x TERMS OF USE 1. Data presented in this document reflect statistical figures and should be treated as technical reference only. 2. Contents within this document are subject to improvement and enhancement changes without notice. 3. The product(s) in this document are designed to be operated within the electrical and environmental specifications indicated on the datasheet. User accepts full risk and responsibility when operating the product(s) beyond their intended specifications. 4. The product(s) described in this document are intended for electronic applications in which a person’s life is not reliant upon the LED. Please consult with a SunLED representative for special applications where the LED may have a direct impact on a person’s life. 5. The contents within this document may not be altered without prior consent by SunLED. 6. Additional technical notes are available at http://www.SunLEDusa.com/TechnicalNotes.asp Oct 11,2016 XDSB5013 V4-Z Layout: Maggie L. P. 5/5
