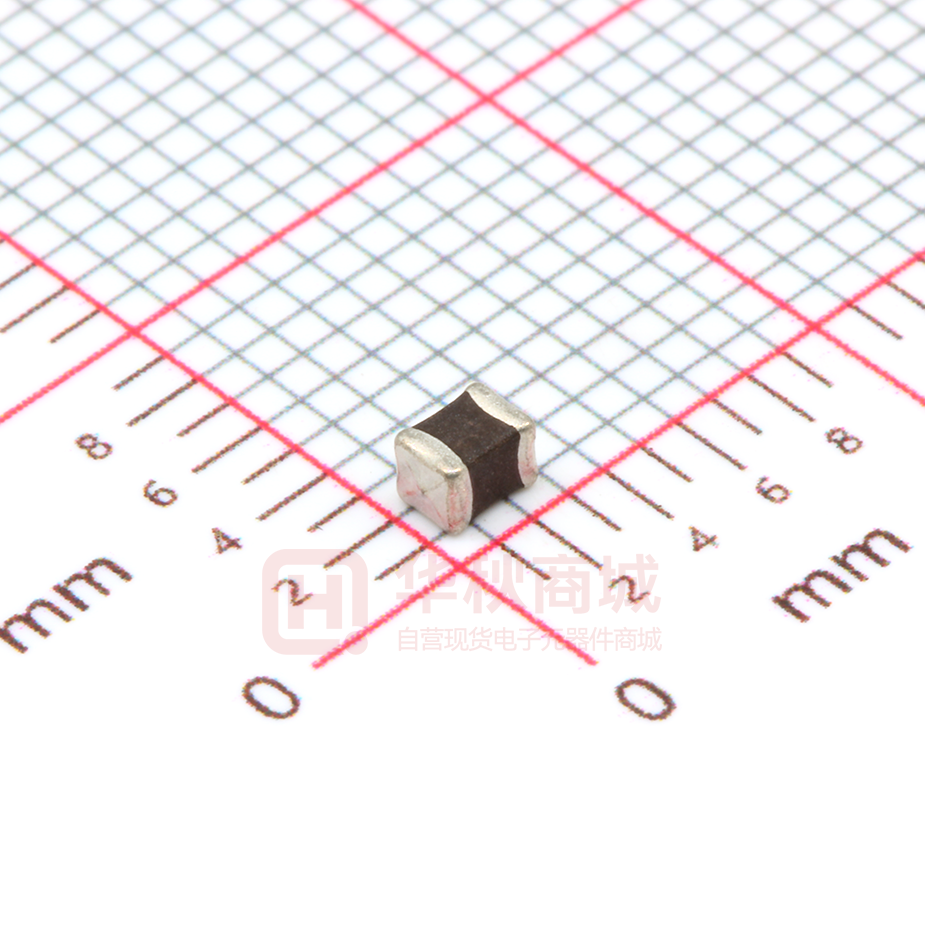

CBC2518T100M

Spec Sheet PrintPDF Wire-wound Chip Power Inductors (CB series) CBC2518T100M Features Item Summary 10uH±20%, 0.48A, 1007/2518 (EIA/JIS) Lifecycle Stage Mass Production Standard packaging quantity (minimum) Taping Embossed 2000pcs Products characteristics table External Dimensions 10 uH ± 20 % Dimension L 2.5 ±0.2 mm Case Size (EIA/JIS) 1007/2518 Dimension W 1.8 ±0.2 mm Rated Current (max) 0.48 A Dimension T 1.8 ±0.2 mm Dimension e 0.5 ±0.2 mm Inductance Saturation Current (max) 0.48 A Temperature Rise Current (max) 0.68 A DC Resistance (max) 0.468 Ω DC Resistance (typ) 0.36 Ω LQ Measuring Frequency 2.52 MHz Self Resonant Frequency (min) 30 MHz Operating Temp. Range -40 to +105 ℃ (Including-self-generated heat) Temperature characteristic ± 25 % (Inductance change) RoHS2 Compliance (10 subst.) Yes REACH Compliance (168 subst.) Yes Soldering Reflow 2017.01.02 The data is reference only. Electrical characteristics vary depending on environment or measurement condition. TAIYO YUDEN reserves the right to make change to the Date at any time without notice. Before making final selection, please check product specification. http://www.ty-top.com Powered by TCPDF (www.tcpdf.org) Halogen free / RoHS compliant Wire Wound Inductor -Electrical Characteristics Data- 2016/10/17 Wire-wound Chip Power Inductors (CB series) Dimension Length : Width : Height : CBC2518T100M Inductance : DC Resistance : Saturation Current : Temp. rise Current : unit : mm 2.5 + / - 0.2 1.8 + / - 0.2 1.8 + / - 0.2 unit : inch ( 0.098 + / - 0.008 ) ( 0.071 + / - 0.008 ) ( 0.071 + / - 0.008 ) 10 uH ( test freq at 2.52MHz ) ohm ( typ / max ) 0.36 / 0.468 480 mA ( max ) 680 mA ( max ) Saturation current typical : 30% reduction from initial L value. Temp rise Current typical : Temperature will rise by 40 deg C DC Bias vs Inductance DC Bias vs Temperature 60 Self-temperature rise [deg] Inductance [uH] 15 10 5 0 0 200 400 600 800 1000 DC Bias [mA] 50 40 30 20 10 0 0 200 400 600 800 1000 DC Bias [mA] Frequency vs Inductance Inductance [uH] 1000 100 10 1 0.1 1 10 100 1000 Frequency [MHz] The data is reference only. Electrical characteristics vary depending on environment or measurement condition. TAIYO YUDEN reserves the right to make change to the data at any time without notice. Before making final selection, please check product specification.
