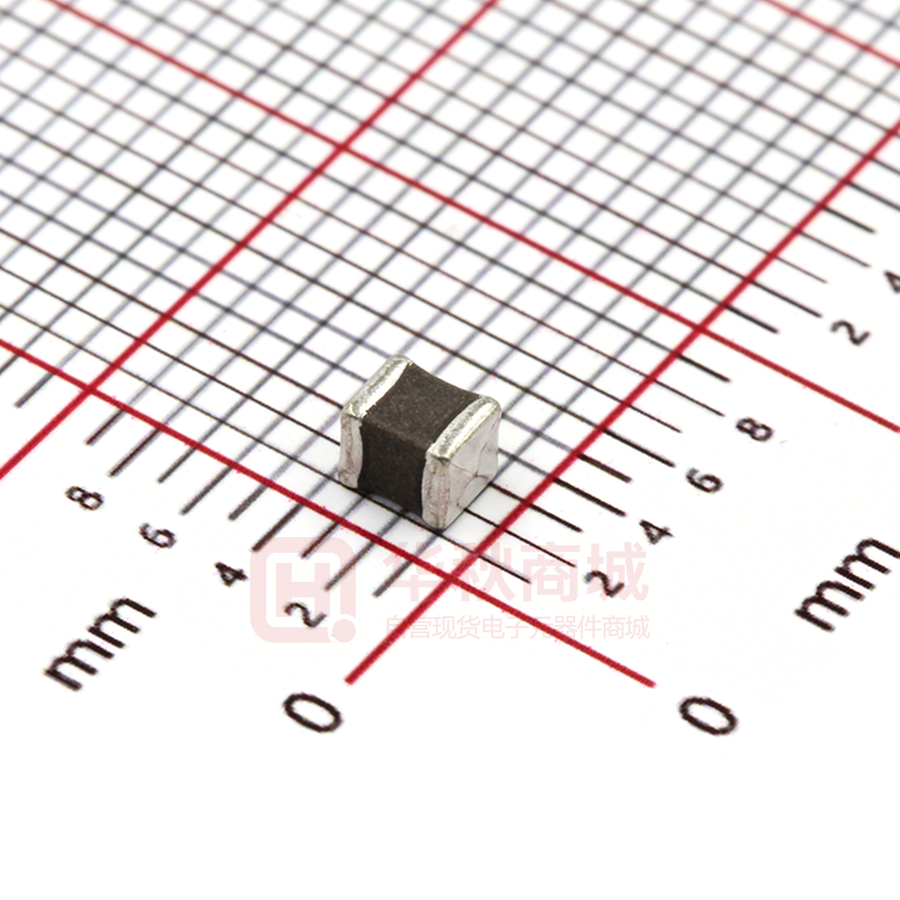

CBC3225T4R7MR

有关敝司产品的注意事项 请务必在使用敝司产品之前阅读。 注意 ■ 本产品目录所记载的内容为2016年10月之内容。因改良等原因，可能会不经预告而变更记载内容，所以请务必在 使用前先确认最新的产品信息。未按照本产品目录所记载的内容或交货规格说明书使用敝司产品的，即便其致使使 用设备发生损害、瑕疵等时，敝司也不承担任何责任，敬请悉知。 ■ 就规格相关的详细内容，敝司备有交货规格说明书，详情请向敝司咨询。 ■ 使用敝司产品时，请务必事先安装到设备之后，在实际使用的环境下进行评估和确认。 ■ 本产品目录所中记载的产品可使用于一般电子设备［音像设备、办公自动化设备、家电产品、办公设备、信息 /通讯设 备（手机、电脑等）］。因此，若考虑将本产品目录所记载的产品使用于可能会直接危及生命或身体的设备［运输用设 备（汽车驱动控制设备、火车控制设备、船舶控制设备等）、交通信号设备、防灾设备、医疗用器械、高公共性信息通 信设备（电话交换机以及电话、无线、广播电视等基站）］等时，请务必事先向敝司咨询。 另外，请勿将敝司产品使用于对安全性和可靠性要求较高的设备（航天设备、航空设备、原子能控制设备、海底设 备、军事设备等）。 且即便属于一般电子设备，使用于对安全性和可靠性要求较高的设备、电路上时，敝司建议进行充分的安全评估， 并根据需要，在设计时追加保护电路等。 未经敝司的事先书面同意，把本产品目录中记载的产品使用于前述需要向敝司咨询的设备或敝司禁止使用的设备， 从而给客户或第三方造成的损害的，敝司不承担任何责任，敬请悉知。 ■ 因使用敝司产品，发生第三方的知识产权等权利相关问题的，敝司不承担责任。另外，并不代表授予这些权利的实 施权，敬请悉知。 ■ 除非书面合同中另有规定，敝司产品的保证范围仅限于交付的敝司产品单品，并且就敝司产品的故障或瑕疵所导致 的损害，敝司不承担任何责任，敬请悉知。 ■ 本产品目录所记载的内容适用于从敝司营业所、销售子公司、销售代理店（即“正规销售渠道”）购买的敝司产 品，并不适用于从上述以外的渠道购买的敝司产品，敬请悉知。 ■ 出口相关注意事项 本产品目录所记载的部分产品在出口时须事先确认《外汇和对外贸易法》以及美国出口管理的相关法规，并办理相 关手续。如有不明之处，请向敝司咨询。 17 绕线型片状功率电感器 （CB 系列） WIRE-WOUND CHIP POWER INDUCTORS（CB SERIES） 回流焊 REFLOW ※使用温度范围： -40 ～+105℃（包含产品本身发热） * Operating Temp.：-40～+105℃（Including self-generated heat） 型号标示法 ■PARTS NUMBER C B ① △ △ ② 2 0 1 ③ ①类型 name ①Series Code 代码 CB 2 T ④ 1 0 0 ⑤ M △ △ △ △ ⑥ ⑦ ⑧ ④Packaging ④包装 Code 代码 T Series 类型name Wound chip power inductor 绕线型片状功率电感器 电感器／功率电感器 ②特性 ②Characteristics Code 代码 △△ △C △L MF ③尺寸（L × W） ③Dimensions（L×W） Type（inch） 外型 （inch） 1608 2012 2016 2518 3225 1608（0603） 2012（0805） 2016（0806） 2518（1007） 3225（1210） Packaging 包装 Taping 卷盘带装 ⑤标称电感值 ⑤Nominal inductance Code 代码 （example） （例） 1R0 100 101 小数点 point ※R＝Decimal Characteristics 特性 Standard 标准品 大电流 High current 超薄 Low profile 低损耗 Low loss 代码 Code 空格 space △＝Blank ⑥电感量公差 tolerance ⑥Inductance Code 代码 K M Dimensions 尺寸 （L（L×W）［mm］ ×W ） ［mm］ 1.6×0.8 2.0×1.25 2.0×1.6 2.5×1.8 3.2×2.5 Nominal inductance［μH］ 标称电感值 ［μH］ 1.0 10 100 Inductance tolerance 电感量公差 ±10％ ±20％ ⑦个别规格 ⑦Special code Code 代码 △ R Special code 个别规格 标准品 Standard Low Rdc 低 品 type Rdc ⑧Internal code ⑧本公司管理记号 标准外型尺寸／标准数量 ■STANDARD EXTERNAL DIMENSIONS / STANDARD QUANTITY 推荐焊盘图案 Land Patterns Recommended 实装上的注意 Surface Mounting ・请确认实装状态后使用。 ・Mounting and soldering conditions should be checked beforehand. W ・本产品焊法限定为回流焊法。 ・Applicable soldering process to these products is reflow soldering L Type A T MF1608 0.55 C 2012 0.60 e 2016 0.60 2518 0.60 3225 0.85 A B A Type CBMF1608 CB L2012 CB 2012 CB C2012 CB 2016 CB C2016 CB 2518 CB C2518 CB C3225 only. B 0.7 1.0 1.0 1.5 1.7 C 1.0 1.45 1.8 2.0 2.7 单位： mm Unit：mm 标准数量 Standard quantity［pcs］ [pcs] Paper Embossed 纸带tape 压纹带tape L W T e 1.6±0.2 （0.063±0.008） 2.0±0.2 （0.079±0.008） 2.0±0.2 （0.079±0.008） 2.0±0.2 （0.079±0.008） 2.5±0.2 （0.098±0.008） 3.2±0.2 （0.126±0.008） 0.8±0.2 （0.031±0.008） 1.25±0.2 （0.049±0.008） 1.25±0.2 （0.049±0.008） 1.6±0.2 （0.063±0.008） 1.8±0.2 （0.071±0.008） 2.5±0.2 （0.098±0.008） 0.8±0.2 （0.031±0.008） 0.9±0.1 （0.035±0.004） 1.25±0.2 （0.049±0.008） 1.6±0.2 （0.063±0.008） 1.8±0.2 （0.071±0.008） 2.5±0.2 （0.098±0.008） 0.45±0.15 （0.016±0.006） 0.5±0.2 （0.020±0.008） 0.5±0.2 （0.020±0.008） 0.5±0.2 （0.020±0.008） 0.5±0.2 （0.020±0.008） 0.6±0.3 （0.024±0.012） － 3000 4000 － － 3000 － 2000 － 2000 － 1000 Unit：mm（inch） 单位： mm（inch） i_wound_CB_e-E05R01 ▶ 由于篇幅有限，本产品目录中只记载了有代表性的产品规格，若考虑使用弊司产品时，请确认交货规格说明书中的详细规格。 另外，有关各产品的详细信息 （特性图、可靠性信息、使用时的注意事项等），请参阅弊司网站 （http://www.ty-top.com/ ）。 68 17 ■PARTS NUMBER 型号一览 ●1608（0603）type 型 Parts number 型号 CBMF1608T1R0M CBMF1608T2R2M CBMF1608T3R3M CBMF1608T4R7M CBMF1608T100[] CBMF1608T220[] CBMF1608T470[] Self-resonant DC直流电阻 Resistance 自共振频率 frequency ［Ω］（±30％） （min.） ［Ω］ ［MHｚ］ （±30％） Nominal inductance 标称电感值 ［μH］ ［μ H］ Inductance tolerance 电感量公差 RoHS RoHS RoHS RoHS RoHS RoHS RoHS 1.0 2.2 3.3 4.7 10 22 47 ±20％ ±20％ ±20％ ±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ EHS Nominal inductance 标称电感值 ［μH］ ［μ H］ Inductance tolerance 电感量公差 RoHS RoHS RoHS RoHS RoHS RoHS RoHS RoHS RoHS RoHS RoHS RoHS 1.0 2.2 3.3 4.7 6.8 10 10 15 22 47 68 100 ±20％ ±20％ ±20％ ±20％ ±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ 100 80 55 45 38 32 32 28 16 11 10 8 EHS Nominal inductance 标称电感值 ［μH］ ［μ H］ Inductance tolerance 电感量公差 自共振频率 frequency ｚ］ （min.） ［MH ［MHｚ］（min.） DC直流电阻 Resistance ［Ω］（±30％） ［Ω］ （±30％） RoHS RoHS RoHS RoHS RoHS RoHS 1.0 2.2 4.7 10 22 47 ±20％ ±20％ ±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ 100 70 45 40 16 11 0.19 0.33 0.50 1.2 3.7 5.8 EHS Nominal inductance 标称电感值 ［μH］ ［μ H］ Inductance tolerance 电感量公差 RoHS RoHS RoHS RoHS RoHS RoHS 1.0 2.2 4.7 10 22 47 ±20％ ±20％ ±20％ ±20％ ±20％ ±20％ EHS 标称电感值 Nominal inductance ［μH］ ［μ H］ Inductance tolerance 电感量公差 EHS ［MHｚ］（min.） 100 80 60 45 32 16 11 Rated current　※）　［ｍA］ 额定电流　※） ［ｍA］ 直流重叠允许电流 温度上升允许电流 Saturation current Temperature rise current Idc2 Idc1 Idc1 Idc2 0.09 0.17 0.22 0.24 0.36 1.0 2.5 290 190 170 145 115 70 50 770 560 500 470 380 230 140 Measuring 测试频率 frequency［MHz］ ［MHz］ 7.96 7.96 7.96 7.96 2.52 2.52 2.52 型 ●2012（0805）type Parts number 型号 2012T1R0M 2012T2R2M 2012T3R3M 2012T4R7M 2012T6R8M 2012T100[] 2012T100[]R 2012T150[] 2012T220[] 2012T470[] 2012T680[] 2012T101[] Parts number 型号 CB CB CB CB CB CB C2012T1R0M C2012T2R2M C2012T4R7M C2012T100[] C2012T220[] C2012T470[] Parts number 型号 CB CB CB CB CB CB L2012T1R0M L2012T2R2M L2012T4R7M L2012T100M L2012T220M L2012T470M Self-resonant Idc1 Idc1 500 410 330 300 250 190 200 170 135 90 70 60 0.15 0.23 0.30 0.40 0.47 0.70 0.50 1.3 1.7 3.7 6.0 7.0 Self-resonant DC直流电阻 Resistance 自共振频率 frequency ［Ω］（±30％） （±30％） （min.） ［Ω］ ［MHｚ］ ［MHｚ］（min.） 100 80 45 32 23 11 Saturation current 直流重叠允许电流 Temperature rise current 温度上升允许电流 Idc2 Idc2 900 770 650 580 540 440 520 320 280 190 140 130 测试频率 Measuring ［MHz］ frequency［MHz］ 7.96 7.96 7.96 7.96 7.96 2.52 2.52 2.52 2.52 2.52 2.52 0.796 Rated current　※）　［ｍA］ 额定电流　※） ［ｍA］ Measuring 测试频率 温度上升允许电流 Temperature rise current frequency［MHz］ ［MHz］ Idc2 Idc1 Idc1 Idc2 700 840 7.96 530 640 7.96 360 520 7.96 240 340 2.52 170 190 2.52 120 150 2.52 电感器／功率电感器 CB CB CB CB CB CB CB CB CB CB CB CB Rated current　※）　［ｍA］ 额定电流　※） ［ｍA］ Self-resonant DC直流电阻 Resistance 自共振频率 frequency ［Ω］（±30％） ［［MHｚ］（min.） （min.） ［Ω］ MHｚ］ （±30％） 直流重叠允许电流 Saturation current Rated current　※）　［ｍA］ 额定电流　※） ［ｍA］ 直流重叠允许电流 温度上升允许电流 Saturation current Temperature rise current Idc2 Idc1 Idc1 Idc2 0.15 0.39 0.66 1.0 2.1 4.2 620 440 275 205 150 100 950 590 490 370 250 140 Measuring 测试频率 frequency［MHz］ ［MHz］ 0.1 0.1 0.1 0.1 0.1 0.1 型 ●2016（0806）type 型号 Parts number CB 2016T1R0M RoHS 1.0 CB 2016T1R5M RoHS 1.5 CB 2016T2R2M RoHS 2.2 CB 2016T3R3M RoHS 3.3 CB 2016T4R7M RoHS 4.7 CB 2016T6R8M RoHS 6.8 CB 2016T100[] RoHS 10 CB 2016T150[] RoHS 15 CB 2016T220[] RoHS 22 CB 2016T330[] RoHS 33 CB 2016T470[] RoHS 47 CB 2016T680[] RoHS 68 CB 2016T101[] RoHS 100 Please specify the Inductance tolerance（code（Ｋor Ｍ） (・注[])请在型号的 []中指定电感量公差代码 M或K ）。 Rated current　※）　［ｍA］ 额定电流　※） ［ｍA］ Self-resonant 自共振频率 DC直流电阻 Resistance frequency ［Ω］（±30％） （min.） ［Ω］ ［MHｚ］ （±30％） ［MHｚ］（min.） ±20％ ±20％ ±20％ ±20％ ±20％ ±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ 100 80 70 55 45 38 32 28 16 14 11 10 8 Saturation current 直流重叠允许电流 0.09 0.11 0.13 0.20 0.25 0.35 0.50 0.70 1.0 1.7 2.4 3.0 4.5 Idc1 Idc1 600 550 510 400 340 300 250 210 165 130 110 90 70 Temperature rise current 温度上升允许电流 Idc2 Idc2 1,100 1,000 1,000 800 740 600 520 440 370 270 240 210 170 测试频率 Measuring frequency［MHz］ ［MHz］ 7.96 7.96 7.96 7.96 7.96 7.96 2.52 2.52 2.52 2.52 2.52 2.52 0.796 ※）The saturation current value（Idc1） is the DC current value having范围在 inductance decrease down to 30%.（ 20℃） ）为直流重叠带来的电感值下降， （atat20 ℃） ※） 直流重叠允许电流 （Idc1 30％以内的直流电感值 ※）The temperature rise（current is the current value having ※） 温度上升允许电流 为温度上升到 ℃时的直流电感值 （attemperature Idc2）value（Idc2） 40DC 20℃） increase by 40℃.（ at 20℃） ※）The rated current value is following either Idc1 or Idc2, which is the lower one. ※）额定电流值：Idc1或Idc2中低的一方的直流电流值当作额定电流值。 i_wound_CB_e-E05R01 ▶ 由于篇幅有限，本产品目录中只记载了有代表性的产品规格，若考虑使用弊司产品时，请确认交货规格说明书中的详细规格。 另外，有关各产品的详细信息 （特性图、可靠性信息、使用时的注意事项等），请参阅弊司网站 （http://www.ty-top.com/ ）。 17 69 ■PARTS NUMBER 型号一览 Parts number 型号 CB CB CB CB CB CB CB CB CB CB CB CB CB C2016T1R0M C2016T1R5M C2016T2R2M C2016T3R3M C2016T4R7M C2016T6R8M C2016T100[] C2016T150[] C2016T220[] C2016T330[] C2016T470[] C2016T680[] C2016T101[] 额定电流　※） ［ｍA］ Rated current　※）　［ｍA］ Measuring 测试频率 温度上升允许电流 Temperature rise current frequency［MHz］ ［MHz］ Idc2 Idc2 1,100 7.96 1,000 7.96 720 7.96 610 7.96 530 7.96 450 7.96 350 2.52 300 2.52 240 2.52 220 2.52 150 2.52 130 2.52 110 0.796 Self-resonant Nominal inductance 标称电感值 ［μH］ ［μ H］ Inductance tolerance 电感量公差 RoHS RoHS RoHS RoHS RoHS RoHS RoHS RoHS RoHS RoHS RoHS RoHS RoHS 1.0 1.5 2.2 3.3 4.7 6.8 10 15 22 33 47 68 100 ±20％ ±20％ ±20％ ±20％ ±20％ ±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ 100 80 70 55 45 38 32 28 16 14 11 10 8 EHS Nominal inductance 标称电感值 ［μH］ ［μ H］ Inductance tolerance 电感量公差 自共振频率 frequency ｚ］ （min.） ［MH ［MHｚ］（min.） DC直流电阻 Resistance ［Ω］（±30％） ［Ω］ （±30％） RoHS RoHS RoHS RoHS RoHS RoHS RoHS RoHS RoHS RoHS RoHS RoHS RoHS RoHS RoHS RoHS RoHS RoHS RoHS RoHS 1.0 1.5 2.2 3.3 4.7 4.7 6.8 10 15 22 33 47 68 100 150 220 330 470 680 1000 ±20％ ±20％ ±20％ ±20％ ±20％ ±20％ ±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ 100 80 68 54 46 46 38 30 23 19 15 12 9.5 9.0 7.0 5.5 4.5 3.5 3.0 2.4 0.06 0.07 0.09 0.11 0.10 0.13 0.15 0.25 0.32 0.50 0.70 0.95 1.5 2.1 3.2 4.5 7.0 10 17 24 EHS Nominal inductance 标称电感值 ［μH］ ［μ H］ Inductance tolerance 电感量公差 EHS DC直流电阻 Resistance 自共振频率 frequency ［Ω］（±30％） （min.） ［Ω］ ［［MHｚ］（min.） （±30％） MHｚ］ 直流重叠允许电流 Saturation current Idc1 Idc1 1,100 1,000 750 600 550 450 380 300 250 220 150 130 110 0.10 0.15 0.20 0.27 0.37 0.59 0.82 1.2 1.8 2.8 4.3 7.0 8.0 型 ●2518（1007）type 电感器／功率电感器 型号 Parts number CB CB CB CB CB CB CB CB CB CB CB CB CB CB CB CB CB CB CB CB 2518T1R0M 2518T1R5M 2518T2R2M 2518T3R3M 2518T4R7MR 2518T4R7M 2518T6R8M 2518T100[] 2518T150[] 2518T220[] 2518T330[] 2518T470[] 2518T680[] 2518T101[] 2518T151[] 2518T221[] 2518T331[] 2518T471[] 2518T681[] 2518T102[] Parts number 型号 CB C2518T1R0M RoHS 1.0 CB C2518T1R5M RoHS 1.5 CB C2518T2R2M RoHS 2.2 CB C2518T3R3M RoHS 3.3 CB C2518T4R7M RoHS 4.7 CB C2518T6R8M RoHS 6.8 CB C2518T100[] RoHS 10 CB C2518T150[] RoHS 15 CB C2518T220[] RoHS 22 CB C2518T330[] RoHS 33 CB C2518T470[] RoHS 47 CB C2518T680[] RoHS 68 CB C2518T101[] RoHS 100 CB C2518T151[] RoHS 150 CB C2518T221[] RoHS 220 CB C2518T331[] RoHS 330 CB C2518T471[] RoHS 470 CB C2518T681[] RoHS 680 Please specify the Inductance tolerance（code（Ｋor Ｍ） (・注[])请在型号的 []中指定电感量公差代码 M或K ）。 Self-resonant Self-resonant ±20％ ±20％ ±20％ ±20％ ±20％ ±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ DC直流电阻 Resistance 自共振频率 frequency ［Ω］（±30％） （min.） ［Ω］ ［［MHｚ］（min.） （±30％） MHｚ］ 100 80 68 54 41 38 30 23 19 15 12 9.5 9.0 7.0 5.5 4.5 3.5 3.0 Rated current　※）　［ｍA］ 额定电流　※） ［ｍA］ Measuring 测试频率 直流重叠允许电流 温度上升允许电流 Saturation current Temperature rise current frequency［MHz］ ［MHz］ Idc2 Idc1 Idc1 Idc2 1,200 1,500 7.96 650 1,400 7.96 510 1,300 7.96 440 1,200 7.96 310 1,200 7.96 340 1,100 7.96 270 930 7.96 250 820 2.52 180 650 2.52 165 580 2.52 130 460 2.52 110 420 2.52 70 310 2.52 60 260 0.796 55 210 0.796 50 180 0.796 40 140 0.796 35 120 0.796 30 90 0.796 25 75 0.252 Rated current　※）　［ｍA］ 额定电流　※） ［ｍA］ 直流重叠允许电流 温度上升允许电流 Saturation current Temperature rise current Idc2 Idc1 Idc1 Idc2 0.08 0.11 0.13 0.16 0.20 0.30 0.36 0.65 0.77 1.5 1.9 2.8 3.7 6.1 8.4 12.3 22 28 1,000 950 890 730 680 550 480 350 320 270 240 200 160 140 115 100 80 65 1,200 1,190 1,100 1,020 920 740 680 500 460 320 290 200 170 130 110 90 70 60 Measuring 测试频率 frequency［MHz］ ［MHz］ 7.96 7.96 7.96 7.96 7.96 7.96 2.52 2.52 2.52 2.52 2.52 2.52 0.796 0.796 0.796 0.796 0.796 0.796 ※）The saturation current value（Idc1） is the DC current value having范围在 inductance decrease down to 30%.（ 20℃） ）为直流重叠带来的电感值下降， （atat20 ℃） ※） 直流重叠允许电流 （Idc1 30％以内的直流电感值 ※）The temperature rise（current is the current value having ※） 温度上升允许电流 为温度上升到 ℃时的直流电感值 （attemperature Idc2）value（Idc2） 40DC 20℃） increase by 40℃.（ at 20℃） ※）The rated current value is following either Idc1 or Idc2, which is the lower one. ※）额定电流值：Idc1或Idc2中低的一方的直流电流值当作额定电流值。 i_wound_CB_e-E05R01 ▶ 由于篇幅有限，本产品目录中只记载了有代表性的产品规格，若考虑使用弊司产品时，请确认交货规格说明书中的详细规格。 另外，有关各产品的详细信息 （特性图、可靠性信息、使用时的注意事项等），请参阅弊司网站 （http://www.ty-top.com/ ）。 70 17 型号一览 ■PARTS NUMBER 型 ●3225（1210）type 型号 Parts number EHS Nominal inductance 标称电感值 ［μH］ ［μ H］ ±20％ ±20％ ±20％ ±20％ ±20％ ±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ ±10％，±20％ 自共振频率 frequency （min.） ［［MHｚ］（min.） MHｚ］ DC直流电阻 Resistance ［Ω］（±30％） ［Ω］ （±30％） 250 220 190 160 70 50 23 20 17 13 10 8.0 6.0 3.0 1.8 1.6 0.055 0.060 0.080 0.095 0.100 0.120 0.133 0.195 0.27 0.41 0.67 1.0 1.4 2.5 12 13 Rated current　※）　［ｍA］ 额定电流　※） ［ｍA］ Measuring 测试频率 温度上升允许电流 Temperature rise current frequency［MHz］ ［MHz］ Idc2 Idc2 1,440 0.1 1,310 0.1 1,130 0.1 1,040 0.1 1,010 0.1 940 0.1 900 0.1 850 0.1 780 0.1 570 0.1 480 0.1 410 0.1 340 0.1 190 0.1 110 0.1 100 0.1 直流重叠允许电流 Saturation current Idc1 Idc1 2,000 2,000 2,000 2,000 1,250 950 900 730 620 500 390 320 270 190 110 100 ※）The saturation current value（Idc1） is the DC current value having范围在 inductance decrease down to 30%.（ 20℃） ）为直流重叠带来的电感值下降， （atat20 ℃） ※） 直流重叠允许电流 （Idc1 30％以内的直流电感值 ※）The temperature rise（current is the current value having ※） 温度上升允许电流 为温度上升到 ℃时的直流电感值 （attemperature Idc2）value（Idc2） 40DC 20℃） increase by 40℃.（ at 20℃） ※）The rated current value is following either Idc1 or Idc2, which is the lower one. ※）额定电流值：Idc1或Idc2中低的一方的直流电流值当作额定电流值。 电感器／功率电感器 CB C3225T1R0MR RoHS 1.0 CB C3225T1R5MR RoHS 1.5 CB C3225T2R2MR RoHS 2.2 CB C3225T3R3MR RoHS 3.3 CB C3225T4R7MR RoHS 4.7 CB C3225T6R8MR RoHS 6.8 CB C3225T100[]R RoHS 10 CB C3225T150[]R RoHS 15 CB C3225T220[]R RoHS 22 CB C3225T330[]R RoHS 33 CB C3225T470[]R RoHS 47 CB C3225T680[]R RoHS 68 CB C3225T101[]R RoHS 100 CB C3225T221[]R RoHS 220 CB C3225T821[]R RoHS 820 CB C3225T102[]R RoHS 1000 Please specify the Inductance tolerance（code（Ｋor Ｍ） (・注[])请在型号的 []中指定电感量公差代码 M或K ）。 Self-resonant Inductance tolerance 电感量公差 i_wound_CB_e-E05R01 ▶ 由于篇幅有限，本产品目录中只记载了有代表性的产品规格，若考虑使用弊司产品时，请确认交货规格说明书中的详细规格。 另外，有关各产品的详细信息 （特性图、可靠性信息、使用时的注意事项等），请参阅弊司网站 （http://www.ty-top.com/ ）。 17 71 WIRE-WOUND CHIP INDUCTORS (LB SERIES)， WIRE-WOUND CHIP POWER INDUCTORS (CB SERIES)， WIRE-WOUND CHIP INDUCTORS FOR SIGNAL LINES (LB SERIES M TYPE) ■PACKAGING ①Minimum Quantity Standard Quantity ［pcs］ Paper Tape Embossed Tape Type LB C3225 CB C3225 LB 3218 LB R2518 LB C2518 LB 2518 CB 2518 CB C2518 LBM2016 LB C2016 LB 2016 CB 2016 CB C2016 LB 2012 LB C2012 LB R2012 CB 2012 CB C2012 CB L2012 LB 1608 LBMF1608 CBMF1608 － 1000 － 2000 － 2000 － 2000 － 3000 4000 4000 － － － 3000 ②Tape material ●Embossed tape Top tape Chip Filled Sprocket hole Base tape Chip cavity Chip ●Card board carrier tape Top tape Base tape Chip Filled Sprocket hole Bottom tape Chip cavity Chip ▶ This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification. For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) . i_wound_CB_LB_pack_e-E05R01 ③Taping Dimensions ●Embossed Tape （0.315 inches wide） A B F Type LBM2016 LB C3225 CB C3225 LB 3218 LB 2518 CB 2518 LB C2518 CB C2518 LB R2518 LB 2016 CB 2016 LB C2016 CB C2016 LB 2012 CB 2012 LB C2012 CB C2012 LB R2012 LBMF1608 CBMF1608 1.75±0.1 (0.069±0.004） 8.0±0.3 (0.315±0.012) φ1.5＋0.1/－0 (φ0.059＋0.004/-0) 3.5±0.05 (0.138±0.002) Sprocket hole 4.0±0.1 (0.157±0.004) 2.0±0.1 (0.079±0.004) Chip cavity A B 1.75±0.1 2.1±0.1 （0.069±0.004） （0.083±0.004） 2.8±0.1 3.5±0.1 （0.110±0.004） （0.138±0.004） 2.1±0.1 3.5±0.1 （0.083±0.004） （0.138±0.004） Insertion pitch F 4.0±0.1 （0.157±0.004） 4.0±0.1 （0.157±0.004） 4.0±0.1 （0.157±0.004） Tape thickness T K 0.3±0.05 1.9max. （0.012±0.002） （0.075max.） 0.3±0.05 4.0max. （0.012±0.002） （0.157max.） 0.3±0.05 2.2max. （0.012±0.002） （0.087max.） 2.15±0.1 （0.085±0.004） 2.7±0.1 （0.106±0.004） 4.0±0.1 （0.157±0.004） 0.3±0.05 （0.012±0.002） 2.2max. （0.087max.） 1.75±0.1 （0.069±0.004） 2.1±0.1 （0.083±0.004） 4.0±0.1 （0.157±0.004） 0.3±0.05 （0.012±0.002） 1.9max. （0.075max.） 1.45±0.1 （0.057±0.004） 2.25±0.1 （0.089±0.004） 4.0±0.1 （0.157±0.004） 0.25±0.05 （0.010±0.002） 1.45max. （0.057max.） 1.1±0.1 （0.043±0.004） 1.9±0.1 （0.075±0.004） 4.0±0.1 （0.157±0.004） 0.25±0.05 （0.010±0.002） 1.2max. （0.047max.） Unit：mm（inch） Insertion pitch F 4.0±0.1 （0.157±0.004） 4.0±0.1 （0.157±0.004） Tape thickness T 1.1max. （0.043max.） 1.1max. （0.043max.） Unit：mm（inch） ●Card board carrier tape（0.315 inches wide） A B F Type CB L2012 LB 1608 1.75±0.1 (0.069±0.004） T 8.0±0.3 (0.315±0.012) φ1.5＋0.1/－0 (φ0.059＋0.004/-0) 3.5±0.05 (0.138±0.002) Sprocket hole 4.0±0.1 (0.157±0.004) 2.0±0.1 (0.079±0.004) Chip cavity A B 1.55±0.1 2.3±0.1 （0.061±0.004） （0.091±0.004） 1.0±0.1 1.8±0.1 （0.039±0.004） （0.071±0.004） ▶ This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification. For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) . i_wound_CB_LB_pack_e-E05R01 ④Leader and Blank Portion ⑤Reel Size ⑥Top Tape Strength The top tape requires a peel-off force 0.2 to 0.7N in the direction of the arrow as illustrated below. ▶ This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification. For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) . i_wound_CB_LB_pack_e-E05R01 WIRE-WOUND CHIP INDUCTORS (LB SERIES), WIRE-WOUND CHIP POWER INDUCTORS (CB SERIES), WIRE-WOUND CHIP INDUCTORS FOR SIGNAL LINES (LB SERIES M TYPE) ■RELIABILITY DATA 1.Operating temperature Range LB, LBC, LBR, LBMF Series Specified Value CB, CBC, CBL, CBMF Series －40～＋105℃（Including self-generated heat） LBM Series 2. Storage Temperature Range（after soldering） LB, LBC, LBR, LBMF Series Specified Value CB, CBC, CBL, CBMF Series －40～＋85℃ LBM Series Test Methods and Remarks LB, CB Series： Please refer the term of "7. storage conditions" in precautions. 3.Rated Current LB, LBC, LBR, LBMF Series Specified Value CB, CBC, CBL, CBMF Series Within the specified tolerance LBM Series 4.Inductance LB, LBC, LBR, LBMF Series Specified Value CB, CBC, CBL, CBMF Series Within the specified tolerance LBM Series Test Methods and Remarks LB・LBC・LBR・CB・CBC・CBL・LBMF・CBMF・LBM Series Measuring equipment ：LCR Mater（HP4285A or its equivalent） Measuring frequency : Specified frequency 5.Q LB, LBC, LBR, LBMF Series Specified Value CB, CBC, CBL, CBMF Series LBM Series Test Methods and Remarks LBM Series Measuring equipment Measuring frequency － Within the specified tolerance : LCR Mater（HP4285A or its equivalent） : Specified frequency 6.DC Resisitance LB, LBC, LBR, LBMF Series Specified Value CB, CBC, CBL, CBMF Series Within the specified tolerance LBM Series Test Methods and Remarks Measuring equipment : DC Ohmmeter （HIOKI 3227 or its equivalent） 7.Self-Resonant Frequency LB, LBC, LBR, LBMF Series Specified Value CB, CBC, CBL, CBMF Series Within the specified tolerance LBM Series Test Methods and Remarks Measuring equipment : Impedance analyzer （HP4291A or its equivalent） ▶ This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification. For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) . i_wound_CB_LB_reli_e-E05R01 8.Temperature Characteristic LBM2016 Specified Value Test Methods and Remarks Inductance change : Within±5％ LB1608 LB2012 LBR2012 CB2012 CBL2012 LB2016 CB2016 LB2518 LBR2518 CB2518 LBC3225 CBC3225 LBMF1608 CBMF1608 LBC2016 CBC2016 LBC2518 CBC2518 LB3218 LBC2012 CBC2012 Inductance change : Within±20％ Inductance change : Within±25％ Inductance change : Within±35％ Based on the inductance at 20℃ and Measured at the ambient of －40℃～＋85℃. 9.Rasistance to Flexure of Substrate LB, LBC, LBR, LBMF Series Specified Value CB, CBC, CBL, CBMF Series No damage. LBM Series Warp : 2mm（LB・LBC・LBR・CB・CBC・CBL・LBM・LBMF・CBMF Series） Test substrate : Glass epoxy-resin substrate Thickness : 0.8mm（LB1608・LBMF1608・CBMF1608） : 1.0mm（Others） Test Methods and Remarks 10.Body Strength LB, LBC, LBR, LBMF Series Specified Value CB, CBC, CBL, CBMF Series No damage. LBM Series Test Methods and Remarks LB・LBC・LBR・CB・CBC・CBL・LBM Applied force : 10N Duration : 10sec. LB1608・LBMF1608・CBMF1608 Applied force : 5N Duration : 10sec. 11.Adhesion of terminal electrode LB, LBC, LBR, LBMF Series Specified Value CB, CBC, CBL, CBMF Series No abnormality. LBM Series Test Methods and Remarks LB・LBC・LBR・CB・CBC・CBL・LBM・LBMF・CBMF Applied force : 10N to X and Y directions Duration : 5 sec. Test substrate : Printed board LB1608・CBMF1608・LBMF1608 Applied force : 5N to X and Y directions Duration : 5 sec. Test substrate : Printed board ▶ This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification. For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) . i_wound_CB_LB_reli_e-E05R01 12.Resistance to vibration LB, LBC, LBR, LBMF Series Specified Value CB, CBC, CBL, CBMF Series Inductance change : Within±5％ No significant abnormality in appearance. LBM Series Test Methods and Remarks Inductance change : Within±10％ No significant abnormality in appearance. LB・LBR・LBC・CB・CBC・CBL・LBM・LBMF・CBMF： The given sample is soldered to the board and then it is tested depending on the conditions of the following table. Vibration Frequency 10～55Hz Total Amplitude 1.5mm (May not exceed acceleration 196m/s2) Sweeping Method 10Hz to 55Hz to 10Hz for 1min. X Time Y For 2 hours on each X, Y, and Z axis. Z Recovery : At least 2 hrs of recovery under the standard condition after the test, followed by the measurement within 48 hrs. 13.Drop test LB, LBC, LBR, LBMF Series Specified Value CB, CBC, CBL, CBMF Series － LBM Series 14.Solderability LB, LBC, LBR, LBMF Series Specified Value CB, CBC, CBL, CBMF Series At least 90％ of surface of terminal electrode is covered by new LBM Series Test Methods and Remarks LB・LBC・LBR・CB・CBC・CBL・LBM・LBMF・CBMF： Solder temperature : 245±5℃ Duration : 5±0.5sec Flux : Methanol solution with 25％ of colophony 15.Resistance to soldering LB, LBC, LBR, LBMF Series Specified Value CB, CBC, CBL, CBMF Series LBM Series Test Methods and Remarks Inductance change : Within±10％ Inductance change : Within±5％ LB・LBC・LBR・CB・CBC・CBL・LBM・LBMF・CBMF： 3 times of reflow oven at 230℃ MIN for 40sec. with peak temperature at 260 ℃ for 5sec. Recovery : At least 2 hrs of recovery under the standard condition after the test, followed by the measurement within 48 hrs. 16.Resisitance to solvent LB, LBC, LBR, LBMF Series Specified Value CB, CBC, CBL, CBMF Series － LBM Series Test Methods and Remarks Solvent temperature Type of solvent Cleaning conditions : Room temperature : Isopropyl alcohol : 90s. Immersion and cleaning. 17.Thermal shock LB, LBC, LBR, LBMF Series Specified Value CB, CBC, CBL, CBMF Series Inductance change : Within±10％ No significant abnormality in appearance. LBM Series Test Methods and Remarks LB・LBC・LBR・CB・CBC・CBL・LBM・LBMF・CBMF： The given sample is soldered to the board and then its Inductance is measured after 100cycles of the following conditions. Conditions of 1 cycle Step Temperature (℃) Duration (min) 1 －40±3 30±3 2 Room temperature Within 3 3 ＋85±2 30±3 4 Room temperature Within 3 Recovery : At least 2 hrs of recovery under the standard condition after the test, followed by the measurement within 48 hrs. ▶ This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification. For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) . i_wound_CB_LB_reli_e-E05R01 18.Damp heat life test LB, LBC, LBR, LBMF Series Specified Value CB, CBC, CBL, CBMF Series Inductance change : Within±10％ No significant abnormality in appearance. LBM Series Test Methods and Remarks Temperature Humidity Duration Recovery : 60±2℃ : 90～95％RH : 1000 hrs : At least 2 hrs of recovery under the standard condition after the test, followed by the measurement within 48 hrs. 19.Loading under damp heat life test LB, LBC, LBR, LBMF Series CB, CBC, CBL, CBMF Series Specified Value Test Methods and Remarks Inductance change : Within±10％ No significant abnormality in appearance. LBM Series Temperature Humidity Duration Applied current Recovery : 60±2℃ : 90～95％RH : 1000 hrs : Rated current : At least 2 hrs of recovery under the standard condition after the test, followed by the measurement within 48 hrs. 20.High temperature life test Specified Value LB, LBC, LBR, LBMF Series － CB, CBC, CBL, CBMF Series Inductance change : Within±10％ No significant abnormality in appearance. LBM Series Test Methods and Remarks Temperature Duration Recovery : 85±2℃ : 1000 hrs : At least 2 hrs of recovery under the standard condition after the test, followed by the measurement within 48 hrs. 21.Loading at high temperature life test LB, LBC, LBR, LBMF Series Specified Value CB, CBC, CBL, CBMF Series LBM Series Test Methods and Remarks Temperature Duration Applied current Recovery Inductance change : Within±10％ （LBC3225 Series : Within±20％） No significant abnormality in appearance. － : 85±2℃ : 1000 hrs : Rated current : At least 2 hrs of recovery under the standard condition after the test, followed by the measurement within 48 hrs. 22.Low temperature life test LB, LBC, LBR, LBMF Series Specified Value CB, CBC, CBL, CBMF Series Inductance change : Within±10％ No significant abnormality in appearance. LBM Series Test Methods and Remarks Temperature Duration Recovery : －40±2℃ : 1000 hrs : At least 2 hrs of recovery under the standard condition after the test, followed by the measurement within 48 hrs. 23.Standard condition LB, LBC, LBR, LBMF Series Specified Value CB, CBC, CBL, CBMF Series LBM Series Standard test conditions Unless specified, Ambient temperature is 20±15℃ and the Relative humidity is 65±20％. If there is any doubt about the test results, further measurement shall be had within the following limits: Ambient Temperature: 20±2℃ Relative humidity: 65±5％ Inductance value is based on our standard measurement systems. ▶ This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification. For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) . i_wound_CB_LB_reli_e-E05R01 WIRE-WOUND CHIP INDUCTORS (LB SERIES)， WIRE-WOUND CHIP POWER INDUCTORS (CB SERIES)， WIRE-WOUND CHIP INDUCTORS FOR SIGNAL LINES (LB SERIES M TYPE) ■PRECAUTIONS 1．Circuit Design Precautions ◆Operating environment 1. The products described in this specification are intended for use in general electronic equipment, (office supply equipment, telecommunications systems, measuring equipment, and household equipment). They are not intended for use in mission-critical equipment or systems requiring special quality and high reliability (traffic systems, safety equipment, aerospace systems, nuclear control systems and medical equipment including life-support systems,) where product failure might result in loss of life, injury or damage. For such uses, contact TAIYO YUDEN Sales Department in advance. 2．PCB Design Precautions Technical considerations ◆Land pattern design 1. Please contact any of our offices for a land pattern, and refer to a recommended land pattern of a right figure or specifications. PRECAUTIONS 【Recommended Land Patterns】 Surface Mounting ・ Mounting and soldering conditions should be checked beforehand. ・ Applicable soldering process to those products is reflow soldering only. 3．Considerations for automatic placement Precautions Technical considerations ◆Adjustment of mounting machine 1. Excessive impact load should not be imposed on the products when mounting onto the PC boards. 2. Mounting and soldering conditions should be checked beforehand. 1. When installing products, care should be taken not to apply distortion stress as it may deform the products. 4．Soldering Precautions ◆Reflow soldering（ LB and CB Types） 1. For reflow soldering with either leaded or lead-free solder, the profile specified in "point for controlling" is recommended. ◆Recommended conditions for using a soldering iron 1. Put the soldering iron on the land-pattern. Soldering iron's temperature - Below 350℃ Duration-3 seconds or less. The soldering iron should not come in contact with inductor directly. ◆Reflow soldering（ LB and CB Types） 1. Reflow profile Technical considerations ◆Recommended conditions for using a soldering iron 1. Components can be damaged by excessive heat where soldering conditions exceed the specified range. 5．Cleaning Precautions Technical considerations ◆Cleaning conditions Washing by supersonic waves shall be avoided. ◆Cleaning conditions If washed by supersonic waves, the products might be broken. ▶ This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification. For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) . i_wound_CB_LB_prec_e-E05R01 6．Handling Precautions Technical considerations ◆Handling 1. Keep the inductors away from all magnets and magnetic objects. ◆Breakaway PC boards（ splitting along perforations） 1. When splitting the PC board after mounting inductors, care should be taken not to give any stresses of deflection or twisting to the board. 2. Board separation should not be done manually, but by using the appropriate devices. ◆Mechanical considerations 1. Please do not give the inductors any excessive mechanical shocks. ◆Handling 1. There is a case that a characteristic varies with magnetic influence. ◆Breakaway PC boards（ splitting along perforations） 1. Planning pattern configurations and the position of products should be carefully performed to minimize stress. ◆Mechanical considerations 1. There is a case to be damaged by a mechanical shock. 7．Storage conditions Precautions ◆Storage 1. To maintain the solderability of terminal electrodes and to keep the packing material in good condition, temperature and humidity in the storage area should be controlled. ・ Recommended conditions Ambient temperature：0～40℃ / Humidity：Below 70% RH The ambient temperature must be kept below 30℃ even under ideal storage conditions, solderability of products electrodes may decrease as time passes. For this reason, Should be used within 6 months from the time of delivery. Technical considerations ◆Storage 1. Under a high temperature and humidity environment, problems such as reduced solderability caused by oxidation of terminal electrodes and deterioration of taping/packaging materials may take place. ▶ This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification. For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) . i_wound_CB_LB_prec_e-E05R01
