Wire-wound Chip Inductors (LB series)

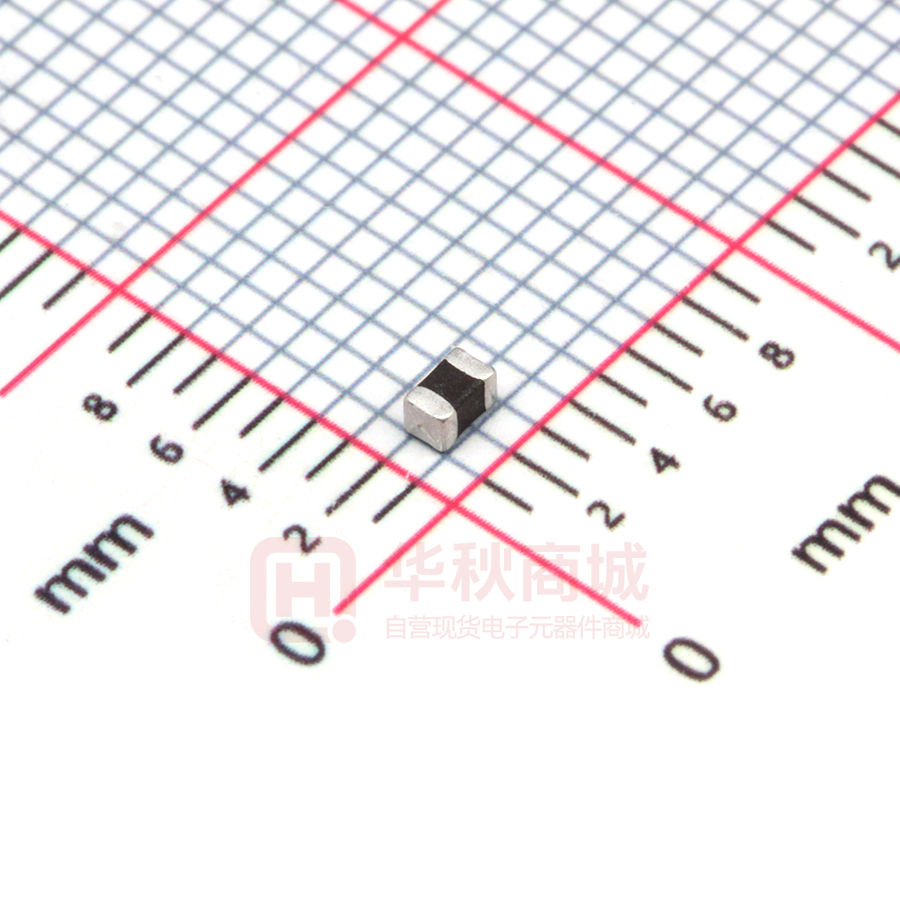

LB2012T101K
Features
Item Summary
100uH±10%, 45mA, 0805/2012 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping Embossed 3000pcs
Products characteristics table
External Dimensions
100 uH ± 10 %
Dimension L
2.0 ±0.2 mm
Case Size (EIA/JIS)
0805/2012
Dimension W
1.25 ±0.2 mm
Rated Current (max)
45 mA
Dimension T
1.25 ±0.2 mm
Dimension e
0.5 ±0.2 mm
Inductance
DC Resistance (max)
9.1 Ω
DC Resistance (typ)
7Ω
LQ Measuring Frequency
0.796 MHz
Self Resonant Frequency (min)
8 MHz
Operating Temp. Range
-40 to +105 ℃
(Including-self-generated heat)
Temperature characteristic
± 20 %
(Inductance change)
RoHS2 Compliance (10 subst.)
Yes
REACH Compliance (168 subst.)
Yes
Soldering
Reflow
2016.12.30
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
Halogen free / RoHS compliant
Wire Wound Inductor
2016/7/22
-Electrical Characteristics Data-
Wire-wound Chip Inductors (LB series)
Dimension
Length :
Width :
Height :
LB2012T101K
Inductance :
DC Resistance :
Rated Current :
unit : mm
2.0 + / - 0.2
1.25 + / - 0.2
1.25 + / - 0.2
100
7.0
/
45
unit : inch
( 0.079 + / - 0.008 )
( 0.049 + / - 0.008 )
( 0.049 + / - 0.008 )
uH ( test freq at 0.796MHz )
ohm ( typ / max )
9.1
mA
Rated current typical : 10% reduction from initial L value.
and Temperature will rise by 20 deg C
DC Bias vs Inductance
DC Bias vs Temperature
60
Self-temperature rise [deg]
Inductance [uH]
150
100
50
0
0
20
40
60
80
100
DC Bias [mA]
50
40
30
20
10
0
0
60
120
180
240
300
DC Bias [mA]
Frequency vs Inductance
Inductance [uH]
10000
1000
100
10
0.1
1
10
100
Frequency [MHz]
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
