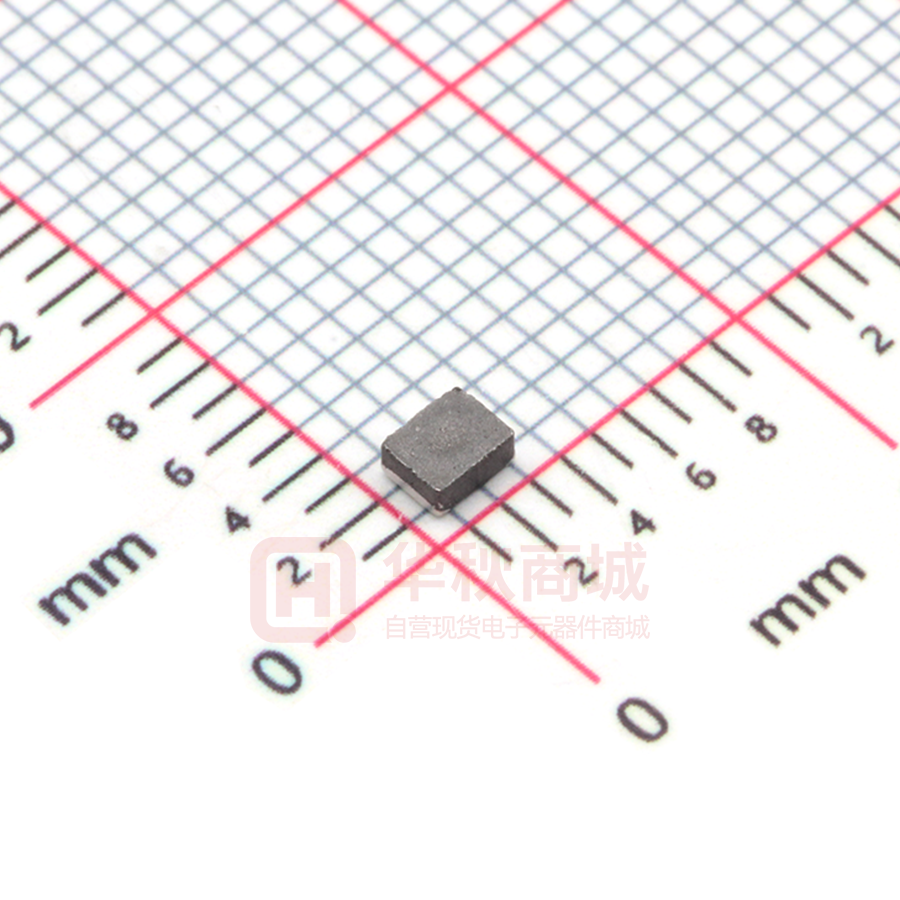

MAMK2520T1R0M

Spec Sheet PrintPDF Metal Core Wire-wound Chip Power Inductors (MCOIL™, MA series) MAMK2520T1R0M Features Item Summary 1.0uH±20%, 2.7A, 1008/2520 (EIA/JIS) Lifecycle Stage Mass Production Standard packaging quantity (minimum) Taping Embossed 3000pcs Products characteristics table External Dimensions 1.0 uH ± 20 % Dimension L 2.5 ±0.2 mm Case Size (EIA/JIS) 1008/2520 Dimension W 2.0 ±0.2 mm Rated Current (max) 2.7 A Dimension T Max 1.2 mm Dimension e 0.5 ±0.3 mm Inductance Saturation Current (max) 3.1 A Saturation Current (typ) 3.6 A Temperature Rise Current (max) 2.7 A Temperature Rise Current (typ) 3.1 A DC Resistance (max) 59 mΩ DC Resistance (typ) 45 mΩ LQ Measuring Frequency 2 MHz Operating Temp. Range -40 to +105 ℃ Recommended Land Patterns (Including-self-generated heat) Temperature characteristic ± 15 % (Inductance change) RoHS2 Compliance (10 subst.) Yes REACH Compliance (168 subst.) Yes Soldering Reflow 2017.01.02 The data is reference only. Electrical characteristics vary depending on environment or measurement condition. TAIYO YUDEN reserves the right to make change to the Date at any time without notice. Before making final selection, please check product specification. http://www.ty-top.com Powered by TCPDF (www.tcpdf.org) Halogen free / RoHS compliant Wire Wound Inductor 2014/9/30 -Electrical Characteristics Data- Metal Core Wire-wound Chip Power Inductors (MCOIL™, MA series) MCOIL TM Dimension Length : Width : Height : MAMK2520T1R0M unit : mm 2.5 + / - 0.2 2.0 + / - 0.2 1.2 max. Inductance : 1.0 DC Resistance : 0.045 Saturation Current : 3,600 Temp. rise Current : 3,100 / / / uH 0.059 3,100 2,700 unit : inch ( 0.098 + / - 0.008 ) ( 0.079 + / - 0.008 ) ( 0.047 max. ) ( test freq at 2MHz ) ohm ( typ / max ) mA ( typ / max ) mA ( typ / max ) Saturation current typical : 30% reduction from initial L value. Temp rise Current typical : Temperature will rise by 40 deg C Maximum rated voltage : DC 25 V DC Bias vs Inductance DC Bias vs Temperature 60 Self-temperature rise [deg] Inductance [uH] 2 1.5 1 0.5 0 0 1000 2000 3000 4000 5000 DC Bias [mA] 50 40 30 20 10 0 0 1000 2000 3000 4000 5000 DC Bias [mA] Frequency vs Inductance Inductance [uH] 100 10 1 0.1 0.1 1 10 100 1000 10000 Frequency [MHz] The data is reference only. Electrical characteristics vary depending on environment or measurement condition. TAIYO YUDEN reserves the right to make change to the data at any time without notice. Before making final selection, please check product specification.
