SMD Power Inductors (NR series S type)

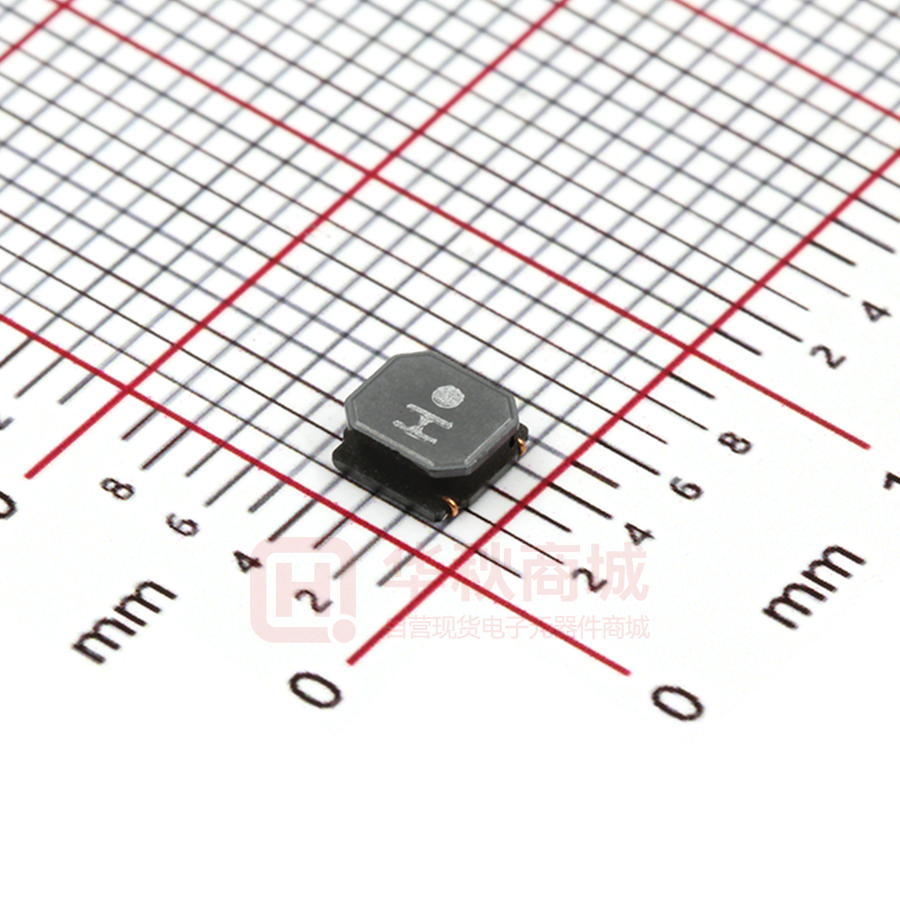

NRS4018T4R7MDGJ
Features
Item Summary
4.7uH±20%, 1.7A, 4.0x4.0x1.8mm
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping Embossed 3500pcs
Products characteristics table
External Dimensions
4.7 uH ± 20 %
Dimension L
4.0 ±0.2 mm
Case Size (mm)
4.0x4.0
Dimension W
4.0 ±0.2 mm
Rated Current (max)
1.7 A
Dimension H
Max 1.8 mm
Dimension e
1.1 ±0.2 mm
Dimension f
2.5 ±0.2 mm
Inductance
Saturation Current (max)
2A
Saturation Current (typ)
2.33 A
Temperature Rise Current (max)
1.7 A
Temperature Rise Current (typ)
1.88 A
DC Resistance (max)
84 mΩ
DC Resistance (typ)
70 mΩ
LQ Measuring Frequency
100 kHz
Self Resonant Frequency (min)
35 MHz
Operating Temp. Range
-25 to +125 ℃
Recommended Land Patterns
(Including-self-generated heat)
Temperature characteristic
± 20 %
(Inductance change)
RoHS2 Compliance (10 subst.)
Yes
REACH Compliance (168 subst.)
Yes
Soldering
Reflow
2017.01.02
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
Halogen free / RoHS compliant
Wire Wound Inductor
2014/11/5
-Electrical Characteristics Data-
SMD Power Inductors (NR series S type)
Dimension
Length :
Width :
Height :
NRS4018T4R7MDGJ
Inductance :
DC Resistance :
Saturation Current :
Temp. rise Current :
unit : mm
4.0 + / - 0.2
4.0 + / - 0.2
1.8
max.
unit : inch
( 0.157 + / - 0.008 )
( 0.157 + / - 0.008 )
( 0.071
max. )
4.7
uH ( test freq at 0.1MHz )
ohm ( typ / max )
0.07
/ 0.084
2,000 mA ( max )
1,700 mA ( max )
Saturation current typical : 30% reduction from initial L value.
Temp rise Current typical : Temperature will rise by 40 deg C
DC Bias vs Inductance
DC Bias vs Temperature
60
Self-temperature rise [deg]
10
Inductance [uH]
8
6
4
2
0
0
1000
2000
3000
4000
5000
DC Bias [mA]
50
40
30
20
10
0
0
600
1200
1800
2400
3000
DC Bias [mA]
Frequency vs Inductance
Inductance [uH]
100
10
1
0.1
0.1
1
10
100
Frequency [MHz]
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
