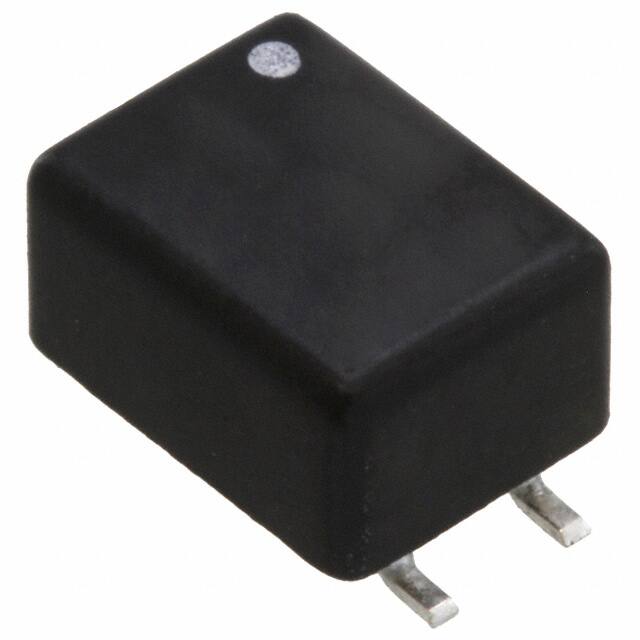

CMJ-2-101

CLJ / CMJ Series • Miniature SMD Miniature Common Mode Chokes Features • Miniature, low cost SMD for pick and place compatability while providing consistent and reliable coplanarity • Other inductance values and special types for operation at 150°C ambient are available upon request • High attenuation over a wide frequency range - CAN bus types to 500MHz • Available in Bifilar and Sector winding (Suffix S) • Materials: UL94-VO • Manufactured in an ISO 9001:2015 and ISO 14001:2015 certified Talema facility • Fully RoHS & REACH Compliant and meets lead free reflow level J-STD-020E Electrical Specifications @ 25°C Nominal Voltage: 42Vac (50/60Hz), 80Vdc Operating Temperature: -25° to +85°C Storage Temperature: -40° to +125°C Climatic category: according to IEC68-1 25/85/56 Test voltage between windings: 500 Vrms C LJ / C MJ Series Part N umber Test Voltage between Windings: 500Vrms Test Frequency: Inductance measured @ 100KHz/20mV - Micro Miniature C ommon Mode C hokes for D ata & Signal Line EMI Suppression OC L (µH ) +50/-30% LL (µH ) IN (mA) RCU (mOhms) N umber of D ata Lines Schematic D ouble C hokes C LJ/C MJ-2-050 5 1200 0.05 60 2 2 C LJ/C MJ-2-110 11 500 0.05 80 2 2 C LJ/C MJ-2-240 24 500 0.10 100 2 2 C LJ/C MJ-2-250 25 500 0.10 110 2 2 C LJ/C MJ-2-470 47 500 0.20 130 2 2 C LJ/C MJ-2-510 51 500 0.10 148 2 2 C LJ/C MJ-2-101 100 500 0.25 315 2 2 C LJ/C MJ-2-471 470 500 0.20 290 2 2 C LJ/C MJ-2-102 1000 500 0.25 275 2 2 C LJ/C MJ-2-222 2200 400 0.15 345 2 2 C LJ/C MJ-2-472 4700 200 0.30 940 2 2 C LJ/C MJ-2-103 10000 200 0.40 1400 2 2 C LJ/C MJ-2-203 20000 140 1.00 1800 2 2 C LJC MJ-2-473 47000 100 1.00 3900 2 2 C LJ/C MJ-4-240 24 500 0.20 100 4 4 C LJ/C MJ-4-470 47 500 0.25 200 4 4 C LJ/C MJ-4-101 100 500 0.30 380 4 4 C LJ/C MJ-4-471 470 500 0.25 280 4 4 Quad C hokes C LJ/C MJ-4-102 1000 500 0.35 320 4 4 C LJ/C MJ-4-222 2200 400 0.50 570 4 4 C LJ/C MJ-4-472 4700 300 0.70 940 4 4 C LJ/ C MJ-4-103 10000 110 0.50 1700 4 4 C LJ/C MJ-4-123 12000 130 1.00 2100 4 4 See following page for Dimensional details & Schematic Talema Group • Magnetic Components • www.talema.com CLJ / CMJ Series • Miniature SMD Miniature Common Mode Chokes CLJ / CMJ -4 CLJ / CMJ -2 Dimensions 0.287 (7.30) 1 0.213 (5.40) 0.35 (8.90) 0.016 x 0.016 (0.40x0.40) 4 Suggested Pad Layout Schematic - 2 0.185 0.146 (4.70) (3.70) 0.020 x 0.012 (0.50 x 0.30) 1 4 2 3 Schematic - 4 W/Y 0.039 (1.00) 0.100 (2.54) 0.213 (5.40) 0.189 (4.80) 5 8 TAL IN 0.100 (2.54) 0.394 (10.00) 0.213 (5.40) CLJ2-XXX Wk/Yr 0.350 0.287 (8.90) (7.30) Suggested Pad Layout CMJ4-472 Dimensions 0.05 (1.27) 0.213 (5.40) 0.09 (2.30) 0.0315 (0.80) 0.394 (10.0) Dimensions: Inches (Millimeters) Tolerance: ±0.010 (0.25) unless specified otherwise Surface Coplanarity will be 0.004(0.10) maximum Packing Method: Tape and Reel; Qty/Reel: 1000 Pcs Impedance Performance CMJ-4 Series Quad Chokes Impedance in Ohms 100,000 10,000 1,000 100 10 1 10 100 1000 10000 100000 Frequency in kHz 4 x 11µH 4 x 47µH 4 x 100µH 4 x 470µH 4 x 1mH 4 x 2.2mH 4 x 4.7mH 4 x 12mH Talema Group • Magnetic Components • www.talema.com 1 8 2 7 3 6 4 5 Regional Locations - Design, Manufacturing, Sales & Marketing Talema Group Regional Offices North America Asia United States India (Sales & Marketing) (Design, Manufacturing, Sales & Marketing) Talema Group, LLC Administrative Office Factory Premises PO Box 935 900 Innovation Drive Talema Electronic India Private Limited Door No. 221, 1st and 2nd Floor Talema Electronic India Private Limited Suite 120, Rolla Missouri 65402 KJ Plaza, Opp.to Vidya Mandir School Meyanoor Main Road Tel: +1 573-303-3675 E-Mail: Salem - 636 004 Tamil Nadu INDIA Tel: +91 427 - 243 3100 sales@talemagroup.com Web: www.talema.com Fax: +91 427 - 243 3109 E-Mail: talema@talemaindia.net Plot Nos. 30, 31 Electrical and Electronic Industrial Estate Suramangalam Salem - 636 005 Tamil Nadu INDIA Tel: +91 427 - 243 3000 E-Mail: talema@talemaindia.net Web: www.talema.com Web: www.talema.com Europe Germany Ireland (Design, Sales & Marketing) (Design, Sales & Marketing) Talema Elektronik GmbH Sembdnerstr. 5 Nuvotem TEO Units W & X, Gweedore Business Park 82110 Germering Tel: +49 89 - 841 00 - 0 Derrybeg, Letterkenny, Co. Donegal Tel: +353 (0) 74 95 48666 Fax: +49 89 - 841 00 25 E-Mail: info@talema.de Fax: +353 (0) 74 95 48139 E-Mail: info@nuvotem.com Web: www.talema.com Web: www.nuvotem.com Czech Republic (Design, Manufacturing, Sales & Marketing) NT Magnetics s.r.o. Chebská 27 322 00 Plzeñ Tel: +420 377 - 338 351 Fax: +420 377 - 338 350 E-Mail: talema@talema.cz Web: www.ntmagnetics.cz Locations of Talema Group Regional Offices Talema GroupTHE TALEMA • Magnetic •Components www.talema.com GROUP Worldwide Toroidal• Specialists 05/22
