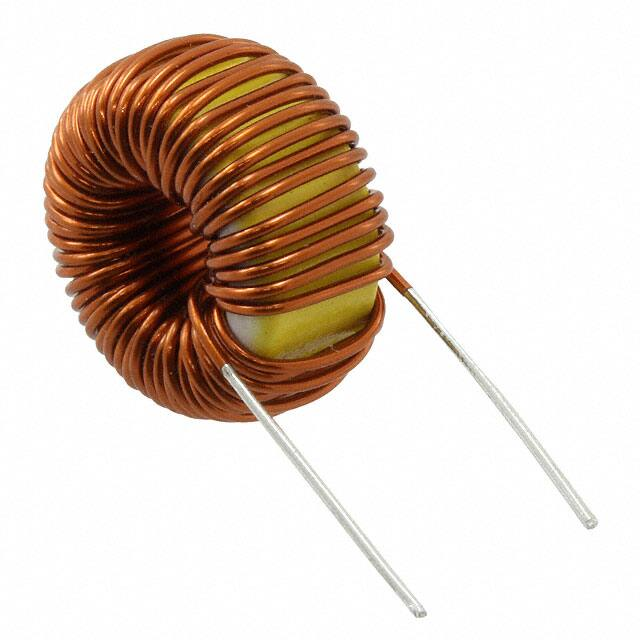

DPO-1.0-100

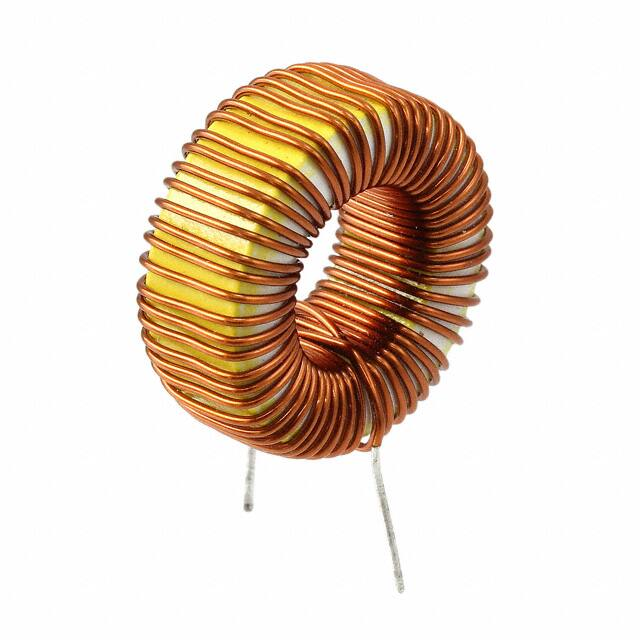

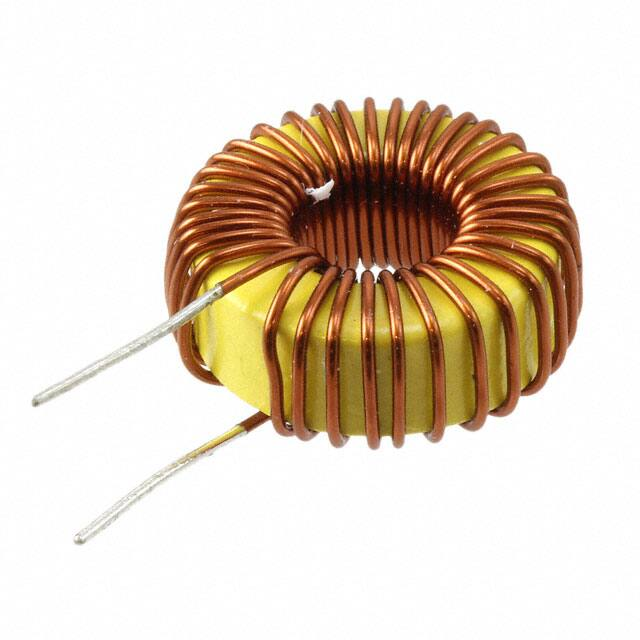

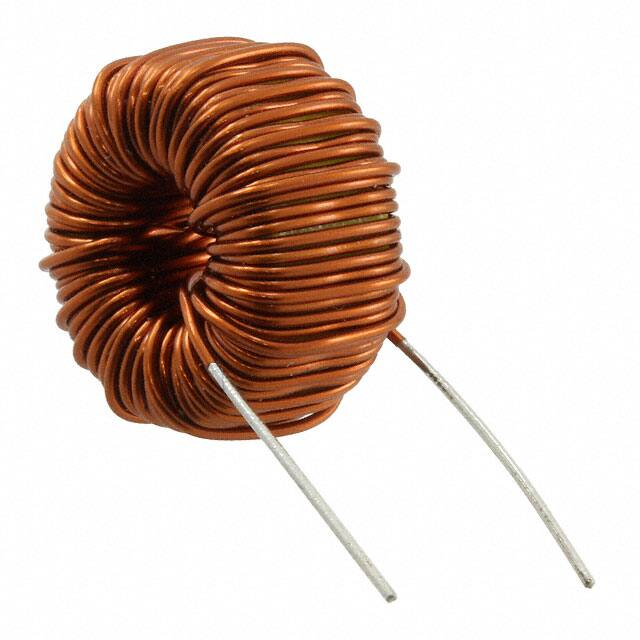

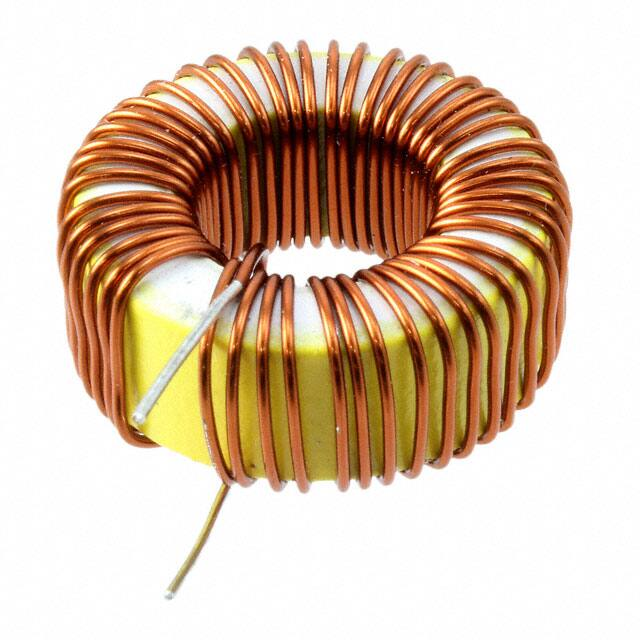

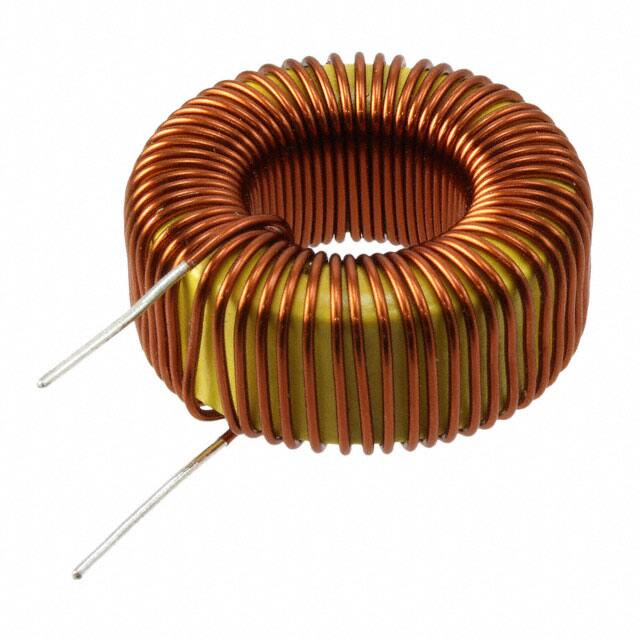

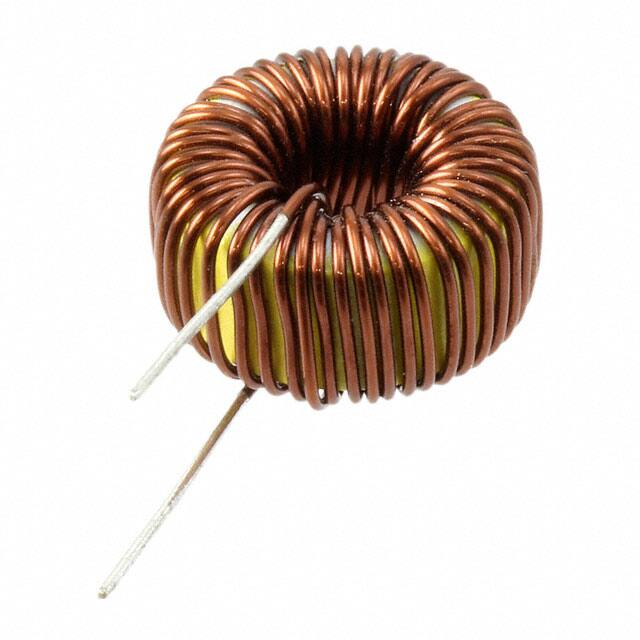

DP Series • Low Cost Power Inductors DP Series Power Inductors provide an excellent, low cost alternative to conventional chokes or inductors. Used in EMI filtering and energy storage, these compact, low radiation inductors are extremely effective in controlling AC output ripple of Switch Mode Power Supplies. Features • Broad range of inductance values and current ratings • Low cost, no radiation design • Hot Solder, pre-tinned leads for easy PC board mounting • Operating frequency upto 100KHz • Competitive pricing due to high volume production • Manufactured in ISO 9001:2015 and ISO 14001:2015 certified Talema facility • Fully RoHS & REACH Compliant Electrical Specifications @25°C Test frequency: Inductance measured @10KHz / 0.10Vrms Operating temperature: -40°C to +125°C Climatic category: IEC68-1 40/125/56 Part Number DP__-0.5-47 DP__-0.5-68 DP__-0.5-100 DP__-0.5-150 DP__-0.5-220 DP__-0.5-330 DP__-0.5-470 DP__-0.5-680 DP__-0.5-1000 DP__-0.5-1500 DP__-0.5-2200 DP__-0.5-3300 DP__-0.5-4700 DP__--1.0-22 DP__--1.0-33 DP__-1.0-47 DP__-1.0-68 DP__-1.0-100 DP__-1.0-150 DP__-1.0-220 DP__-1.0-330 DP__-1.0-470 DP__-1.0-680 DP__-1.0-1000 DP__-1.0-1500 DP__-1.0-2200 DP__-1.0-3300 IDC Amps 0.5 1.0 Applications • Switching Power Supplies • EMI / RFI filtering • Output Chokes L(µH) Typ. @ Rated Current LO (µH) ± 15% N o L o ad DCR (Ohms Max.) Min. Energy Storage (µJ)* Wire Ø (mm) Coil Siz e mm OD x Ht. 47 68 100 150 220 330 470 680 1,000 1,500 2,200 3,300 4,700 22 33 47 68 100 150 220 330 470 680 1,000 1,500 2,200 3,300 50 73 109 167 258 393 557 849 1,358 1,863 3,131 5,024 6,287 23 37 53 80 127 207 345 491 601 891 1,619 2,149 3,609 4,731 0.095 0.115 0.140 0.173 0.215 0.265 0.322 0.398 0.503 0.714 0.926 1.173 1.421 0.041 0.052 0.063 0.077 0.097 0.123 0.196 0.193 0.180 0.220 0.426 0.532 0.689 0.609 5.9 8.5 12.5 18.8 27.5 41.3 58.8 85 125 188 275 413 588 11 16.5 23.5 34 50 75 110 165 235 340 500 750 1100 1650 0.400 0.400 0.400 0.400 0.400 0.400 0.400 0.400 0.400 0.400 0.400 0.400 0.400 0.500 0.500 0.500 0.500 0.500 0.500 0.450 0.500 0.600 0.600 0.500 0.500 0.500 0.600 14 x 8 14 x 8 14 x 8 15 x 8 15 x 9 15 x 9 20 x 9 20 x 10 21 x 11 25 x 12 25 x 12 26 x 13 32 x 15 14 x 8 14 x 8 14 x 8 14 x 8 15 x 8 15 x 9 15 x 9 20 x 9 27 x 12 27 x 13 26 x 13 30 x 14 31 x 15 43 x 15 Mounting Style Availability / Siz e C 2 2 2 2 2 2 3 3 3 5 5 5 5 2 2 2 2 2 2 2 3 5 5 4 5 5 -- B 3 3 3 3 3 3 3 3 5 5 5 5 8 3 3 3 3 3 3 3 3 5 5 5 5 5 8 Note: The µJoule rating (0.5 x LI²) is the ability of the inductor to store energy. Talema Group • Magnetic Components • www.talema.com V 2 2 2 2 2 2 3 3 4 4 4 5 5 2 2 2 2 2 3 3 3 5 5 5 5 6 -- F 2 2 2 2 2 2 3 3 3 4 4 6 6 2 2 2 2 2 2 2 3 6 6 6 6 6 -- DP Series • Low Cost Power Inductors Electrical Specifications @25 °C L (µH) Typ. @ LO (µH) ± 15% DCR (Ohms Min Energy Storage Wire Ø Coil Siz e mm Rated Current N o L o ad Max.) (µJ)* (mm) O.D. x Ht. 22 27 0.070 44 0.400 14 x 8 C 2 B 3 V 2 F 2 DP__-2.0-33 33 45 0.089 66 0.400 14 x 8 2 3 2 2 DP__-2.0-47 47 73 0.090 94 0.450 15 x 8 2 3 2 2 DP__-2.0-68 68 109 0.089 136 0.500 15 x 8 2 3 2 2 DP__-2.0-100 100 157 0.109 200 0.500 19 x 8 3 3 3 3 DP__-2.0-150 150 207 0.106 300 0.600 25 x 12 4 5 4 4 Part Number IDC Amps DP__-2.0-22 DP__-2.0-220 Mounting Style Availability / Siz e 220 328 0.153 440 0.560 25 x 11 4 5 4 4 DP__-2.0-330 330 575 0.202 660 0.560 26 x 12 4 5 4 4 DP__-2.0-470 470 720 0.214 940 0.600 30 x 14 5 5 5 6 DP__-2.0-680 680 1,251 0.282 1,360 0.600 30 x 14 5 5 5 6 2.0 DP__-2.0-1000 1000 1,429 0.335 2,000 0.600 42 x 14 -- 5 9 -- DP__-2.0-1500 1500 2,488 0.441 3,000 0.600 42 x 15 -- 8 9 -- DP__-2.0-2200 2200 3,218 0.405 4,400 0.710 51 x 22 -- 10 -- -- DP__-3.0-15 15 21 0.039 68 0.500 14 x 8 2 3 2 2 DP__-3.0-22 22 34 0.050 99 0.500 14 x 8 2 3 2 2 DP__-3.0-33 33 49 0.038 149 0.630 19 x 8 3 3 3 3 DP__-3.0-47 47 75 0.048 212 0.630 20 x 8 3 3 3 3 DP__-3.0-68 68 92 0.060 306 0.630 25 x 12 4 5 4 4 DP__-3.0-100 100 157 0.080 458 0.630 25 x 12 4 5 4 4 DP__-3.0-150 150 256 0.107 675 0.630 25 x 12 4 5 4 4 DP__-3.0-220 3.0 220 346 0.134 990 0.630 29 x 13 5 5 5 6 DP__-3.0-330 330 625 0.142 1,485 0.710 30 x 14 5 5 5 6 DP__-3.0-470 470 727 0.187 2,115 0.670 42 x 14 -- 5 9 -- DP__-3.0-680 680 1,124 0.302 3,060 .0630 42 x 16 -- 8 -- -- DP__-3.0-1000 1000 1,493 0.304 4,500 0.670 49 x 20 -- 10 -- -- DP__-3.0-1500 1500 2,324 0.384 6,750 0.670 53 x 24 -- 11 -- -- DP__-3.0-2200 2200 4,090 0.509 9,900 0.670 54 x 26 -- 11 -- -- 15 23 0.029 188 0.600 20 x 8 3 3 3 3 DP__-5.0-15 DP__-5.0-22 22 28 0.039 275 0.600 25 x 12 4 5 4 4 DP__-5.0-33 33 48 0.036 413 0.710 25 x 12 4 5 4 4 DP__-5.0-47 47 82 0.043 588 0.750 25 x 12 4 5 4 4 DP__-5.0-68 68 137 0.055 850 0.750 26 x 12 4 5 4 4 100 172 0.059 1,250 0.800 30 x 13 5 5 5 6 150 221 0.094 1,875 0.710 41 x 13 -- 5 9 -- DP__-5.0-100 DP__-5.0-150 5.0 DP__-5.0-220 220 381 0.097 2,750 0.800 41 x 13 -- 5 9 -- DP__-5.0-330 330 475 0.156 4,125 0.710 49 x 20 -- 10 -- -- DP__-5.0-470 470 852 0.187 5,875 0.750 49 x 20 -- 10 -- -- DP__-5.0-680 DP__-5.0-1000 DP__-7.5-15 680 1000 15 1,186 2,093 18 0.196 0.206 0.022 8,500 12,500 422 0.800 0.900 0.750 53 x 25 55 x 26 30 x 14 --5 11 11 5 --5 --6 DP__-7.5-22 22 30 0.025 619 0.800 30 x 14 5 5 5 6 DP__-7.5-33 33 49 0.025 928 0.900 30 x 14 5 5 5 6 DP__-7.5-47 47 84 0.026 1,322 1.000 31x 14 5 5 5 6 DP__-7.5-68 68 105 0.040 1,913 0.900 42 x 14 -- 5 9 -- DP__-7.5-100 DP__-7.5-150 7.5 100 160 0.045 2,813 1.000 43 x 17 -- 8 -- -- 150 219 0.074 4,219 0.850 50 x 21 -- 10 -- -- DP__-7.5-220 220 373 0.070 6,188 1.000 51 x 22 -- 10 -- -- DP__-7.5-330 330 605 0.090 9,281 1.000 54 x 25 -- 11 -- -- DP__-7.5-470 470 1,054 0.085 13,219 1.180 55 x 28 -- 11 -- -- Talema Group • Magnetic Components • www.talema.com DP Series • Low Cost Power Inductors Electrical Specifications @25°C IDC Amps Part Number DP__-10-15 DP__-10-22 DP__-10-33 DP__-10-47 DP__-10-68 DP__-10-100 DP__-10-150 DP__-10-220 DP__-15-6.8 DP__-15-10 DP__-15-15 DP__-15-22 DP__-15-33 DP__-15-47 DP__-15-68 DP__-15-100 L (µH) Typ. LO (µH) DCR Min. Energy Wire Coil sIz e Mounting Style @ ± 15% (Ohms Storage Ø mm Availability / Siz e Rated Current N o L o ad Max.) (µJ)* mm O.D. x Ht. 15 22 33 47 68 100 150 220 6.8 10 15 22 33 47 68 100 21 28 46 75 89 152 248 427 8 14 22 36 49 75 123 207 0.013 0.021 0.022 0.028 0.042 0.044 0.041 0.054 0.009 0.012 0.011 0.014 0.018 0.016 0.018 0.023 750 1,100 1,650 2,350 3,400 5,000 7,500 11,000 765 1,125 1,688 2,475 3,713 5,288 7,650 11,250 1.000 0.900 1.000 1.000 0.900 1.000 1.180 1.180 1.000 1.000 1.180 1.250 1.180 1.400 1.500 1.500 30 x 14 41 x 14 42 x 14 42 x 14 50 x 21 50 x 21 55 x 26 55 x 26 41 x 14 41 x 14 41 x 14 44 x 18 50 x 21 51 x 22 52 x 23 56 x 27 10 15 C 5 ---------------- B 5 5 5 5 10 10 11 11 5 5 5 8 10 11 11 11 Talema's engineering staff can assist in the design of other inductance values and sizes. Notes: 1) The µJoule rating (0.5 x LI²) is the ability of the inductor to store energy. 2) Inductance measured @10KHz / 0.10Vrms without DC Current, @10KHz / 0.25Vrms with DC Current. Ordering Key DP O - 0.5 - 470 µH Inductance Value in µH Current Rating (Amps) Mounting Style - Specify the appropriate suffix. O = Open Mount C = Clip Mount B = Base Mount V = Vertical Encapsulated F = Flat Encapsulated Basic Series Designation Talema Group • Magnetic Components • www.talema.com V 5 9 9 9 ----9 9 9 ------ F 6 ---------------- Mounting Styles • DP Series • Low Cost Power Inductors Base Mount Type O - Open Mount Type B- I Type B-II a x x 9.5 ~ 11.0 b TALEMA IN Wk/Yr DPB-XX-XXX 5.1 TALEMA IN Wk/Yr DPB-XX-XXX 3.8 f Type C - Clip Mount f 4.0 ±1 4.0 ±1 2 3 2 X d e 1 e d c 1 1 Style C ode c d e f g h i x 2 16.5 11.4 7.6 -- -- -- -- Coil O.D. + 2.8 3 21.0 11.4 7.6 -- -- -- -- Coil O.D. + 2.8 4 24.1 15.2 11.4 -- -- -- -- Coil O.D. + 2.8 5 31.8 17.8 12.7 -- -- -- -- Coil O.D. + 3.3 2 17.8 12.8 20.0 10.0 5.0 15.0 5.0 -- e Clip Mount h 7 6 5 f d 1 2 g c 3 " V" 4 Vertical Mount Type F - Flat Mount TALEMA IN Wk/Yr DPF-XX-XXX e 2 f d 12.5 10.0 20.0 5.0 -- 15.0 12.5 22.5 5.0 -- 5 32.0 20.5 35.0 17.5 12.5 27.5 7.5 -- 6 32.0 23.0 35.0 20.0 12.5 27.5 7.5 -- 9 43.0 28.0 47.5 25.0 25.0 40.0 7.5 -- 12.5 10.0 15.0 -- -- -- 3 22.5 22.0 15.0 12.5 20.0 -- -- -- Flat 4 27.5 27.0 17.5 15.0 25.0 -- -- -- Mount 6 32.5 32.0 20.0 20.0 30.0 -- -- -- 9 42.5 42.0 28.5 25.0 35.0 -- -- -- 5 25.4 15.2 10.2 20.3 34.3 -- -- "B-I" "B-II" Talema Group 25.0 30.0 17.0 Mount 3 15.5 18.0 17.5 B ase • 23.0 27.0 2 g c 4 3 4 " F" 3.5 ±0.3 1 Dimensional Tolerance - Inches ±0.010 (mm ±0.25) Siz e 4.0 ±1 8 2 Mounting "C" i 4 Schematic Type V - Vertical Mount TALEMA IN Wk/Yr DPV-XX-XXX g c c g 4.0 ±1 1/2 c e d • 8 27.9 20.3 15.2 22.9 36.8 -- -- 10 35.6 22.9 17.8 30.5 44.5 -- -- 11 43.2 27.9 22.9 38.1 52.1 -- -- 3 19.1 10.8 6.4 15.2 15.9 -- -- Magnetic Components • Pin Ø S ee Data P age 0.60 x 0.88 0.75 x 1.10 0.60 x 0.88 Coil O.D. + 3.5 1.27 Coil O.D. + 3.8 1.02 www.talema.com Regional Locations - Design, Manufacturing, Sales & Marketing Talema Group Regional Offices North America Asia United States India (Sales & Marketing) (Design, Manufacturing, Sales & Marketing) Talema Group, LLC Administrative Office Factory Premises PO Box 935 900 Innovation Drive Talema Electronic India Private Limited Talema Electronic India Private Limited Plot Nos. 30, 31 Electrical and Electronic Suite 120, Rolla Missouri 65402 Tel: +1 573-303-3675 E-Mail: sales@talemagroup.com Web: www.talema.com Door No. 221, 1st and 2nd Floor KJ Plaza, Opp.to Vidya Mandir School Meyanoor Main Road Salem - 636 004 Tamil Nadu INDIA Tel: +91 427 - 243 3100 Fax: +91 427 - 243 3109 E-Mail: talema@talemaindia.net Web: www.talema.com Industrial Estate Suramangalam Salem - 636 005 Tamil Nadu INDIA Tel: +91 427 - 243 3000 E-Mail: talema@talemaindia.net Web: www.talema.com Europe Germany Ireland (Design, Sales & Marketing) (Design, Sales & Marketing) Talema Elektronik GmbH Sembdnerstr. 5 Nuvotem TEO Units W & X, Gweedore Business Park 82110 Germering Tel: +49 89 - 841 00 - 0 Derrybeg, Letterkenny, Co. Donegal Tel: +353 (0) 74 95 48666 Fax: +49 89 - 841 00 25 E-Mail: info@talema.de Fax: +353 (0) 74 95 48139 E-Mail: info@nuvotem.com Web: www.talema.com Web: www.nuvotem.com Czech Republic (Design, Manufacturing, Sales & Marketing) NT Magnetics s.r.o. Chebská 27 322 00 Plzeñ Tel: +420 377 - 338 351 Fax: +420 377 - 338 350 E-Mail: talema@talema.cz Web: www.ntmagnetics.cz Locations of Talema Group Regional Offices Talema Group • Magnetic Components • www.talema.com 07/18
