ACH3218-223-TD01

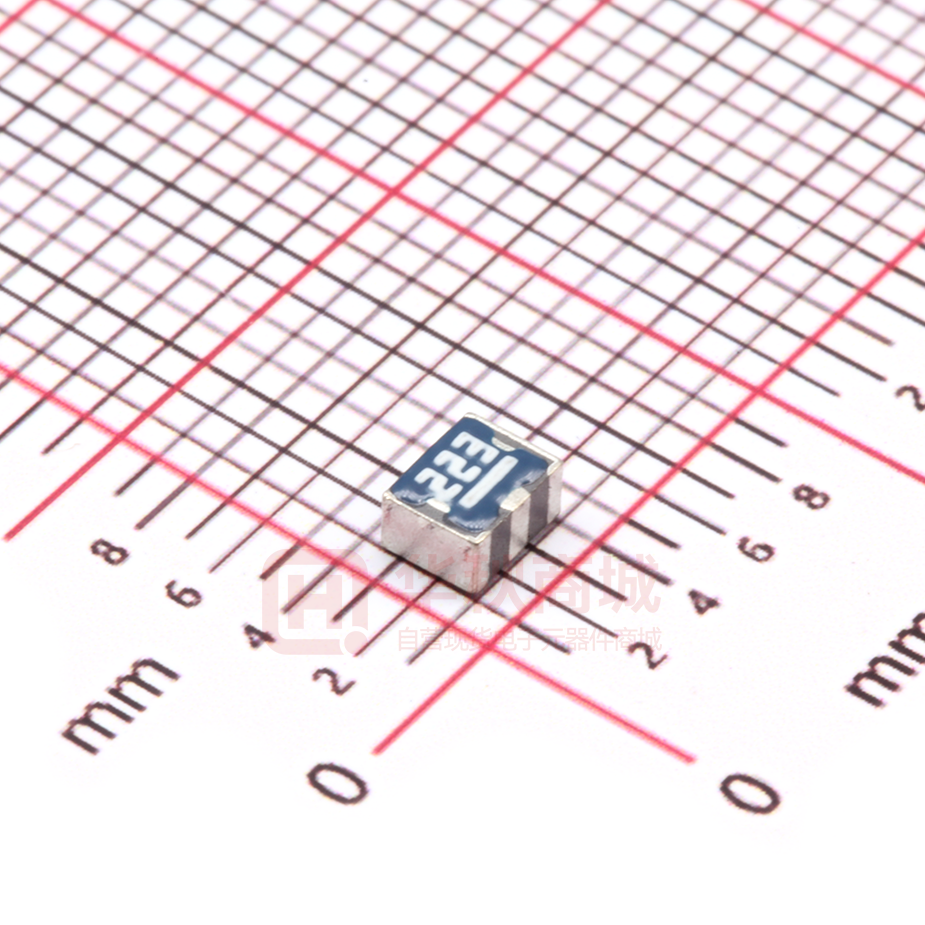

Discontinue Issue Date Last Purchase Order Date Last Shipment Date Dec. 2, 2021 Mar. 31, 2023 Oct. 31, 2023 E M C • Please refer to our Web site about replacement information. C o m p o n e n t s 3-terminal filters For power line ACH series RoHS REACH SVHC-Free Cl Br Pb Halogen Free Lead Free pr od u st cts op w pe il d lb pr e od or uc ha tio ve n be en ACH3218 type FEATURES T-type EMC filter that can be used for high-current circuits. Achieve excellent attenuation characteristics by using it for circuits with stable grounds. Does not require mounting space due to vertical mounting design, making it perfect for high-density circuits. Guaranteed temperature range is –40 to +125°C, so it can be used under severe environmental conditions. Use this product under reflow soldering conditions. APPLICATION HE devices (TVs, VTRs, CD players, electronic musical instruments, PCs, etc.) OA equipment (Computers, terminals, facsimiles, etc.) FA equipment (Robots, NC machine tools, process controllers, etc.) AE equipment (Car navigation systems, ECUs, etc.) PART NUMBER CONSTRUCTION ACH Series name 3218 - L×W×T Dimensions (mm) 223 - Capacitance (pF) T D01 Packaging style Internal code CHARACTERISTICS SPECIFICATION TABLE Rated voltage Rated current DC resistance Insulation resistance Part No. (MHz) 11 to 55 17 to 60 22 to 75 30 to 85 37 to 90 45 to 105 60 to 115 80 to 140 95 to 150 120 to 180 130 to 210 170 to 250 205 to 280 265 to 340 340 to 420 420 to 500 500 to 600 600 to 700 (V)max. 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 (A)max. 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 [Terminal No.1 to 3] ( )max. 0.06 0.06 0.06 0.06 0.06 0.06 0.06 0.06 0.06 0.06 0.06 0.06 0.06 0.06 0.06 0.06 0.06 0.06 [Terminal No.1 to 2/No.2 to 3] (M )min. 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 ACH3218-223-TD01 ACH3218-103-TD01 ACH3218-682-TD01 ACH3218-472-TD01 ACH3218-332-TD01 ACH3218-222-TD01 ACH3218-152-TD01 ACH3218-102-TD01 ACH3218-681-TD01 ACH3218-471-TD01 ACH3218-331-TD01 ACH3218-221-TD01 ACH3218-151-TD01 ACH3218-101-TD01 ACH3218-680-TD01 ACH3218-470-TD01 ACH3218-330-TD01 ACH3218-220-TD01 Th e Insertion loss 25dB frequency range Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (1/4) 20211210 3tf_commercial_power_ach3218_en.fm E M C C o m p o n e n t s ACH3218 type INSERTION LOSS VS. FREQUENCY CHARACTERISTICS Insertion loss (dB) 10 pr od u st cts op w pe il d lb pr e od or uc ha tio ve n be en 0 332 20 30 102 222 330 220 40 152 223 1 3 10 103 221 151 101 471 331 472 682 30 Frequency (MHz) 681 100 300 1000 Th e 50 470 680 Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (2/4) 20211210 3tf_commercial_power_ach3218_en.fm E M C C o m p o n e n t s ACH3218 type SHAPE & DIMENSIONS PACKAGING STYLE REEL DIMENSIONS pr od u st cts op w pe il d lb pr e od or uc ha tio ve n be en 3.2± 0.3 1.8±0.2 0.6 0.45 ø60min. 2.5±0.25 2.0±0.5 1.0 ø13±0.2 13.0±0.3 ø21±0.8 Dimensions in mm 17.0±1.4 ø180±2.0 Dimensions in mm RECOMMENDED LAND PATTERN 4.0±0.1 0.6 2.2 1.4 1.4 A K 5.5±0.05 2.0±0.05 12.0±0.2 1.5 +0.1 0 B 1.94 Sprocket hole 1.75±0.1 TAPE DIMENSIONS Cavity 4.0±0.1 Dimensions in mm Dimensions in mm CIRCUIT DIAGRAM 3 1 GND 2 • No polarity Type ACH3218 A 2.2±0.1 40 to 80 Taping B 3.65±0.1 K 3.0max. 440min. RECOMMENDED REFLOW PROFILE Drawing direction Preheating Soldering 500 to 560 Natural cooling Dimensions in mm Peak Th e Temperature 250 to 260°C PACKAGE QUANTITY 230°C 230°C Package quantity 180°C 10s max. 150°C 60 to 120s 30 to 60s 1,000 pcs/reel TEMPERATURE RANGE, INDIVIDUAL WEIGHT Operating Storage temperature range temperature range –40 to +125 °C –40 to +125 °C  The storage temperature range is for after the assembly. Individual weight 70 mg Time Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (3/4) 20211210 3tf_commercial_power_ach3218_en.fm E M C C o m p o n e n t s REMINDERS FOR USING THESE PRODUCTS Before using these products, be sure to request the delivery specifications. pr od u st cts op w pe il d lb pr e od or uc ha tio ve n be en SAFETY REMINDERS Please pay sufficient attention to the warnings for safe designing when using this products. REMINDERS The storage period is within 12 months. Be sure to follow the storage conditions (temperature: 5 to 40°C, humidity: 10 to 75% RH or less). If the storage period elapses, the soldering of the terminal electrodes may deteriorate. Do not use or store in locations where there are conditions such as gas corrosion (salt, acid, alkali, etc.). Before soldering, be sure to preheat components. The preheating temperature should be set so that the temperature difference between the solder temperature and chip temperature does not exceed 150°C. Soldering corrections after mounting should be within the range of the conditions determined in the specifications. If overheated, a short circuit, performance deterioration, or lifespan shortening may occur. When embedding a printed circuit board where a chip is mounted to a set, be sure that residual stress is not given to the chip due to the overall distortion of the printed circuit board and partial distortion such as at screw tightening portions. Self heating (temperature increase) occurs when the power is turned ON, so the tolerance should be sufficient for the set thermal design. Carefully lay out the coil for the circuit board design of the non-magnetic shield type. A malfunction may occur due to magnetic interference. Use a wrist band to discharge static electricity in your body through the grounding wire. Do not expose the products to magnets or magnetic fields. Do not use for a purpose outside of the contents regulated in the delivery specifications. The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition. The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society, person or property. If you intend to use the products in the applications listed below or if you have special requirements exceeding the range or conditions set forth in the each catalog, please contact us. Th e (1) Aerospace/aviation equipment (2) Transportation equipment (cars, electric trains, ships, etc.) (3) Medical equipment (4) Power-generation control equipment (5) Atomic energy-related equipment   (6) Seabed equipment (7) Transportation control equipment (8) Public information-processing equipment (9) Military equipment (10) Electric heating apparatus, burning equipment (11) Disaster prevention/crime prevention equipment (12) Safety equipment (13) Other applications that are not considered general-purpose applications When designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing protection circuit/device or providing backup circuits in your equipment. Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (4/4) 20211210 3tf_commercial_power_ach3218_en.fm
