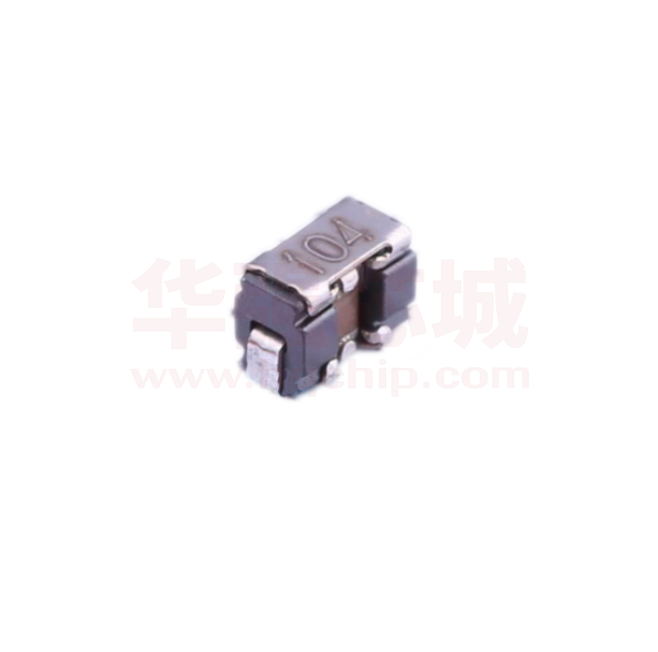

ACH32C-104-T

E M C C o m p o n e n t s April 2018 3-terminal filters For power line ACH series ACH32C type ACH32C [1206 inch]* * Dimensions Code JIS[EIA] Caution The products in this catalog will be or have been stopped production Discontinue Issue Date Nov 15, 2017 Last Purchase Order Date Mar. 29, 2019 Last Shipment Date Oct. 31, 2019 Please refer to our Web site about replacement information. (2/7) E M C C o m p o n e n t s REMINDERS FOR USING THESE PRODUCTS Before using these products, be sure to request the delivery specifications. pr od u st cts op w pe il d lb pr e od or uc ha tio ve n be en SAFETY REMINDERS Please pay sufficient attention to the warnings for safe designing when using these products. REMINDERS The storage period is less than 12 months. Be sure to follow the storage conditions (Temperature: 5 to 40°C, Humidity: 10 to 75% RH or less). If the storage period elapses, the soldering of the terminal electrodes may deteriorate. Do not use or store in locations where there are conditions such as gas corrosion (salt, acid, alkali, etc.). Before soldering, be sure to preheat components. The preheating temperature should be set so that the temperature difference between the solder temperature and chip temperature does not exceed 150°C. Soldering corrections after mounting should be within the range of the conditions determined in the specifications. If overheated, a short circuit, performance deterioration, or lifespan shortening may occur. When embedding a printed circuit board where a chip is mounted to a set, be sure that residual stress is not given to the chip due to the overall distortion of the printed circuit board and partial distortion such as at screw tightening portions. Self heating (temperature increase) occurs when the power is turned ON, so the tolerance should be sufficient for the set thermal design. Carefully lay out the coil for the circuit board design of the non-magnetic shield type. A malfunction may occur due to magnetic interference. Use a wrist band to discharge static electricity in your body through the grounding wire. Do not expose the products to magnets or magnetic fields. Do not use for a purpose outside of the contents regulated in the delivery specifications. The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition. The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society, person or property. If you intend to use the products in the applications listed below or if you have special requirements exceeding the range or conditions set forth in the each catalog, please contact us. Th e (1) Aerospace/Aviation equipment (2) Transportation equipment (cars, electric trains, ships, etc.) (3) Medical equipment (4) Power-generation control equipment (5) Atomic energy-related equipment (6) Seabed equipment (7) Transportation control equipment (8) Public information-processing equipment (9) Military equipment (10) Electric heating apparatus, burning equipment (11) Disaster prevention/crime prevention equipment (12) Safety equipment (13) Other applications that are not considered general-purpose applications When designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing protection circuit/device or providing backup circuits in your equipment. 20180412 / 3tf_commercial_power_ach32c_en.fm (3/7) E M C C o m p o n e n t s Product compatible with RoHS directive Halogen-free Compatible with lead-free solders 3-terminal filters For power line pr od u st cts op w pe il d lb pr e od or uc ha tio ve n be en Overview of ACH32C type FEATURES T-type EMC filter that can be used for high-current circuits. Achieve excellent attenuation characteristics by using it for circuits with stable grounds. Does not require mounting space due to vertical mounting design, making it perfect for high-density circuits. Guaranteed temperature range is –40 to +125°C, so it can be used under severe environmental conditions. Use this product under reflow soldering conditions. APPLICATION HE devices (TVs, VTRs, CD players, electronic musical instruments, PCs, etc.) OA equipment (Computers, terminals, facsimiles, etc.) FA equipment (Robots, NC machine tools, process controllers, etc.) AE equipment (Car navigation systems, etc.) PART NUMBER CONSTRUCTION ACH Series name 32C L×W×T Dimensions (mm) 32C 3.2×1.6×2.1 - 100 - Capacitance (pF) 100 10 103 10000 T 001 Packaging style Internal code T Taping 001 OPERATING TEMPERATURE RANGE, PACKAGE QUANTITY, PRODUCT WEIGHT Package quantity Individual weight (pieces/reel) 2,000 （mg） 70 Th e Temperature range Operating Storage Type temperature temperature （°C） （°C） ACH32C –40 to +125 –40 to +125 The Storage temperature range is for after the circuit board is mounted. RoHS Directive Compliant Product: See the following for more details.https://product.tdk.com/info/en/environment/rohs/index.html Halogen-free: Indicates that Cl content is less than 900ppm, Br content is less than 900ppm, and that the total Cl and Br content is less than 1500ppm. Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20180412 / 3tf_commercial_power_ach32c_en.fm (4/7) E M C C o m p o n e n t s ACH32C type RECOMMENDED REFLOW PROFILE Soldering Natural cooling pr od u st cts op w pe il d lb pr e od or uc ha tio ve n be en Preheating Peak T: Temperature T4 T3 T2 T1 t1 T3 t3 t2 t: Time Time t1 60 to 120s Soldering Temp. Time T3 t2 230°C 30 to 60s Peak Temp. T4 250 to 260°C Time t3 10s max. Th e Preheating Temp. T1 T2 150°C 180°C Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20180412 / 3tf_commercial_power_ach32c_en.fm (5/7) E M C C o m p o n e n t s ACH32C type SHAPE & DIMENSIONS 1 pr od u st cts op w pe il d lb pr e od or uc ha tio ve n be en 2.1±0.2 1.6±0.2 3.2 ± 0.2 3 0.1 2 Dimensions in mm RECOMMENDED LAND PATTERN CIRCUIT DIAGRAM 4.2 0.5 0.6 1.0 3 1 GND 2 • No polarity Dimensions in mm Th e 2.6 1.0 Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20180412 / 3tf_commercial_power_ach32c_en.fm (6/7) E M C C o m p o n e n t s ACH32C type ELECTRICAL CHARACTERISTICS CHARACTERISTICS SPECIFICATION TABLE 50 50 50 50 50 50 50 50 50 50 Rated current (A)max. Insulation resistance (M )min. DC resistance (m )max. 6 6 6 6 6 6 6 6 6 6 100 100 100 100 100 100 100 100 100 100 2 2 2 2 2 2 2 2 2 2 Insertion loss Frequency bandwidth Part No. (dB)min. 15 15 15 20 20 25 25 25 25 25 (MHz) 2000 to 6000 1300 to 2500 650 to 2500 450 to 1300 200 to 800 100 to 350 55 to 300 30 to 200 10 to 300 3.5 to 200 ACH32C-100-T001 ACH32C-220-T001 ACH32C-470-T001 ACH32C-101-T001 ACH32C-331-T001 ACH32C-102-T001 ACH32C-222-T001 ACH32C-103-T001 ACH32C-333-T001 ACH32C-104-T001 pr od u st cts op w pe il d lb pr e od or uc ha tio ve n be en Rated voltage (V)max. ○ Measurement equipment Measurement item Product No. Insertion loss E5071B DC resistance 4338A Insulation resistance 4339A ＊ Equivalent measurement equipment may be used. Manufacturer Keysight Technologies Keysight Technologies Keysight Technologies INSERTION LOSS VS. FREQUENCY CHARACTERISTICS 0 10 Insertion loss (dB) 20 30 220 100 470 101 40 331 50 102 104 60 222 333 70 Th e 80 103 1 10 100 Frequency (MHz) 1000 10000 ○ Measurement equipment Product No. Manufacturer E5071B Keysight Technologies ＊ Equivalent measurement equipment may be used. Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20180412 / 3tf_commercial_power_ach32c_en.fm (7/7) E M C C o m p o n e n t s ACH32C type PACKAGING STYLE pr od u st cts op w pe il d lb pr e od or uc ha tio ve n be en REEL DIMENSIONS 2.0±0.5 W1 9±0.3 W2 13+1.4 ø60min. Type ACH32C 1.0 ø13±0.2 W1 ø21±0.8 W2 ø180±2.0 Dimensions in mm B F 4.0±0.1 A W 2.0±0.05 1.5 +0.1 0 1.75±0.1 TAPE DIMENSIONS 4.0±0.1 K Dimensions in mm Type ACH32C A 1.9±0.1 B 3.5±0.1 F 3.5±0.05 W 8.0±0.2 K 2.3±0.1 500 to 560min. 160min. Taping 440min. Drawing direction Th e Dimensions in mm Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20180412 / 3tf_commercial_power_ach32c_en.fm
