(1/2)

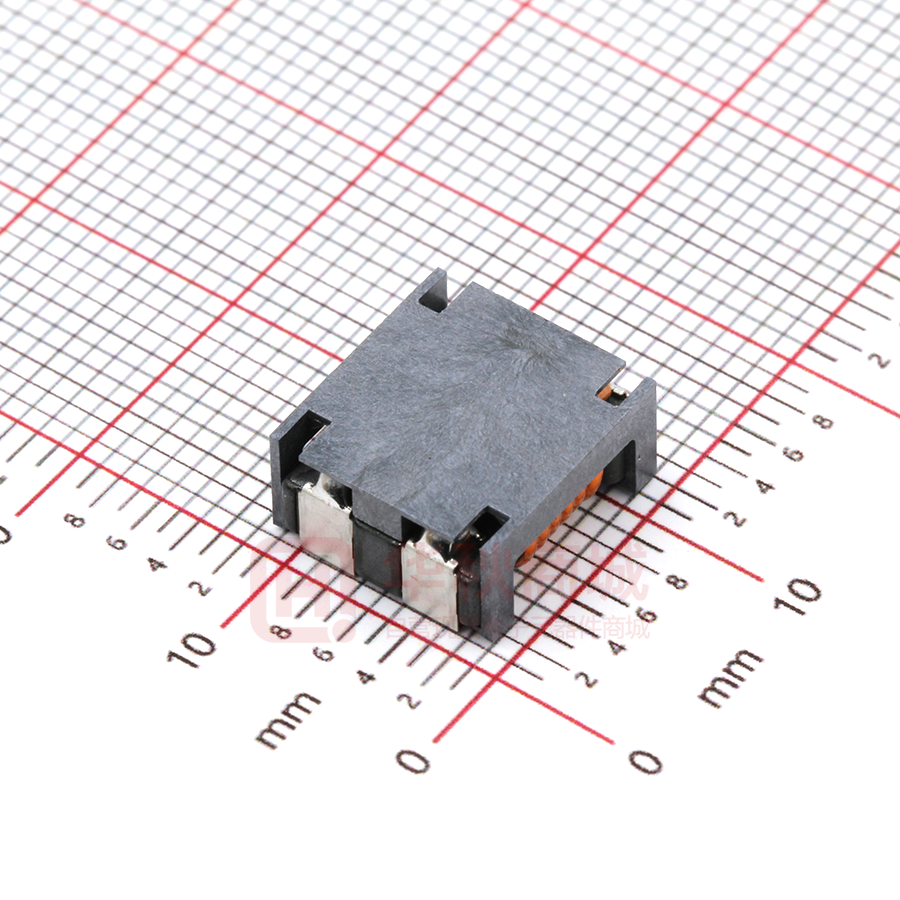

Common Mode Filters(SMD) For Power Line
ACM-V Series
FEATURES • Have achieved miniaturization while keeping characteristics by adoption of exclusive square type closed magnetic cores. • Due to the low profile design, it is suitable for a surface mount. • High impedance characteristic has been achieved a superior effect for common mode noise suppression. • This products have serialized a large current product up to 8A corresponding for various DC power lines. • Operating temperature range has covered widely from –40 to +125°C. APPLICATIONS Common mode noise countermeasures for DC power lines of electronic control equipment, multi-media equipment for automotives and various electronic equipment power supply lines. PACKAGING STYLE AND QUANTITIES
Packaging style Taping Type ACM70V ACM90V ACM12V Quantity 1500 pieces/reel 800 pieces/reel 500 pieces/reel
Conformity to RoHS Directive
PRODUCT IDENTIFICATION ACM 90V - 701 - 2PL - TL - 00 (1) (2) (3) (4) (5) (6) (1) Series name (2) Dimensional code (3) Impedance [at 100MHz] 701: 700Ω (4) Numbers of lines 2PL: 2 lines (5) Packaging style TL: ø330mm reel taping (6) TDK internal code TEMPERATURE RANGE Operating
–40 to +125°C
SHAPES AND DIMENSIONS/CIRCUIT DIAGRAM/RECOMMENDED PC BOARD PATTERN
L 1 4 3 • No polarity c a b
1
W
4
2
2
3 Dimensions in mm
Type ACM70V ACM90V ACM12V
a 9.0 11.0 14.0
b 4.0 6.0 7.4
d
c 1.5 1.5 2.7
d 3.0 3.5 5.2
A
B
A
T
Coplanarity: 0.1max. C D C Dimensions in mm
Type ACM70V ACM90V ACM12V
L 7.0±0.2 9.0±0.2 12.0±0.3
W 6.0±0.2 7.0±0.2 11.0±0.3
T 3.5max. 4.5max. 6.0max.
A 1.5±0.2 1.5±0.2 2.7±0.2
B 1.5±0.2 2.0±0.2 2.5±0.2
C 1.5±0.2 1.5±0.2 2.3±0.2
D 4.0typ. 6.0typ. 7.4typ.
Weight 0.35g 0.82g 2.30g
• Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
• All specifications are subject to change without notice. 001-03 / 20061226 / e9713_acm_v.fm
(2/2)
ELECTRICAL CHARACTERISTICS
Part No. ACM70V-701-2PL-TL00 ACM90V-701-2PL-TL00 ACM12V-701-2PL-TL00 Common mode impedance (Ω)typ.[at 100MHz] 700 700 700 DC resistance (MΩ)max. 15 10 6 Rated current Idc (A)max. 4.0 5.0 8.0 Rated voltage Edc (V)max. 80 80 80 Insulation resistance (MΩ )min. 10 10 10
TYPICAL ELECTRICAL CHARACTERISTICS IMPEDANCE vs. FREQUENCY CHARACTERISTICS ACM70V-701-2PL
10000
ACM90V-701-2PL
10000
1000 Impedance (Ω) Common mode 100 Differential mode
1000 Impedance (Ω) Common mode 100 Differential mode
10
10
1
1
10 Frequency (MHz)
100
1000
1
1
10 Frequency (MHz)
100
1000
ACM12V-701-2PL
10000
1000 Impedance (Ω) Common mode 100 Differential mode
10
1
1
10 Frequency (MHz)
100
1000
• All specifications are subject to change without notice. 001-03 / 20061226 / e9713_acm_v.fm
