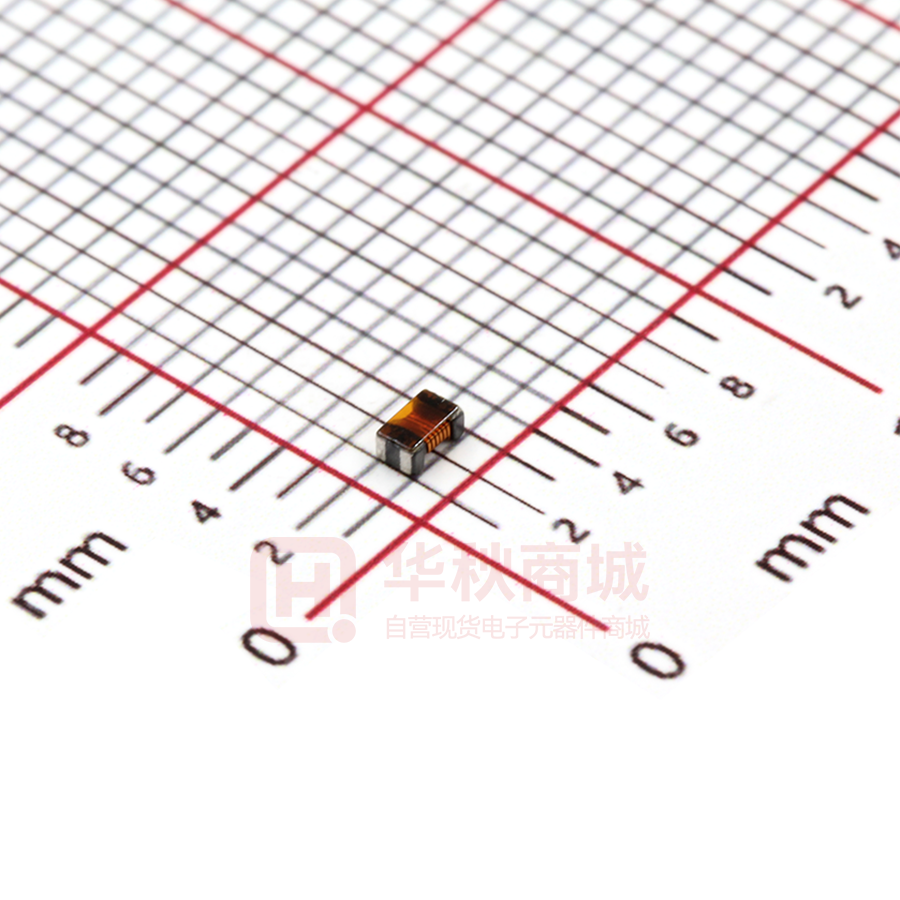

ACM2012E-900-2P-T01

E M C C o m p o n e n t s Common mode filters For high-speed differential signal line, general differential signal line ACM-E series RoHS REACH SVHC-Free Cl Br Pb Halogen Free Lead Free ACM2012E type FEATURES Downsized, low height wound type chip common mode filter that maintains required common mode filter characteristics. Impedance for common mode noise can clear 1000 [100MHz], and has excellent EMC suppression. Differential mode impedance is suppressed, so there is virtually no affect on high speed signals. Operating temperature range: –40 to +85°C APPLICATION Common mode noise countermeasure for high-speed differential signals where influence to the signal is a concern. USB line for PCs and peripheral devices. IEEE1394 lines and ETHERNET lines for PCs, STBs, etc. LCD panel LVDS and Panel Link lines. PART NUMBER CONSTRUCTION ACM 2012 E Series name L×W×H dimensions 2.0×1.2×1.0 mm Product internal code - 670 Impedance () at 100MHz - 2P Number of lines - T 00 Packaging style Internal code CHARACTERISTICS SPECIFICATION TABLE Impedance [100MHz］ ( ) 67±25% 90±25% 120±25% 180±25% 250±25% 270min. (390typ.) 510min. (680typ.) 750min. (1000typ.) 67±25% 90±25% 120±25% DC resistance ［1 line］ ( )max. 0.35 0.35 0.45 0.60 1.00 0.80 1.80 2.50 0.45 0.55 0.65 Rated voltage Insulation resistance Rated current Part No. (V)max. 50 50 50 50 50 50 50 50 50 50 50 (M )min. 10 10 10 10 10 10 10 10 10 10 10 (A)max. 0.50 0.33 0.30 0.25 0.20 0.30 0.17 0.15 0.35 0.30 0.27 ACM2012E-670-2P-T00 ACM2012E-900-2P-T00 ACM2012E-121-2P-T00 ACM2012E-181-2P-T00 ACM2012E-251-2P-T00 ACM2012E-391-2P-T00 ACM2012E-681-2P-T00 ACM2012E-102-2P-T00 ACM2012E-670-2P-T01 ACM2012E-900-2P-T01 ACM2012E-121-2P-T01 Measurement equipment Measurement item Product No. Common mode impedance 4991A DC resistance 4338A Insulation resistance 4339A ＊ Equivalent measurement equipment may be used. Manufacturer Keysight Technologies Keysight Technologies Keysight Technologies T00 T01 Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (1/5) 20181011 cmf_commercial_signal_acm2012e_en.fm E M C C o m p o n e n t s ACM2012E type IMPEDANCE VS. FREQUENCY CHARACTERISTICS ACM2012E-T00 type (for general differential signal line) 10000 102 Common mode 681 Common mode 391 Common mode Impedance (Ω) 1000 251 Common mode 181 Common mode 121 Common mode 900 Common mode 100 670 Common mode 670 Differential mode 900 Differential mode 121 Differential mode 181 Differential mode 251 Differential mode 391 Differential mode 681 Differential mode 102 Differential mode 10 1 1 10 100 Frequency (MHz) 1000 10000 Measurement equipment Product No. Manufacturer 4991A Keysight Technologies ＊ Equivalent measurement equipment may be used. ACM2012E-T01 type (high-speed differential signal line) 10000 121 Common mode Impedance (Ω) 1000 900 Common mode 670 Common mode 100 121 Differential mode 10 900 Differential mode 670 Differential mode 1 1 10 100 Frequency (MHz) 1000 10000 Measurement equipment Product No. Manufacturer 4991A Keysight Technologies ＊ Equivalent measurement equipment may be used. Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (2/5) 20181011 cmf_commercial_signal_acm2012e_en.fm E M C C o m p o n e n t s ACM2012E type ACM2012E-T00 type ACM2012E-T01 type (for general differential signal line) (high-speed differential signal line) SHAPE & DIMENSIONS SHAPE & DIMENSIONS 2.0±0.2 1.0±0.1 1.0±0.1 2.0±0.2 0.4 2 3 1 4 0.5 0.05 0.05 0.5 4 0.3 1 0.4 1.2±0.2 3 1.2±0.2 2 1.2 0.3 0.4 0.3 1.2 0.3 0.4 Dimensions in mm Dimensions in mm 0.4 1.2 0.4 1.1 1.1 2.6 2.6 Dimensions in mm Dimensions in mm CIRCUIT DIAGRAM CIRCUIT DIAGRAM 1 4 1 4 2 3 2 3 • No polarity 1.2 RECOMMENDED LAND PATTERN RECOMMENDED LAND PATTERN • No polarity Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (3/5) 20181011 cmf_commercial_signal_acm2012e_en.fm E M C C o m p o n e n t s ACM2012E type RECOMMENDED REFLOW PROFILE PACKAGING STYLE REEL DIMENSIONS Preheating Soldering Natural cooling 2.0±0.5 2 typ. Peak 245°C 230°C 60+1–0 Temperature 230°C 180°C 5s 150°C 1.0 60 to 120s 10 to 30s ø13.0±0.2 9+1/–0 ø21.0±0.8 13±1 ø180±3 Time Dimensions in mm 2.0±0.1 4.0±0.1 B A K 3.5±0.1 1.5 +0.1 –0 8.0±0.2 Sprocket hole 0.20±0.05 1.75±0.1 TAPE DIMENSIONS 4.0±0.1 Cavity Dimensions in mm Type ACM2012E A 1.4±0.1 B 2.25±0.1 K 1.15±0.05 500 to 560min. 160min. Taping 440min. Drawing direction Dimensions in mm PACKAGE QUANTITY Package quantity 2000 pcs/reel TEMPERATURE RANGE, INDIVIDUAL WEIGHT Operating Storage temperature range temperature range –40 to +85 °C –40 to +85 °C  The storage temperature range is for after the assembly. Individual weight 8 mg Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (4/5) 20181011 cmf_commercial_signal_acm2012e_en.fm E M C C o m p o n e n t s REMINDERS FOR USING THESE PRODUCTS Before using these products, be sure to request the delivery specifications. SAFETY REMINDERS Please pay sufficient attention to the warnings for safe designing when using this products. REMINDERS The storage period is less than 6 months. Be sure to follow the storage conditions (temperature: 5 to 40°C, humidity: 10 to 75% RH or less). If the storage period elapses, the soldering of the terminal electrodes may deteriorate. Do not use or store in locations where there are conditions such as gas corrosion (salt, acid, alkali, etc.). Before soldering, be sure to preheat components. The preheating temperature should be set so that the temperature difference between the solder temperature and chip temperature does not exceed 150°C. Soldering corrections after mounting should be within the range of the conditions determined in the specifications. If overheated, a short circuit, performance deterioration, or lifespan shortening may occur. When embedding a printed circuit board where a chip is mounted to a set, be sure that residual stress is not given to the chip due to the overall distortion of the printed circuit board and partial distortion such as at screw tightening portions. Self heating (temperature increase) occurs when the power is turned ON, so the tolerance should be sufficient for the set thermal design. Carefully lay out the coil for the circuit board design of the non-magnetic shield type. A malfunction may occur due to magnetic interference. Use a wrist band to discharge static electricity in your body through the grounding wire. Do not expose the products to magnets or magnetic fields. Do not use for a purpose outside of the contents regulated in the delivery specifications. The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition. The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society, person or property. If you intend to use the products in the applications listed below or if you have special requirements exceeding the range or conditions set forth in the each catalog, please contact us. (1) Aerospace/aviation equipment (2) Transportation equipment (cars, electric trains, ships, etc.) (3) Medical equipment (4) Power-generation control equipment (5) Atomic energy-related equipment   (6) Seabed equipment (7) Transportation control equipment (8) Public information-processing equipment (9) Military equipment (10) Electric heating apparatus, burning equipment (11) Disaster prevention/crime prevention equipment (12) Safety equipment (13) Other applications that are not considered general-purpose applications When designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing protection circuit/device or providing backup circuits in your equipment. Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (5/5) 20181011 cmf_commercial_signal_acm2012e_en.fm
