Common mode filters
For high-speed differential signal line, general differential signal line
ACM series
RoHS
REACH
SVHC-Free
Cl
Br
Pb
Halogen
Free
Lead
Free
ACM2520 type
FEATURES
Downsized wound type chip common mode filter that maintains required common mode filter characteristics.
Impedance for common mode noise can clear 1000 [100MHz], and has excellent EMC suppression.
Differential mode impedance is suppressed, so there is virtually no affect on high speed signals.
There is a two-line type and a three-line type, so they can be used for various circuits and noise.
Operating temperature range: –40 to +85°C
APPLICATION
Common mode noise countermeasure for high-speed differential signals where influence to the signal is a concern.
USB line for PCs and peripheral devices.
IEEE1394 lines and ETHERNET lines for PCs, STBs, etc.
LCD panel LVDS and Panel Link lines.
PART NUMBER CONSTRUCTION
ACM
2520
Series name
L×W×H dimensions
2.5×2.0×1.2 mm
-
301
-
Impedance
() at 100MHz
2P
Number of lines
-
T
002
Packaging style
Internal code
CHARACTERISTICS SPECIFICATION TABLE
Impedance
DC resistance
[100MHz]
[per 1 line]
( )min.
225
330
450
750
600
( )typ.
300
450
600
1000
800
( )max.
0.35
0.4
0.45
0.9
1.6
Rated voltage
Insulation
resistance
Rated current
Part No.
(V)max.
20
20
20
20
20
(M )min.
10
10
10
10
10
(A)max.
0.4
0.35
0.3
0.2
0.15

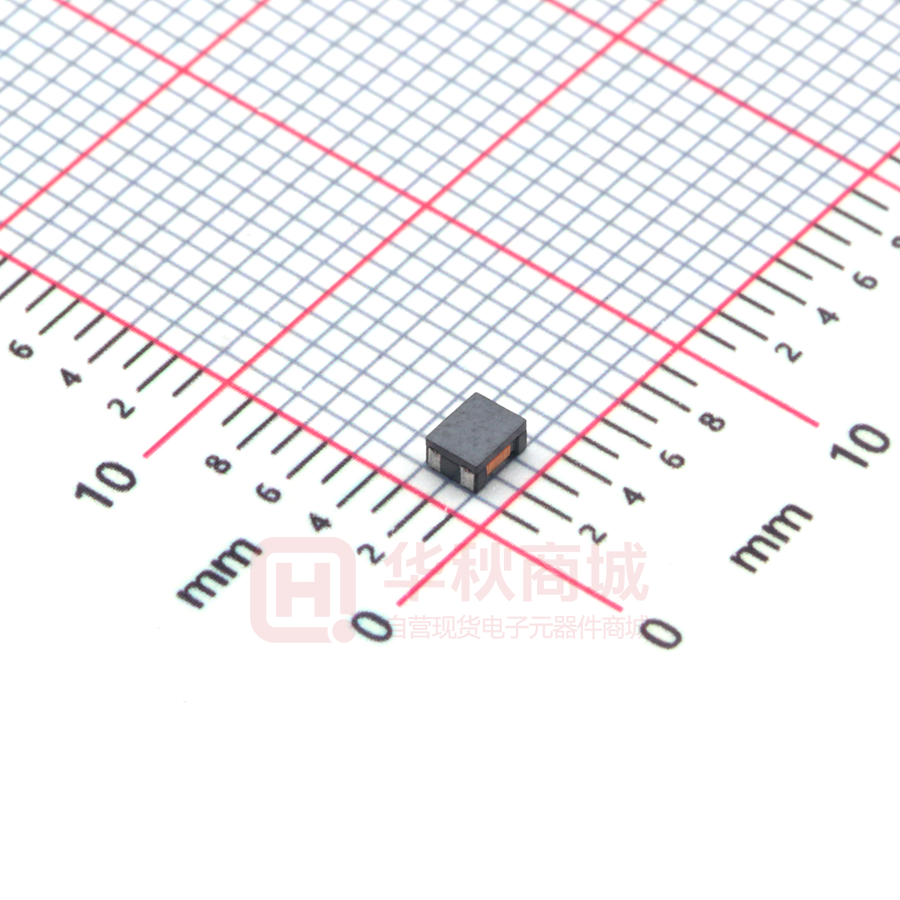

ACM2520-301-2P-T002
ACM2520-451-2P-T002

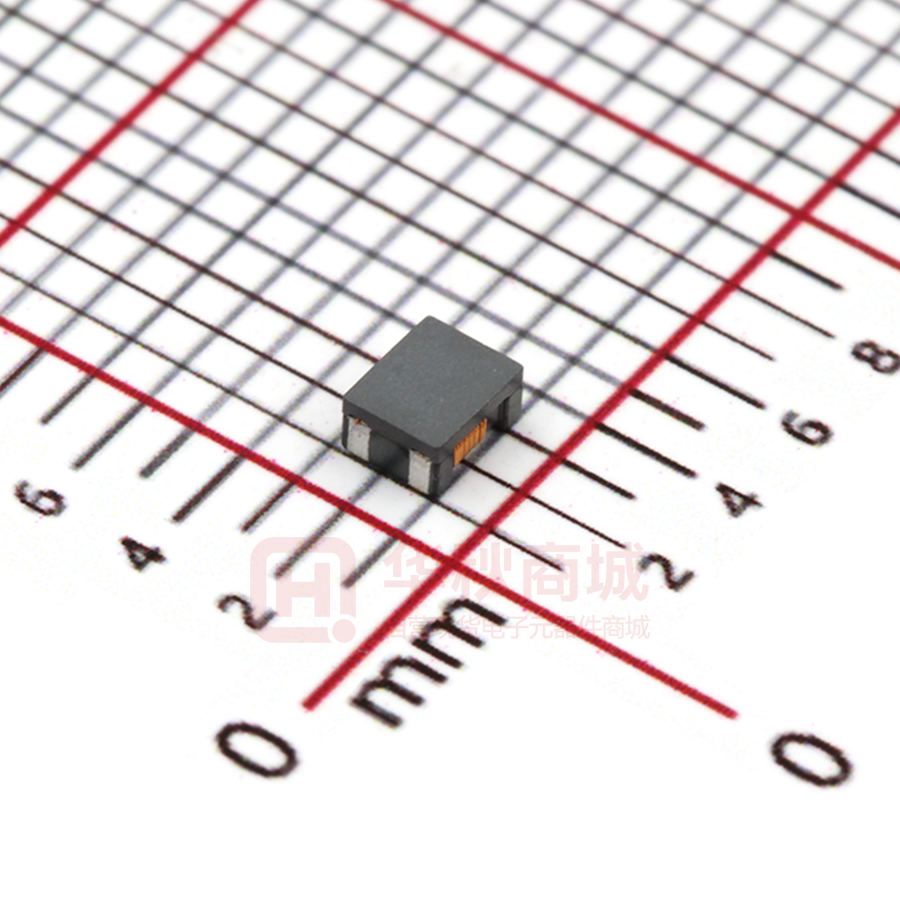

ACM2520-601-2P-T002
ACM2520-102-2P-T002
ACM2520-801-3P-T002
Measurement equipment
Measurement item
Product No.
Common mode impedance
4991A
DC resistance
4338A
Insulation resistance
4339A
* Equivalent measurement equipment may be used.
Manufacturer
Keysight Technologies
Keysight Technologies
Keysight Technologies
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(1/5)
20180911
cmf_commercial_signal_acm2520_en.fm
E M C
C o m p o n e n t s
ACM2520 type
IMPEDANCE VS. FREQUENCY CHARACTERISTICS
ACM2520-2P type
10000
601 Common mode
451 Common mode
Impedance (Ω)
1000
451 Differential mode
601 Differential mode
102 Common mode
100
301 Common mode
102 Differential mode
301 Differential mode
10
1
1
10
100
1000
Frequency (MHz)
Measurement equipment
Product No.
Manufacturer
4991A
Keysight Technologies
* Equivalent measurement equipment may be used.
ACM2520-3P type
10000
Impedance (Ω)
801 Common mode
1000
100
801 Differential mode
10
1
10
100
1000
Frequency (MHz)
Measurement equipment
Product No.
Manufacturer
4991A
Keysight Technologies
* Equivalent measurement equipment may be used.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(2/5)
20180911
cmf_commercial_signal_acm2520_en.fm
E M C
C o m p o n e n t s
ACM2520 type
ACM2520-2P type
ACM2520-3P type
SHAPE & DIMENSIONS
SHAPE & DIMENSIONS
0.45
2
5
0.3
1
6
0.45
0.85
0.85
1.2±0.1
1.6
2.0±0.2
4
0.45
1.2±0.1
1.6
3
0.3
1.3=P0.65×2
0.3
2.0±0.2
0.3
1.30
0.45
0.3
2.5±0.2
2.5±0.2
Dimensions in mm
Dimensions in mm
0.8
RECOMMENDED LAND PATTERN
0.35
1.3=P0.65×2
0.40
1.3
RECOMMENDED LAND PATTERN
0.8
1.5
0.8
0.8
1.5
Dimensions in mm
Dimensions in mm
CIRCUIT DIAGRAM
1
4
2
3
CIRCUIT DIAGRAM
1
6
2
5
3
4
• No polarity
• No polarity
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(3/5)
20180911
cmf_commercial_signal_acm2520_en.fm
E M C
C o m p o n e n t s
ACM2520 type
RECOMMENDED REFLOW PROFILE
PACKAGING STYLE
REEL DIMENSIONS
Preheating
Soldering
Natural
cooling
2.0±0.5
2 typ.
Peak
245°C
230°C
60+1–0
Temperature
230°C
180°C
5s
150°C
1.0
60 to 120s
10 to 30s
ø13.0±0.2
9+1/–0
ø21.0±0.8
Time
13±1
ø180±3
Dimensions in mm
2.0±0.05
4.0±0.1
B
A
K
3.5±0.05
1.5 +0.1
–0
8.0±0.3
Sprocket
hole
0.5±0.05
1.75±0.1
TAPE DIMENSIONS
4.0±0.1
Cavity
Dimensions in mm
Type
ACM2520
A
2.4±0.1
160min.
Taping
B
2.9±0.1
K
1.45±0.1
500 to 560min.
440min.
Drawing direction
Dimensions in mm
PACKAGE QUANTITY
Package quantity
2,000 pcs/reel
TEMPERATURE RANGE, INDIVIDUAL WEIGHT
Operating
Storage
temperature range
temperature range
–40 to +85 °C
–40 to +85 °C
The storage temperature range is for after the assembly.
Individual
weight
25 mg
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(4/5)
20180911
cmf_commercial_signal_acm2520_en.fm
E M C
C o m p o n e n t s
REMINDERS FOR USING THESE PRODUCTS
Before using these products, be sure to request the delivery specifications.
SAFETY REMINDERS
Please pay sufficient attention to the warnings for safe designing when using this products.
REMINDERS
The storage period is less than 6 months. Be sure to follow the storage conditions (temperature: 5 to 40°C, humidity: 10 to 75% RH or
less).
If the storage period elapses, the soldering of the terminal electrodes may deteriorate.
Do not use or store in locations where there are conditions such as gas corrosion (salt, acid, alkali, etc.).
Before soldering, be sure to preheat components.
The preheating temperature should be set so that the temperature difference between the solder temperature and chip temperature
does not exceed 150°C.
Soldering corrections after mounting should be within the range of the conditions determined in the specifications.
If overheated, a short circuit, performance deterioration, or lifespan shortening may occur.
When embedding a printed circuit board where a chip is mounted to a set, be sure that residual stress is not given to the chip due to
the overall distortion of the printed circuit board and partial distortion such as at screw tightening portions.
Self heating (temperature increase) occurs when the power is turned ON, so the tolerance should be sufficient for the set thermal
design.
Carefully lay out the coil for the circuit board design of the non-magnetic shield type.
A malfunction may occur due to magnetic interference.
Use a wrist band to discharge static electricity in your body through the grounding wire.
Do not expose the products to magnets or magnetic fields.
Do not use for a purpose outside of the contents regulated in the delivery specifications.
The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition.
The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society,
person or property.
If you intend to use the products in the applications listed below or if you have special requirements exceeding the range or conditions
set forth in the each catalog, please contact us.
(1) Aerospace/aviation equipment
(2) Transportation equipment (cars, electric trains, ships, etc.)
(3) Medical equipment
(4) Power-generation control equipment
(5) Atomic energy-related equipment
(6) Seabed equipment
(7) Transportation control equipment
(8) Public information-processing equipment
(9) Military equipment
(10) Electric heating apparatus, burning equipment
(11) Disaster prevention/crime prevention equipment
(12) Safety equipment
(13) Other applications that are not considered general-purpose
applications
When designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing protection circuit/device or providing backup circuits in your equipment.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(5/5)
20180911
cmf_commercial_signal_acm2520_en.fm
