ACM4520-142-2P-TL

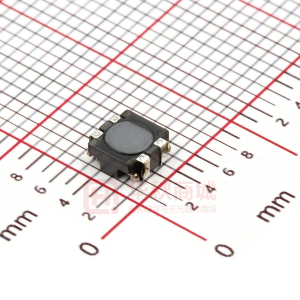

(1/2) Common Mode Filters(SMD) For Power Line ACM Series ACM4520 Type FEATURES • Several large current products are prepared to correspond to the various applications. • Low profile and compact shape, it is suited for surface mounting. • It shows high common-mode impedance despite of its compact shape. APPLICATIONS Radiation noise suppression for power line (DVC, DVD cam, DSC, etc.) TEMPERATURE RANGE Operating –40 to +85°C Conformity to RoHS Directive PRODUCT IDENTIFICATION ACM (1) 4520 - 901 - 2P - T - 000 (2) (3) (4) (5) (6) PACKAGING STYLE AND QUANTITIES Packaging style Taping Reel ø180mm ø330mm Quantity 800 pieces/reel 2500 pieces/reel (1) Series name (2) Dimensions W× T 4520: 4.5× 2.0mm (3) Impedance [at 100MHz] 901: 900Ω 142: 1400Ω (4) Numbers of lines 2P: 2-line (5) Packaging style T: ø180mm reel taping TL: ø330mm reel taping B: Bulk (6) TDK internal code SHAPES AND DIMENSIONS 4.7±0.2 4.5 CIRCUIT DIAGRAM 1 4 3 • No polarity 4.5±0.2 1 4 0.75 2 2.0 RECOMMENDED PC BOARD PATTERN 1.25 3.5 1.25 2 3 0.75 Ferrite 0.95 1.05 0.95 2.0max. 2.0 Wire Dimensions in mm Terminal 0.65 0.65 Dimensions in mm • Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications. • All specifications are subject to change without notice. 001-02 / 20070111 / e9713_acm4520.fm (2/2) ELECTRICAL CHARACTERISTICS Part No. ACM4520-901-2P ACM4520-142-2P Common mode impedance (Ω)[at 100MHz] min. typ. 650 900 1000 1400 DC resistance (Ω)max. [1 line] 0.06 0.08 Rated current Idc (A)max. 2.0 1.5 Rated voltage Edc (V)max. 50 50 Insulation resistance (MΩ )min. 10 10 TYPICAL ELECTRICAL CHARACTERISTICS IMPEDANCE vs. FREQUENCY CHARACTERISTICS ACM4520-901-2P 10000 ACM4520-142-2P 10000 1000 Impedance (Ω) 1000 Impedance (Ω) 100 Common mode 100 Common mode 10 Differential mode 10 Differential mode 1 1 10 Frequency (MHz) 100 1000 1 1 10 Frequency (MHz) 100 1000 • All specifications are subject to change without notice. 001-02 / 20070111 / e9713_acm4520.fm
