Common mode filters
Automotive power line (for infotainment)
ACM-V series
RoHS
REACH
SVHC-Free
Cl
Br
Pb
Halogen
Free
Lead
Free
AEC-Q200
ACM4520V type
FEATURES
By adopting a dedicated core, we have achieved compactness while maintaining high impedance characteristics.
Low profile design makes it optimal for surface mounting.
The product series is designed for use up to 1.5A in an environment of 125°C.
Operating temperature range: –40 to +125°C (including self-temperature rise)
Compliant with AEC-Q200
APPLICATION
Measures against common mode noise in power lines for various DC power lines, multimedia devices, and various electronic devices
for automotive information applications.
Application guides: Car Infotainment
PART NUMBER CONSTRUCTION
ACM
4520V
Series name
L×W×H dimensions
4.7×4.5×2.0 mm
-
231
-
Impedance
() at 100MHz
2P
Number of lines
-
T
00
Packaging style
Internal code
CHARACTERISTICS SPECIFICATION TABLE
Common mode impedance
DC resistance
Rated current
Rated voltage
Insulation resistance
Part No.
[at 100MHz]
( )min.
180
300
650
1000
[1 line]
( )max.
0.05
0.055
0.06
0.08
(A)max.125°C
1.5
1.4
1.2
1.0
(V)max.
50
50
50
50
(M )min.
10
10
10
10

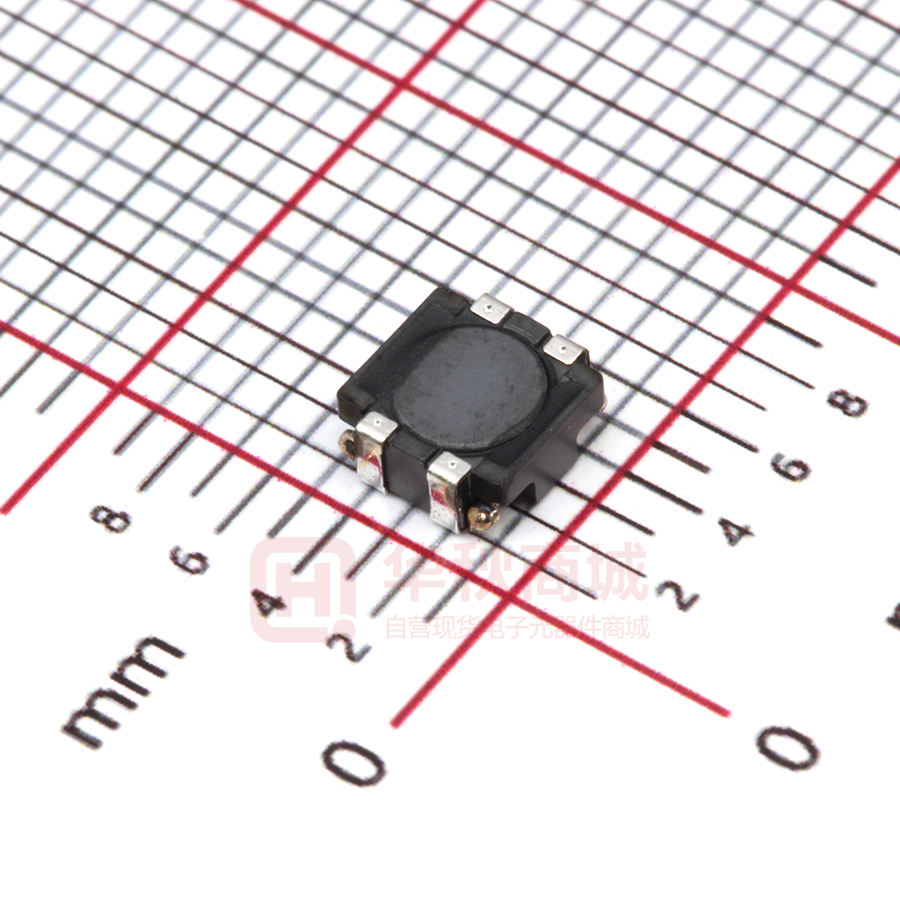

ACM4520V-231-2P-T00
ACM4520V-421-2P-T00
ACM4520V-901-2P-T00
ACM4520V-142-2P-T00
( )typ.
230
420
900
1400
Measurement equipment
Measurement item
Product No.
Common mode impedance
4991A
DC resistance
4338A
Insulation resistance
4339A
* Equivalent measurement equipment may be used.
Manufacturer
Keysight Technologies
Keysight Technologies
Keysight Technologies
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(1/4)
20181009
cmf_automotive_power_acm4520v_en.fm
E M C
C o m p o n e n t s
ACM4520V type
IMPEDANCE VS. FREQUENCY CHARACTERISTICS
10000
142 Common mode
1000
Impedance (Ω)
901 Common mode
421 Common mode
421 Differential mode
100
231 Differential mode
901 Differential mode
1
142 Differential mode
231 Common mode
10
1
10
100
1000
Frequency (MHz)
Measurement equipment
Product No.
Manufacturer
4991A
Keysight Technologies
* Equivalent measurement equipment may be used.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(2/4)
20181009
cmf_automotive_power_acm4520v_en.fm
E M C
C o m p o n e n t s
ACM4520V type
SHAPE & DIMENSIONS
PACKAGING STYLE
REEL DIMENSIONS
4.7±0.2
4.5
2.0±0.5
4
2
3
60 +1
–0
4.5±0.2
1
2 typ.
Ferrite
0.65
2.0max.
0.65
1.0
0.75
Wire
0.75
2.0
ø13.0±0.2
13±0.3
ø21.0±0.8
Dimensions in mm
17±1.4
ø180±3
Dimensions in mm
RECOMMENDED LAND PATTERN
1.55 +0.1
–0
2.0±0.05
4.0±0.1
Sprocket
hole
B
12.0±0.2
2.0
0.3±0.1
Dimensions in mm
K
5.5±0.05
TAPE DIMENSIONS
1.25
1.75±0.1
3.5
0.95 1.05 0.95
1.25
Cavity
A
8.0±0.1
Dimensions in mm
CIRCUIT DIAGRAM
1
4
2
3
Type
ACM4520V
A
4.75±0.1
B
5.05±0.1
K
2.05±0.05
• No polarity
500 to 560min.
160min.
Taping
100 to 200
RECOMMENDED REFLOW PROFILE
Preheating
Soldering
Natural
cooling
Drawing direction
Peak
Dimensions in mm
245°C
Temperature
230°C
230°C
PACKAGE QUANTITY
Package quantity
180°C
TEMPERATURE RANGE, INDIVIDUAL WEIGHT
5s
150°C
60 to 120s
10 to 30s
Time
800 pcs/reel
Operating
Storage
Individual
temperature range
temperature range
weight
–40 to +125 °C
–40 to +125 °C
0.138 g
The operating temperature range of this product includes self-heating.
When using the product in an environment at 125°C, use the product
within the current range shown in the table on page 1/4 of this catalog.
The storage temperature range is for after the assembly.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(3/4)
20181009
cmf_automotive_power_acm4520v_en.fm
E M C
C o m p o n e n t s
REMINDERS FOR USING THESE PRODUCTS
Before using these products, be sure to request the delivery specifications.
SAFETY REMINDERS
Please pay sufficient attention to the warnings for safe designing when using this products.
REMINDERS
The storage period is less than 12 months. Be sure to follow the storage conditions (temperature: 5 to 40°C, humidity: 10 to 75% RH or
less).
If the storage period elapses, the soldering of the terminal electrodes may deteriorate.
Do not use or store in locations where there are conditions such as gas corrosion (salt, acid, alkali, etc.).
Before soldering, be sure to preheat components.
The preheating temperature should be set so that the temperature difference between the solder temperature and chip temperature
does not exceed 150°C.
Soldering corrections after mounting should be within the range of the conditions determined in the specifications.
If overheated, a short circuit, performance deterioration, or lifespan shortening may occur.
When embedding a printed circuit board where a chip is mounted to a set, be sure that residual stress is not given to the chip due to
the overall distortion of the printed circuit board and partial distortion such as at screw tightening portions.
Self heating (temperature increase) occurs when the power is turned ON, so the tolerance should be sufficient for the set thermal
design.
Carefully lay out the coil for the circuit board design of the non-magnetic shield type.
A malfunction may occur due to magnetic interference.
Use a wrist band to discharge static electricity in your body through the grounding wire.
Do not expose the products to magnets or magnetic fields.
Do not use for a purpose outside of the contents regulated in the delivery specifications.
The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition.
The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society,
person or property.
If you intend to use the products in the applications listed below or if you have special requirements exceeding the range or conditions
set forth in the each catalog, please contact us.
(1) Aerospace/aviation equipment
(2) Transportation equipment (electric trains, ships, etc.)
(3) Medical equipment
(4) Power-generation control equipment
(5) Atomic energy-related equipment
(6) Seabed equipment
(7) Transportation control equipment
(8) Public information-processing equipment
(9) Military equipment
(10) Electric heating apparatus, burning equipment
(11) Disaster prevention/crime prevention equipment
(12) Safety equipment
(13) Other applications that are not considered general-purpose
applications
When designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing protection circuit/device or providing backup circuits in your equipment.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(4/4)
20181009
cmf_automotive_power_acm4520v_en.fm
