ACM4532-102-3P-T001

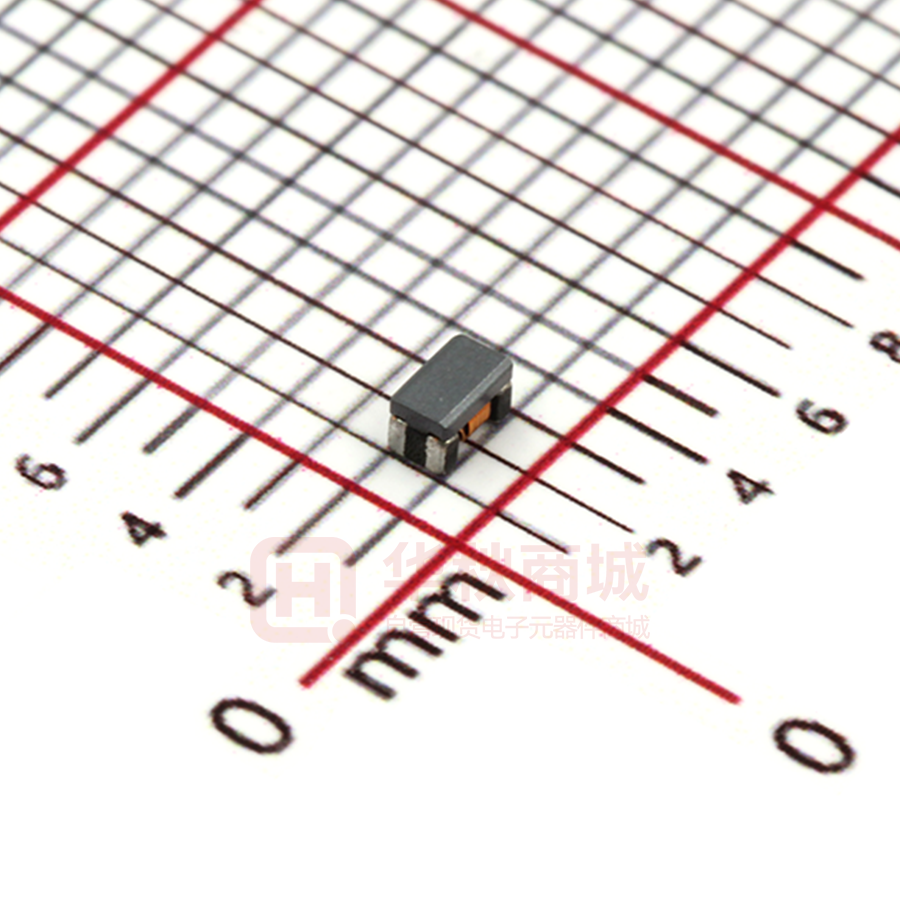

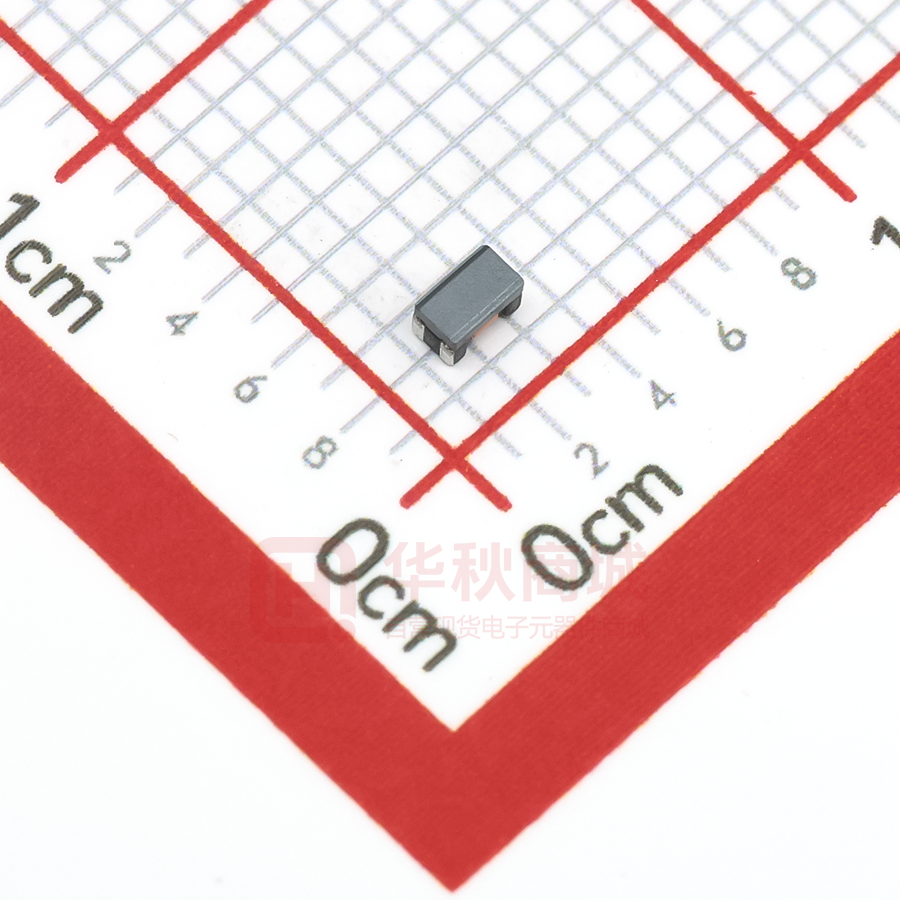

(1/4) Conformity to RoHS Directive Common Mode Filters(SMD) For High-speed Differential Signal Line / General Signal Line ACM Series ACM2012, 2520, 3225, 4532 Types FEATURES • Although greatly miniaturized, this wire-wound chip-type filter maintains the characteristics needed for a common-mode filter. Common-mode impedance is 1000Ω [at 100MHz], so this filter is greatly effective in supporting noise. • Almost no affect upon even high speed signals since differential mode impedance is kept low. • This series includes both 2-line and 3-line types. They are used for various types of circuits and noise. APPLICATIONS • Used for radiation noise suppression for any electronic devices. • Used to counter common-mode noise affecting signals within high speed lines. • USB line for personal computers and peripheral equipment. • IEEE1394 line for personal computers, DVC, STB, etc. • LVDS, panel link line for liquid crystal display panels. SHAPES AND DIMENSIONS/CIRCUIT DIAGRAMS/ RECOMMENDED PC BOARD PATTERNS 2-LINE TYPE ACM2012-2P PRODUCT IDENTIFICATION ACM (1) 2012 - 900 - 2P - T (2) (3) (4) (5) (1) Series name (2) Dimensions L×W 2012: 2.0×1.2mm (3) Impedance[at 100MHz] 900: 90Ω (4) Number of line 2P:2-line 3P:3-line (5) Packaging style T: ø180mm reel taping TL: ø330mm reel taping (6) TDK internal code TEMPERATURE RANGE Operating –25 to +85°C PACKAGING STYLE AND QUANTITIES Packaging style Type 2.0±0.2 ACM2012 1.2±0.2 3 ACM3225 0.8 Termination 0.4 0.3 0.5 Dimensions in mm ACM2520-2P ACM3225-2P 2.5±0.2 1 2.0±0.2 3 Ferrite 0.40 0.8 1.5 0.8 0.45 4 3 1 2 Insulation resin 2.3max. Terminal electrode 1.3 0.35 1.30 2 Dimensions in mm 1.6 0.45 4 3.2±0.2 0.85 1.2±0.1 4 3 1 2 1.4 0.05 0.3 0.75 1.1 0.75 0.4 0.4 ACM4532 0.4 Termination 1.2 ACM2520 Taping 0.7 3 1.1 Wires 2 Quantity 2000 pieces/reel 10000 pieces/reel 2000 pieces/reel 10000 pieces/reel 1000 pieces/reel 5000 pieces/reel 500 pieces/reel 2000 pieces/reel 1.4 3 Ferrite 4 Reel ø180mm ø330mm ø180mm ø330mm ø180mm ø330mm ø180mm ø330mm 0.7 0.7 2.5 ±0.2 2 1 0.4 4 1.3max. 1 (6) 0.7 1.5 1.6 1.5 Dimensions in mm • Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications. • All specifications are subject to change without notice. 008-02 / 20100405 / e9712_acm.fm (2/4) 2.5±0.2 6 2 5 3 4 1.5 1 0.7 0.8 Ferrite 1.2 2.3max. Insulation resin 1 4.3 0.8 0.7 0.8 0.3 Dimensions in mm 1.8 2.3 1.8 Dimensions in mm 1.6 0.45 6 5 4 1 2 3 1.2 Electrode Terminal electrode 0.35 0.85 1.3=P0.65×2 2.0±0.2 1.2±0.1 1.3=P0.65×2 Wires 4 5 6 1 4.5±0.2 Ferrite 3 2 1 6 5 4 1 2 3 6 5 4 1 2 3 0.5 0.75 0.5 3.2±0.2 SHAPES AND DIMENSIONS/CIRCUIT DIAGRAMS/RECOMMENDED PC BOARD PATTERNS 3-LINE TYPE ACM2520-3P ACM4532-102-3P 0.45 ELECTRICAL CHARACTERISTICS Part No. 2-LINE ACM2012-900-2P ACM2012-121-2P ACM2012-201-2P ACM2012-361-2P ACM2520-301-2P ACM2520-451-2P ACM2520-601-2P ACM2520-102-2P ACM3225-800-2P ACM3225-161-2P ACM3225-271-2P ACM3225-102-2P 3-LINE ACM2520-801-3P ACM4532-102-3P Impedance (Ω )typ.[100MHz] DC resistance (Ω )max.[Per 1 line] Rated voltage Edc(V)max. Rated current Idc(A)max. 90 120 200 360 300 450 600 1000 80 160 270 1000 0.19 0.22 0.25 0.5 0.35 0.4 0.45 0.9 0.15 0.2 0.3 0.5 50 50 50 50 20 20 20 20 20 20 20 20 0.4 0.37 0.35 0.22 0.4 0.35 0.3 0.2 0.4 0.35 0.3 0.2 800 1000 1.6 0.6 20 20 0.15 0.2 • All specifications are subject to change without notice. 008-02 / 20100405 / e9712_acm.fm (3/4) TYPICAL ELECTRICAL CHARACTERISTICS IMPEDANCE vs. FREQUENCY CHARACTERISTICS ACM2012-900-2P ACM2012-121-2P ACM2012-201-2P ACM2012-361-2P 1000 1000 1000 1000 1 1 ACM2520-301-2P Impedance(Ω) 1 1 1000 Common mode ACM2520-451-2P 100 10 1000 Differential mode 10 100 1000 Frequency(MHz) ACM3225-800-2P 1 1 10 Differential mode 10 100 Frequency(MHz) ACM3225-161-2P Common mode Common mode 100 Differential mode 10 1 1 10 100 Frequency(MHz) 10000 10000 1000 1000 1000 1000 100 10 1 1 Differential mode 10 100 1000 Frequency(MHz) 10 1 1 Differential mode 10 100 1000 Frequency(MHz) Common mode 100 10 1 1 Differential mode 10 100 1000 Frequency(MHz) Impedance(Ω) 100 Common mode Impedance(Ω) 10 Impedance(Ω) Impedance(Ω) Common mode 10 100 Frequency(MHz) 1000 ACM3225-102-2P 1000 100 Differential mode 1 1 1000 ACM3225-271-2P 10000 Differential mode 10 100 1000 Frequency(MHz) 1 1 10000 1000 1000 10 ACM2520-102-2P 10000 Common mode Common mode 100 Differential mode 10 100 1000 Frequency(MHz) ACM2520-601-2P 100 1 1 10 Differential mode 10 100 1000 Frequency(MHz) 10000 10000 1 1 10 Differential mode 10 100 1000 Frequency(MHz) Common mode 100 Impedance(Ω) 10 100 Common-mode Impedance(Ω) Common mode Impedance(Ω) 100 Impedance(Ω) 10000 Impedance(Ω) 10000 Impedance(Ω) 10000 Impedance(Ω) 10000 Common mode 100 10 Differential mode 1 1 10 100 Frequency(MHz) 1000 MEASURING CIRCUITS 2-LINE Common mode HP4291A Differential mode HP4291A • All specifications are subject to change without notice. 008-02 / 20100405 / e9712_acm.fm (4/4) TYPICAL ELECTRICAL CHARACTERISTICS IMPEDANCE vs. FREQUENCY CHARACTERISTICS ACM2520-801-3P ACM4532-102-3P 10000 Impedance(Ω) Impedance(Ω) 1000 Common mode 1000 Common mode 100 10 1 1 Differential mode 10 100 Frequency(MHz) 1000 100 10 Differential mode 1 1 10 100 Frequency(MHz) 1000 MEASURING CIRCUITS 3-LINE Common mode HP4291A Differential mode HP4291A • All specifications are subject to change without notice. 008-02 / 20100405 / e9712_acm.fm
