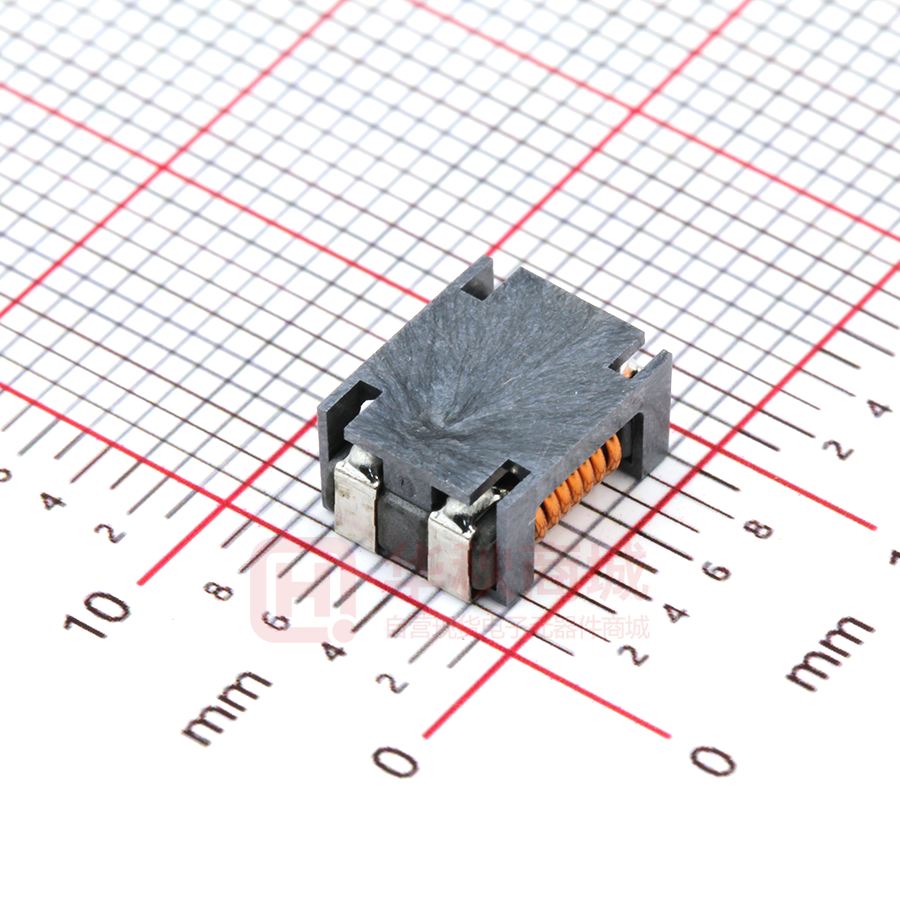

E M C C o m p o n e n t s November 2015 Common Mode Filters For automotive power line ACM-V Series ACM90V Type ACM90V (2/7) E M C C o m p o n e n t s REMINDERS FOR USING THESE PRODUCTS Before using these products, be sure to request the delivery specifications. SAFETY REMINDERS Please pay sufficient attention to the warnings for safe designing when using these products. REMINDERS The storage period is less than 12 months. Be sure to follow the storage conditions (Temperature: 5 to 40°C, Humidity: 10 to 75% RH or less). If the storage period elapses, the soldering of the terminal electrodes may deteriorate. Do not use or store in locations where there are conditions such as gas corrosion (salt, acid, alkali, etc.). Before soldering, be sure to preheat components. The preheating temperature should be set so that the temperature difference between the solder temperature and chip temperature does not exceed 150°C. Soldering corrections after mounting should be within the range of the conditions determined in the specifications. If overheated, a short circuit, performance deterioration, or lifespan shortening may occur. When embedding a printed circuit board where a chip is mounted to a set, be sure that residual stress is not given to the chip due to the overall distortion of the printed circuit board and partial distortion such as at screw tightening portions. Self heating (temperature increase) occurs when the power is turned ON, so the tolerance should be sufficient for the set thermal design. Carefully lay out the coil for the circuit board design of the non-magnetic shield type. A malfunction may occur due to magnetic interference. Use a wrist band to discharge static electricity in your body through the grounding wire. Do not expose the products to magnets or magnetic fields. Do not use for a purpose outside of the contents regulated in the delivery specifications. The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition. The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society, person or property. If you intend to use the products in the applications listed below or if you have special requirements exceeding the range or conditions set forth in the each catalog, please contact us. (1) Aerospace/Aviation equipment (2) Transportation equipment (electric trains, ships, etc.) (3) Medical equipment (4) Power-generation control equipment (5) Atomic energy-related equipment (6) Seabed equipment (7) Transportation control equipment (8) Public information-processing equipment (9) Military equipment (10) Electric heating apparatus, burning equipment (11) Disaster prevention/crime prevention equipment (12) Safety equipment (13) Other applications that are not considered general-purpose applications When designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing protection circuit/device or providing backup circuits in your equipment. 20151120 / cmf_automotive_power_acm90v_en.fm (3/7) E M C C o m p o n e n t s Common Mode Filters Product compatible with RoHS directive Compatible with lead-free solders AEC-Q200 For automotive power line Overview of ACM90V Type FEATURES Exclusive square type closed magnetic core designed as an exclusive core is used, so it can be small while maintaining the same features. Low profile design makes it optimal for surface mounting. Excellent impedance characteristics, making it great for suppressing common mode noise. Series includes large current products up to 8A, making them compatible with various DC power lines. Covers a wide operating temperature range from –40 to +125°C. APPLICATION Common mode noise countermeasure for electronic controller DC power lines and power supply lines for car multi-media equipment and various electronic devices. PART NUMBER CONSTRUCTION ACM Series name 90V - L×W×H Dimensions (mm) 90V 9.0×7.0×4.5 701 - Impedance (:) at 100MHz 701 700 2PL - Number of lines 2PL 2 lines TL TL 00 Packaging style Internal code ø330mm reel 00 OPERATING TEMPERATURE RANGE, PACKAGE QUANTITY, PRODUCT WEIGHT Temperature range Operating Storage Type temperature temperature （°C） （°C） ACM90V –40 to +125 –40 to +125 The Storage temperature range is for after the circuit board is mounted. Reel diameter Package quantity Individual weight （mm） ø330 (pieces/reel) 800 （g） 0.82 RoHS Directive Compliant Product: See the following for more details related to RoHS Directive compliant products. http://product.tdk.com/en/environment/rohs/ Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20151120 / cmf_automotive_power_acm90v_en.fm (4/7) E M C C o m p o n e n t s ACM90V Type RECOMMENDED REFLOW PROFILE Preheating Soldering Natural cooling Peak T: Temperature T4 T3 T2 T3 t3 T1 t1 t2 t: Time Preheating Temp. T1 T2 150°C 180°C Time t1 60 to 120s Soldering Temp. Time T3 t2 230°C 10 to 30s Peak Temp. T4 245°C Time t3 5s Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20151120 / cmf_automotive_power_acm90v_en.fm (5/7) E M C C o m p o n e n t s ACM90V Type SHAPE & DIMENSIONS 9.0±0.2 4 2 3 7.0±0.2 1 6.0typ. 1.5±0.2 4.5max. 1.5±0.2 1.5±0.2 1.5±0.2 2.0±0.2 Dimensions in mm RECOMMENDED LAND PATTERN CIRCUIT DIAGRAM 11.0 1.5 6.0 1 4 2 3 3.5 • No polarity Dimensions in mm Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20151120 / cmf_automotive_power_acm90v_en.fm (6/7) E M C C o m p o n e n t s ACM90V Type ELECTRICAL CHARACTERISTICS CHARACTERISTICS SPECIFICATION TABLE Common mode impedance DC resistance Rated current Rated voltage Insulation resistance [at 100MHz] (: )min. 500 (m: )max. 10 (A)max. 5.0 (V)max. 80 (M: )min. 10 (: )typ. 700 ○ Measurement equipment Measurement item Product No. Common mode impedance 4991A DC resistance 4338A Insulation resistance 4339A ＊ Equivalent measurement equipment may be used. Part No. ACM90V-701-2PL-TL00 Manufacturer Agilent Technologies Agilent Technologies Agilent Technologies IMPEDANCE VS. FREQUENCY CHARACTERISTICS 10000 1000 Impedance (Ω) 701 Common mode 701 Differential mode 100 10 1 1 10 100 1000 Frequency (MHz) ○ Measurement equipment Product No. Manufacturer 4991A Agilent Technologies ＊ Equivalent measurement equipment may be used. Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20151120 / cmf_automotive_power_acm90v_en.fm (7/7) E M C C o m p o n e n t s ACM90V Type PACKAGING STYLE REEL DIMENSIONS 2.0±0.5 E A W1 W2 ø330±2 16.4+2/–0 20.4 typ. N 100±1 E 2 typ. N Type ACM90V 1.0 ø13.0±0.2 W1 ø21.0±0.8 W2 A Dimensions in mm TAPE DIMENSIONS P0 t B W F P2 E øD0 K P1 A Dimensions in mm Type ACM90V A 8.6±0.1 B 9.6±0.1 øD0 1.5+0.1/0 E 1.75±0.1 F 7.5±0.1 P0 4.0±0.1 P1 12.0±0.1 P2 2.0±0.1 W 16.0±0.3 K 4.6±0.1 t 0.4±0.05 500 to 560min. 160min. Drawing direction Taping L Type ACM90V L 440min. Dimensions in mm Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20151120 / cmf_automotive_power_acm90v_en.fm
