ACT1210-101-2P-TL00

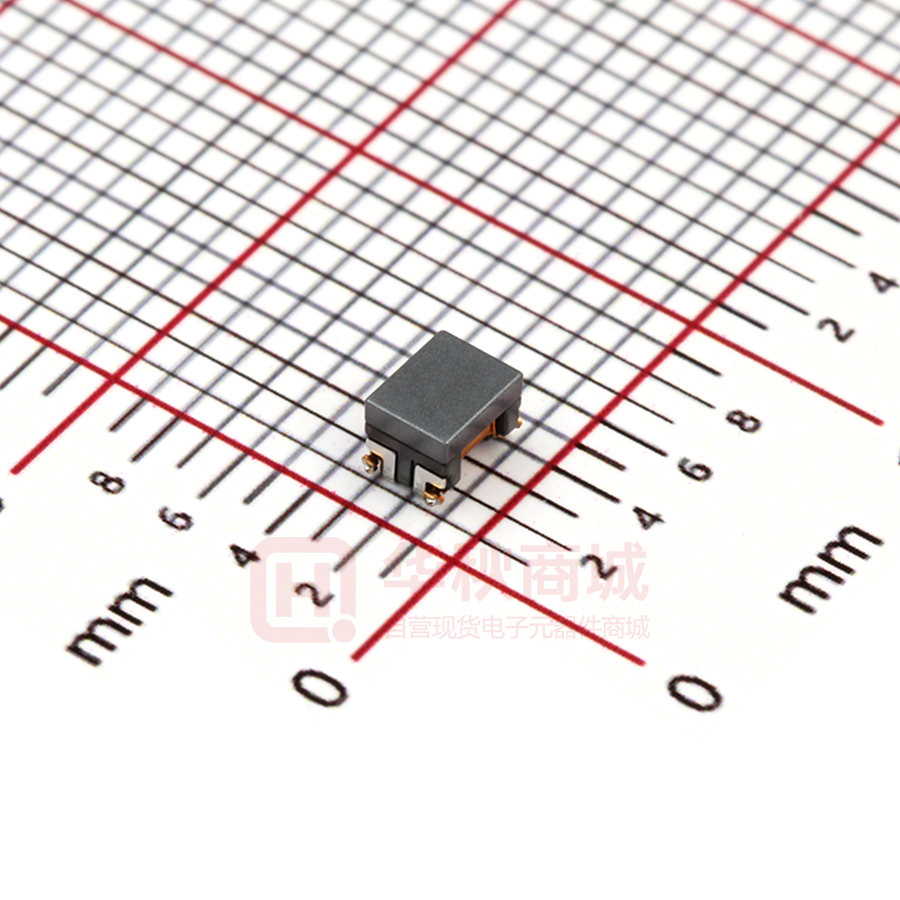

1 of 3 Creation Date : May 08, 2020 (GMT) 共模滤波器/扼流圈 ACT1210-101-2P-TL00 用途 特点 系列 车载等级 Wire Wound 绕线 AEC-Q200 AEC-Q200 ACT 状态 品牌 量产体制 TDK 尺寸 长度(L) 3.20mm ±0.20mm 宽度(W) 2.50mm ±0.20mm 厚度 | 高低 2.50mm Max. 电气特性 共模阻抗 [Typ.] 5.1kΩ at 10MHz 共模阻抗 [Min.] 2.2kΩ at 10MHz 共模电感 100μH +50,-30% at 100kHz 额定电流 150mA 额定电压 80VDC 绝缘电阻 [Min.] 10MΩ 直流电阻 1.5Ω Max. 其他 使用温度范围 焊接方法 -55～150°C 回流 烙铁焊接 AEC-Q200 Yes 包装形式 塑封编带 (330mm卷筒、帯宽 12mm) 包装个数 6000pcs 重量 0.075g ! Images are for reference only and show exemplary products. ! This PDF document was created based on the data listed on the TDK Corporation website. ! All specifications are subject to change without notice. Copyright(c) TDK Corporation. All rights reserved. 2 of 3 Creation Date : May 08, 2020 (GMT) 共模滤波器/扼流圈 ACT1210-101-2P-TL00 特性图表(这是参考数据，并不保证产品的特性。） |Scc21| ACT1210-101-2P-TL00 |Sdd21| ACT1210-101-2P-TL00 Common-mode Impedance ACT1210-101-2P-TL00 Common-mode Inductance ACT1210-101-2P-TL00 ! Images are for reference only and show exemplary products. ! This PDF document was created based on the data listed on the TDK Corporation website. ! All specifications are subject to change without notice. Copyright(c) TDK Corporation. All rights reserved. 3 of 3 Creation Date : May 08, 2020 (GMT) 共模滤波器/扼流圈 ACT1210-101-2P-TL00 Associated Images Shapes and Dimensions Land Pattern (Terminal Connection) ! Images are for reference only and show exemplary products. ! This PDF document was created based on the data listed on the TDK Corporation website. ! All specifications are subject to change without notice. Copyright(c) TDK Corporation. All rights reserved. Circuit Diagram
