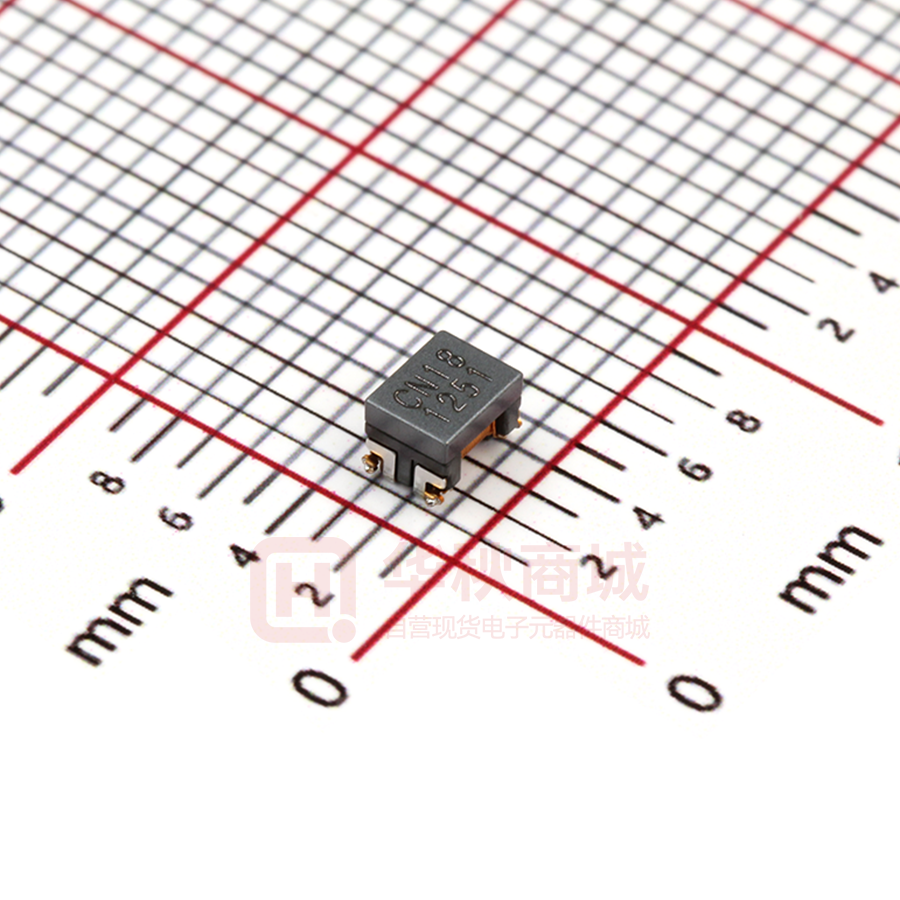

ACT1210-510-2P-TL00

E M C C o m p o n e n t s Common mode filters Automotive signal line (for power train/safety) ACT series RoHS REACH SVHC-Free Cl Br Pb Halogen Free Lead Free AEC-Q200 ACT1210 type FEATURES Compact products (3225 size), whose characteristics are equivalent to that of conventional products (ACT45B, ACT45R). Common mode filters for CAN-BUS/FlexRay, compatible with an operating temperature range of –55 to +150°C. Operating temperature range: –55 to +150°C Compliant with AEC-Q200 APPLICATION CAN-BUS, FlexRay system. PART NUMBER CONSTRUCTION ACT1210 Series • type name - 110 - Inductance(typ.) (µH) 2P - Number of lines TL 00 Packaging style Internal code CHARACTERISTICS SPECIFICATION TABLE Common mode impedance Common mode inductance Stray inductance DC resistance Rated current Insulation resistance Rated voltage [10MHz 100mV] ( )min. ( )typ. 300 550 500 1100 1000 2600 2200 5100 [100kHz 100mV] (µH)+50/–30% 11 22 51 100 [100kHz 100mV] (µH)typ. 0.05 0.06 0.09 0.13 ( )max. 0.4 0.5 0.7 1.5 (mA)max. 300 250 200 150 (M )min. 10 10 10 10 (V)max. 80 80 80 80 Derating ACT1210-110-2P-TL00 ACT1210-220-2P-TL00 ACT1210-510-2P-TL00 ACT1210-101-2P-TL00 Maximum current value for the ambient temperature (mA) 1.2 Part No. 1 ACT1210-110-2P-TL00 ACT1210-220-2P-TL00 ACT1210-510-2P-TL00 ACT1210-101-2P-TL00 0.8 Iop/IR Part No. Ambient temperature 125°C 140°C 300 200 250 166 200 133 150 100 150°C 100 83 66 50 0.6 0.4 0.2 0 0 25 50 75 100 Ambient temperature(°C) 125 150 Measurement equipment Measurement item Product No. Common mode impedance 4991A Common mode inductance 4294A DC resistance 4338A Insulation resistance 4339A ＊ Equivalent measurement equipment may be used. Manufacturer Keysight Technologies Keysight Technologies Keysight Technologies Keysight Technologies Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (1/4) 20210531 cmf_automotive_signal_act1210_en.fm E M C C o m p o n e n t s ACT1210 type IMPEDANCE VS. FREQUENCY CHARACTERISTICS 100000 510 Common mode Impedance (Ω) 10000 101 Common mode 220 Common mode 1000 510 Differential mode 110 Common mode 101 Differential mode 100 220 Differential mode 110 Differential mode 10 1 1 10 100 1000 Frequency (MHz) Measurement equipment Product No. Manufacturer 4991A Keysight Technologies ＊ Equivalent measurement equipment may be used. Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (2/4) 20210531 cmf_automotive_signal_act1210_en.fm E M C C o m p o n e n t s ACT1210 type SHAPE & DIMENSIONS PACKAGING STYLE REEL DIMENSIONS 3.9max. (2) 2.0±0.5 4 2 3 2.5max. ø100+1.0/-1.5 2.5±0.2 1 (0.6) (0.5) ø13.0+0.3/-0.2 13.5±0.5 (ø21) 4x 0.1 CZ ø330+2.0/-2.5 Dimensions in mm Dimensions in mm TAPE DIMENSIONS 1.5 +0.1 –0 2±0.05 4±0.1 12+0.3/–0.1 Sprocket hole 0.4±0.1 1.6 0.4 RECOMMENDED LAND PATTERN 2.0 B 4.1 Dimensions in mm A K 5.5±0.05 3.2±0.2 1.75±0.1 (0.6) Cavity 4±0.1 CIRCUIT DIAGRAM 1 4 2 3 Dimensions in mm Type ACT1210 A (2.85) B (4.2) K (2.7) • No polarity PACKAGE QUANTITY Package quantity 6,000 pcs/reel RECOMMENDED REFLOW PROFILE Soldering Preheating Natural cooling Peak 245°C Temperature 230°C TEMPERATURE RANGE, INDIVIDUAL WEIGHT Operating temperature range –55 to +150°C Individual weight 0.075 g 230°C 180°C 5s max. 150°C 10 to 30s 60 to 120s Time Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (3/4) 20210531 cmf_automotive_signal_act1210_en.fm E M C C o m p o n e n t s REMINDERS FOR USING THESE PRODUCTS Before using these products, be sure to request the delivery specifications. SAFETY REMINDERS Please pay sufficient attention to the warnings for safe designing when using this products. REMINDERS The storage period is within 12 months. Be sure to follow the storage conditions (temperature: 5 to 40°C, humidity: 10 to 75% RH or less). If the storage period elapses, the soldering of the terminal electrodes may deteriorate. Do not use or store in locations where there are conditions such as gas corrosion (salt, acid, alkali, etc.). Before soldering, be sure to preheat components. The preheating temperature should be set so that the temperature difference between the solder temperature and chip temperature does not exceed 150°C. Soldering corrections after mounting should be within the range of the conditions determined in the specifications. If overheated, a short circuit, performance deterioration, or lifespan shortening may occur. When embedding a printed circuit board where a chip is mounted to a set, be sure that residual stress is not given to the chip due to the overall distortion of the printed circuit board and partial distortion such as at screw tightening portions. Self heating (temperature increase) occurs when the power is turned ON, so the tolerance should be sufficient for the set thermal design. Carefully lay out the coil for the circuit board design of the non-magnetic shield type. A malfunction may occur due to magnetic interference. Use a wrist band to discharge static electricity in your body through the grounding wire. Do not expose the products to magnets or magnetic fields. Do not use for a purpose outside of the contents regulated in the delivery specifications. The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition. The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society, person or property. If you intend to use the products in the applications listed below or if you have special requirements exceeding the range or conditions set forth in the each catalog, please contact us. (1) Aerospace/aviation equipment (2) Transportation equipment (electric trains, ships, etc.) (3) Medical equipment (4) Power-generation control equipment (5) Atomic energy-related equipment   (6) Seabed equipment (7) Transportation control equipment (8) Public information-processing equipment (9) Military equipment (10) Electric heating apparatus, burning equipment (11) Disaster prevention/crime prevention equipment (12) Safety equipment (13) Other applications that are not considered general-purpose applications When designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing protection circuit/device or providing backup circuits in your equipment. Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (4/4) 20210531 cmf_automotive_signal_act1210_en.fm
