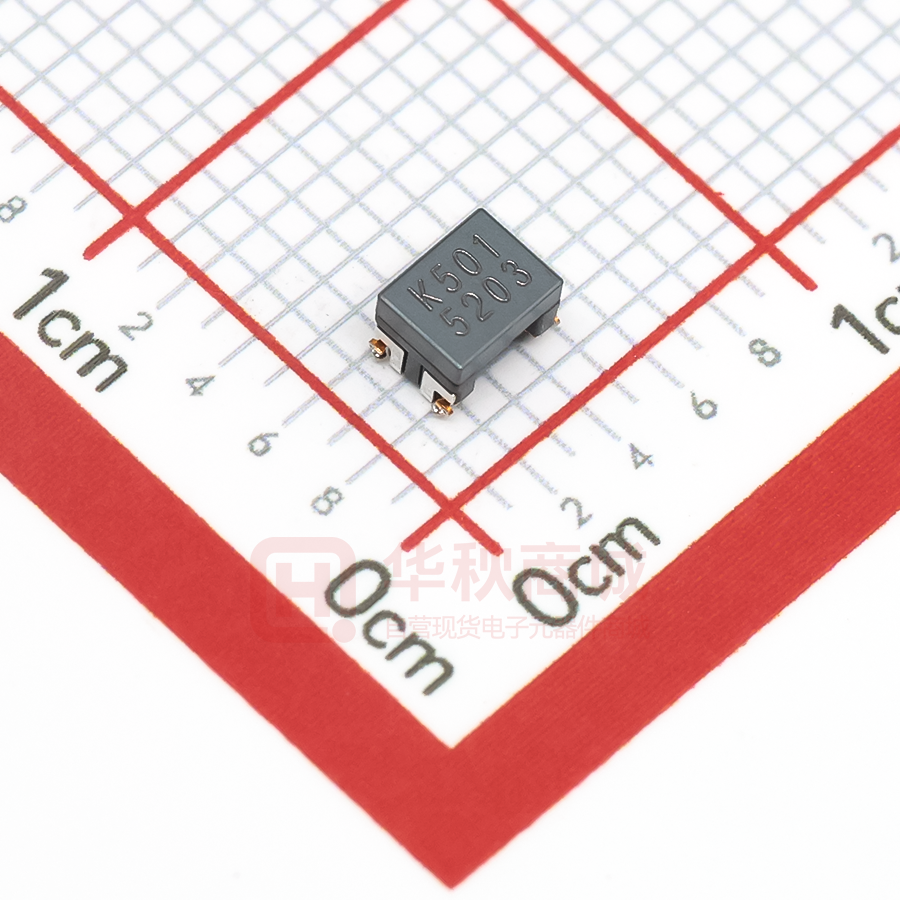

ACT1210D-101-2P-TL00 数据手册
E M C
C o m p o n e n t s
Common mode filters
Automotive signal line (for power train/safety)
ACT series
RoHS
REACH
SVHC-Free
Cl
Br
Pb
Halogen
Free
Lead
Free
AEC-Q200
ACT1210D type
FEATURES
Common mode filters for automotive CAN/CAN-FD system, compatible with an operating temperature range of –40 to +150°C. (Target
product name : ACT1210D-510/ACT1210D-101)
This product achieves high S-parameter while realizing high reliability by metallizing terminals and laser welding using a proprietary
method.
Operating temperature range: –40 to +150°C (ACT1210D-510/ACT1210D-101)
–40 to +125°C (ACT1210D-131)
Compliant with AEC-Q200
APPLICATION
CAN FD system
PART NUMBER CONSTRUCTION
ACT1210D
-
101
-
Inductance(typ.)
(µH)
Series • type name
2P
-
Number of lines
TL
00
Packaging style
Internal code
CHARACTERISTICS SPECIFICATION TABLE
Common mode inductance
[100kHz]
(µH)
Tolerance
50
+50/–30%
100
+50/–30%
130
+50/–30%
DC resistance
–40 to +125°C
( )max.
3.0
3.0
3.5
Insulation
resistance
(M )min.
10
10
10
Rated current
Rated voltage
Part No.
(mA)max.
115
115
115
(V)max.
80
80
80
ACT1210D-510-2P-TL00
ACT1210D-101-2P-TL00
ACT1210D-131-2P-TL00
Rated current temperature characteristics (Derating)
120
131
510/101
Rated current (mA)
100
80
60
40
20
0
30
50
70
90
110
Ambient temperature(°C)
130
150
Measurement equipment
Measurement item
Product No.
Common mode inductance
4294A
DC resistance
4338A
Insulation resistance
4339A
* Equivalent measurement equipment may be used.
Manufacturer
Keysight Technologies
Keysight Technologies
Keysight Technologies
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(1/4)
20220329
cmf_automotive_signal_act1210d_en.fm
E M C
C o m p o n e n t s
ACT1210D type
Sdd21
Scc21
0
0
510
Sdd21 (dB)
–1
510
–10
Scc21 (dB)
101
–2
131
–3
–4
131
–30
–40
–50
–5
0.1
1
10
Frequency (MHz)
100
–60
0.1
1000
Ssd21
1
10
Frequency (MHz)
100
1000
Ssd12
0
0
–20
–20
–40
101
Ssd12 (dB)
Ssd21 (dB)
–20
101
–60
131
510
–80
–100
–40
131
–60
101
–80
510
–100
–120
–140
0.1
1
10
Frequency (MHz)
100
1000
–120
0.1
1
10
Frequency (MHz)
100
1000
Measurement equipment
Product No.
Manufacturer
E5071C
Keysight Technologies
* Equivalent measurement equipment may be used.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(2/4)
20220329
cmf_automotive_signal_act1210d_en.fm
E M C
C o m p o n e n t s
ACT1210D type
SHAPE & DIMENSIONS
PACKAGING STYLE
REEL DIMENSIONS
3.9max.
(2)
2.0±0.5
4
2
3
2.5max.
ø100+1.0/-1.5
2.5±0.2
1
(0.6)
(0.5)
ø13.0+0.3/-0.2
13.5±0.5
(ø21)
4x
0.1 CZ
ø330+2.0/-2.5
Dimensions in mm
Dimensions in mm
TAPE DIMENSIONS
1.5 +0.1
–0
2±0.05
4±0.1
12+0.3/–0.1
Sprocket
hole
0.4±0.1
1.6
0.4
RECOMMENDED LAND PATTERN
2.0
B
4.1
Dimensions in mm
A
K
5.5±0.05
3.2±0.2
1.75±0.1
(0.6)
Cavity
4±0.1
CIRCUIT DIAGRAM
1
4
2
3
Dimensions in mm
Type
ACT1210D
A
(2.85)
B
(4.2)
K
(2.7)
• No polarity
PACKAGE QUANTITY
Package quantity
6,000 pcs/reel
RECOMMENDED REFLOW PROFILE
Soldering
Preheating
TEMPERATURE RANGE, INDIVIDUAL WEIGHT
Peak
Part number
245°C
ACT1210D-510
ACT1210D-101
ACT1210D-131
230°C
Temperature
Natural
cooling
Operating
temperature range
–40 to +150°C
–40 to +150°C
–40 to +125°C
Individual
weight
0.075 g
0.075 g
0.075 g
230°C
180°C
5s max.
150°C
10 to 30s
60 to 120s
Time
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(3/4)
20220329
cmf_automotive_signal_act1210d_en.fm
E M C
C o m p o n e n t s
REMINDERS FOR USING THESE PRODUCTS
Before using these products, be sure to request the delivery specifications.
SAFETY REMINDERS
Please pay sufficient attention to the warnings for safe designing when using this products.
REMINDERS
The storage period is within 12 months. Be sure to follow the storage conditions (temperature: 5 to 40°C, humidity: 10 to 75% RH or
less).
If the storage period elapses, the soldering of the terminal electrodes may deteriorate.
Do not use or store in locations where there are conditions such as gas corrosion (salt, acid, alkali, etc.).
Before soldering, be sure to preheat components.
The preheating temperature should be set so that the temperature difference between the solder temperature and chip temperature
does not exceed 150°C.
Soldering corrections after mounting should be within the range of the conditions determined in the specifications.
If overheated, a short circuit, performance deterioration, or lifespan shortening may occur.
When embedding a printed circuit board where a chip is mounted to a set, be sure that residual stress is not given to the chip due to
the overall distortion of the printed circuit board and partial distortion such as at screw tightening portions.
Self heating (temperature increase) occurs when the power is turned ON, so the tolerance should be sufficient for the set thermal
design.
Carefully lay out the coil for the circuit board design of the non-magnetic shield type.
A malfunction may occur due to magnetic interference.
Use a wrist band to discharge static electricity in your body through the grounding wire.
Do not expose the products to magnets or magnetic fields.
Do not use for a purpose outside of the contents regulated in the delivery specifications.
The products described in this catalog are intended to be installed in automobiles or automotive electronic equipment (AV equipment,
telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) and to be used in automobiles (including the case where the said automotive product
is mounted in a vehicle) or standard applications as general electronic equipment in automotive applications or standard applications
as general electronic equipment in automotive applications in accordance with the scope and conditions described in this specification,
while the said automotive or general electronic equipment including the said product is intended to be used in the usual operation and
usage methods, respectively. Other than automotive or automotive products are not designed or warranted to meet the requirements of
the applications listed below, whose performance and/or quality requires a more stringent level of safety or reliability, or whose failure,
malfunction or defect could cause serious damage to society, person or property.
Please understand that we are not responsible for any damage or liability caused by use of the products in any of the applications
below or for any other use exceeding the range or conditions set forth in this specification sheet.
If you intend to use the products in the applications listed below or if you have special requirements exceeding the range or conditions
set forth in this specification, please contact us.
(1) Aerospace/aviation equipment
(2) Transportation equipment (electric trains, ships, etc.)
(3) Medical equipment
(4) Power-generation control equipment
(5) Atomic energy-related equipment
(6) Seabed equipment
(7) Transportation control equipment
(8) Public information-processing equipment
(9) Military equipment
(10) Electric heating apparatus, burning equipment
(11) Disaster prevention/crime prevention equipment
(12) Safety equipment
(13) Other applications that are not considered general-purpose
applications
When designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing protection circuit/device or providing backup circuits in your equipment.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
(4/4)
