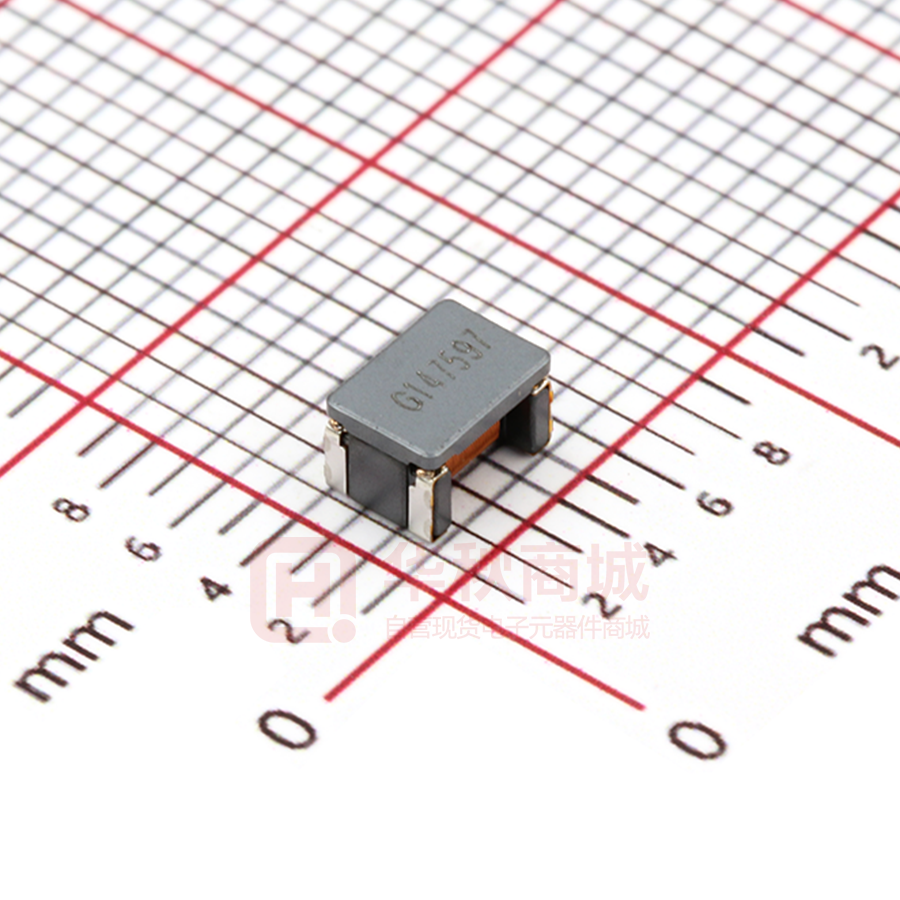

ACT45B-510-2P-TL003

E M C C o m p o n e n t s Common mode filters Automotive signal line (for power train/safety) ACT series Pb RoHS REACH SVHC-Free Lead Free AEC-Q200 ACT45B type FEATURES Compatible with an operating temperature range of –40 to +150°C, so can be used for vehicle devices requiring compatibility with high temperatures. When mounting, the terminal and winding tape splicing part do not fuse. Operating temperature range: –40 to +150°C Compliant with AEC-Q200 APPLICATION CAN-BUS, FAXs, modems, ISDNs, etc. Application guides: Automotive (xEV), Car Infotainment PART NUMBER CONSTRUCTION ACT45B - Series • type name 110 - Inductance(typ.) (µH) 2P Number of lines - TL 003 Packaging style Internal code CHARACTERISTICS SPECIFICATION TABLE Common mode impedance [10MHz] ( )min. ( )typ. 300 600 500 1200 1000 2800 2000 5800 Common mode inductance [100kHz] (µH)+50/–30% 11 22 51 100 Stray inductance [100kHz] (µH)typ. 0.05 0.08 0.15 0.20 DC resistance Rated current Insulation resistance Rated voltage ( )max. 0.6 1.0 1.0 2.0 (A)max. 0.25 0.2 0.2 0.15 (M )min. 10 10 10 10 (V)max. 50 50 50 50 Part No. ACT45B-110-2P-TL003 ACT45B-220-2P-TL003 ACT45B-510-2P-TL003 ACT45B-101-2P-TL003 Measurement equipment Measurement item Product No. Common mode impedance 4991A Common mode inductance 4294A DC resistance 4338A Insulation resistance 4339A ＊ Equivalent measurement equipment may be used. Manufacturer Keysight Technologies Keysight Technologies Keysight Technologies Keysight Technologies Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (1/4) 20181015 cmf_automotive_signal_act45b_en.fm E M C C o m p o n e n t s ACT45B type IMPEDANCE VS. FREQUENCY CHARACTERISTICS 100000 510 Common mode 101 Common mode 10000 Impedance (Ω) 220 Common mode 1000 510 Differential mode 110 Common mode 101 Differential mode 100 220 Differential mode 110 Differential mode 10 1 10 100 1000 Frequency (MHz) Measurement equipment Product No. Manufacturer 4991A Keysight Technologies ＊ Equivalent measurement equipment may be used. Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (2/4) 20181015 cmf_automotive_signal_act45b_en.fm E M C C o m p o n e n t s ACT45B type SHAPE & DIMENSIONS PACKAGING STYLE REEL DIMENSIONS 4.5±0.2 4 2 3 2.0±0.5 2 typ. Marking 2.8±0.2 ø100±1 3.2±0.2 1 1.0 0.65±0.1 0.7±0.1 Dimensions in mm ø13.0±0.2 13.5±0.5 ø21.0±0.8 17.5±1 ø330±2 RECOMMENDED LAND PATTERN Dimensions in mm 1.55±0.05 2.0±0.05 4.0±0.1 Sprocket hole 5.5±0.05 0.3±0.05 1.75±0.1 3.4 1.6 TAPE DIMENSIONS 3.2 B 12.0±0.2 5.9 Dimensions in mm K 8.0±0.1 CIRCUIT DIAGRAM 1 4 2 3 Cavity A Dimensions in mm Type ACT45B A 3.6±0.1 B 4.9±0.1 K 3.05±0.1 • No polarity Blank 160min. Products Blank 400 to 500 RECOMMENDED REFLOW PROFILE Start Preheating Soldering End Natural cooling Drawing direction Peak Dimensions in mm 245°C Temperature 230°C 230°C PACKAGE QUANTITY Package quantity 2,500 pcs/reel 180°C 5s 150°C 60 to 120s 40s max. TEMPERATURE RANGE, INDIVIDUAL WEIGHT Operating Storage temperature range temperature range –40 to +150 °C –40 to +150 °C  The storage temperature range is for after the assembly. Individual weight 0.14 g Time Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (3/4) 20181015 cmf_automotive_signal_act45b_en.fm E M C C o m p o n e n t s REMINDERS FOR USING THESE PRODUCTS Before using these products, be sure to request the delivery specifications. SAFETY REMINDERS Please pay sufficient attention to the warnings for safe designing when using this products. REMINDERS The storage period is less than 12 months. Be sure to follow the storage conditions (temperature: 5 to 40°C, humidity: 10 to 75% RH or less). If the storage period elapses, the soldering of the terminal electrodes may deteriorate. Do not use or store in locations where there are conditions such as gas corrosion (salt, acid, alkali, etc.). Before soldering, be sure to preheat components. The preheating temperature should be set so that the temperature difference between the solder temperature and chip temperature does not exceed 150°C. Soldering corrections after mounting should be within the range of the conditions determined in the specifications. If overheated, a short circuit, performance deterioration, or lifespan shortening may occur. When embedding a printed circuit board where a chip is mounted to a set, be sure that residual stress is not given to the chip due to the overall distortion of the printed circuit board and partial distortion such as at screw tightening portions. Self heating (temperature increase) occurs when the power is turned ON, so the tolerance should be sufficient for the set thermal design. Carefully lay out the coil for the circuit board design of the non-magnetic shield type. A malfunction may occur due to magnetic interference. Use a wrist band to discharge static electricity in your body through the grounding wire. Do not expose the products to magnets or magnetic fields. Do not use for a purpose outside of the contents regulated in the delivery specifications. The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition. The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society, person or property. If you intend to use the products in the applications listed below or if you have special requirements exceeding the range or conditions set forth in the each catalog, please contact us. (1) Aerospace/aviation equipment (2) Transportation equipment (electric trains, ships, etc.) (3) Medical equipment (4) Power-generation control equipment (5) Atomic energy-related equipment   (6) Seabed equipment (7) Transportation control equipment (8) Public information-processing equipment (9) Military equipment (10) Electric heating apparatus, burning equipment (11) Disaster prevention/crime prevention equipment (12) Safety equipment (13) Other applications that are not considered general-purpose applications When designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing protection circuit/device or providing backup circuits in your equipment. Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (4/4) 20181015 cmf_automotive_signal_act45b_en.fm
