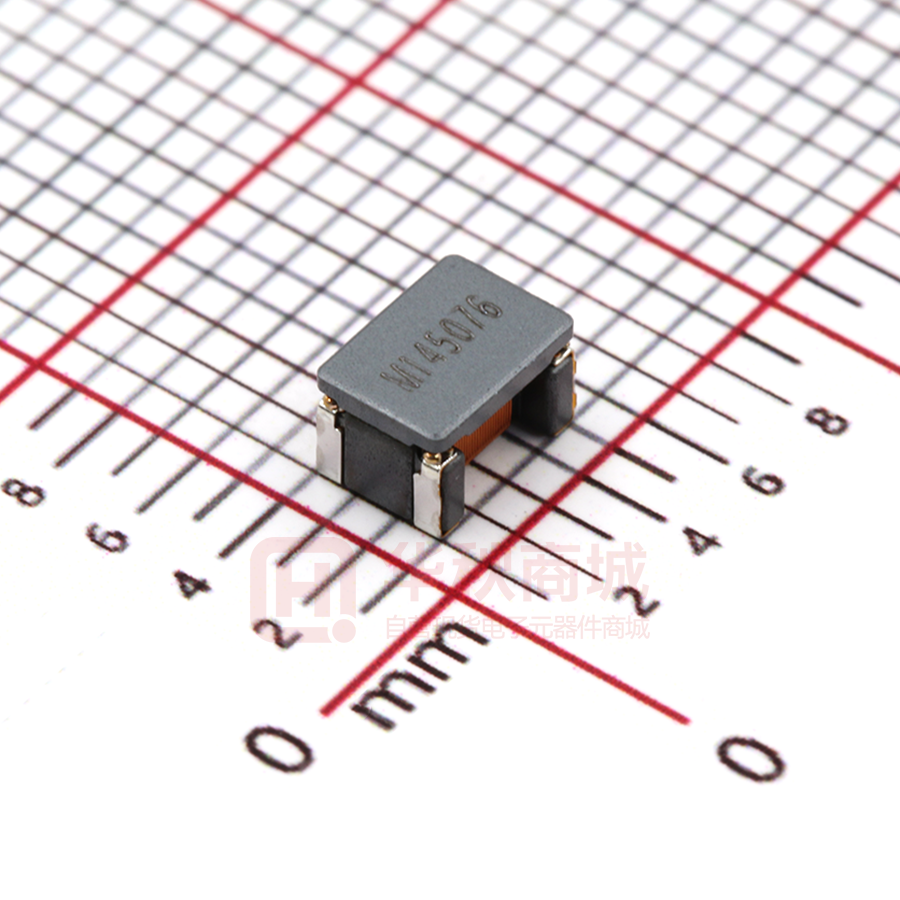

ACT45C-510-2P-TL000

TDK EMC Technology Common mode Filters for CAN(Controller Area Network) SHAPES AND DIMENSIONS FEATURES Operating temperature range from -40℃ to +125℃. Non-soldered internal construction provides excellent heat resistance – to ensure effective circuit board mounting. Robust lead frame termination – provides sound and flexible mechanical construction. 3.2±0.2 Lead free soldering applicable AEC-Q200 compliant APPLICATION This SMD type product is effective in reducing noise associated with the internal communication networks used within automotive vehicles. (CAN-bus system) (3) (4) 2 3 2.8±0.2 ACT45C - 510 - 2P - TL 000 (2) 4 4.5±0.2 PRODUCT IDENTIFICATION (1) 1 (5) 0.7±0.1 0.65±0.1 (1) Series name (2) Inductance typ. Value (3) Numbers of lines 2P : 2 lines (4)Packing style Unit : mm TL : Taping  330mm reel 2,500pcs. RECOMMENDED PATTERN 3.4 (5)Control mark EQUIVALENT CIRCUIT 1 4 2 3 1.6 3.2 5.9 Unit : mm No directionality ELECTRICAL CHARACTERISTICS Part No. ACT45C-110-2P ACT45C-220-2P ACT45C-510-2P ACT45C-101-2P Common-mode/Z/ (Ω) at10MHz 300min.(600typ.) 500min. (1200typ.) 1000min. (2800typ.) 2000min.(5800typ.) at100kHz DC resistance (Ω)max. Rated current DC(A)max. Rated voltage DC(V)max. Insulation Resistance (MΩ)min. 0.05 0.08 0.15 0.20 0.6 1.0 1.0 2.0 0.25 0.2 0.2 0.15 50 50 50 50 10 10 10 10 Common-mode L () typ. Stray L () typ. at100kHz 11+50/-30% 22+50/-30% 51+50/-30% 100+50/-30% TDK EMC Technology Common mode Filters for CAN(Controller Area Network) /Z/ vs. FREQUENCY CHARACTERISTICS ACT45C-110-2P ACT45C-220-2P 100000 100000 Impedance(ohm) Impedance(ohm) Common-mode 10000 10000 Common-mode 1000 1000 100 100 Differential-mode Differential-mode 10 10 1 10 100 1 1000 10 100 1000 Frequency(MHz) Frequency(MHz) ACT45C-510-2P ACT45C-101-2P 100000 100000 Common-mode Common-mode 10000 Impedance(ohm) Impedance(ohm) 10000 1000 100 1000 Differential-mode 100 Differential-mode 10 10 1 10 100 Frequency(MHz) 1000 1 10 100 Frequency(MHz) 1000
