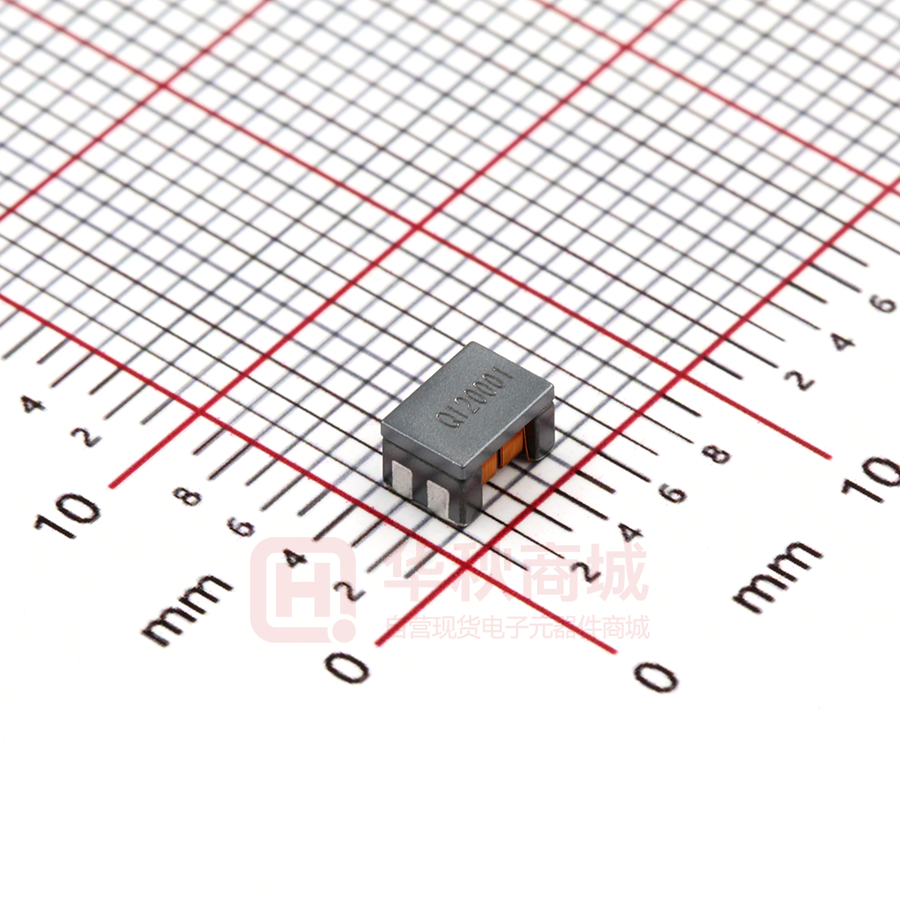

ACT45L-201-2P-TL000

Discontinue Issue Date Last Purchase Order Date Last Shipment Date Apr. 28, 2021 Dec. 31, 2022 Jun. 30, 2023 E M C • Please refer to our Web site about replacement information. C o m p o n e n t s Common mode filters Automotive signal line (for infotainment) ACT series RoHS REACH SVHC-Free Cl Br Pb Halogen Free Lead Free AEC-Q200 pr od u st cts op w pe il d lb pr e od or uc ha tio ve n be en ACT45L type FEATURES When mounting, the terminal and winding tape splicing part do not fuse. ACT45L for Ethernet, which uses our unique technology, is a product that can realize higher-level Scd21 mode conversion characteristics while maintaining a high L-value of 200µH. Operating temperature range: –40 to +105°C Compliant with AEC-Q200 APPLICATION Ethernet system. Application guides: Car Infotainment PART NUMBER CONSTRUCTION ACT45L - 201 - Inductance(typ.) (µH) Series • type name 2P - Number of lines TL 000 Packaging style Internal code CHARACTERISTICS SPECIFICATION TABLE Common mode inductance [100kHz] (µH)+60/–20µH 200 DC resistance Rated current Insulation resistance Rated voltage Part No. ( )max. 4.5 (mA)max. 100 (M )min. 10 (V)max. 50 ACT45L-201-2P-TL000 Measurement equipment Manufacturer Keysight Technologies Keysight Technologies Keysight Technologies Th e Measurement item Product No. Common mode inductance 4294A DC resistance 4338A Insulation resistance 4339A ＊ Equivalent measurement equipment may be used. Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (1/4) 20210510 cmf_automotive_signal_act45l_en.fm E M C C o m p o n e n t s ACT45L type IMPEDANCE VS. FREQUENCY CHARACTERISTICS 201 Common mode Impedance (Ω) 10000 1000 201 Differential mode 100 10 1 pr od u st cts op w pe il d lb pr e od or uc ha tio ve n be en 100000 1 10 100 1000 Frequency (MHz) Measurement equipment Th e Product No. Manufacturer 4294A Keysight Technologies ＊ Equivalent measurement equipment may be used. Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (2/4) 20210510 cmf_automotive_signal_act45l_en.fm E M C C o m p o n e n t s ACT45L type SHAPE & DIMENSIONS PACKAGING STYLE REEL DIMENSIONS 2.0±0.5 4 2 typ. Marking 3.2±0.2 1 pr od u st cts op w pe il d lb pr e od or uc ha tio ve n be en 4.5±0.2 ø100±1 3 2.8±0.15 2 (0.45) 1.0 (0.65) (1.4) ø13.0±0.2 Dimensions in mm 13.5±0.5 ø21.0±0.8 0.3±0.05 1.55±0.05 2.0±0.05 4.0±0.1 Sprocket hole 5.5±0.05 TAPE DIMENSIONS 1.75±0.1 5.5 Dimensions in mm 2.1 0.7 RECOMMENDED LAND PATTERN 3.9 17.5±1 ø330±2 B 12.0±0.2 Dimensions in mm CIRCUIT DIAGRAM K Cavity A 8.0±0.1 Dimensions in mm 1 4 2 3 Type ACT45L • No polarity Blank 160min. RECOMMENDED REFLOW PROFILE Preheating Soldering A 3.6±0.1 Natural cooling B 4.9±0.1 K 3.05±0.1 Products Blank 400 to 500 Start End Peak Drawing direction 230°C Th e Temperature 245°C Dimensions in mm 230°C PACKAGE QUANTITY Package quantity 180°C 2,500 pcs/reel 5s 150°C TEMPERATURE RANGE, INDIVIDUAL WEIGHT 60 to 120s 40s max. Time Operating Storage temperature range temperature range –40 to +105 °C –40 to +105 °C  The storage temperature range is for after the assembly. Individual weight 0.2 g Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (3/4) 20210510 cmf_automotive_signal_act45l_en.fm E M C C o m p o n e n t s REMINDERS FOR USING THESE PRODUCTS Before using these products, be sure to request the delivery specifications. pr od u st cts op w pe il d lb pr e od or uc ha tio ve n be en SAFETY REMINDERS Please pay sufficient attention to the warnings for safe designing when using this products. REMINDERS The storage period is less than 12 months. Be sure to follow the storage conditions (temperature: 5 to 40°C, humidity: 10 to 75% RH or less). If the storage period elapses, the soldering of the terminal electrodes may deteriorate. Do not use or store in locations where there are conditions such as gas corrosion (salt, acid, alkali, etc.). Before soldering, be sure to preheat components. The preheating temperature should be set so that the temperature difference between the solder temperature and chip temperature does not exceed 150°C. Soldering corrections after mounting should be within the range of the conditions determined in the specifications. If overheated, a short circuit, performance deterioration, or lifespan shortening may occur. When embedding a printed circuit board where a chip is mounted to a set, be sure that residual stress is not given to the chip due to the overall distortion of the printed circuit board and partial distortion such as at screw tightening portions. Self heating (temperature increase) occurs when the power is turned ON, so the tolerance should be sufficient for the set thermal design. Carefully lay out the coil for the circuit board design of the non-magnetic shield type. A malfunction may occur due to magnetic interference. Use a wrist band to discharge static electricity in your body through the grounding wire. Do not expose the products to magnets or magnetic fields. Do not use for a purpose outside of the contents regulated in the delivery specifications. The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition. The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society, person or property. If you intend to use the products in the applications listed below or if you have special requirements exceeding the range or conditions set forth in the each catalog, please contact us. Th e (1) Aerospace/aviation equipment (2) Transportation equipment (electric trains, ships, etc.) (3) Medical equipment (4) Power-generation control equipment (5) Atomic energy-related equipment   (6) Seabed equipment (7) Transportation control equipment (8) Public information-processing equipment (9) Military equipment (10) Electric heating apparatus, burning equipment (11) Disaster prevention/crime prevention equipment (12) Safety equipment (13) Other applications that are not considered general-purpose applications When designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing protection circuit/device or providing backup circuits in your equipment. Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (4/4) 20210510 cmf_automotive_signal_act45l_en.fm
