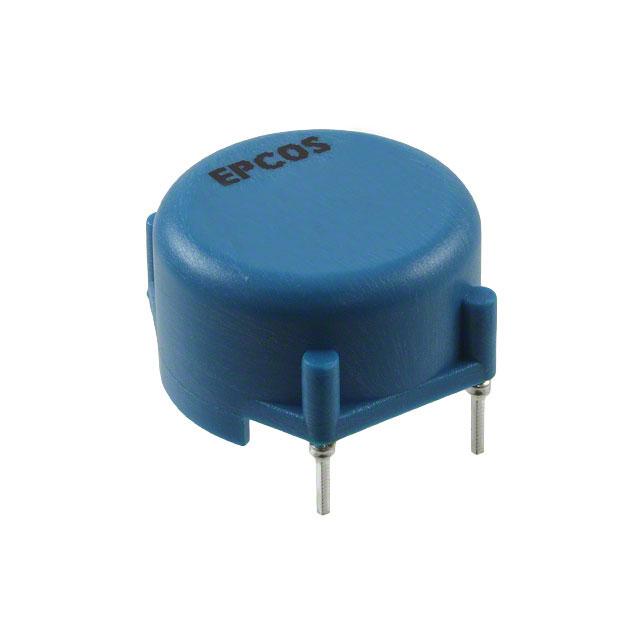

Power line chokes Current-compensated ring core double chokes 250 V AC, 1.2 … 68 mH, 0.3 … 3 A, +40 °C / +60 °C Series/Type: B82722A/J Date: October 2016 a~í~=pÜÉÉí EPCOS AG 2016. Reproduction, publication and dissemination of this publication, enclosures hereto and the information contained therein without EPCOS’ prior express consent is prohibited. EPCOS AG is a TDK Group Company. Power line chokes B82722A/J Current-compensated ring core double chokes Rated voltage 250 V AC Rated inductance 1.2 ... 68 mH Rated current 0.3 ... 3 A / +40 °C, +60 °C Construction ■ ■ ■ ■ ■ Current-compensated ring core double choke Ferrite core wih epoxy coating (UL 94 V-0) Plastic case with in-molded pins (UL 94 V-0)1) Potting (UL 94 V-0) Sector winding B82722A Features ■ ■ ■ ■ ■ ■ High resonance frequency due to special winding technique Approx. 1% stray inductance for symmetrical interference suppression Suitable for wave soldering Design complies with EN 60938-2 (VDE 0565-2) and UL 1283 UL2) and/or ENEC (VDE) approvals RoHS-compatible B82722J Applications ■ ■ ■ ■ Suppression of common-mode interferences Switch-mode power applications Electronic ballasts in lamps Power inverters Terminals ■ ■ ■ ■ ■ Base material CuNi18Zn20 Layer composition Ni, Sn Hot-dipped Pins 0.7  0.7 (mm) Lead spacing 10  12.5 (mm) or 20  12.5 (mm) Marking ■ Product brand, approval signs and VDE standard number, ordering code, graphic symbol, rated current, rated voltage, rated inductance, date of manufacture (YYWWD.internal ID code) Delivery mode ■ Blister tray in cardboard box 1) Additionally certified values: Glow wire flammability index (GWFI to IEC 60695-2-12): Glow wire ignition temperature (GWIT to IEC 60695-2-13): Comparative tracking index (CTI to IEC 60112): Ball pressure test (BP to IEC 60695-10-2): +850 °C +775 °C 175 V +125 °C 2) UL approval with 300 V AC Please read Cautions and warnings and Important notes at the end of this document. 2 10/16 Power line chokes B82722A/J Current-compensated ring core double chokes Dimensional drawings and pin configurations Horizontal version (B82722A) Vertical version (B82722J) Please read Cautions and warnings and Important notes at the end of this document. 3 10/16 Power line chokes B82722A/J Current-compensated ring core double chokes Technical data and measuring conditions Rated voltage VR 250 V AC (50/60 Hz) Test voltage Vtest 1500 V AC, 2 s (line/line) Rated temperature TR +40 °C or +60 °C Rated current IR Referred to 50 Hz and rated temperature Rated inductance LR Measured with Agilent 4284A at 10 kHz, 0.1 mA, +20 °C Inductance is specified per winding. Inductance tolerance 30% at +20 °C Inductance decreaseL/L0 < 10% at DC magnetic bias with IR, +20 °C Stray inductance Lstray,typ Measured with Agilent 4284A at 10 kHz, 5 mA, +20 °C, typical values DC resistance Rtyp Measured at +20 °C, typical values, specified per winding Solderability (lead-free) Sn96.5Ag3.0Cu0.5: +(245 3) °C, (3 0.3) s Wetting of soldering area 95% (to IEC 60068-2-20, test Ta) Resistance to soldering heat (wave soldering) +(260 5) °C, (10 1) s (to IEC 60068-2-20, test Tb) Climatic category 40/125/56 (to IEC 60068-1) Storage conditions (packaged) –25 °C … +40 °C, 75% RH Weight Approx. 10 g Approvals IEC/EN 60938-2, UL 1283 (E70122) Please read Cautions and warnings and Important notes at the end of this document. 4 10/16 Power line chokes B82722A/J Current-compensated ring core double chokes Characteristics and ordering codes LR Lstray,typ Rtyp TR Approvals A mH H m °C Ordering code Horizontal version 0.3 68 800 2500 +60 B82722A2301N002 B82722J2301N002   0.3 47 700 2500 +60 B82722A2301N001 B82722J2301N001   0.5 56 600 2000 +40 B82722A2501N020 B82722J2501N020   0.5 47 550 1500 +60 B82722A2501N022 B82722J2501N022   0.5 39 400 1120 +60 B82722A2501N021 B82722J2501N021   0.5 27 350 1200 +60 B82722A2501N001 B82722J2501N001   0.8 27 270 600 +60 B82722A2801N020 B82722J2801N020   1.0 15 170 540 +60 B82722A2102N020 B82722J2102N020   1.0 10 150 480 +60 B82722A2102N001 B82722J2102N001   1.5 10 90 240 +60 B82722A2152N020 B82722J2152N020   IR Vertical version 1.3 6.8 90 230 +60 B82722A2132N001 B82722J2132N001   1.7 4.0 45 175 +60 B82722A2172N001 B82722J2172N001   2.0 4.2 45 130 +40 B82722A2202N020 B82722J2202N020   2.0 3.3 35 133 +60 B82722A2202N002 B82722J2202N002   2.0 2.2 30 130 +60 B82722A2202N001 B82722J2202N001   2.5 1.7 20 80 +60 B82722A2252N001 B82722J2252N001   3.0 1.2 17 56 +60 B82722A2302N001 B82722J2302N001    = approval granted Please read Cautions and warnings and Important notes at the end of this document. 5 10/16 Power line chokes B82722A/J Current-compensated ring core double chokes Impedance |Z| versus frequency f measured with windings in parallel at +20 °C, typical values Impedance |Z| versus frequency f measured with windings in parallel at +20 °C, typical values Impedance |Z| versus frequency f measured with windings in parallel at +20 °C, typical values Current derating Iop/IR versus temperature TA Please read Cautions and warnings and Important notes at the end of this document. 6 10/16 Cautions and warnings ■ Please note the recommendations in our Inductors data book (latest edition) and in the data sheets. – Particular attention should be paid to the derating curves given there. – The soldering conditions should also be observed. Temperatures quoted in relation to wave soldering refer to the pin, not the housing. ■ If the components are to be washed varnished it is necessary to check whether the washing varnish agent that is used has a negative effect on the wire insulation, any plastics that are used, or on glued joints. In particular, it is possible for washing varnish agent residues to have a negative effect in the long-term on wire insulation. Washing processes may damage the product due to the possible static or cyclic mechanical loads (e.g. ultrasonic cleaning). They may cause cracks to develop on the product and its parts, which might lead to reduced reliability or lifetime. ■ The following points must be observed if the components are potted in customer applications: – Many potting materials shrink as they harden. They therefore exert a pressure on the plastic housing or core. This pressure can have a deleterious effect on electrical properties, and in extreme cases can damage the core or plastic housing mechanically. – It is necessary to check whether the potting material used attacks or destroys the wire insulation, plastics or glue. – The effect of the potting material can change the high-frequency behaviour of the components. ■ Ferrites are sensitive to direct impact. This can cause the core material to flake, or lead to breakage of the core. ■ Even for customer-specific products, conclusive validation of the component in the circuit can only be carried out by the customer. Display of ordering codes for EPCOS products The ordering code for one and the same product can be represented differently in data sheets, data books, other publications and the website of EPCOS, or in order-related documents such as shipping notes, order confirmations and product labels. The varying representations of the ordering codes are due to different processes employed and do not affect the specifications of the respective products. Detailed information can be found on the Internet under www.epcos.com/orderingcodes. Please read Cautions and warnings and Important notes at the end of this document. 7 10/16 Important notes The following applies to all products named in this publication: 1. Some parts of this publication contain statements about the suitability of our products for certain areas of application. These statements are based on our knowledge of typical requirements that are often placed on our products in the areas of application concerned. We nevertheless expressly point out that such statements cannot be regarded as binding statements about the suitability of our products for a particular customer application. As a rule we are either unfamiliar with individual customer applications or less familiar with them than the customers themselves. For these reasons, it is always ultimately incumbent on the customer to check and decide whether a product with the properties described in the product specification is suitable for use in a particular customer application. 2. We also point out that in individual cases, a malfunction of electronic components or failure before the end of their usual service life cannot be completely ruled out in the current state of the art, even if they are operated as specified. In customer applications requiring a very high level of operational safety and especially in customer applications in which the malfunction or failure of an electronic component could endanger human life or health (e.g. in accident prevention or life-saving systems), it must therefore be ensured by means of suitable design of the customer application or other action taken by the customer (e.g. installation of protective circuitry or redundancy) that no injury or damage is sustained by third parties in the event of malfunction or failure of an electronic component. 3. The warnings, cautions and product-specific notes must be observed. 4. In order to satisfy certain technical requirements, some of the products described in this publication may contain substances subject to restrictions in certain jurisdictions (e.g. because they are classed as hazardous). Useful information on this will be found in our Material Data Sheets on the Internet (www.tdk-electronics.tdk.com/material). Should you have any more detailed questions, please contact our sales offices. 5. We constantly strive to improve our products. Consequently, the products described in this publication may change from time to time. The same is true of the corresponding product specifications. Please check therefore to what extent product descriptions and specifications contained in this publication are still applicable before or when you place an order. We also reserve the right to discontinue production and delivery of products. Consequently, we cannot guarantee that all products named in this publication will always be available. The aforementioned does not apply in the case of individual agreements deviating from the foregoing for customer-specific products. 6. Unless otherwise agreed in individual contracts, all orders are subject to our General Terms and Conditions of Supply. 7. Our manufacturing sites serving the automotive business apply the IATF 16949 standard. The IATF certifications confirm our compliance with requirements regarding the quality management system in the automotive industry. Referring to customer requirements and customer specific requirements (“CSR”) TDK always has and will continue to have the policy of respecting individual agreements. Even if IATF 16949 may appear to support the acceptance of unilateral requirements, we hereby like to emphasize that only requirements mutually agreed upon can and will be implemented in our Quality Management System. For clarification purposes we like to point out that obligations from IATF 16949 shall only become legally binding if individually agreed upon. 8. The trade names EPCOS, CeraCharge, CeraDiode, CeraLink, CeraPad, CeraPlas, CSMP, CTVS, DeltaCap, DigiSiMic, ExoCore, FilterCap, FormFit, LeaXield, MiniBlue, MiniCell, MKD, MKK, MotorCap, PCC, PhaseCap, PhaseCube, PhaseMod, PhiCap, PowerHap, PQSine, PQvar, SIFERRIT, SIFI, SIKOREL, SilverCap, SIMDAD, SiMic, SIMID, SineFormer, SIOV, ThermoFuse, WindCap are trademarks registered or pending in Europe and in other countries. Further information will be found on the Internet at www.tdk-electronics.tdk.com/trademarks. Release 2018-10 8 10/16
