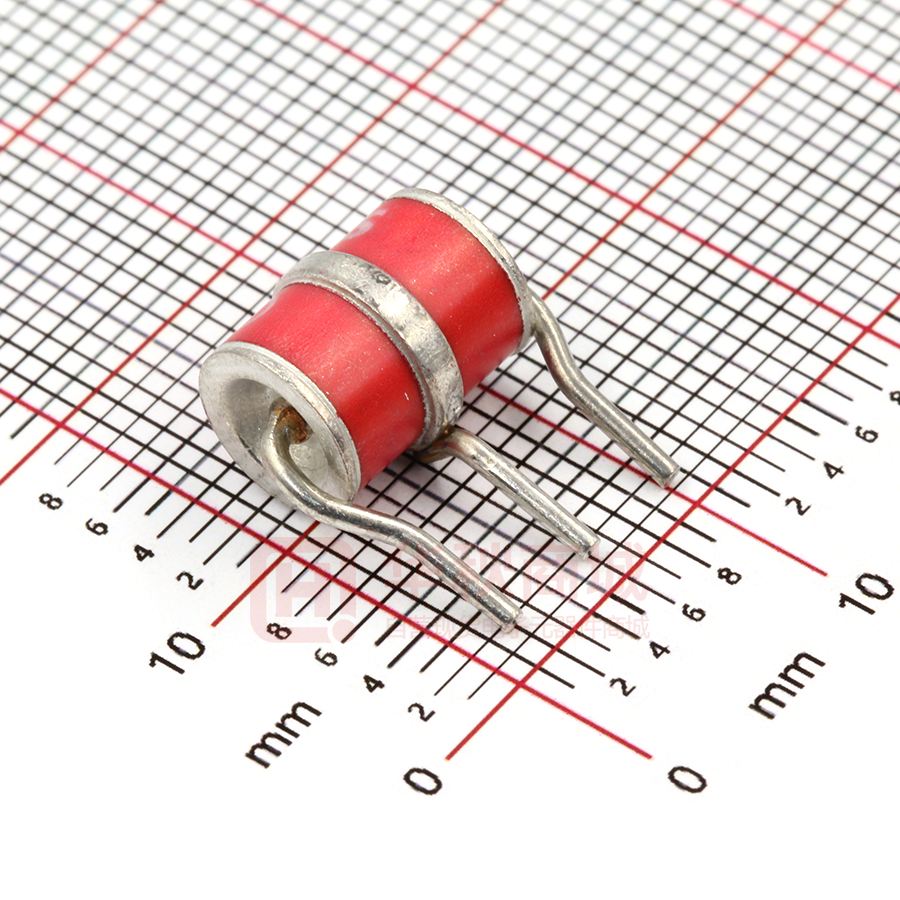

Surge arrester
3-electrode arrester
Series/Type:
Ordering code:
T83-A90X
B88069X8300****
Date:
Version:
2019-08-23
09
Content of header bars 1 and 2 of data sheet will be automatically entered in headers and footers! Please fill in the table and then
change the color to "white". This ensures that the table disappears (invisible) for the customer PDF.
Don't change formatting when entering or pasting text in the table and don't add any cell or line in and to it!
Identification/Classification 1
Surge arrester
(header 1 + top left bar):
Identification/Classification 2
3-electrode arrester
(header 2 + bottom left header bar):
Ordering code: (top right header bar)
B88069X8300****
Series/Type: (bottom right header bar)
T83-A90X
Preliminary data (optional):
Department:
PPD AB PD / PPD AB PM
Date:
2019-08-23
Version:
09
TDK Electronics AG 2019. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without TDK Electronics' prior express consent is prohibited.
Surge arrester
3-electrode arrester
B88069X8300****
T83-A90X
Features
Applications
Standard size
Fast response time
Very high current rating
Stable performance over life
Very low capacitance
High insulation resistance
RoHS-compatible
Telecommunications
Line protection
Base station protection
Electrical specifications
DC spark-over voltage 1) 2) 3)
Tolerance
Min.
Max.
90
±20
72
108
V
%
V
V
Impulse spark-over voltage 3)
at 100 V/µs - for 99% of measured values
- typical values of distribution
at 1 kV/µs
- for 99% of measured values
- typical values of distribution
< 400
< 300
< 550
< 500
V
V
V
V
Service life
10 operations
1 operation
10 operations [5× (+) & 5× (–)]
1 operation
1 operation
300 operations [150× (+) & 150× (–)]
Insulation resistance at 50 VDC 3)
10
40
10
15
2
200
> 10
A
A
kA
kA
kA
A
Capacitance at 1 MHz
3)
< 1.5
pF
Transverse delay time
5)
< 0.2
µs
Arc voltage at 1 A
Glow to arc transition current
Glow voltage
~ 15
< 0.5
~ 70
V
A
V
Weight
~ 1.4
g
Operation and storage temperature
−40 ... +125
°C
Climatic category (IEC 60068-1)
40/125/21
50 Hz; 1 s 4)
50 Hz; 0.18 s (9 cycl.) 4)
8/20 µs 4)
8/20 µs 4)
10/350 µs 4)
10/1000 µs 4)
Marking, red negative
GΩ
90 YY O
90
YY
O
Certifications
- Nominal voltage
- Year of production
- Non radioactive
UL 497B (E163070)
Remarks on next page
PPD AB PD / PPD AB PM
Please read Cautions and warnings and
Important notes at the end of this document.
Version: 09 / 2019-08-23
Page 2 of 7
Surge arrester
3-electrode arrester
1)
2)
3)
4)
5)
B88069X8300****
T83-A90X
At delivery AQL 0.65 level II, DIN ISO 2859
In ionized mode
Tip or ring electrode to center electrode
Total current through center electrode, half value through tip respectively ring electrode.
Test according to ITU-T Rec. K.12
Terms in accordance with ITU-T Rec. K.12 and IEC 61643-311.
Dimensional drawing in mm
Ordering code and packing advice
B88069X8300B502 = 500 pcs. on trays
PPD AB PD / PPD AB PM
Please read Cautions and warnings and
Important notes at the end of this document.
Version: 09 / 2019-08-23
Page 3 of 7
Surge arrester
3-electrode arrester
B88069X8300****
T83-A90X
B88069X8300B102 = 100 pcs. on trays
Soldering parameter
Wave soldering
Wave profile features
Solder
Pb-free assembly
Sn 95.5 / Ag 3.8 / Cu 0.7
Solder bath temperature
263 (±3) °C
Dwell time
