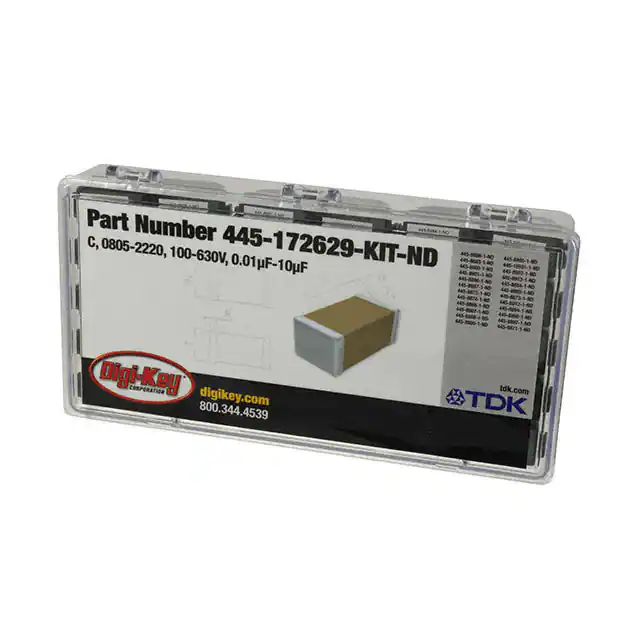

C-STMV01-E3-KIT

  C Series—Board Flex Solutions MLCC Kit Consumer Grade Mid Voltage Soft Termination Capacitor Kit The TDK C Series Mid Voltage Soft Termination MLCCs were designed for applications where mechanical stress and extreme temperature swings are a concern. Conventional termination materials used in standard MLCCs are inflexible, therefore vibration, shock, and thermal expansion and contraction have the potential to crack or shear the solder joint between the component and the circuit board. The soft termination design mitigates cracking by incorporating an additional conductive resin layer to the end terminal electrodes. This allows the capacitor to better absorb mechanical stress, while TDK’s superior layer bonding technique reduces the risk of separation failure. Designers who are specifically concerned with mechanical stress or who have had issues in the past with capacitor cracking should look to TDK’s C Series Mid Voltage Soft Termination MLCCs. Features  Improved board bending resistance  Improved temperature cycle performance  Conductive resin absorbs external stress to protect solder joints and capacitor body Soft Termination  RoHS, WEE, and REACH compliant Consumer Mid Voltage Applications  Output filter of DC-DC converters  Output filter for Boost (Step-Up) topology  Buck (input filter) topology  Smart Meter  LED Lighting  Switch Mode Power Supply  Telecom Base Station  Applications where mechanical stress is a concern Datasheet C-STMV01-E3-KIT Board Flex Solutions Kit Includes: Case Sizes: 2012 (EIA 0805), 3216 (EIA 1206), 3225 (EIA 1210), 4532 (EIA 1812), & 5750 (EIA 2220) Rated Voltage*: 100V-630V Capacitance Range: 0.01µF-10µF *Operating condition is 48V+ Now Available at: Click the Digi-Key logo for ordering information Rev. 1—September 2014   C-STMV01-E3-KIT Board Flex Solutions Kit Includes: TDK Item List Item Description C2012X7R2E103K125AE Soft Termination MLCC - SMD/SMT - 0805 .01uF 250V X7R ±10% C3216X7R2J103K115AE Soft Termination MLCC - SMD/SMT - 1206 .01uF 630V X7R ±10% C2012X7R2E223K125AE Soft Termination MLCC - SMD/SMT - 0805 .022uF 250V X7R ±10% C3216X7R2J223K130AE Soft Termination MLCC - SMD/SMT - 1206 .022uF 630V X7R ±10% C2012X7T2E473K125AE Soft Termination MLCC - SMD/SMT - 0805 .047uF 250V X7T ±10% C3216X7T2J473K160AE Soft Termination MLCC - SMD/SMT - 1206 .047uF 630V X7T ±10% C2012X7T2E104K125AE Soft Termination MLCC - SMD/SMT - 0805 .1uF 250V X7T ±10% C3216X7T2W104K160AE Soft Termination MLCC - SMD/SMT - 1206 .1uF 450V X7T ±10% C3225X7T2J104K160AE Soft Termination MLCC - SMD/SMT - 1210 .1uF 630V X7T ±10% C2012X7R2A104K125AE Soft Termination MLCC -SMD/SMT - 0805 .1uF 100V X7R ±10% C2012X7S2A224K085AE Soft Termination MLCC - SMD/SMT - 0805 .22uF 100V X7S ±10% C3216X7T2E224K160AE Soft Termination MLCC - SMD/SMT - 1206 .22uF 250V X7T ±10% C3225X7T2W224K200AE Soft Termination MLCC - SMD/SMT - 1210 .22uF 450V X7T ±10% C4532X7T2J224K200KE Soft Termination MLCC - SMD/SMT - 1812 .22uF 630V X7T ±10% C2012X7S2A474K125AE Soft Termination MLCC - SMD/SMT - 0805 .47uF 100V X7S ±10% C3216X7R2A474K160AE Soft Termination MLCC - SMD/SMT - 1206 .47uF 100V X7R ±10% C4532X7T2W474K230KE Soft Termination MLCC - SMD/SMT - 1812 .47uF 450V X7T ±10% C2012X7S2A105K125AE Soft Termination MLCC - SMD/SMT - 0805 1uF 100V X7S ±10% C3216X7R2A105K160AE Soft Termination MLCC - SMD/SMT - 1206 1uF 100V X7R ±10% C4532X7T2E105K250KE Soft Termination MLCC - SMD/SMT - 1812 1uF 250V X7T ±10% C3216X7S2A225K160AE Soft Termination MLCC - SMD/SMT - 1206 2.2uF 100V X7S ±10% C3225X7R2A225K230AE Soft Termination MLCC - SMD/SMT - 1210 2.2uF 100V X7R ±10% C3225X7S2A475K200AE Soft Termination MLCC - SMD/SMT - 1210 4.7uF 100V X7S ±10% C5750X7S2A106K230KE Soft Termination MLCC - SMD/SMT - 2220 10uF 100V X7S ±10% Rev. 1—September 2014
