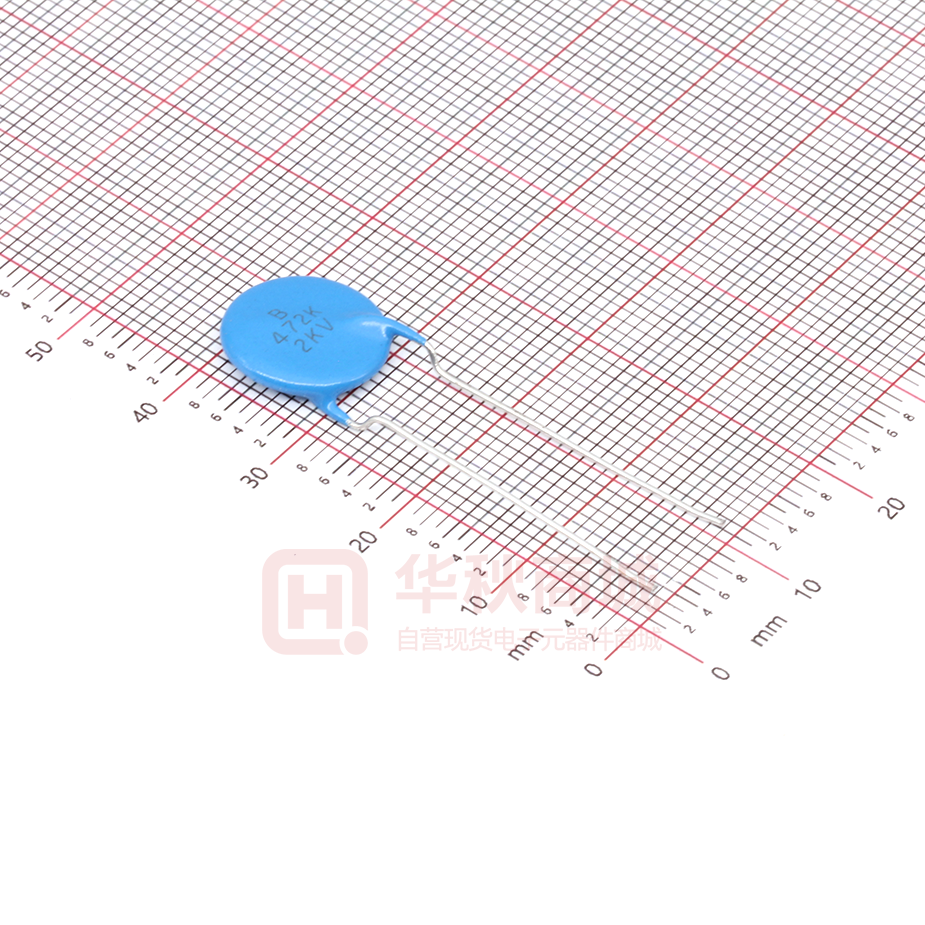

CK45-B3DD472KYVNA

Mid-high Voltage Ceramic Capacitors Disk type with lead General use CK45 series Issue date: July 2011 • All specifications are subject to change without notice. • Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications. (1/3) Mid-high Voltage Ceramic Capacitors(Disk with Lead) General Use CK45 Series FEATURES • High voltage ceramic capacitors series higher reliability has been achieved through the use of TDK original dielectric and copper for electrode material due to nice matching of the ceramic dielectrics material for copper for electrode. • These products shall conform to RoHS Directive due to lead(Pb) free of lead wire and internal solder material. • This product is compatible with halogen-free external resin coating (we recommend halogen-free products as standard). OPERATING TEMPERATURE RANGE: –25 to +105°C (The maximum operating temperature of 105°C includes capacitor self-generated heat of up to 20°C.) Conformity to RoHS Directive PRODUCT IDENTIFICATION CK 45 -B 3AD 102 K Y N N A (1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (1) Type (2) Shape (3) Capacitance temperature characteristics (4) Rated voltage (5) Nominal capacitance (6) Capacitance tolerance (7) Class (8) Lead type (9) General use (10) Halogen-free compatible product CAPACITANCE TEMPERATURE CHARACTERISTICS AND TOLERANCE Temperature characteristics B(±10%) E(+20, –55%) Test temperature range –25 to +85°C –25 to +85°C Capacitance tolerance K(±10%) Z(+80, –20%) CAPACITANCE AND DIMENSIONS TEMPERATURE CHARACTERISTICS: B(±10%) RATED VOLTAGE Edc: 1kV Part No. Halogen-free product CK45-B3AD101KY†∗NA CK45-B3AD151KY†NA CK45-B3AD221KY†NA CK45-B3AD331KY†NA CK45-B3AD471KY†NA CK45-B3AD681KY†NA CK45-B3AD102KY†NA CK45-B3AD152KY†NA CK45-B3AD222KY†NA CK45-B3AD332KY†NA CK45-B3AD472KY†NA CK45-B3AD682KY†NA CK45-B3AD103KY†NA Current product CK45-B3AD101KY†∗N CK45-B3AD151KY†N CK45-B3AD221KY†N CK45-B3AD331KY†N CK45-B3AD471KY†N CK45-B3AD681KY†N CK45-B3AD102KY†N CK45-B3AD152KY†N CK45-B3AD222KY†N CK45-B3AD332KY†N CK45-B3AD472KY†N CK45-B3AD682KY†N CK45-B3AD103KY†N Capacitance (pF) 100 150 220 330 470 680 1,000 1,500 2,200 3,300 4,700 6,800 10,000 Dimensions(mm) D max. T max. 5.5 5.0 5.5 5.0 5.5 5.0 5.5 5.0 5.5 5.0 5.5 5.0 6.0 5.0 7.0 5.0 8.5 5.0 9.5 5.0 11.0 5.0 13.0 5.0 15.0 5.0 F 5.0±1.5 5.0±1.5 5.0±1.5 5.0±1.5 5.0±1.5 7.5±1.5 5.0±1.5 5.0±1.5 5.0±1.5 5.0±1.5 5.0±1.5 7.5±1.5 7.5±1.5 d 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 Taping dimensions V1 V1 V1 V1 V1 V2 V1 V1 V1 V1 V1 V2 V3 Dimensions(mm) D max. T max. 5.5 5.0 5.5 5.0 5.5 5.0 5.5 5.0 5.5 5.0 6.5 5.0 7.5 5.0 8.5 5.0 10.0 5.0 11.5 5.0 14.0 5.0 F 5.0±1.5 5.0±1.5 5.0±1.5 5.0±1.5 5.0±1.5 5.0±1.5 5.0±1.5 5.0±1.5 5.0±1.5 7.5±1.5 7.5±1.5 d 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 Taping dimensions V1 V1 V1 V1 V1 V1 V1 V1 V1 V2 V2 ∗ † : Lead shape symbol • 1kV and 2kV are E6 series standard products in Temperature characteristics B. RATED VOLTAGE Edc: 2kV Part No. Halogen-free product CK45-B3DD101KY†∗NA CK45-B3DD151KY†NA CK45-B3DD221KY†NA CK45-B3DD331KY†NA CK45-B3DD471KY†NA CK45-B3DD681KY†NA CK45-B3DD102KY†NA CK45-B3DD152KY†NA CK45-B3DD222KY†NA CK45-B3DD332KY†NA CK45-B3DD472KY†NA Current product CK45-B3DD101KY†∗N CK45-B3DD151KY†N CK45-B3DD221KY†N CK45-B3DD331KY†N CK45-B3DD471KY†N CK45-B3DD681KY†N CK45-B3DD102KY†N CK45-B3DD152KY†N CK45-B3DD222KY†N CK45-B3DD332KY†N CK45-B3DD472KY†N Capacitance (pF) 100 150 220 330 470 680 1,000 1,500 2,200 3,300 4,700 ∗ † : Lead shape symbol • 1kV and 2kV are E6 series standard products in Temperature characteristics B. • Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications. • All specifications are subject to change without notice. 003-02 / 20110711 / e413_ck45.fm (2/3) CAPACITANCE AND DIMENSIONS TEMPERATURE CHARACTERISTICS: B(±10%) RATED VOLTAGE Edc: 3kV Part No. Halogen-free product CK45-B3FD101KY†∗NA CK45-B3FD151KY†NA CK45-B3FD221KY†NA CK45-B3FD331KY†NA CK45-B3FD471KY†NA CK45-B3FD681KY†NA CK45-B3FD102KY†NA CK45-B3FD152KY†NA CK45-B3FD222KY†NA CK45-B3FD332KY†NA ∗ Current product CK45-B3FD101KY†∗N CK45-B3FD151KY†N CK45-B3FD221KY†N CK45-B3FD331KY†N CK45-B3FD471KY†N CK45-B3FD681KY†N CK45-B3FD102KY†N CK45-B3FD152KY†N CK45-B3FD222KY†N CK45-B3FD332KY†N Capacitance (pF) 100 150 220 330 470 680 1,000 1,500 2,200 3,300 Dimensions(mm) D max. T max. 5.5 6.0 5.5 6.0 5.5 6.0 6.5 6.0 7.0 6.0 8.0 6.0 9.0 6.0 10.5 6.0 12.5 6.0 14.5 6.0 F 7.5±1.5 7.5±1.5 7.5±1.5 7.5±1.5 7.5±1.5 7.5±1.5 7.5±1.5 7.5±1.5 7.5±1.5 7.5±1.5 d 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 Taping dimensions V2 V2 V2 V2 V2 V2 V2 V2 V2 V3 Capacitance (pF) 470 1,000 2,200 4,700 10,000 Dimensions(mm) D max. T max. 5.5 6.0 5.5 6.0 6.5 6.0 8.5 6.0 11.5 6.0 F 5.0±1.5 5.0±1.5 5.0±1.5 5.0±1.5 7.5±1.5 d 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 Taping dimensions V1 V1 V1 V1 V2 Dimensions(mm) D max. T max. 5.5 5.0 6.0 5.0 8.0 5.0 10.5 5.0 14.5 5.0 F 5.0±1.5 5.0±1.5 5.0±1.5 5.0±1.5 7.5±1.5 d 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 Taping dimensions V1 V1 V1 V1 V3 Dimensions(mm) D max. T max. 6.0 6.0 7.5 6.0 9.5 6.0 12.5 6.0 17.5 6.0 F 7.5±1.5 7.5±1.5 7.5±1.5 7.5±1.5 10.0±2 d 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 Taping dimensions V2 V2 V2 V2 — † : Lead shape symbol TEMPERATURE CHARACTERISTICS: E(+20, –55%) RATED VOLTAGE Edc: 1kV Part No. Halogen-free product CK45-E3AD471ZY†∗NA CK45-E3AD102ZY†NA CK45-E3AD222ZY†NA CK45-E3AD472ZY†NA CK45-E3AD103ZY†NA Current product CK45-E3AD471ZY†∗N CK45-E3AD102ZY†N CK45-E3AD222ZY†N CK45-E3AD472ZY†N CK45-E3AD103ZY†N ∗ † : Lead shape symbol • 1kV and 2kV are E3 series standard products in Temperature characteristics E. RATED VOLTAGE Edc: 2kV Part No. Halogen-free product CK45-E3DD471ZY†∗NA CK45-E3DD102ZY†NA CK45-E3DD222ZY†NA CK45-E3DD472ZY†NA CK45-E3DD103ZY†NA Capacitance (pF) 470 1,000 2,200 4,700 10,000 Current product CK45-E3DD471ZY†∗N CK45-E3DD102ZY†N CK45-E3DD222ZY†N CK45-E3DD472ZY†N CK45-E3DD103ZY†N ∗ † : Lead shape symbol • 1kV and 2kV are E3 series standard products in Temperature characteristics E. RATED VOLTAGE Edc: 3kV Part No. Halogen-free product CK45-E3FD471ZY†∗NA CK45-E3FD102ZY†NA CK45-E3FD222ZY†NA CK45-E3FD472ZY†NA CK45-E3FD103ZY†NA ∗ Capacitance (pF) 470 1,000 2,200 4,700 10,000 Current product CK45-E3FD471ZY†∗N CK45-E3FD102ZY†N CK45-E3FD222ZY†N CK45-E3FD472ZY†N CK45-E3FD103ZY†N † : Lead shape symbol LIST OF STANDARD LEAD SHAPES The lead type is indicated by the letter which is the 15th character of the product name. Example) TDK Product Name: CK45-B3AD102KYNNA N: Lead type (Vertical kink, Short) Dimensions in mm Taping Symbol V T F F d 5±1 25min. Vertical kink T 4max. D 4max. D T 4max. D Short lead Symbol N 16+1.5 –0.5 Long lead Symbol G d • We recommend using a vertical kink type. • For bulk products, we recommend a short lead type with the symbol N. • All specifications are subject to change without notice. 003-02 / 20110711 / e413_ck45.fm (3/3) TAPING DIMEMSIONS VERTICAL KINK LEAD TYPE D P T P2 D ∆h T P2 ∆h H0 S W0 W L W1 L W0 W P0 D0 ød P1 F D0 ød t t P0 C H0 H1 S H0 W2 C A H0 H1 W1 P1 F ∆h A ∆h W2 P V3 V1, V2 Item Symbol Dimensions(mm) V1 V2 V3 Remarks Body diameter D Depends on the specification of each product. Body thickness T Depends on the specification of each product. Lead-wire diameter ød 0.6±0.05 0.6±0.05 0.6±0.05 Pitch of component P 12.7±1.0 15.0±1.0 30.0±1.0 Including the slant of body Feed hole pitch P0 12.7±0.3 15.0±0.3 15.0±0.3 Excepting the tape splicing part Feed hole center to lead P1 3.85±0.7 3.75±0.7 3.75±0.7 Feed hole center to component center P2 6.35±1.3 7.5±1.3 7.5±1.3 Lead-to lead distance F 5+0.8, –0.2 7.5±0.8 7.5±0.8 Measuring point is bottom kink Component alignment ∆h 0±2.0 0±2.0 0±2.0 Including the slanting body due to bending lead-wire Tape width W 18.0+1.0, –0.5 18.0+1.0, –0.5 18.0+1.0, –0.5 Adhesive tape width W0 11.5min. 11.5min. 11.5min. Hole position W1 9.0±0.5 9.0±0.5 9.0±0.5 Adhesive tape position W2 3.0max. 3.0max. 3.0max. Bottom of kink from tape center H0 16.0+1.5, –0.5 16.0+1.5, –0.5 16.0+1.5, –0.5 Height of body from tape center H1 46.0max. 46.0max. 46.0max. 1.0max. 1.0max. 1.0max. Lead-wire protrusion Feed hole diameter D0 4.0±0.2 4.0±0.2 4.0±0.2 Total tape thickness t 0.6±0.3 0.6±0.3 0.6±0.3 Length of snipped lead L 11.0max. 11.0max. 11.0max. Coating on lead C 4.0max. 4.0max. 4.0max. Height of kink A 4.0max. 4.0max. 4.0max. Spring action S 2.0max. 2.0max. 2.0max. Adhesive tape do not stick out the tape Do not including adhesive tape Measuring point is bottom kink • For more information about products with other capacitance or other data, please contact us. • All specifications are subject to change without notice. 003-02 / 20110711 / e413_ck45.fm
