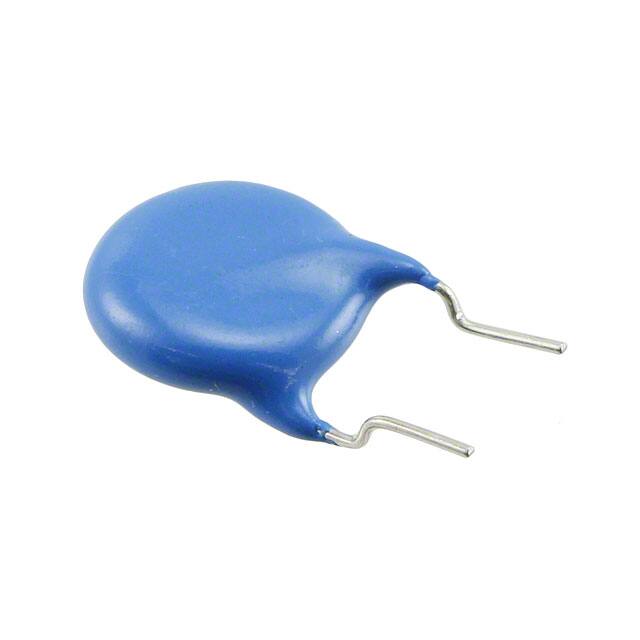

CK45-R3DD102KANRA

Disc Type Capacitors with Lead High Voltage Ceramic Capacitors Automotive Grad Low dissipation at high frequency CK45-RR series Issue date: February 2013 • All specifications are subject to change without notice. • Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications. (1/3) Disc Type Capacitors with Lead Conformity to RoHS Directive High Voltage Ceramic Capacitors Automotive Grade Low dissipation at high frequency CK45-RR Series FEATURES • AEC-Q200 compliant. • 1,000 cycles guaranteed under heat shock testing at –55°C to +125°C. • It can be used as a capacitor for snubber circuits used in automobiles (EV, HEV). • High voltage ceramic capacitors series, low dissipation factor and higher reliability has been achieved through the use of TDK original dielectric and copper for electrode material due to nice matching of the ceramic dielectrics material for low dissipation factor, and copper for electrode. • Low dissipation factor, and decreased self-heating temperature in the high frequency, and high voltage application. • Compatible with halogen-free external resin coating. PRODUCT IDENTIFICATION OPERATING TEMPERATURE RANGE: –40 to +125°C (The maximum operating temperature of 125°C includes capacitor self-generated heat of up to 20°C.) TEMPERATURE CHARACTERISTICS AND TOLERANCE CK 45 -R 3AD 102 K A N R A (1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (1) Type (2) Shape (3) Temperature characteristics (4) Rated voltage (5) Nominal capacitance (6) Capacitance tolerance (7) For use in automobiles (8) Lead type (9) Low dissipation (10) Halogen-free compatible product Temperature characteristics R (+15, –30%) Test temperature range –25 to +125°C Capacitance tolerance K (±10%) • Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications. • All specifications are subject to change without notice. 001-01 / 20130207 / leaddisc_automotive_rr_en.fm (2/3) CAPACITANCE AND DIMENSIONS TEMPERATURE CHARACTERISTICS: R (+15, –30%) RATED VOLTAGE Edc: 1kV Part No. CK45-R3AD101KARA CK45-R3AD151KARA CK45-R3AD221KARA CK45-R3AD331KARA CK45-R3AD471KARA CK45-R3AD681KARA CK45-R3AD102KARA CK45-R3AD152KARA CK45-R3AD222KARA  Capacitance (pF) 100 150 220 330 470 680 1,000 1,500 2,200 Dimensions (mm) D max. T max. 6.0 5.0 6.0 5.0 7.0 5.0 7.5 5.0 8.5 5.0 9.5 5.0 11.0 5.0 12.5 5.0 15.0 5.0 F 5.0±1.5 5.0±1.5 5.0±1.5 5.0±1.5 5.0±1.5 5.0±1.5 5.0±1.5 7.5±1.5 7.5±1.5 d 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 Capacitance (pF) 100 150 220 330 470 680 1,000 Dimensions (mm) D max. T max. 6.0 6.0 7.0 6.0 7.5 6.0 8.5 6.0 9.5 6.0 10.5 6.0 12.5 6.0 F 7.5±1.5 7.5±1.5 7.5±1.5 7.5±1.5 7.5±1.5 7.5±1.5 7.5±1.5 d 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 Taping dimensions V1 V1 V1 V1 V1 V1 V1 V2 V3  : Lead shape symbol RATED VOLTAGE Edc: 2kV Part No. CK45-R3DD101KARA CK45-R3DD151KARA CK45-R3DD221KARA CK45-R3DD331KARA CK45-R3DD471KARA CK45-R3DD681KARA CK45-R3DD102KARA  Taping dimensions V2 V2 V2 V2 V2 V2 V2  : Lead shape symbol LIST OF STANDARD LEAD SHAPES The lead type is indicated by the letter which is the 15th character of the product name. Example) TDK Product Name: CK45-R3AD102KANRA N: Lead type (Vertical kink, Short) Dimensions in mm T Taping Symbol V D D T 4max. 4max. D Short lead Symbol N F d 16+1.5 –0.5 F 5±1 25min. Vertical kink T 4max. Long lead Symbol G d • We recommend using a vertical kink type. • For bulk products, we recommend a short lead type with the symbol N. • All specifications are subject to change without notice. 001-01 / 20130207 / leaddisc_automotive_rr_en.fm (3/3) TAPING DIMEMSIONS VERTICAL KINK LEAD TYPE D P T P2 D Δh T P2 Δh H0 S W0 W L W1 L W0 W P0 D0 P1 F D0 ød ød t t P0 C H0 H1 S H0 W2 C A H0 H1 W1 P1 F Δh A Δh W2 P V3 V1, V2 Item Symbol Dimensions (mm) V1 V2 V3 Remarks Body diameter D Depends on the specification of each product. Body thickness T Depends on the specification of each product. Lead-wire diameter ød 0.6±0.05 0.6±0.05 0.6±0.05 Pitch of component P 12.7±1.0 15.0±1.0 30.0±1.0 Including the slant of body Feed hole pitch P0 12.7±0.3 15.0±0.3 15.0±0.3 Excepting the tape splicing part Feed hole center to lead P1 3.85±0.7 3.75±0.7 3.75±0.7 Feed hole center to component center P2 6.35±1.3 7.5±1.3 7.5±1.3 Lead-to lead distance F 5+0.8, –0.2 7.5±0.8 7.5±0.8 Measuring point is bottom kink Component alignment h 0±2.0 0±2.0 0±2.0 Including the slanting body due to bending lead-wire Tape width W 18.0+1.0, –0.5 18.0+1.0, –0.5 18.0+1.0, –0.5 Adhesive tape width W0 10.0min. 10.0min. 10.0min. Hole position W1 9.0±0.5 9.0±0.5 9.0±0.5 Adhesive tape position W2 4.0max. 4.0max. 4.0max. Bottom of kink from tape center H0 16.0+1.5, –0.5 16.0+1.5, –0.5 16.0+1.5, –0.5 Height of body from tape center H1 46.0max. 46.0max. 46.0max. 1.0max. 1.0max. 1.0max. Lead-wire protrusion Feed hole diameter D0 4.0±0.2 4.0±0.2 4.0±0.2 Total tape thickness t 0.6±0.3 0.6±0.3 0.6±0.3 Length of snipped lead L 11.0max. 11.0max. 11.0max. Coating on lead C 4.0max. 4.0max. 4.0max. Height of kink A 4.0max. 4.0max. 4.0max. Spring action S 2.0max. 2.0max. 2.0max. Adhesive tape do not stick out the tape Including adhesive tape Measuring point is bottom kink • For more information about products with other capacitance or other data, please contact us. • All specifications are subject to change without notice. 001-01 / 20130207 / leaddisc_automotive_rr_en.fm
