New Products
CLF12555-H TYPE
Component
Image & Dimension
Features :
Pb Free!!
12.1±0.3
12.5±0.3

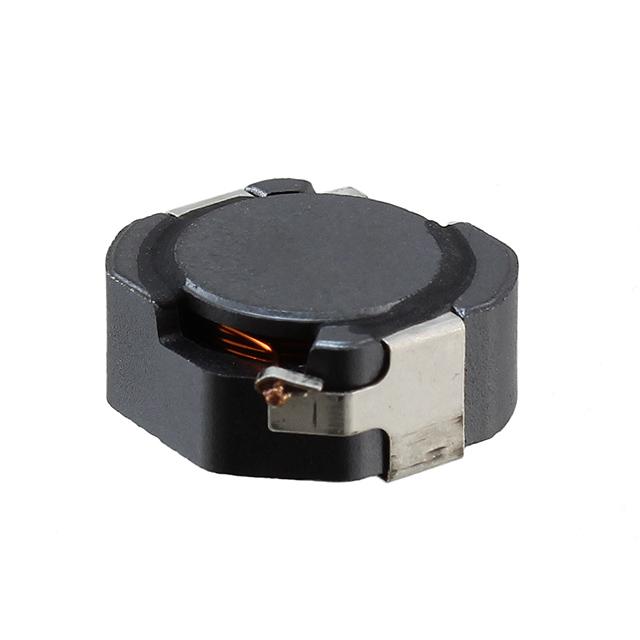

SMD Power Inductor
a) Miniature Size :
Mount Area :12.5mm x 12.1mm
Low Profile : 5.85mm Max. Height
b) Tough Design
Generic use for Automotive Appliance.
Heat and vibration, mechanical shock resistance
ability can endure an automobile use.
Operation temperature ; -40ºC ~ +125ºC
(Including self-temperature rise)
Storage temperature ; -40ºC ~ +125ºC
c) High Magnetic Shield Construction should actualize
High Resolution for EMC Protection.
d) Automatic Mounting in Tape & Reel Package.
5.5±0.35
unit: mm
*Recommended Land Pattern (Unit : mm)
Applications :
For Automotive electric control devices and high
temperature operation devices
Automotive Appliance (ECM, HID, SRS Air Bag,
Transmission control, Power steering control,Brake
control, etc)
3.2
2.7
8.3
2.7
Electrical Specification (Ref.)
TDK-EPC Identification
CLF12555TCLF12555TCLF12555TCLF12555TCLF12555TCLF12555TCLF12555TCLF12555TCLF12555TCLF12555TCLF12555TCLF12555TCLF12555TCLF12555TCLF12555TCLF12555TCLF12555TNote)
Inductance
Tol.
Spec.
Test
Freq.
DC Resistance
Tol.
Spec.
(uH)
(kHz)
(Ohm.)
Rated DC Current
Idc 1
Idc 2
(A)
(A)
1R0N-H
1.0 +/-30%
100
6.4m +/-30%
20.0
+/-30%
+/-30%
100
7.3m
16.4
1R5N-H
1.5
+/-30%
+/-30%
100
8.8m
13.1
2R2N-H
2.2
+/-30%
+/-30%
100
10.3m
11.4
3R3N-H
3.3
100
11.7m +/-30%
9.6
4R7N-H
4.7 +/-30%
100
15.0m +/-30%
8.0
6R8N-H
6.8 +/-30%
100
21m +/-20%
6.7
100M-H
10 +/-20%
100
31m +/-20%
5.4
150M-H
15 +/-20%
100
43m +/-20%
4.8
220M-H
22 +/-20%
100
67m +/-30%
4.0
330M-H
33 +/-30%
100
100m +/-20%
3.2
470M-H
47 +/-20%
+/-20%
+/-20%
100
125m
2.6
680M-H
68
+/-20%
+/-20%
100
190m
2.1
101M-H
100
+/-20%
+/-20%
100
260m
1.8
151M-H
150
100
370m +/-20%
1.5
221M-H
220 +/-20%
100
560m +/-20%
1.2
331M-H
330 +/-20%
100
795m +/-20%
1.0
471M-H
470 +/-20%
Idc 1 : Depend on the Inductance Saturation. (-10% Saturation from Initial L Value)
Idc 2 : Depend on the self temperature rise. (+30 degC typ.)
7.3
6.7
6.1
5.7
5.3
4.7
3.9
3.2
2.8
2.2
1.8
1.6
1.3
1.1
0.9
0.7
0.6
as of 2012.Oct
