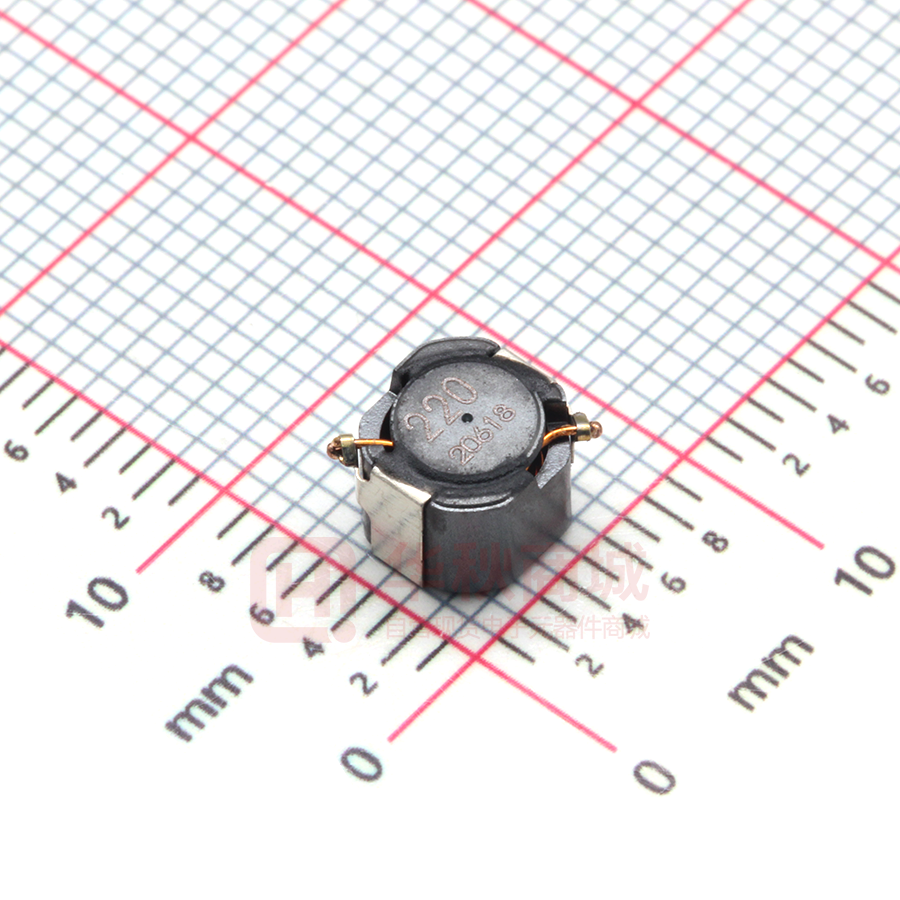

CLF6045-D TYPE
New Products
Component
Image & Dimension
SMD Power Inductor
Features :
Pb Free!!
5.9±0.2
4.5±0.3
6.2±0.2
unit: mm
a) Miniature Size :
Mount Area :5.9mm x 6.2mm
Low Profile : 4.8mm Max. Height
b) Tough Design
Generic use for Automotive Appliance.
Heat and vibration, mechanical shock resistance
ability can endure an automobile use.
Operation temperature ; -40ºC ~ +150ºC
(Including self-temperature rise)
Storage temperature ; -40ºC ~ +150ºC
c) High Magnetic Shield Construction should actualize
High Resolution for EMC Protection.
d) Automatic Mounting in Tape & Reel Package.
Applications :
*Recommended Land Pattern (Unit : mm)
for Automotive electric control devices and high
temperature operation devices
Automotive Appliance (ECM, HID, SRS Air Bag,
Transmission control, Power steering control,Brake
control, etc)
2.2
1.7
3.6
1.7
Electrical Specification (Ref.)
TDK-EPC Identification
CLF6045TCLF6045TCLF6045TCLF6045TCLF6045TCLF6045TCLF6045TCLF6045TCLF6045TCLF6045TCLF6045TCLF6045TCLF6045TCLF6045TCLF6045TCLF6045TCLF6045TNote)
Inductance
Spec.
Tol.
Test
Freq.
DC Resistance
Spec.
Tol.
(uH)
(kHz)
(Ohm.)
Rated DC Current
Idc 1
Idc 2
(A)
(A)
1R0N-D
1.0
100
11m
5.0
+/-30%
+/-30%
100
13m
4.4
1R5N-D
1.5
100
15m +/-30%
3.9
2R2N-D
2.2 +/-30%
100
19m +/-30%
3.1
3R3N-D
3.3 +/-30%
100
23m +/-30%
2.5
4R7N-D
4.7 +/-30%
100
27m +/-30%
2.2
6R8N-D
6.8 +/-30%
+/-20%
+/-20%
100
38m
1.7
100M-D
10
100
55m +/-20%
1.5
150M-D
15 +/-20%
100
78m +/-20%
1.3
220M-D
22 +/-20%
100
103m +/-20%
1.07
330M-D
33 +/-20%
100
130m +/-20%
0.90
470M-D
47 +/-20%
+/-20%
+/-20%
100
215m
0.79
680M-D
68
100
340m +/-20%
0.64
101M-D
100 +/-20%
100
480m +/-20%
0.50
151M-D
150 +/-20%
100
780m +/-20%
0.41
221M-D
220 +/-20%
100
970m +/-20%
0.35
331M-D
330 +/-20%
+/-20%
+/-20%
100
1.42
0.30
471M-D
470
Idc 1 : Depend on the Inductance Saturation. (-10% Saturation from Initial L Value)
Idc 2 : Depend on the self temperature rise. (+30 degC typ.)
+/-30%
+/-30%
4.5
4.2
4.0
3.5
3.2
2.9
2.4
2.0
1.7
1.5
1.3
1.0
0.70
0.60
0.50
0.44
0.37
as of 2012.Oct.
