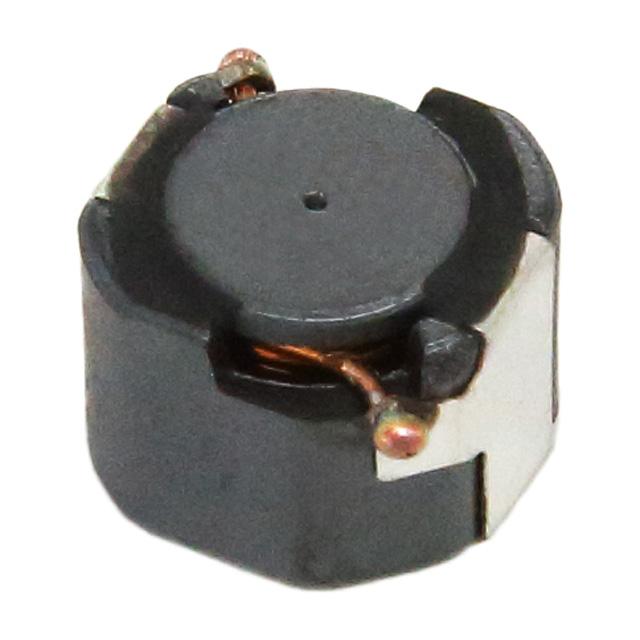

CLF6045T-680M-H

New Products CLF6045-H TYPE SMD Power Inductor Features : Component Image & Dimension Pb Free!! 5.9±0.2 4.5±0.3 6.2±0.2 unit: mm a) Miniature Size : Mount Area :5.9mm x 6.2mm Low Profile : 4.8mm Max. Height b) Tough Design Generic use for Automotive Appliance. 　　 Heat and vibration, mechanical shock resistance ability can endure an automobile use. Operation temperature ; -40ºC ~ +125ºC (Including self-temperature rise) Storage temperature ; -40ºC ~ +125ºC c) High Magnetic Shield Construction should actualize High Resolution for EMC Protection. d) Automatic Mounting in Tape & Reel Package. Applications : *Recommended Land Pattern (Unit : mm) For Automotive electric control devices and high temperature operation devices Automotive Appliance (ECM, HID, SRS Air Bag, Transmission control, Power steering control,Brake control, etc) 2.2 1.7 3.6 1.7 Electrical Specification (Ref.) TDK-EPC Identification CLF6045TCLF6045TCLF6045TCLF6045TCLF6045TCLF6045TCLF6045TCLF6045TCLF6045TCLF6045TCLF6045TCLF6045TCLF6045TCLF6045TCLF6045TCLF6045TCLF6045TNote) Inductance Tol. Spec. Test Freq. DC Resistance Spec. Tol. (uH) (kHz) (Ohm.) Rated DC Current Idc 1 Idc 2 (A) (A) 1R0N-H 1.0 +/-30% 100 11m +/-30% 5.0 100 13m +/-30% 4.4 1R5N-H 1.5 +/-30% 100 15m +/-30% 3.9 2R2N-H 2.2 +/-30% 100 19m +/-30% 3.1 3R3N-H 3.3 +/-30% 100 23m +/-30% 2.5 4R7N-H 4.7 +/-30% +/-30% +/-30% 100 27m 2.2 6R8N-H 6.8 +/-20% +/-20% 100 38m 1.7 100M-H 10 +/-20% +/-20% 100 55m 1.5 150M-H 15 +/-20% +/-20% 100 78m 1.3 220M-H 22 +/-20% +/-20% 100 103m 1.07 330M-H 33 +/-20% +/-20% 100 130m 0.90 470M-H 47 +/-20% +/-20% 100 215m 0.79 680M-H 68 +/-20% +/-20% 101M-H 100 100 340m 0.64 100 480m +/-20% 0.50 151M-H 150 +/-20% 100 780m +/-20% 0.41 221M-H 220 +/-20% 100 970m +/-20% 0.35 331M-H 330 +/-20% 471M-H 470 +/-20% 100 1.42 +/-20% 0.30 Idc 1 : Depend on the Inductance Saturation. (-10% Saturation from Initial L Value) Idc 2 : Depend on the self temperature rise. (+30 degC typ.) 4.5 4.2 4.0 3.5 3.2 2.9 2.4 2.0 1.7 1.5 1.3 1.0 0.70 0.60 0.50 0.44 0.37 as of 2012.Oct.
