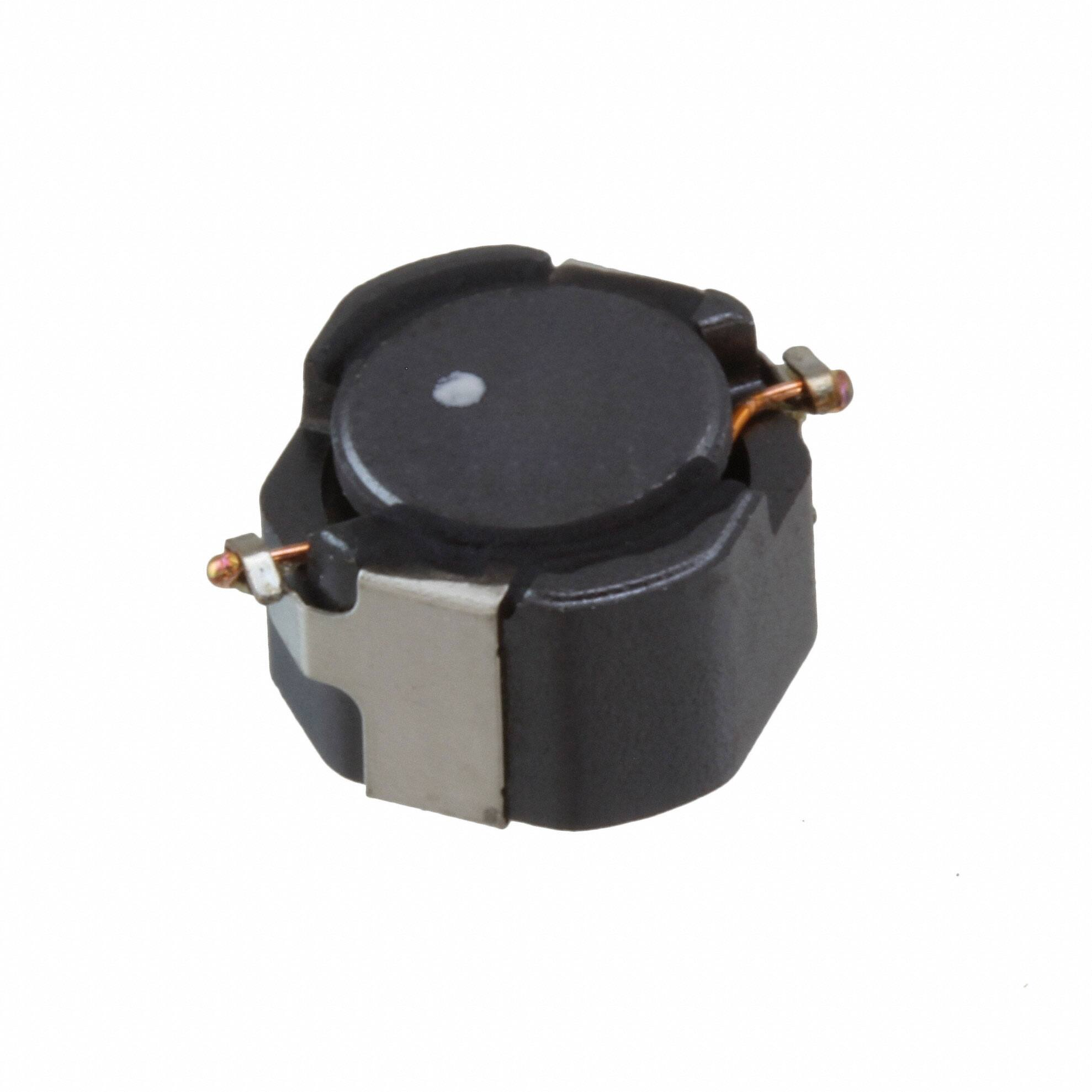

CLF7045T-471M-CA

1 of 3 Creation Date :January 26 2016 CLF7045T-471M-CA Applications Automotive Grade Feature Wire Wound Magnetic Shield Ferrite Core AEC-Q200 Series CLF-CA Series / CLF7045-CA Type Status Production Size Length(L) 7.20mm +/-0.20mm Width(W) 6.90mm +/-0.20mm Thickness(T) 4.50mm +/-0.30mm Recommended Land Pattern (A) 1.70mm Nom. Recommended Land Pattern (B) 4.40mm Nom. Recommended Land Pattern (C) 2.20mm Nom. Electrical Characteristics Inductance 470uH +/-20% at 100kHz Rated Current (L Change) [Typ.] 430mA (10% Down) Rated Current (Temperature Rise) [Typ.] 370mA (30degC Rise) DC Resistance [Nom.] 1.42Ω DC Resistance [Max.] 1.704Ω Other Operating Temp. Range (Including Self-Temp. Rise) -40 to 105degC Soldering Method Reflow, Iron Soldering AEC Q200 Yes Packing Blister (Plastic)Taping [330mm Reel] Package Quantity 1000Pcs Min. Weight 0.8g •This PDF document was created based on the data listed on the TDK Corporation website. •All specifications are subject to change without notice. Copyright(c) TDK Corporation. All rights reserved 2 of 3 Creation Date :January 26 2016 CLF7045T-471M-CA CLF7045T-471M-CA CLF7045T-471M-CA CLF7045T-471M-CA CLF7045T-471M-CA •This PDF document was created based on the data listed on the TDK Corporation website. •All specifications are subject to change without notice. Copyright(c) TDK Corporation. All rights reserved 3 of 3 Creation Date :January 26 2016 CLF7045T-471M-CA CLF7045T-471M-CA(Amb. Temp. = 20degc) CLF7045T-471M-CA(Amb. Temp. = 20degc) •This PDF document was created based on the data listed on the TDK Corporation website. •All specifications are subject to change without notice. Copyright(c) TDK Corporation. All rights reserved CLF7045T-471M-CA(DC = 0A) CLF7045T-471M-CA(DC = 0.185A)
