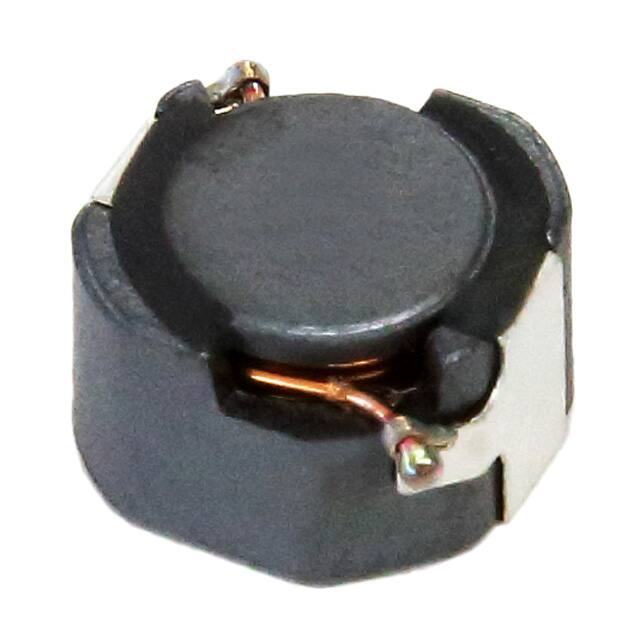

CLF7045T-680M-H

New Products CLF7045-H TYPE Component Image & Dimension SMD Power Inductor Features : Pb Free!! 6.9±0.2 4.5±0.3 7.2±0.2 a) Miniature Size : Mount Area :6.9mm x 7.2mm Low Profile : 4.8mm Max. Height b) Tough Design Generic use for Automotive Appliance. 　　 Heat and vibration, mechanical shock resistance ability can endure an automobile use. Operation temperature ; -40ºC ~ +125ºC (Including self-temperature rise) Storage temperature ; -40ºC ~ +125ºC c) High Magnetic Shield Construction should actualize High Resolution for EMC Protection. d) Automatic Mounting in Tape & Reel Package. unit: mm Applications : *Recommended Land Pattern (Unit : mm) Automotive Appliance (ECM, HID, Air Bag, 2.2 Transmission Control, Car Navigation, Car 2.0 Audio, GPS System） etc. 3.9 2.0 Electrical Specification (Ref.) TDK-EPC Identification CLF7045TCLF7045TCLF7045TCLF7045TCLF7045TCLF7045TCLF7045TCLF7045TCLF7045TCLF7045TCLF7045TCLF7045TCLF7045TCLF7045TCLF7045TCLF7045TCLF7045TNote) Inductance Spec. Tol. Test Freq. DC Resistance Tol. Spec. (uH) (kHz) (Ohm.) Rated DC Current Idc 1 Idc 2 (A) (A) 1R0N-H 1.0 +/-30% 100 9.6m +/-30% 8.9 100 11.0m +/-30% 7.3 1R5N-H 1.5 +/-30% 100 14.6m +/-30% 5.5 2R2N-H 2.2 +/-30% +/-30% +/-30% 100 16.4m 5.0 3R3N-H 3.3 100 20m +/-30% 4.1 4R7N-H 4.7 +/-30% 100 27m +/-30% 3.3 6R8N-H 6.8 +/-30% 100 38m +/-20% 2.7 100M-H 10 +/-20% 100 51m +/-20% 2.3 150M-H 15 +/-20% +/-20% +/-20% 100 69m 1.9 220M-H 22 100 0.11 +/-20% 1.55 330M-H 33 +/-20% 100 0.15 +/-20% 1.30 470M-H 47 +/-20% 100 0.21 +/-20% 1.10 680M-H 68 +/-20% 100 0.33 +/-20% 0.90 101M-H 100 +/-20% +/-20% +/-20% 100 0.48 0.67 151M-H 150 100 0.66 +/-20% 0.62 221M-H 220 +/-20% 100 1.03 +/-20% 0.49 331M-H 330 +/-20% 100 1.42 +/-20% 0.43 471M-H 470 +/-20% Idc 1 : Depend on the Inductance Saturation. (-10% Saturation from Initial L Value) Idc 2 : Depend on the self temperature rise. (+30 degC typ.) 5.2 4.9 4.3 4.1 3.6 3.0 2.5 2.1 1.8 1.40 1.20 0.95 0.75 0.61 0.52 0.42 0.37 as of 2012.Oct
