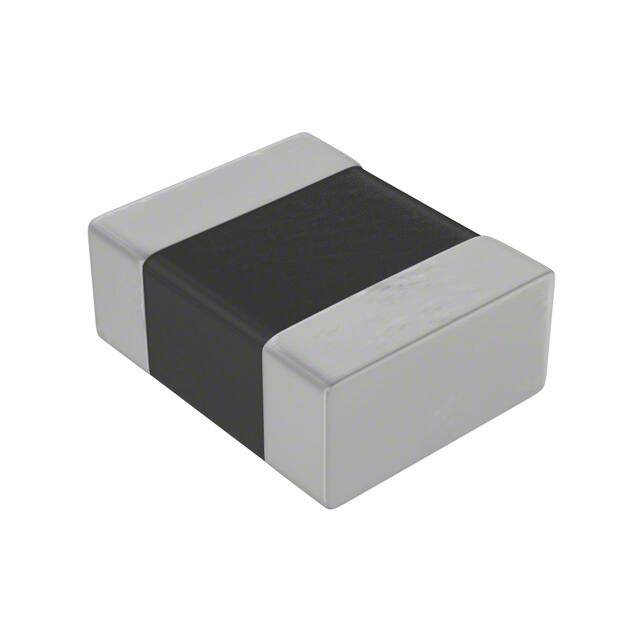

CPL2508T150M

(1/2) SMD Inductors(Coils) For Power Line(Wound, Magnetic Shielded) Conformity to RoHS Directive CPL Series CPL2508 FEATURES • It delivers low Rdc with high Idc. • It is lead-free compatible. The product contains no lead whatsoever. It is able to withstand high temperature reflows (260°C during the peak) used in lead-free soldering. APPLICATIONS Portable audio visual devices (DSCs, DVCs, etc.) Mobile communication devices (cellular phones, etc.) Information devices (PCs, etc.) PRODUCT IDENTIFICATION CPL 2508 T 100 M (1) (2) (3) (4) (5) (1) Series name SPECIFICATIONS –40 to +105°C [Including self-temperature rise] –40 to +105°C Operating temperature range Storage temperature range RECOMMENDED SOLDERING CONDITIONS REFLOW SOLDERING 300 Withstanding soldering heat condition Peak 260˚C Solderability condition Temperature(˚C) Peak 230˚C 200 Preheating 140 to 180˚C/120s 200˚C 30s (2) Dimensions 2508 2.5×1.5×0.8mm (3) Packaging style T Taping (4) Inductance 1R0 100 1µH 10µH (5) Inductance tolerance M ±20% 200˚C 70s 100 PACKAGING STYLE AND QUANTITIES Preheating 100 to 150˚C/120s Packaging style Taping Quantity 2000 pieces/reel Time(s) • Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications. • Please contact our Sales office when your application are considered the following: The device’s failure or malfunction may directly endanger human life (e.g. application for automobile/aircraft/medical/nuclear power devices, etc.) • All specifications are subject to change without notice. 001-01 / 20100224 / e531_cpl2508.fm (2/2) 1.3 0.8max. SHAPES AND DIMENSIONS/CIRCUIT DIAGRAM/RECOMMENDED PC BOARD PATTERN 2.5±0.2 0.65 1.5±0.2 • No polarity 1.5 0.65 Dimensions in mm Weight:13mg 0.6±0.15 Dimensions in mm 0.6±0.15 ELECTRICAL CHARACTERISTICS Inductance (µH) 1 1.5 2.2 3.3 4.7 6.8 10.0 15.0 22.0 ∗1 ∗2 Inductance tolerance (%) ±20 ±20 ±20 ±20 ±20 ±20 ±20 ±20 ±20 DC resistance (Ω )±30% 0.110 0.140 0.165 0.360 0.550 1.000 1.500 2.000 2.400 Rated current∗1 (mA)max. 950 800 700 500 430 300 270 230 180 Rated current∗2 (mA)max. 950 800 700 500 430 300 270 230 180 Part No. CPL2508T1R0M CPL2508T1R5M CPL2508T2R2M CPL2508T3R3M CPL2508T4R7M CPL2508T6R8M CPL2508T100M CPL2508T150M CPL2508T220M Rated current based on inductance variation: Current when inductance decreases by 30% of the initial value due to direct current superimposed characteristics Rated current based on increasing product temperature: Current when temperature of the product reaches +40°C TYPICAL ELECTRICAL CHARACTERISTICS INDUCTANCE vs. FREQUENCY CHARACTERISTICS INDUCTANCE vs. DC SUPERPOSITION CHARACTERISTICS 100 Inductance(µH) Inductance(µH) 100 10 1 1 0 0.1 1 1µH 6.8µH 10 Frequency (MHz) 1.5µH 10µH 2.2µH 15µH 0 10 100 3.3µH 22µH 4.7µH IMPEDANCE vs. FREQUENCY CHARACTERISTICS 100 1µH 6.8µH 1.5µH 10µH 1000 DC current(mA) 2.2µH 15µH 10000 3.3µH 22µH 4.7µH DC SUPERPOSITION vs. INDUCTANCE DECREASING RATE 0 Inductance decreasing rate(%) 100000 10000 Impedance(Ω) 10 1000 100 10 1 0.1 1 1µH 6.8µH 1.5µH 10µH 10 Frequency (MHz) 2.2µH 15µH 100 3.3µH 22µH 4.7µH –5 –10 –15 –20 –25 –30 –35 –40 –45 –50 10 100 1000 10000 DC current(mA) 1µH 6.8µH 1.5µH 10µH 2.2µH 15µH 3.3µH 22µH 4.7µH • All specifications are subject to change without notice. 001-01 / 20100224 / e531_cpl2508.fm
