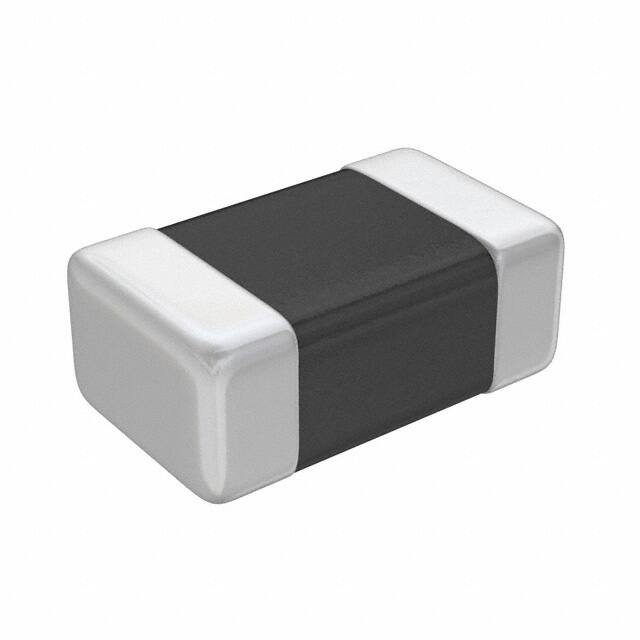

CPL2512TR68M

Wire Wound SMD Inductor CPL2512T**** New Product!! FEATURES *It delivers low Rdc with high Idc. *It is lead-free compatible. The product contains no lead whatsoever. It is able to withstand high temperature reflows(260deg.C during the peak) used in lead-free soldering APPLICATION PRODUCT IDENTIFICATION *Portable AV Equipment(DSC,DVC,AUDIO,etc.) *Portable TEL Equipment(Digital Cellular) *Information electrical appliance Equipment(PC) CPL 2512 T 1R0 M (1) (2) (3) (4) (5) (1)Series name (Tentative name) (2)Case size : Length x Height (mm) (3)Packaging : Taping (4)Inductance (5)Inductance Tolerance PACKAGING 2,000pcs/reel SHARES and DIMENSIONS W DIMENSIONS[mm] B B H L 2.50+/-0.20 W 1.50+/-0.20 H 1.20Max B 0.60+/-0.15 L RECOMMENDED PATTERN DIMENSION(mm) 1.30 EQUIVALENT CIRCUIT No polarity 0.65 1.50 0.65 2.80 2008.11 Ver.9 Copyright© 2008 TDK Corporation. All Rights Reserved. Signal-use Inductor Dept. Wire Wound SMD Inductor CPL2512T**** New Product!! ELECTRICAL CHARACTERISTICS *Operating temperature range : -40deg.C to 105deg.C *Storage temperature range Inductance : -40deg.C to 105deg.C Rdc Idc[mA] ITEM Idc Idc [uH] [ohm] 30%down 40deg.c CPL2512TR15M 0.15 +/-20% 0.034+/-30% 2400 2200 CPL2512TR22M 0.22 +/-20% 0.042+/-30% 2200 2000 CPL2512TR33M 0.33 +/-20% 0.051+/-30% 2000 1800 CPL2512TR47M 0.47 +/-20% 0.060+/-30% 1800 1600 CPL2512TR68M 0.68 +/-20% 0.077+/-30% 1600 1400 CPL2512T1R0M 1.0 +/-20% 0.090+/-30% 1500 1300 CPL2512T1R5M 1.5 +/-20% 0.120+/-30% 1200 1000 CPL2512T2R2M 2.2 +/-20% 0.135+/-30% 900 900 CPL2512T3R3M 3.3 +/-20% 0.240+/-30% 730 730 CPL2512T4R7M 4.7 +/-20% 0.360+/-30% 650 650 CPL2512T6R8M 6.8 +/-20% 0.700+/-30% 450 450 CPL2512T100M 10.0 +/-20% 0.900+/-30% 300 300 [U.D] CPL2512T150M 15.0 +/-20% 1.850+/-30% 275 275 [U.D] CPL2512T220M 22.0 +/-20% 2.300+/-30% 220 220 *Idc(30%Down): Value obtained when DC current flows and the initial value of inductance has fallen by 30% *Idc(40deg.C):Value obtained when DC current flows and temperature has risen to 40deg.C 2008.11 Ver.9 Copyright© 2008 TDK Corporation. All Rights Reserved. Signal-use Inductor Dept. Wire Wound SMD Inductor CPL2512T**** New Product!! ELECTRICAL CHARACTERISTICS f-L f-Z 100.00 10000.0 1000.0 10.00 Z[ohm] L[uH] 100.0 1.00 10.0 0.10 CPL2512TR15M CPL2512TR33M CPL2512TR68M CPL2512T1R5M CPL2512T3R3M CPL2512T6R8M 1.0 CPL2512TR22M CPL2512TR47M CPL2512T1R0M CPL2512T2R2M CPL2512T4R7M CPL2512T100M 0.01 CPL2512TR15M CPL2512TR33M CPL2512TR68M CPL2512T1R5M CPL2512T3R3M CPL2512T6R8M 0.1 0.1 1.0 10.0 100.0 0.1 1.0 Freq.[MHz] CPL2512TR22M CPL2512TR47M CPL2512T1R0M CPL2512T2R2M CPL2512T4R7M CPL2512T100M 10.0 100.0 Freq.[MHz] Idc-L Idc-L_Down 100.00 0% -10% L_Down[%] L[uH] 10.00 1.00 0.10 CPL2512TR15M CPL2512TR22M CPL2512TR33M CPL2512TR68M CPL2512TR47M CPL2512T1R0M CPL2512T1R5M CPL2512T3R3M CPL2512T2R2M CPL2512T4R7M CPL2512T6R8M CPL2512T100M 100 1000 -30% -40% CPL2512TR15M CPL2512TR22M CPL2512TR33M CPL2512TR68M CPL2512TR47M CPL2512T1R0M CPL2512T1R5M CPL2512T3R3M CPL2512T2R2M CPL2512T4R7M CPL2512T6R8M CPL2512T100M -50% 0.01 10 -20% 10000 10 Idc[mA] 2008.11 Ver.9 Copyright© 2008 TDK Corporation. All Rights Reserved. 100 1000 10000 Idc[mA] Signal-use Inductor Dept. Wire Wound SMD Inductor CPL2512T**** New Product!! Competitive Comparison *ELECTRICAL CHARACTERISTICS 2 Compete Product Size : 2.50mm x 1.80mm x 1.20mmMax. Mount Area 4.50mm 2 TDK CPL2512Typ Size : 2.50mm x 1.50mm x 1.20mmMax. Mount Area 3.75mm f-L Compete Product 5.0 Compete Product f-Q TDK CPL2512T2R2M TDK CPL2512T2R2M 25 4.5 4.0 20 3.5 L[uH] 3.0 15 Q 2.5 2.0 10 1.5 5 1.0 0.5 0 0.0 0.1 1.0 10.0 Freq.[MHz] Compete Product f-Z 10000 0.1 100.0 10.0 TDK CPL2512T2R2M 100.0 Freq.[MHz] Compete Product Idc-L_Down TDK CPL2512T2R2M 0% -10% L_Down[%] 1000 Z[ohm] 1.0 100 -20% -30% 10 -40% 1 -50% 0.1 1.0 10.0 100.0 0 Freq.[MHz] 2008.11 Ver.9 Copyright© 2008 TDK Corporation. All Rights Reserved. 500 1000 1500 2000 Idc[mA] Signal-use Inductor Dept. Wire Wound SMD Inductor CPL2512T**** New Product!! Competitive Comparison *Power Efficiency [Inductance 2.2uH & 4.7uH] 2 Compete Product Size : 2.50mm x 1.80mm x 1.20mmMax. Mount Area 4.50mm 2 TDK CPL2512Typ Size : 2.50mm x 1.50mm x 1.20mmMax. Mount Area 3.75mm Compete Product(2.2uH) Power Efficiency TDK CPL2512T2R2M 85 Efficiency[%] 80 75 IC:MAXIM MAX8560 Step Down DC/DC Vin:3V , Vout:1.2V SW Freq.:4MHz 70 65 60 55 50 0.1 1.0 10.0 100.0 1000.0 Load Current[mA] Power Efficiency Power Efficiency Load Current 1 to 100mA 85 Compete Product(2.2uH) TDK CPL2512T2R2M Load Current 100 to 1000mA 85 Compete Product(2.2uH) TDK CPL2512T2R2M 80 Efficiency[%] Efficiency[%] 80 75 75 70 70 65 65 1 10 Load Current[mA] 2008.11 Ver.9 100 100 1000 Load Current[mA] Copyright© 2008 TDK Corporation. All Rights Reserved. Signal-use Inductor Dept.
