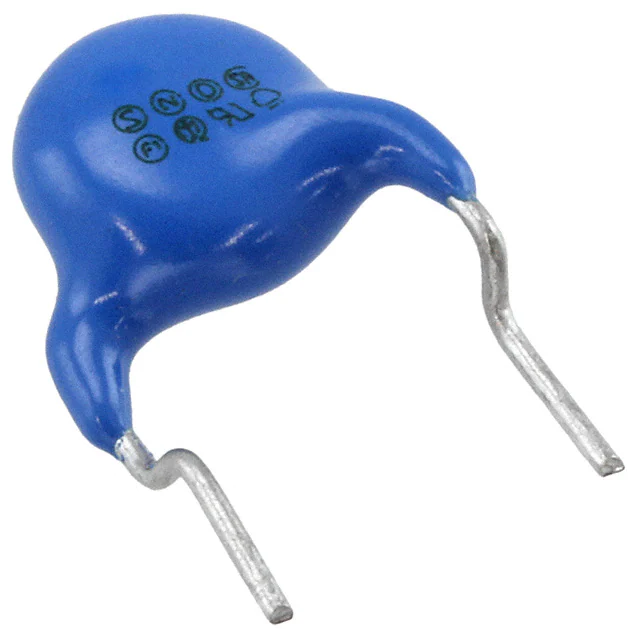

CS80ZU2GA222MYNKA

Disc Type Capacitors with Lead High Voltage Ceramic Capacitors Commercial Grade Safety Standard Approved CS series Issue date: March 2013 • All specifications are subject to change without notice. • Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications. (1/3) Disc Type Capacitors with Lead Conformity to RoHS Directive High Voltage Ceramic Capacitors Commercial Grade Safety Standard Approved CS Series BASIC INSULATION TYPE CLASS 2 HIGH DIELECTRIC FEATURES • Compliant with IEC and the safety standards of various countries. • Rated at a withstand voltage of AC.2600V. • Flame-resistant reinforced outer insulation prevents fires, electrical shock, and other potential hazards. • Compatible with halogen-free external resin coating. OPERATING TEMPERATURE RANGE: –25 to +125°C TEMPERATURE CHARACTERISTICS AND TOLERANCE Temperature characteristics SL (+350 to –1000ppm/°C) B (±10%) Z5U (+22, –56%) F (+30, –80%) Test temperature range +20 to +85°C –25 to +85°C +10 to +85°C –25 to +85°C Capacitance tolerance J (±5%) K (±10%) M (±20%) M (±20%) PRODUCT IDENTIFICATION CS 80 ZU 2GA 222 M Y N K A (1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (1) Type (2) Shape (3) Temperature characteristics (4) Rated voltage (5) Nominal capacitance (6) Capacitance tolerance (7) Class (8) Lead type (9) Safety standard (10) Halogen-free compatible product • Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications. • All specifications are subject to change without notice. 006-02 / 20130305 / leaddisc_commercial_cs_en.fm (2/3) CAPACITANCE AND DIMENSIONS Part No. Temperature characteristics CS45SL2GA100JYKA CS45SL2GA150JYKA CS45SL2GA220JYKA CS45SL2GA330JYKA CS45SL2GA470JYKA CS45SL2GA680JYKA CS65-B2GA101KYKA CS65-B2GA151KYKA CS65-B2GA221KYKA CS70-B2GA331KYKA CS75-B2GA471KYKA CS85-B2GA681KYKA CS65ZU2GA102MYKA CS75ZU2GA152MYKA CS80ZU2GA222MYKA CS95ZU2GA332MYKA CS11ZU2GA472MYKA CS14-F2GA103MYKA  SL (+350 to –1000ppm/°C) B (±10%) Z5U (+22, –56%) F (+30, –80%) Capacitance (pF) 10 15 22 33 47 68 100 150 220 330 470 680 1,000 1,500 2,200 3,300 4,700 10,000 Capacitance tolerance J (±5%) J (±5%) J (±5%) J (±5%) J (±5%) J (±5%) K (±10%) K (±10%) K (±10%) K (±10%) K (±10%) K (±10%) M (±20%) M (±20%) M (±20%) M (±20%) M (±20%) M (±20%) Dimensions (mm) D max. T max. 7.0 5.0 7.0 5.0 7.0 5.0 7.0 5.0 7.0 5.0 7.5 5.0 7.0 5.0 7.0 5.0 7.0 5.0 7.0 5.0 7.5 5.0 8.5 5.0 7.0 5.0 7.5 5.0 8.0 5.0 9.5 5.0 10.5 5.0 14.5 5.0 F 7.5±1.5 7.5±1.5 7.5±1.5 7.5±1.5 7.5±1.5 7.5±1.5 7.5±1.5 7.5±1.5 7.5±1.5 7.5±1.5 7.5±1.5 7.5±1.5 7.5±1.5 7.5±1.5 7.5±1.5 7.5±1.5 7.5±1.5 7.5±1.5 d 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 0.6±0.05 Taping dimensions V2 V2 V2 V2 V2 V2 V2 V2 V2 V2 V2 V2 V2 V2 V2 V2 V2 V3  : Lead shape symbol LIST OF STANDARD LEAD SHAPES The lead type is indicated by the letter which is the 15th character of the product name. Example) TDK Product Name: CS80ZU2GA222MYNKA N: Lead type (Vertical kink, Short) Dimensions in mm Short lead Symbol G Symbol N T D T 4max. D 4max. D Taping Symbol V F d 5±1 25min. 16+1.5 –0.5 Vertical kink F T 4max. Long lead d • We recommend using a vertical kink type. • For bulk products, we recommend a short lead type with the symbol N. MARKINGS Item 1. Series 2. Nominal capacitance 3. Capacitance tolerance 4. Rated voltage Eac 5. TDK’s logogram 6. Date code Markings CS 222 M 440∼X1 300∼Y2 29 Specifications CS series 2200pF ±20% X1: AC.440V Y2: AC.300V Production base code 2012.9 Marking examples CS222M 29 (Marking position is reference.)   Year and month of production: last digit of year + month denoted by 1, 2, 3, 4, 5, 6, 7, 8, 9, O (October), N (November), or D (December). The expression has become simplified due to a revision in the standards. • All specifications are subject to change without notice. 006-02 / 20130305 / leaddisc_commercial_cs_en.fm (3/3) CERTIFIED STATUS OF VARIOUS COUNTRIES Safety standard BSI VDE SEV SEMKO NEMKO DEMKO FIMKO IMQ SAA UL CSA CQC Standard No. Temperature characteristics Insulation sub-class Rated voltage BS EN60384-14 EN 60384-14 EN 60384-14 EN 60384-14 EN 60384-14 EN 60384-14 EN 60384-14 EN 60384-14 AS3250 UL 60384-14 CAN/CSA-E60384-14 GB/T14472-1998 SL, B, Z5U, F X1, Y2 X1: AC.440V Y2: AC.300V Approval report No. Taiwan KM37103 40017930 12.0263 1125249 P12215336 D-01153 FI 27399 V3692 CS6268 E37861 1785515 CQC12001082619 Xiamen KM37103 40017930 12.0263 1125249 P12215336 D-01153 FI 27399 V3692 CS6268 E37861 1785515 CQC10001052862 • Certificate numbers shall be changed owing to the revisions of the related standards. TAPING DIMEMSIONS VERTICAL KINK LEAD TYPE D P T P2 D Δh T P2 Δh H0 S W0 W L W1 L W0 W P0 D0 P1 F D0 ød ød t t P0 C H0 H1 S H0 W2 C A H0 H1 W1 P1 F Δh A Δh W2 P V3 V1, V2 Item Symbol Dimensions (mm) V1 V2 V3 Remarks Body diameter D Depends on the specification of each product. Body thickness T Depends on the specification of each product. Lead-wire diameter ød 0.6±0.05 0.6±0.05 0.6±0.05 Pitch of component P 12.7±1.0 15.0±1.0 30.0±1.0 Including the slant of body Feed hole pitch P0 12.7±0.3 15.0±0.3 15.0±0.3 Excepting the tape splicing part Feed hole center to lead P1 3.85±0.7 3.75±0.7 3.75±0.7 Feed hole center to component center P2 6.35±1.3 7.5±1.3 7.5±1.3 Lead-to lead distance F 5+0.8, –0.2 7.5±0.8 7.5±0.8 Measuring point is bottom kink Component alignment h 0±2.0 0±2.0 0±2.0 Including the slanting body due to bending lead-wire Tape width W 18.0+1.0, –0.5 18.0+1.0, –0.5 18.0+1.0, –0.5 Adhesive tape width W0 10.0min. 10.0min. 10.0min. Hole position W1 9.0±0.5 9.0±0.5 9.0±0.5 Adhesive tape position W2 4.0max. 4.0max. 4.0max. Bottom of kink from tape center H0 16.0+1.5, –0.5 16.0+1.5, –0.5 16.0+1.5, –0.5 Height of body from tape center H1 46.0max. 46.0max. 1.0max. 1.0max. 1.0max. Lead-wire protrusion Adhesive tape do not stick out the tape 46.0max. Feed hole diameter D0 4.0±0.2 4.0±0.2 4.0±0.2 Total tape thickness t 0.6±0.3 0.6±0.3 0.6±0.3 Length of snipped lead L 11.0max. 11.0max. 11.0max. Coating on lead C 4.0max. 4.0max. 4.0max. Height of kink A 4.0max. 4.0max. 4.0max. Spring action S 2.0max. 2.0max. 2.0max. Including adhesive tape Measuring point is bottom kink • For more information about products with other capacitance or other data, please contact us. • All specifications are subject to change without notice. 006-02 / 20130305 / leaddisc_commercial_cs_en.fm
