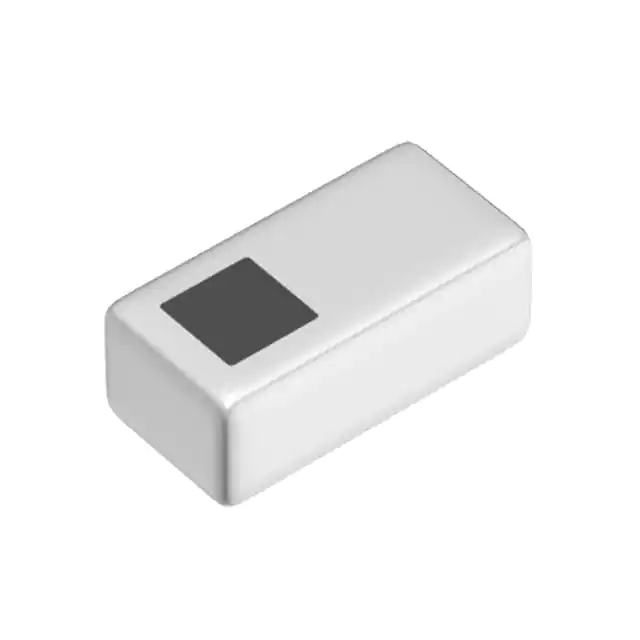

DEA165550BT-2230C2-H

R F C o m p o n e n t s September 2018 Multilayer Band Pass Filter For 5150-5950MHz DEA165550BT-2230C2-H 1.6x0.8mm [EIA 0603]* * Dimensions Code JIS[EIA] RF Components Multilayer Band Pass Filter Conformity to RoHS Directive For 5150-5950MHz DEA165550BT-2230C2-H SHAPES AND DIMENSIONS [Top view] 0.60max. 0.80±0.10 1.60±0.15 (1) (2) (3) Marking [Bottom view] (1) 0.23±0.10 (2) 0.60±0.15 0.55±0.15 0.40±0.10 (3) 0.25±0.10 Terminal functions 1 Input Port 2 GND 3 Output Port Dimensions in mm 0.210 0.700 0.500 0.245 RECOMMENDED LAND PATTERN 0.250 0.250 Dimensions in mm RoHS Directive Compliant Product: See the following for more details related to RoHS Directive compliant products. http://product.tdk.com/en/environment/rohs/ • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20180918 / rf_bpf_dea165550bt-2230c2-h_en.fm RF Components DEA165550BT-2230C2-H ELECTRICAL CHARACTERISTICS Frequency Range (MHz) Item Insertion Loss (dB) Return Loss (dB) Attenuation (dB) 5150 to 5950 5150 to 5950 5150 to 5950 30 to 2700 3400 to 3800 6900 to 7200 7200 to 7800 10300 to 11700 Power Handling (W) Characteristic Impedance () Min. Typ. Max. — — 10 35 30 10 15 20 — 0.66 — 26.8 43 35 26 35 27 — 50 (Nominal) 0.90 1.00 (–40 to +85°C) — — — — — — 1 ・Ta: +25±5°C TEMPERATURE RANGE Operating temperature （°C） –40 to +85 Storage temperature （°C） –40 to +85 TERMINATION FINISH Material Ag • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20180918 / rf_bpf_dea165550bt-2230c2-h_en.fm RF Components DEA165550BT-2230C2-H FREQUENCY CHARACTERISTICS ATTENUATION 0.0 0 0.5 10 1.0 20 Attenuation(dB) Insertion Loss(dB) INSERTION LOSS 1.5 2.0 40 50 2.5 3.0 4000 30 60 4500 5000 5500 Frequency (MHz) 6000 6500 7000 5000 5500 Frequency (MHz) 6000 6500 7000 0 2000 4000 6000 Frequency (MHz) 8000 10000 12000 RETURN LOSS 0 Return Loss(dB) 10 20 30 40 50 4000 4500 • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20180918 / rf_bpf_dea165550bt-2230c2-h_en.fm RF Components DEA165550BT-2230C2-H RECOMMENDED REFLOW PROFILE Preheating Soldering Peak T4 T: Temperature 3°C/sec or lower 6°C/sec or lower T3 T2 T3 t3 T1 t1 t2 t: Time Preheating Temp. T1 150°C T2 200°C Time t1 60 to 120sec Soldering Critical zone (T3 to T4) Temp. Time T3 t2 217°C 60 to 120sec Peak Temp. T4 240 to 260°C Time t3 30sec max. t3 : Time within 5°C of actual peak temperature The maximum number of reflow is 3. • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20180918 / rf_bpf_dea165550bt-2230c2-h_en.fm RF Components REMINDERS FOR USING THESE PRODUCTS Before using these products, be sure to request the delivery specifications. SAFETY REMINDERS Please pay sufficient attention to the warnings for safe designing when using these products. REMINDERS The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition. The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society, person or property. Please understand that we are not responsible for any damage or liability caused by use of the products in any of the applications below or for any other use exceeding the range or conditions set forth in this catalog. (1) Aerospace/Aviation equipment (2) Transportation equipment (cars, electric trains, ships, etc.) (3) Medical equipment (4) Power-generation control equipment (5) Atomic energy-related equipment (6) Seabed equipment (7) Transportation control equipment (8) Public information-processing equipment (9) Military equipment (10) Electric heating apparatus, burning equipment (11) Disaster prevention/crime prevention equipment (12) Safety equipment (13) Other applications that are not considered general-purpose applications When using this product in general-purpose applications, you are kindly requested to take into consideration securing protection circuit/ equipment or providing backup circuits, etc., to ensure higher safety. • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20180918 / rf_bpf_dea165550bt-2230c2-h_en.fm
