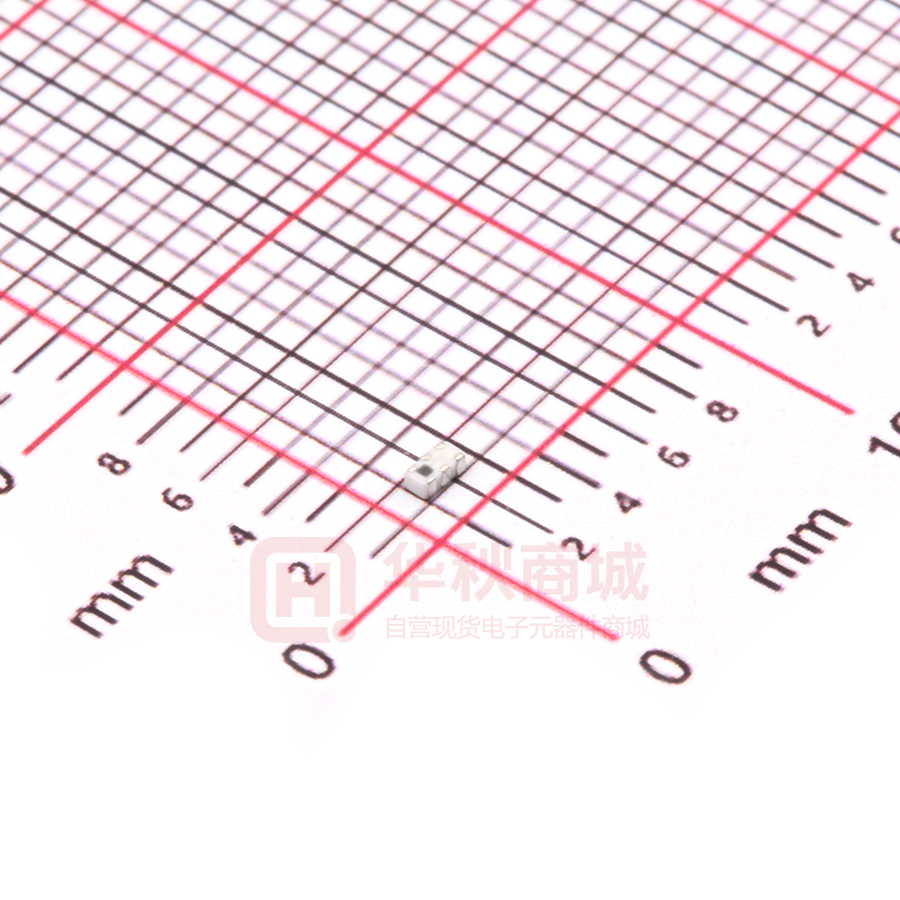

DPX165900DT-8025A1

R F C o m p o n e n t s July 2015 Multilayer Diplexer For 2400-2500MHz / 5100-5900MHz DPX165900DT-8025A1 1.6x0.8mm [EIA 0603]* * Dimensions Code JIS[EIA] RF Components Multilayer Diplexer Conformity to RoHS Directive For 2400-2500MHz / 5100-5900MHz DPX165900DT-8025A1 SHAPES AND DIMENSIONS [Top view] 1.60±0.15 0.60±0.10 (5) (4) (1) (2) (3) Marking 0.80±0.15 (6) [Bottom view] 0.55±0.10 0.30±0.10 0.15±0.10 Terminal functions 1 High-band 2 GND 3 Low-band 4 GND 5 Common 6 GND 0.25±0.10 0.10±0.10 Dimensions in mm RECOMMENDED LAND PATTERN 0.30 0.60 0.30 0.25 Dimensions in mm RoHS Directive Compliant Product: See the following for more details related to RoHS Directive compliant products. http://product.tdk.com/en/environment/rohs/ • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20150701 / rf_dpx_dpx165900dt-8025a1_en.fm RF Components DPX165900DT-8025A1 ELECTRICAL CHARACTERISTICS LOW-BAND Frequency Range (MHz) Min. Typ. Max. 2400 to 2500 4800 to 5000 7200 to 7500 — 18 18 0.36 23.4 25.9 50 (Nominal) 0.60 — — Frequency Range (MHz) Min. Typ. Max. 5100 to 5900 1800 to 2500 3700 to 3900 9800 to 11900 — 20 20 10 0.83 30.8 29.5 26.2 50 (Nominal) 1.40 — — — Item Frequency Range (MHz) Min. Typ. Max. Return Loss (dB) 2400 to 2500 5100 to 5900 9.54 8.09 22.1 11.6 50 (Nominal) — — Item Insertion Loss (dB) Attenuation (dB) Characteristic Impedance (:) ・Ta: +25±5°C HIGH-BAND Item Insertion Loss (dB) Attenuation (dB) Characteristic Impedance (:) ・Ta: +25±5°C COMMON Characteristic Impedance (:) ・Ta: +25±5°C TEMPERATURE RANGE Operating temperature （°C） –40 to +85 Storage temperature （°C） –40 to +85 • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20150701 / rf_dpx_dpx165900dt-8025a1_en.fm RF Components DPX165900DT-8025A1 FREQUENCY CHARACTERISTICS HIGH-BAND Insertion Loss 0.0 0.0 0.5 0.5 1.0 1.0 Insertion Loss (dB) Insertion Loss (dB) LOW-BAND Insertion Loss 1.5 2.0 2.5 2.0 2.5 3.0 2000 2500 3000 Frequency (MHz) 3500 3.0 4000 Return Loss 4000 4500 0 0 10 10 20 30 40 7000 7500 8000 5000 5500 6000 6500 Frequency (MHz) 7000 7500 8000 20 30 2500 3000 Frequency (MHz) 3500 50 4000 4000 4500 Attenuation 0 0 10 10 Attenuation (dB) Attenuation Attenuation (dB) 5500 6000 6500 Frequency (MHz) 40 50 2000 20 30 40 50 5000 Return Loss Return Loss(dB) Return Loss(dB) 1.5 20 30 40 2000 4000 6000 8000 10000 Frequency (MHz) 12000 14000 50 2000 4000 6000 8000 10000 Frequency (MHz) 12000 14000 • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20150701 / rf_dpx_dpx165900dt-8025a1_en.fm RF Components DPX165900DT-8025A1 FREQUENCY CHARACTERISTICS Isolation 0 0 10 10 20 20 Isolation(dB) Return Loss(dB) COMMON Return Loss 30 40 50 30 40 2000 4000 6000 8000 10000 Frequency (MHz) 12000 14000 50 2000 4000 6000 8000 10000 Frequency (MHz) 12000 14000 • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20150701 / rf_dpx_dpx165900dt-8025a1_en.fm RF Components RECOMMENDED REFLOW PROFILE Preheating Soldering Peak T4 T: Temperature 3°C/sec or lower 6°C/sec or lower T3 T2 T3 t3 T1 t1 t2 t: Time Preheating Temp. T1 150°C T2 200°C Time t1 60 to 120sec Soldering Critical zone (T3 to T4) Temp. Time T3 t2 217°C 60 to 120sec t3 : Time within 5°C of actual peak temperature The maximum number of reflow is 3. • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. Peak Temp. T4 240 to 260°C Time t3 30sec max. RF Components REMINDERS FOR USING THESE PRODUCTS Before using these products, be sure to request the delivery specifications. SAFETY REMINDERS Please pay sufficient attention to the warnings for safe designing when using these products. REMINDERS The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition. The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society, person or property. Please understand that we are not responsible for any damage or liability caused by use of the products in any of the applications below or for any other use exceeding the range or conditions set forth in this catalog. (1) Aerospace/Aviation equipment (2) Transportation equipment (cars, electric trains, ships, etc.) (3) Medical equipment (4) Power-generation control equipment (5) Atomic energy-related equipment (6) Seabed equipment (7) Transportation control equipment (8) Public information-processing equipment (9) Military equipment (10) Electric heating apparatus, burning equipment (11) Disaster prevention/crime prevention equipment (12) Safety equipment (13) Other applications that are not considered general-purpose applications When using this product in general-purpose applications, you are kindly requested to take into consideration securing protection circuit/ equipment or providing backup circuits, etc., to ensure higher safety. • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20150701 / rf_dpx_dpx165900dt-8025a1_en.fm
