Multilayer Diplexer
For 2400-2496MHz / 4900-5950MHz

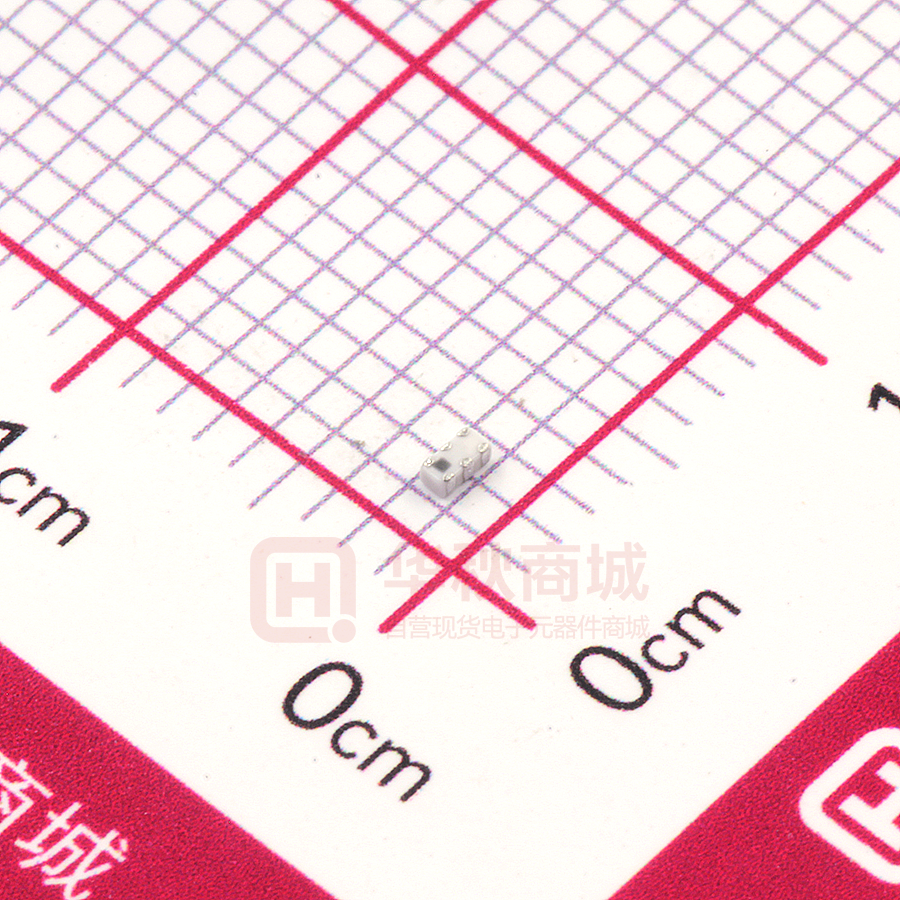

DPX165950DT-8126A1
1.6x0.8mm [EIA 0603]*
* Dimensions Code JIS[EIA]
RF Components
Multilayer Diplexer
Conformity to RoHS Directive
For 2400-2496MHz / 4900-5950MHz
DPX165950DT-8126A1
SHAPES AND DIMENSIONS
[Top view]
1.60±0.15
0.60±0.10
(5)
(4)
(1)
(2)
(3)
Marking
0.80±0.15
(6)
0.55±0.10
0.30±0.10
Terminal functions
1 GND
2 Common
3 GND
4 Low-band
5 GND
6 High-band
0.15±0.10
[Bottom view]
0.25±0.10
0.10±0.10
Dimensions in mm
RECOMMENDED LAND PATTERN
EVALUATION BOARD
0.30
0.25
0.55 0.70
0.30
0.60
0.30
Dimensions in mm
0.55 0.70
Line width should be designed to match 50Ω
characteristic impedance, depending on PCB
material and thickness.
Dimensions in mm
RoHS Directive Compliant Product: See the following for more details related to RoHS Directive compliant products. http://product.tdk.com/en/environment/rohs/
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
20150701 / rf_dpx_dpx165950dt-8126a1_zh.fm
RF Components
DPX165950DT-8126A1
ELECTRICAL CHARACTERISTICS
LOW-BAND
Item
Insertion Loss (dB)
Return Loss (dB)
Power Handling (W)
Characteristic Impedance (:)
Frequency Range
(MHz)
Min.
Typ.
Max.
2400 to 2496
2400 to 2500
2400 to 2496
—
9.54
—
0.39
21.7
—
50 (Nominal)
0.60
—
3
Frequency Range
(MHz)
Min.
Typ.
Max.
4900 to 5950
4900 to 5950
30 to 2700
9800 to 11900
14700 to 17850
4900 to 5950
—
9.54
28
10
5
—
0.78
16.5
34.9
21.6
14.4
—
50 (Nominal)
1.40
—
—
—
—
2
Frequency Range
(MHz)
Min.
Typ.
Max.
30 to 2700
4900 to 5950
2400 to 2500
4900 to 5950
28
26
9.54
9.54
34.2
32.9
21.7
20.4
50 (Nominal)
—
—
—
—
・Ta: +25±5°C
HIGH-BAND
Item
Insertion Loss (dB)
Return Loss (dB)
Attenuation (dB)
Power Handling (W)
Characteristic Impedance (:)
・Ta: +25±5°C
COMMON
Item
Isolation (dB)
Return Loss (dB)
Characteristic Impedance (:)
・Ta: +25±5°C
TEMPERATURE RANGE
Operating temperature
˄°C˅
–40 to +85
Storage temperature
˄°C˅
–40 to +85
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
20150701 / rf_dpx_dpx165950dt-8126a1_zh.fm
RF Components
DPX165950DT-8126A1
FREQUENCY CHARACTERISTICS
HIGH-BAND
Insertion Loss
0.0
0.0
0.5
0.5
1.0
1.0
Insertion Loss(dB)
Insertion Loss(dB)
LOW-BAND
Insertion Loss
1.5
2.0
3.0
1500
2000
2500
Frequency (MHz)
3000
3.0
3500
3500
Return Loss
0
0
10
10
20
30
40
4500
5000
5500
6000
Frequency (MHz)
6500
7000
7500
4500
5000
5500
6000
Frequency (MHz)
6500
7000
7500
16000
18000
20
30
40
50
1500
2000
2500
Frequency (MHz)
3000
50
3500
3500
Attenuation
4000
Attenuation
0
10
10
Attenuation (dB)
0
20
30
40
50
4000
Return Loss
Return Loss(dB)
Return Loss(dB)
2.0
2.5
2.5
Attenuation (dB)
1.5
20
30
40
0
2000
4000
6000
8000
10000
Frequency (MHz)
12000
14000
50
0
2000
4000
6000
8000 10000 12000
Frequency (MHz)
14000
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
20150701 / rf_dpx_dpx165950dt-8126a1_zh.fm
RF Components
DPX165950DT-8126A1
FREQUENCY CHARACTERISTICS
Isolation
0
0
10
10
20
20
Isolation(dB)
Return Loss(dB)
COMMON
Return Loss
30
40
50
30
40
0
2000
4000
6000
8000
10000
Frequency (MHz)
12000
14000
50
0
2000
4000
6000
8000
10000
Frequency (MHz)
12000
14000
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
20150701 / rf_dpx_dpx165950dt-8126a1_zh.fm
RF Components
DPX165950DT-8126A1
RECOMMENDED REFLOW PROFILE
Soaking
Working
Soldering
Peak
T: Temperature
T4
T5
T3
T2
T4
T3
t3
T1
t1
t2
t: Time
Soaking
Temp.
T1
150°C
T2
180°C
Time
t1
60 to 120s
Working
Temp.
T3
230°C
Time
t2
more than 30s
Soldering Peak
Temp.
T4
247 to 253°C
Time
t3
within 10s
Temp.
T5
260°C max.
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
20150701 / rf_dpx_dpx165950dt-8126a1_zh.fm
RF Components
ቂ᎙ሃჵ
ቂׁٛ൰ˈขႚࢆࣙࢭتࡒཱུכ༚ȃ
ภ᎙ሃჵ
ቂׁٛ൰ˈข᎙ሃภჵȃ
᎙ ሃ
ׁٛ൰಼፩ኵܿٛ൰ፑቂᎳቂဉሃሆຢቂᇜֈݢᏊົֻ ˄AV ົֻˈᄪົֻˈয়ݢٛ൰ˈቨົֻˈིົֻˈࢋ
เົֻˈ֑࢞ົֻˈˈֻົكᇖධเ˅ˈ෩ࡘᇜֈݢᏊົֻᇋ٢ܿغᏮञቂߴߟቂȃ
ޭᅍᇋࡴޡภᄹञ૰૦ᄹܿˈডጚົֻܿࢽጊˈႜވᏮˈከᎡட૰ঐࢍเܿໍಛˈເ࿒ঽاٛ݃ዉڈཿࣷˈᇵঽ૰ٛໍಧܐ
຺ঐሯჳܿᇵቂဉ ˄ᇵ ‘ څ࿅ށቂဉ ’˅፩ܿቂᄹˈᄹߙংˈ൰፣ˈׁ࢞ཌྷቧ֦ጽȃ
ٛ൰־ׁٛ൰಼ܿ߭ၐȂፇိˈডጚ࿅ށቂဉ፩ቂˈׁ࢞ཌྷޭྋዉܿڈཿࣷञᄪᄹܞڏใटውใȃ
(1) ऎ࿙ऎૼົֻ
(2) ਦከ༕ົֻ ˄පވݢˈٴট˅݃ؑۉˈٴ
(3) ᇞனົֻ
(4) ߙ૿ݢ፟ົֻ
(5) ኊᏊኑყ࣋ົֻ
(6) ֻࣴົݒ
(7) ਦ૿፟ົֻ
(8) ࢞ࢥᄪႩֻົ୲ۃ
(9) ૅົֻ
(10) ݢৠົֻȂัຨົֻ
(11) ߷ኳ / ኁ߷߯Ꮶົֻ
(12) ภົֻ
(13) ඝྊ־༄ၓ٢ࣙቂဉܿቂဉ
ၓமࢮภݓቂٛ൰ˈޭቂׁٛ൰಼፩ྈኵٛ൰ܿົֻᄵົˈขฬ֦࠲ठࡘົֻܿቂቂဉঽᎫྙ֦ܿ॓ই௸ञᎧ
ˈົֻቂই௸݃ȃ
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
20150701 / rf_dpx_dpx165950dt-8126a1_zh.fm
