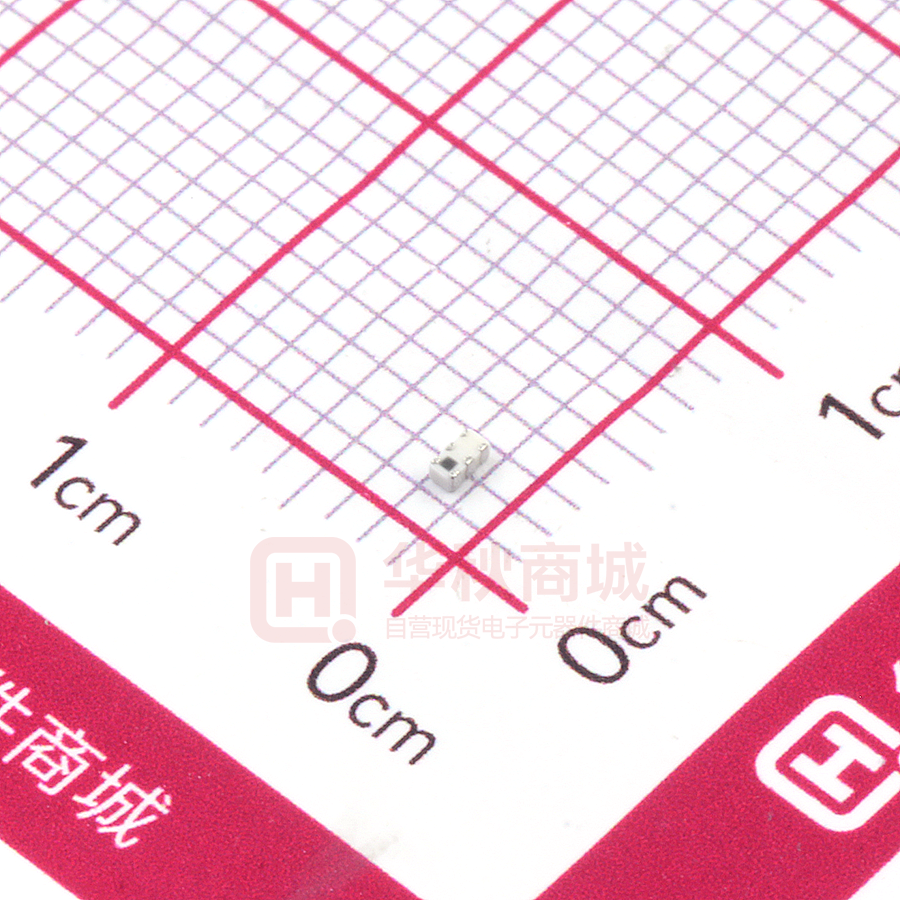

DPX165950DT-8148A1

Jul. 2016 Ver.8.0 TDK Corporation Multilayer Diplexer For 2.4GHz W-LAN & Bluetooth / 5GHz W-LAN DPX Series P/N: 1.6x0.8mm [EIA 0603] TYPE DPX165950DT-8148A1 All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies Jul. 2016 Ver.8.0 TDK Corporation DPX165950DT-8148A1 ■ SHAPES AND DIMENSIONS Dimensions (mm) L W T a b c d e 1.60 0.80 0.60 0.10 0.30 0.25 0.55 0.15 +/-0.15 +/-0.15 +/-0.10 +/-0.10 +/-0.10 +/-0.10 +/-0.10 +/-0.10 Terminal functions Low-Band Port (1) GND (2) High-Band Port (3) (4) (5) (6) ■ TEMPERATURE RANGE Operating temperature Storage temperature –40 to +85 °C –40 to +85 °C GND Common Port GND ■ TERMINATION FINISH Material Sn plate All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies Jul. 2016 Ver.8.0 TDK Corporation DPX165950DT-8148A1 ■ ELECTRICAL CHARACTERISTICS ( Measurement ) Low-Band Parameter Insertion Loss (dB) Insertion Loss (dB) ( –40 to +85 °C ) VSWR Attenuation (dB) 2400 to 2400 to TDK Spec Min. Typ. Max. 2500 0.23 0.35 2500 0.30 0.45 2400 4800 5000 7200 2500 5000 5950 7500 Frequency (MHz) to to to to 21 23 25 1.14 25 27 36 1.6 - Ta = +25+/-5°C High-Band Parameter Insertion Loss (dB) Insertion Loss (dB) ( –40 to +85 °C ) VSWR Attenuation (dB) TDK Spec Min. Typ. Max. 5950 0.45 0.60 5950 0.50 0.67 Frequency (MHz) 4900 to 4900 to 4900 824 2400 8100 9800 to 5950 to 2170 to 2500 to 8900 to 11900 27 32 10 25 1.28 32 42 12 29 1.7 - Ta = +25+/-5°C Common Parameter VSWR TDK Spec Min. Typ. Max. 2500 1.11 1.6 5950 1.20 1.7 Frequency (MHz) 2400 to 4900 to All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies Jul. 2016 Ver.8.0 TDK Corporation DPX165950DT-8148A1 ■ FREQUENCY CHARACTERISTICS Low band-Port High band-Port Insertion Loss 2400 MHz 2500 MHz 5 Attenuation [dB] 10 0 0.19 0.23 dB dB 15 20 Attenuation 25 4800 5000 5950 7200 7500 30 35 40 MHz MHz MHz MHz MHz 25.44 31.59 27.51 44.21 36.13 dB dB dB dB dB Insertion Loss 4900 MHz 5950 MHz 5 10 Attenuation [dB] 0 15 20 Attenuation 25 35 45 50 50 500 1500 2500 3500 4500 5500 6500 7500 8500 500 9500 2500 4500 Frequency[MHz] 8500 10500 33.92 36.50 43.99 41.66 12.92 24.87 35.19 29.31 35.75 dB dB dB dB dB dB dB dB dB High band-Port 0 Insertion Loss 2400 MHz 2500 MHz 0 0.19 0.23 dB dB 1 1.5 2 Insertion Loss 4900 MHz 5950 MHz 0.5 Insertion Loss[dB] 0.5 Insertion Loss[dB] 6500 MHz MHz MHz MHz MHz MHz MHz MHz MHz Frequency[MHz] Low band-Port 0.34 dB 0.45 dB 1 1.5 2 2.5 2.5 3 3 500 1000 1500 2000 2500 3000 3500 4000 4000 4500 5000 5500 Frequency[MHz] 6000 6500 7000 7500 Frequency[MHz] Common Port Return Loss Isolation 0 0 5 2400 MHz 2500 MHz 32.95 dB 25.45 dB 4900 MHz 5950 MHz 22.90 dB 20.69 dB 10 15 20 25 2400 2500 4900 5950 10 Isolation [dB] Return Loss [dB] 824 2170 2400 2500 8100 8900 9800 10500 11900 30 40 45 0.34 dB 0.45 dB 30 MHz MHz MHz MHz 51.7 45.9 32.8 28.5 dB dB dB dB 20 30 40 35 40 50 500 1500 2500 3500 4500 5500 6500 7500 8500 500 9500 1500 2500 3500 Frequency[MHz] Low band-Port Return Loss 5500 6500 7500 8500 9500 High band-Port Return Loss 0 0 2400 MHz 2500 MHz 5 28.09 dB 23.81 dB 4900 MHz 5950 MHz 5 22.57 dB 18.18 dB 10 Return Loss[dB] 10 Return Loss[dB] 4500 Frequency[MHz] 15 20 25 30 15 20 25 30 35 35 40 40 500 1000 1500 2000 2500 3000 Frequency[MHz] 3500 4000 4500 5000 4000 4500 5000 5500 6000 6500 7000 7500 Frequency[MHz] All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies Jul. 2016 Ver.8.0 TDK Corporation DPX165950DT-8148A1 ■ RECOMMENDED LAND PATTERN ■ ENVIRONMENT INFORMATION RoHS Statement RoHS Compliance All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies Jul. 2016 Ver.8.0 TDK Corporation DPX165950DT-8148A1 ■ RECOMMENDED REFLOW PROFILE Pb free solder Soaking Temp. Time t1 T1 T2 150°C 180°C 60 to 120sec Working Temp. Time T3 t2 230°C more than 30sec Soldering Temp. Time T4 t3 Peak Temp. T5 247 to 253°C within 10sec 260°C Max. All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies REMINDERS FOR USING THESE PRODUCTS Before using these products, be sure to request the delivery specifications. SAFETY REMINDERS Please pay sufficient attention to the warnings for safe designing when using these products. REMINDERS The products listed on this specification sheet are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition. The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society, person or property. Please understand that we are not responsible for any damage or liability caused by use of the products in any of the applications below or for any other use exceeding the range or conditions set forth in this specification sheet. 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. Aerospace/Aviation equipment Transportation equipment (cars, electric trains, ships, etc.) Medical equipment Power-generation control equipment Atomic energy-related equipment Seabed equipment Transportation control equipment Public information-processing equipment Military equipment Electric heating apparatus, burning equipment Disaster prevention/crime prevention equipment Safety equipment Other applications that are not considered general-purpose applications When using this product in general-purpose applications, you are kindly requested to take into consideration securing protection circuit/equipment or providing backup circuits, etc., to ensure higher safety. All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies
