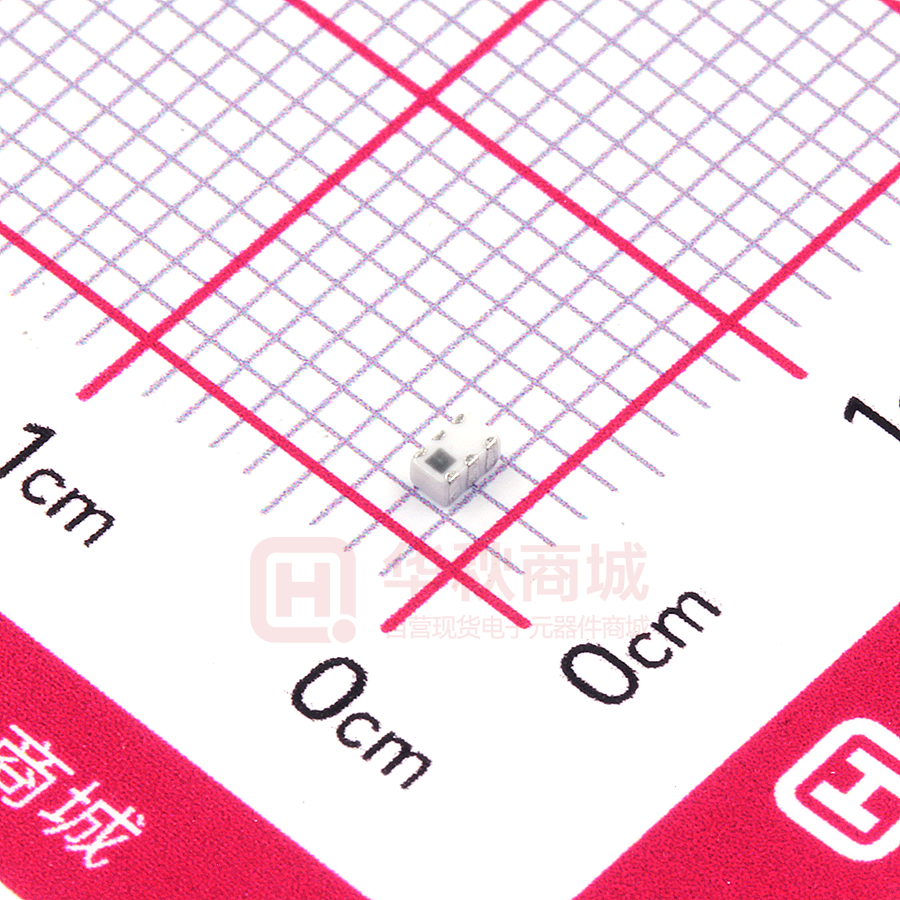

DPX202700DT-4162A1

R F C o m p o n e n t s July 2015 Multilayer Diplexer For 698-960MHz / 1710-2700MHz DPX202700DT-4162A1 2.0x1.25mm [EIA 0805]* * Dimensions Code JIS[EIA] RF Components Multilayer Diplexer Conformity to RoHS Directive For 698-960MHz / 1710-2700MHz DPX202700DT-4162A1 SHAPES AND DIMENSIONS 2.00±0.15 [Top view] 0.90±0.10 (5) (4) (1) (2) (3) Marking 1.25±0.15 (6) 0.65±0.15 0.30±0.15 Terminal functions 1 GND 2 Common 3 GND 4 Low-band 5 GND 6 High-band 0.20±0.15 [Bottom view] 0.20±0.15 0.35±0.15 Dimensions in mm 0.89 0.77 RECOMMENDED LAND PATTERN 0.33 0.32 Dimensions in mm RoHS Directive Compliant Product: See the following for more details related to RoHS Directive compliant products. http://product.tdk.com/en/environment/rohs/ • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20150701 / rf_dpx_dpx202700dt-4162a1_en.fm RF Components DPX202700DT-4162A1 ELECTRICAL CHARACTERISTICS LOW-BAND Frequency Range (MHz) Item Insertion Loss (dB) Return Loss (dB) Attenuation (dB) Min. Typ. Max. — — 10.03 10.03 30 30 35 — 0.23 0.35 25.7 25.7 33.5 34.5 39.1 50 (Nominal) 0.40 0.50 — — — — — — Frequency Range (MHz) Min. Typ. Max. 1710 to 2700 1710 to 2700 698 to 960 — 10.03 25 0.41 14.7 29.7 50 (Nominal) 0.50 — — 698 to 746 746 to 960 698 to 746 746 to 960 1710 to 2170 2170 to 2400 2400 to 2700 Characteristic Impedance (:) ・Ta: +25±5°C HIGH-BAND Item Insertion Loss (dB) Return Loss (dB) Attenuation (dB) Characteristic Impedance (:) ・Ta: +25±5°C TEMPERATURE RANGE Operating temperature （°C） –40 to +85 Storage temperature （°C） –40 to +85 • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20150701 / rf_dpx_dpx202700dt-4162a1_en.fm RF Components DPX202700DT-4162A1 FREQUENCY CHARACTERISTICS HIGH-BAND Insertion Loss 0.0 0.0 0.5 0.5 1.0 1.0 Insertion Loss(dB) Insertion Loss(dB) LOW-BAND Insertion Loss 1.5 2.0 600 700 800 900 1000 Frequency(MHz) 1100 1200 1300 3.0 1400 1400 Return Loss 0 10 10 20 30 40 50 500 1600 2400 2600 2800 1800 2000 2200 Frequency(MHz) 2400 2600 2800 30 40 600 700 800 900 1000 Frequency(MHz) 1100 1200 1300 50 1400 1400 1600 0 0 10 10 Attenuation(dB) Attenuation Attenuation(dB) 2000 2200 Frequency(MHz) 20 Attenuation 20 30 20 30 40 40 50 500 1800 Return Loss 0 Return Loss(dB) Return Loss(dB) 2.0 2.5 2.5 3.0 500 1.5 1000 1500 2000 2500 3000 Frequency(MHz) 3500 4000 4500 5000 50 500 1000 1500 2000 2500 3000 Frequency(MHz) 3500 4000 4500 5000 • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20150701 / rf_dpx_dpx202700dt-4162a1_en.fm RF Components DPX202700DT-4162A1 FREQUENCY CHARACTERISTICS Isolation 0 0 10 10 20 20 Isolation(dB) Return Loss(dB) COMMON Return Loss 30 40 40 50 500 30 1000 1500 2000 2500 3000 Frequency(MHz) 3500 4000 4500 5000 50 500 1000 1500 2000 2500 3000 Frequency(MHz) 3500 4000 4500 5000 • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20150701 / rf_dpx_dpx202700dt-4162a1_en.fm RF Components RECOMMENDED REFLOW PROFILE Preheating Soldering Peak T4 T: Temperature 3°C/sec or lower 6°C/sec or lower T3 T2 T3 t3 T1 t1 t2 t: Time Preheating Temp. T1 150°C T2 200°C Time t1 60 to 120sec Soldering Critical zone (T3 to T4) Temp. Time T3 t2 217°C 60 to 120sec t3 : Time within 5°C of actual peak temperature The maximum number of reflow is 3. • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. Peak Temp. T4 240 to 260°C Time t3 30sec max. RF Components REMINDERS FOR USING THESE PRODUCTS Before using these products, be sure to request the delivery specifications. SAFETY REMINDERS Please pay sufficient attention to the warnings for safe designing when using these products. REMINDERS The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition. The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society, person or property. Please understand that we are not responsible for any damage or liability caused by use of the products in any of the applications below or for any other use exceeding the range or conditions set forth in this catalog. (1) Aerospace/Aviation equipment (2) Transportation equipment (cars, electric trains, ships, etc.) (3) Medical equipment (4) Power-generation control equipment (5) Atomic energy-related equipment (6) Seabed equipment (7) Transportation control equipment (8) Public information-processing equipment (9) Military equipment (10) Electric heating apparatus, burning equipment (11) Disaster prevention/crime prevention equipment (12) Safety equipment (13) Other applications that are not considered general-purpose applications When using this product in general-purpose applications, you are kindly requested to take into consideration securing protection circuit/ equipment or providing backup circuits, etc., to ensure higher safety. • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20150701 / rf_dpx_dpx202700dt-4162a1_en.fm
