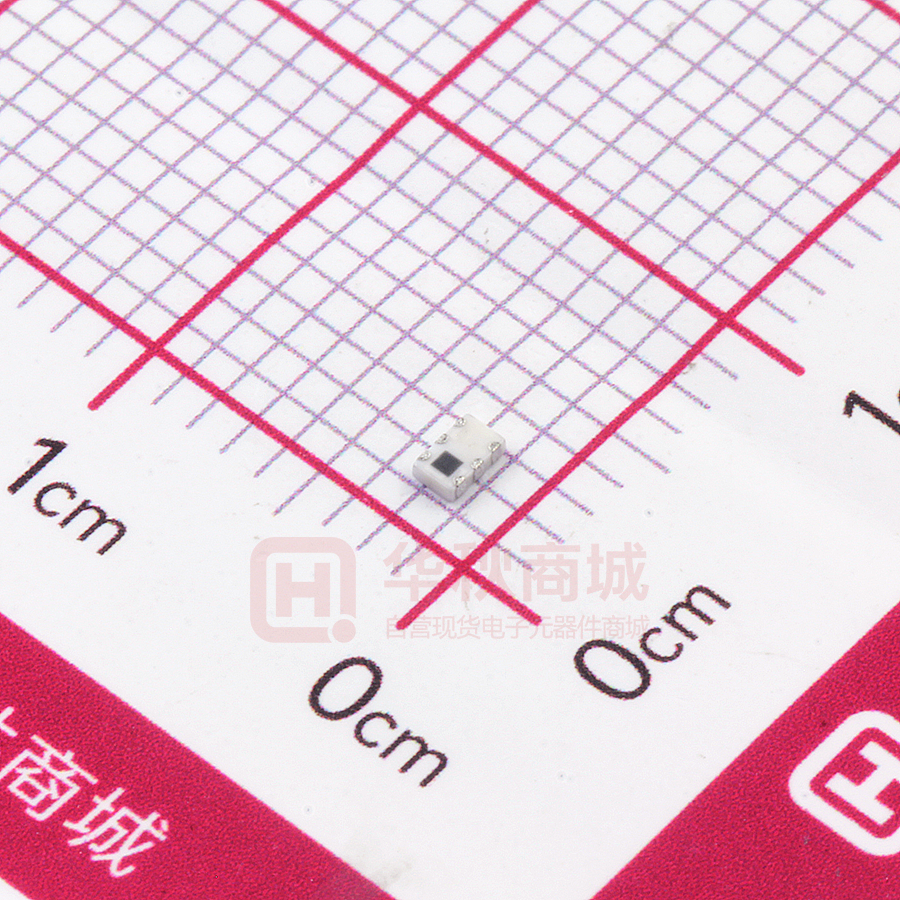

DPX205950DT-9026A1

R F C o m p o n e n t s July 2015 Multilayer Diplexer For 2400-2500MHz / 4900-5950MHz DPX205950DT-9026A1 2.0x1.25mm [EIA 0805]* * Dimensions Code JIS[EIA] RF Components Multilayer Diplexer Conformity to RoHS Directive For 2400-2500MHz / 4900-5950MHz DPX205950DT-9026A1 SHAPES AND DIMENSIONS 2.00±0.15 [Top view] 0.50±0.10 (5) (4) (1) (2) (3) Marking 1.25±0.15 (6) 0.65±0.20 [Bottom view] 0.30±0.20 Terminal functions 1 GND 2 Common 3 GND 4 High-band 5 GND 6 Low-band 0.20±0.20 0.35±0.20 Dimensions in mm RECOMMENDED LAND PATTERN EVALUATION BOARD Dimensions in mm 0.77 0.32 0.58 0.33 0.932 0.58 0.77 ø0.30 through hole 0.32 0.33 Land Solder resist Dimensions in mm Line width should be designed to match 50Ω characteristic impedance, depending on PCB material and thickness. RoHS Directive Compliant Product: See the following for more details related to RoHS Directive compliant products. http://product.tdk.com/en/environment/rohs/ • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20150701 / rf_dpx_dpx205950dt-9026a1_en.fm RF Components DPX205950DT-9026A1 ELECTRICAL CHARACTERISTICS LOW-BAND Item Insertion Loss (dB) Return Loss (dB) Attenuation (dB) Frequency Range (MHz) Min. Typ. Max. 2400 to 2500 2400 to 2500 4800 to 5000 7200 to 7500 — 10 20 20 0.39 15.5 34.7 25.2 50 (Nominal) 0.50 — — — Frequency Range (MHz) Min. Typ. Max. 4900 to 5950 4900 to 5950 824 to 915 1800 to 2500 9800 to 11900 — 10 20 20 15 0.39 17.0 26.9 26.2 20.6 50 (Nominal) 0.65 — — — — Frequency Range (MHz) Min. Typ. Max. DC to 2500 4900 to 5950 2400 to 2500 4900 to 5950 20 20 10 10 25.6 25.0 16.5 17.2 50 (Nominal) — — — — Characteristic Impedance (:) ・Ta: +25±5°C HIGH-BAND Item Insertion Loss (dB) Return Loss (dB) Attenuation (dB) Characteristic Impedance (:) ・Ta: +25±5°C COMMON Item Isolation (dB) Return Loss (dB) Characteristic Impedance (:) ・Ta: +25±5°C TEMPERATURE RANGE Operating temperature （°C） –40 to +85 Storage temperature （°C） –40 to +85 • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20150701 / rf_dpx_dpx205950dt-9026a1_en.fm RF Components DPX205950DT-9026A1 FREQUENCY CHARACTERISTICS HIGH-BAND Insertion Loss 0.0 0.0 0.5 0.5 1.0 1.0 Insertion Loss(dB) Insertion Loss(dB) LOW-BAND Insertion Loss 1.5 2.0 2.5 2000 2500 Frequency (MHz) 3000 3.0 3500 3500 Return Loss 0 0 10 10 20 30 4500 5000 5500 Frequency (MHz) 6000 6500 7000 4500 5000 5500 Frequency (MHz) 6000 6500 7000 20 30 40 40 50 1500 2000 2500 Frequency (MHz) 3000 50 3500 3500 Attenuation 4000 Attenuation 0 10 10 Attenuation (dB) 0 20 30 40 50 4000 Return Loss Return Loss (dB) Return Loss (dB) 2.0 2.5 3.0 1500 Attenuation (dB) 1.5 20 30 40 0 2000 4000 6000 Frequency (MHz) 8000 10000 12000 50 0 2000 4000 6000 Frequency (MHz) 8000 10000 12000 • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20150701 / rf_dpx_dpx205950dt-9026a1_en.fm RF Components DPX205950DT-9026A1 FREQUENCY CHARACTERISTICS Isolation 0 0 10 10 20 20 Isolation (dB) Return Loss (dB) COMMON Return Loss 30 40 40 50 30 50 0 2000 4000 6000 Frequency (MHz) 8000 10000 12000 0 2000 4000 6000 Frequency (MHz) 8000 10000 12000 • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20150701 / rf_dpx_dpx205950dt-9026a1_en.fm RF Components RECOMMENDED REFLOW PROFILE Preheating Soldering Peak T4 T: Temperature 3°C/sec or lower 6°C/sec or lower T3 T2 T3 t3 T1 t1 t2 t: Time Preheating Temp. T1 150°C T2 200°C Time t1 60 to 120sec Soldering Critical zone (T3 to T4) Temp. Time T3 t2 217°C 60 to 120sec t3 : Time within 5°C of actual peak temperature The maximum number of reflow is 3. • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. Peak Temp. T4 240 to 260°C Time t3 30sec max. RF Components REMINDERS FOR USING THESE PRODUCTS Before using these products, be sure to request the delivery specifications. SAFETY REMINDERS Please pay sufficient attention to the warnings for safe designing when using these products. REMINDERS The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition. The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society, person or property. Please understand that we are not responsible for any damage or liability caused by use of the products in any of the applications below or for any other use exceeding the range or conditions set forth in this catalog. (1) Aerospace/Aviation equipment (2) Transportation equipment (cars, electric trains, ships, etc.) (3) Medical equipment (4) Power-generation control equipment (5) Atomic energy-related equipment (6) Seabed equipment (7) Transportation control equipment (8) Public information-processing equipment (9) Military equipment (10) Electric heating apparatus, burning equipment (11) Disaster prevention/crime prevention equipment (12) Safety equipment (13) Other applications that are not considered general-purpose applications When using this product in general-purpose applications, you are kindly requested to take into consideration securing protection circuit/ equipment or providing backup circuits, etc., to ensure higher safety. • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20150701 / rf_dpx_dpx205950dt-9026a1_en.fm
