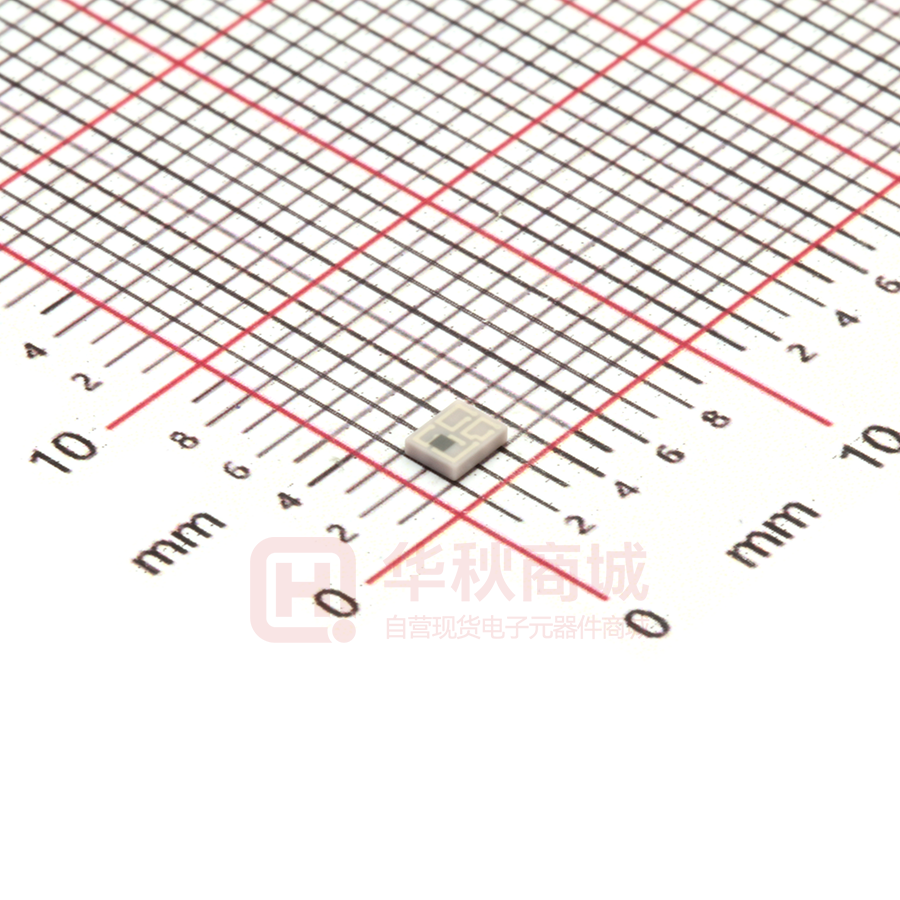

DPX255925DT-5045F3

Jul. 2018 Ver.1.3a TDK Corporation Multilayer Diplexer For LTE DPX Series P/N: 2520 TYPE DPX255925DT-5045F3 TDK Technology - Proprietary and Confidential Information of TDK Group Companies Jul. 2018 Ver.1.3a TDK Corporation PRELIMINARY DPX255925DT-5045F3 ■ SHAPES AND DIMENSIONS [Top View] [Bottom View] (7) (6) (5) (5) (6) (7) (8) (9) (4) (4) (9) (8) (1) (2) (3) (3) (2) (1) Dimensions (mm) L W T a b c d e 2.50 2.00 0.65 0.40 0.55 0.30 0.40 0.90 +/-0.15 +/-0.15 Max +/-0.10 +/-0.10 +/-0.10 +/-0.10 +/-0.15 Terminal functions GND (1) Common Port (2) GND (3) GND (4) High-Band Port (5) (6) (7) (8) (9) GND Low-Band Port GND GND 　 ■ TERMINATION FINISH Material Ag • All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies PRELIMINARY Jul. 2018 Ver.1.3a TDK Corporation DPX255925DT-5045F3 ■ ELECTRICAL CHARACTERISTICS ( Measurement ) Low-Band Parameter Insertion Loss (dB) Insertion Loss (dB) (–40 to +85 °C) VSWR Attenuation (dB) Frequency (MHz) 617 1427 1710 2300 2496 617 1427 1710 2300 2496 617 1427 3300 3400 5150 to to to to to to to to to to to to to to to 960 1661 2170 2496 2690 960 1661 2170 2496 2690 960 2690 3400 3800 5925 TDK Spec Min. Typ. Max. 0.08 0.40 0.15 0.45 0.23 0.45 0.32 0.60 0.48 0.65 0.45 0.50 0.50 0.65 0.75 1.17 1.50 1.25 1.65 15 21 23 28 28 32 - Ta = +25+/-5°C High-Band Parameter Insertion Loss (dB) Insertion Loss (dB) (–40 to +85 °C) VSWR Attenuation (dB) Frequency (MHz) 3300 3400 3600 5150 3300 3400 3600 5150 3300 3400 5150 617 1427 1710 10300 15450 to to to to to to to to to to to to to to to to 3400 3600 3800 5925 3400 3600 3800 5925 3400 3800 5925 960 1511 2690 11700 17550 TDK Spec Min. Typ. Max. 0.88 1.40 0.62 0.80 0.46 0.70 0.40 0.60 1.70 0.90 0.80 0.70 1.38 2.00 1.25 1.70 1.43 2.00 30 33 27 32 23 27 15 31 5 10 - Ta = +25+/-5°C TDK Technology - Proprietary and Confidential Information of TDK Group Companies Jul. 2018 Ver.1.3a TDK Corporation PRELIMINARY DPX255925DT-5045F3 ■ ELECTRICAL CHARACTERISTICS ( Measurement ) Low - High Parameter Isolation (dB) Frequency (MHz) 617 1427 1710 3300 3400 5150 to to to to to to 960 1661 2690 3400 3800 5925 TDK Spec Min. Typ. Max. 30 33 27 32 23 27 15 23 23 29 28 31 - Ta = +25+/-5°C Common Parameter VSWR Frequency (MHz) 617 1427 3300 3400 5150 Characteristic Impedance (ohm) Ta = +25+/-5°C to to to to to 960 2690 3400 3800 5925 TDK Spec Min. Typ. Max. 1.15 1.50 1.24 1.65 1.40 2.00 1.36 1.70 1.40 2.00 50 (Nominal) ■ MAXIMUM RATINGS Parameter TDK Spec Min. Max. –40 to +85 °C –40 to +85 °C 1.5 1 1.5 1.5 Low-Band Port 4 2 1 High-Band Port 1.5 Human Body Model : HBM @Each Port (V) -1000 1000 Machine Model : MM @Each Port (V) -150 150 Charged Device Model : CDM @Each Port (V) -500 500 Operating temperature (°C) Storage temperature (°C) Power Handling (W) Common Port Conditions CW at 698-2690MHz CW at 3300-3400MHz CW at 3400-5925MHz CW at 698-2690MHz Duty 50% at 824-960MHz Duty 50% at 1710-1990MHz CW at 3300-3400MHz CW at 3400-5925MHz 100pF / 1500ohm 200pF / 0ohm Relative humidity : 51%RH max Ambient temperature : +25+/-5°C TDK Technology - Proprietary and Confidential Information of TDK Group Companies PRELIMINARY Jul. 2018 Ver.1.3a TDK Corporation DPX255925DT-5045F3 ■ FREQUENCY CHARACTERISTICS ( Measurement ) TDK Technology - Proprietary and Confidential Information of TDK Group Companies Jul. 2018 Ver.1.3a TDK Corporation PRELIMINARY DPX255925DT-5045F3 ■ RECOMMENDED LAND PATTERN Unit : [mm] ■ EVALUATION BOARD Material, Layer Thickness Top Resist Resist Copper Surface Pattern 0.035mm FR-4 0.10mm Copper Inner GND 0.018mm FR-4 0.30mm Copper Bottom GND 0.035mm ■ ENVIROMENT INFORMATION RoHS Statement RoHS Compliance TDK Technology - Proprietary and Confidential Information of TDK Group Companies PRELIMINARY Jul. 2018 Ver.1.3a TDK Corporation DPX255925DT-5045F3 ■ RECOMMENDED REFLOW PROFILE 3oC/sec or lower Preheating Temp. T1 T2 Time t1 150°C 200°C 60 to 120sec 6oC/sec or lower Soldering Critical zone (T3 to T4) Peak Temp. Time Temp. Time T3 t2 T4 t3 * 217°C 60 to 120sec 240 to 260°C 30 sec Max * t3 : Time within 5°C of actual peak temperature The maximum number of reflow is 3. Note: Lead free solder is recommended. Recommended solder is Sn-3.0Ag-0.5Cu. (M705 by Senju Metal Industry) All specifications are subject to change without notice. TDK Technology - Proprietary and Confidential Information of TDK Group Companies Jul. 2018 Ver.1.3a TDK Corporation PRELIMINARY DPX255925DT-5045F3 ■ PACKAGING STYLE Reel Dimensions 13.0+/-1.0 13+/-0.2 Label 2.0+/-0.5 60+1.0/-0 Label 21+/-0.8 180 +0/-1.5 Unit : mm 9.0 +1.0/-0 Carrier Tape Sprocket hole Loading Direction J E K C D A B t H G F Unit : mm Dimensions (mm) A B C 2.2 +/-0.05 2.7 8.0 D E F G H J K t 3.5 1.75 4.0 2.0 4.0 1.5 0.85 0.25 +/-0.1 +/-0.1 +/-0.05 +/-0.1 +0.1/0 MAX +/-0.05 +/-0.05 +0.3/-0.1 +/-0.05 STANDARD PACKAGE QUANTITY ( pieces/reel ) 2,000 TDK Technology - Proprietary and Confidential Information of TDK Group Companies REMINDERS FOR USING THESE PRODUCTS Before using these products, be sure to request the delivery specifications. SAFETY REMINDERS Please pay sufficient attention to the warnings for safe designing when using these products. REMINDERS The products listed on this specification sheet are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition. The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society, person or property. Please understand that we are not responsible for any damage or liability caused by use of the products in any of the applications below or for any other use exceeding the range or conditions set forth in this specification sheet. 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. Aerospace/Aviation equipment Transportation equipment (cars, electric trains, ships, etc.) Medical equipment Power-generation control equipment Atomic energy-related equipment Seabed equipment Transportation control equipment Public information-processing equipment Military equipment Electric heating apparatus, burning equipment Disaster prevention/crime prevention equipment Safety equipment Other applications that are not considered general-purpose applications When using this product in general-purpose applications, you are kindly requested to take into consideration securing protection circuit/equipment or providing backup circuits, etc., to ensure higher safety. TDK Technology - Proprietary and Confidential Information of TDK Group Companies
