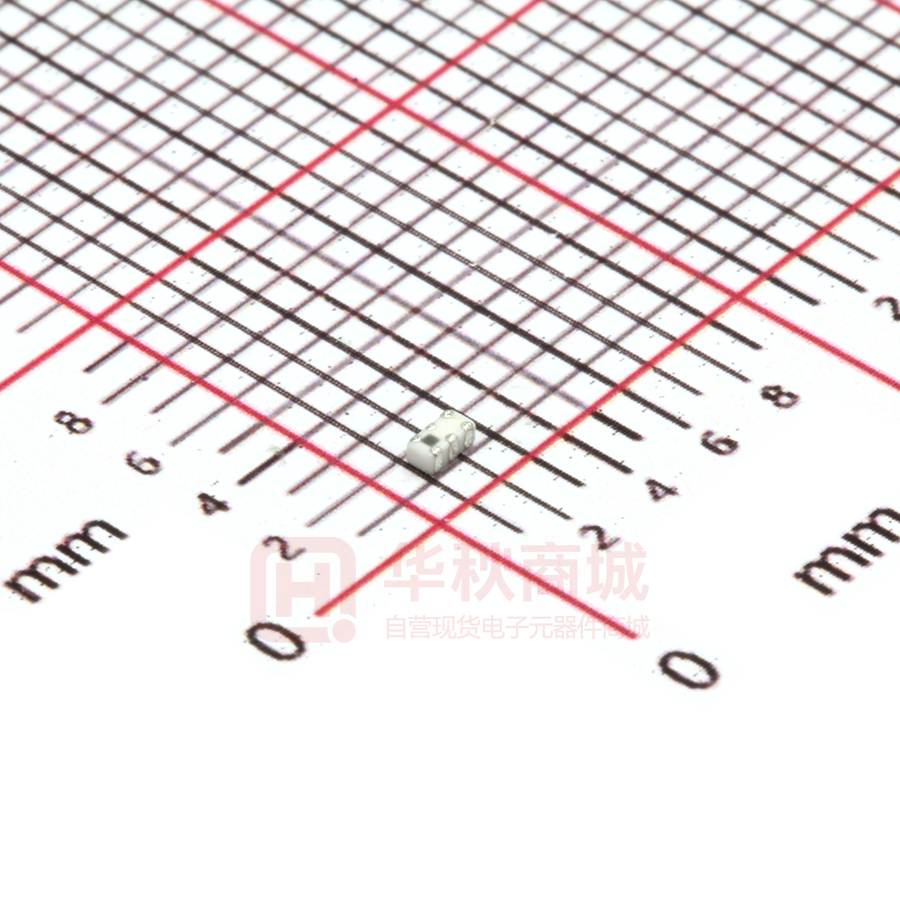

HHM1711Q1

R F C o m p o n e n t s April 2015 Multilayer Balun For 2300-3800MHz HHM1711Q1 1.6x0.8mm [EIA 0603]* * Dimensions Code JIS[EIA] RF Components Multilayer Balun Conformity to RoHS Directive For 2300-3800MHz HHM1711Q1 SHAPES AND DIMENSIONS [Top view] 1.60±0.10 0.60±0.10 (5) (4) (1) (2) (3) Marking 0.80±0.10 (6) [Bottom view] 0.55±0.10 0.30±0.10 Terminal functions 1 Unbalanced port 2 GND or DC feed+ RF GND 3 Balanced port 4 Balanced port 5 GND 6 N.C. 0.25±0.10 0.10±0.10 Dimensions in mm RECOMMENDED LAND PATTERN 0.50 0.50 0.30 0.25 Dimensions in mm RoHS Directive Compliant Product: See the following for more details related to RoHS Directive compliant products. http://product.tdk.com/en/environment/rohs/ • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20150419 / rf_balun_hhm1711q1_en.fm RF Components HHM1711Q1 ELECTRICAL CHARACTERISTICS Frequency Range (MHz) Item Unbalanced Port Characteristic Impedance (:) Balanced Port Characteristic Impedance (:) Return Loss at Unbalanced Port (dB) Phase Balance (deg.) Amplitude Balance (dB) Insertion Loss (dB) 2300 to 3800 2300 to 3800 2300 to 3800 2300 to 3800 Min. Typ. Max. 10 165 –2 — 50 (Nominal) 100 (Nominal) — — — — — 195 2 1.0 TEMPERATURE RANGE Operating temperature （°C） –40 to +85 Storage temperature （°C） –40 to +85 • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20150419 / rf_balun_hhm1711q1_en.fm RF Components HHM1711Q1 FREQUENCY CHARACTERISTICS INSERTION LOSS AMPLITUDE BALANCE 0.0 4 Amplitude Balance(dB) Insertion Loss(dB) 0.5 1.0 1.5 2.0 2 0 –2 2.5 –4 3.0 2000 2500 3000 3500 Frequency(MHz) 4000 4500 2000 0 200 5 195 10 190 15 20 25 4500 3000 3500 Frequency(MHz) 4000 4500 180 175 170 35 165 2500 4000 185 30 40 2000 3000 3500 Frequency(MHz) PHASE BALANCE Phase Balance(deg) Return Loss(dB) RETURN LOSS 2500 3000 3500 Frequency(MHz) 4000 4500 160 2000 2500 • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20150419 / rf_balun_hhm1711q1_en.fm RF Components RECOMMENDED REFLOW PROFILE Preheating Soldering Peak T4 T: Temperature 3°C/sec or lower 6°C/sec or lower T3 T2 T3 t3 T1 t1 t2 t: Time Preheating Temp. T1 150°C T2 200°C Time t1 60 to 120sec Soldering Critical zone (T3 to T4) Temp. Time T3 t2 217°C 60 to 120sec t3 : Time within 5°C of actual peak temperature The maximum number of reflow is 3. • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. Peak Temp. T4 240 to 260°C Time t3 30sec max. RF Components REMINDERS FOR USING THESE PRODUCTS Before using these products, be sure to request the delivery specifications. SAFETY REMINDERS Please pay sufficient attention to the warnings for safe designing when using these products. REMINDERS The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition. The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society, person or property. Please understand that we are not responsible for any damage or liability caused by use of the products in any of the applications below or for any other use exceeding the range or conditions set forth in this catalog. (1) Aerospace/Aviation equipment (2) Transportation equipment (cars, electric trains, ships, etc.) (3) Medical equipment (4) Power-generation control equipment (5) Atomic energy-related equipment (6) Seabed equipment (7) Transportation control equipment (8) Public information-processing equipment (9) Military equipment (10) Electric heating apparatus, burning equipment (11) Disaster prevention/crime prevention equipment (12) Safety equipment (13) Other applications that are not considered general-purpose applications When using this product in general-purpose applications, you are kindly requested to take into consideration securing protection circuit/ equipment or providing backup circuits, etc., to ensure higher safety. • All specifications are subject to change without notice. • Before using these products, be sure to request the delivery specifications. 20150419 / rf_balun_hhm1711q1_en.fm
