R F
C o m p o n e n t s
December 2015
Multilayer Directional Coupler
For 698 to 2620MHz

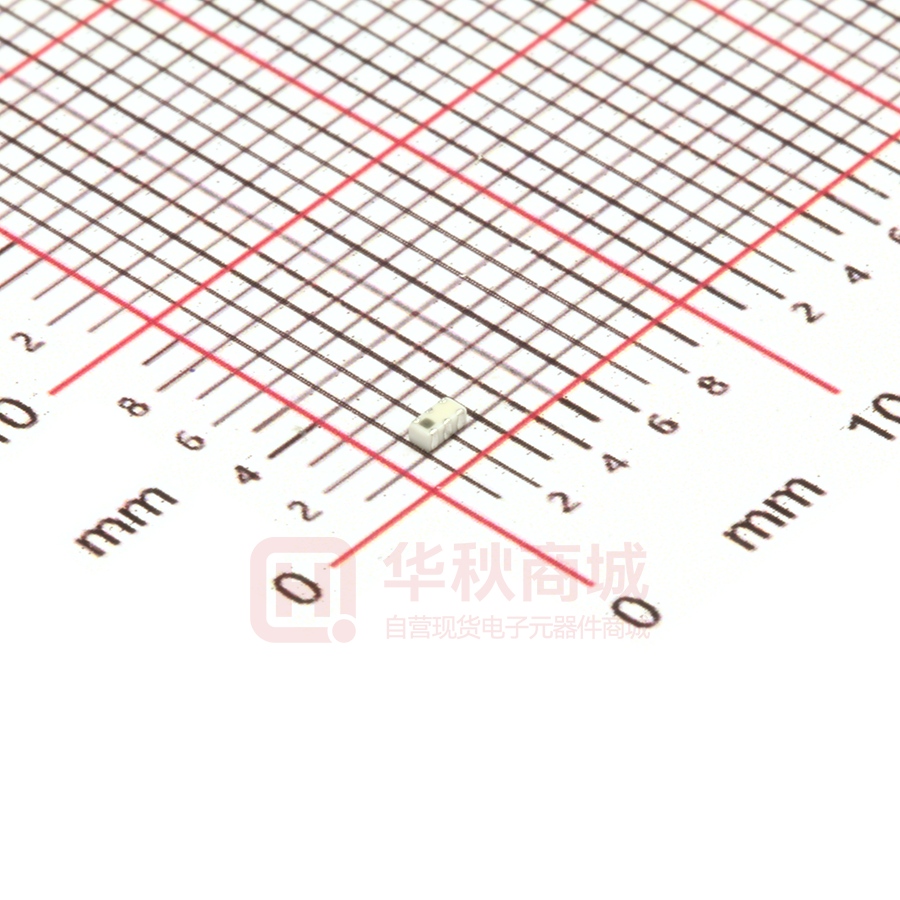

HHM22137A2
1.6x0.8mm [EIA 0603]*
* Dimensions Code JIS[EIA]
RF Components
Multilayer Directional Coupler
Conformity to RoHS Directive
For 698 to 2620MHz
HHM22137A2
SHAPES AND DIMENSIONS
[Top view]
1.60±0.10
(5)
(1)
(2)
0.60±0.10
(4)
0.80±0.10
(6)
0.55±0.10
0.30±0.10
Terminal functions
1 Output
2 GND
3 Input
4 Coupling
5 GND
6 50Ω terminate
0.15±0.10
[Bottom view]
(3)
Marking
0.25±0.10
0.10±0.10
Dimensions in mm
RECOMMENDED LAND PATTERN
0.50
0.50
0.30
0.25
Dimensions in mm
RoHS Directive Compliant Product: See the following for more details related to RoHS Directive compliant products. http://product.tdk.com/en/environment/rohs/
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
20151211 / rf_coupler_hhm22137a2_zh.fm
RF Components
HHM22137A2
ELECTRICAL CHARACTERISTICS
Item
Coupling Factor (dB)
Insertion Loss (dB)
Isolation (dB)
Return Loss (dB)
Return Loss (Coupling port) (dB)
Frequency Range
(MHz)
Min.
Typ.
Max.
698 to 915
1710 to 2025
2300 to 2620
698 to 915
1710 to 2025
2300 to 2620
698 to 915
1710 to 2025
2300 to 2620
698 to 915
1710 to 2025
2300 to 2620
698 to 915
1710 to 2025
2300 to 2620
23.0
21.5
22.5
—
—
—
45
45
45
15
15
15
15
15
15
25.6
24.0
25.0
0.07
0.09
0.11
46.3
48.9
49.8
27.6
27.4
29.1
21.8
24.5
26.4
50 (Nominal)
27.0
26.5
27.5
0.20
0.20
0.20
—
—
—
—
—
—
—
—
—
Characteristic Impedance (:)
・Ta: +25°C
TEMPERATURE RANGE
Operating temperature
˄°C˅
–40 to +85
Storage temperature
˄°C˅
–40 to +85
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
20151211 / rf_coupler_hhm22137a2_zh.fm
RF Components
HHM22137A2
FREQUENCY CHARACTERISTICS
INSERTION LOSS
COUPLING
0.0
15
0.1
Coupling(dB)
Insertion Loss (dB)
20
0.2
0.3
25
30
0.4
0.5
500
1000
1500
2000
Frequency (MHz)
2500
35
500
3000
RETURN LOSS
1500
2000
Frequency (MHz)
2500
3000
1000
1500
2000
Frequency (MHz)
2500
3000
1000
1500
2000
Frequency (MHz)
2500
3000
ISOLATION
0
0
10
10
20
20
Isolation(dB)
Return Loss(dB)
1000
30
30
40
40
50
500
50
1000
1500
2000
Frequency (MHz)
2500
60
500
3000
RETURN LOSS AT COUPLING PORT
DIRECTIVITY
0
0
10
20
20
Directivity(dB)
Return Loss(dB)
10
30
30
40
40
50
500
50
1000
1500
2000
Frequency (MHz)
2500
3000
60
500
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
20151211 / rf_coupler_hhm22137a2_zh.fm
RF Components
RECOMMENDED REFLOW PROFILE
Preheating
Soldering
Peak
T4
T: Temperature
3°C/sec
or lower
6°C/sec
or lower
T3
T2
T3
t3
T1
t1
t2
t: Time
Preheating
Temp.
T1
150°C
T2
200°C
Time
t1
60 to 120sec
Soldering
Critical zone (T3 to T4)
Temp.
Time
T3
t2
217°C
60 to 120sec
t3
: Time within 5°C of actual peak temperature
The maximum number of reflow is 3.
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
Peak
Temp.
T4
240 to 260°C
Time
t3
30sec max.
RF Components
ቂ᎙ሃჵ
ቂׁٛ൰ˈขႚࢆࣙࢭتࡒཱུכ༚ȃ
ภ᎙ሃჵ
ቂׁٛ൰ˈข᎙ሃภჵȃ
᎙ ሃ
ׁٛ൰಼፩ኵܿٛ൰ፑቂᎳቂဉሃሆຢቂᇜֈݢᏊົֻ ˄AV ົֻˈᄪົֻˈয়ݢٛ൰ˈቨົֻˈིົֻˈࢋ
เົֻˈ֑࢞ົֻˈˈֻົكᇖධเ˅ˈ෩ࡘᇜֈݢᏊົֻᇋ٢ܿغᏮञቂߴߟቂȃ
ޭᅍᇋࡴޡภᄹञ૰૦ᄹܿˈডጚົֻܿࢽጊˈႜވᏮˈከᎡட૰ঐࢍเܿໍಛˈເ࿒ঽاٛ݃ዉڈཿࣷˈᇵঽ૰ٛໍಧܐ
຺ঐሯჳܿᇵቂဉ ˄ᇵ ‘ څ࿅ށቂဉ ’˅፩ܿቂᄹˈᄹߙংˈ൰፣ˈׁ࢞ཌྷቧ֦ጽȃ
ٛ൰־ׁٛ൰಼ܿ߭ၐȂፇိˈডጚ࿅ށቂဉ፩ቂˈׁ࢞ཌྷޭྋዉܿڈཿࣷञᄪᄹܞڏใटውใȃ
(1) ऎ࿙ऎૼົֻ
(2) ਦከ༕ົֻ ˄පވݢˈٴট˅݃ؑۉˈٴ
(3) ᇞனົֻ
(4) ߙ૿ݢ፟ົֻ
(5) ኊᏊኑყ࣋ົֻ
(6) ֻࣴົݒ
(7) ਦ૿፟ົֻ
(8) ࢞ࢥᄪႩֻົ୲ۃ
(9) ૅົֻ
(10) ݢৠົֻȂัຨົֻ
(11) ߷ኳ / ኁ߷߯Ꮶົֻ
(12) ภົֻ
(13) ඝྊ־༄ၓ٢ࣙቂဉܿቂဉ
ၓமࢮภݓቂٛ൰ˈޭቂׁٛ൰಼፩ྈኵٛ൰ܿົֻᄵົˈขฬ֦࠲ठࡘົֻܿቂቂဉঽᎫྙ֦ܿ॓ই௸ञᎧ
ˈົֻቂই௸݃ȃ
• All specifications are subject to change without notice.
• Before using these products, be sure to request the delivery specifications.
20151211 / rf_coupler_hhm22137a2_zh.fm
