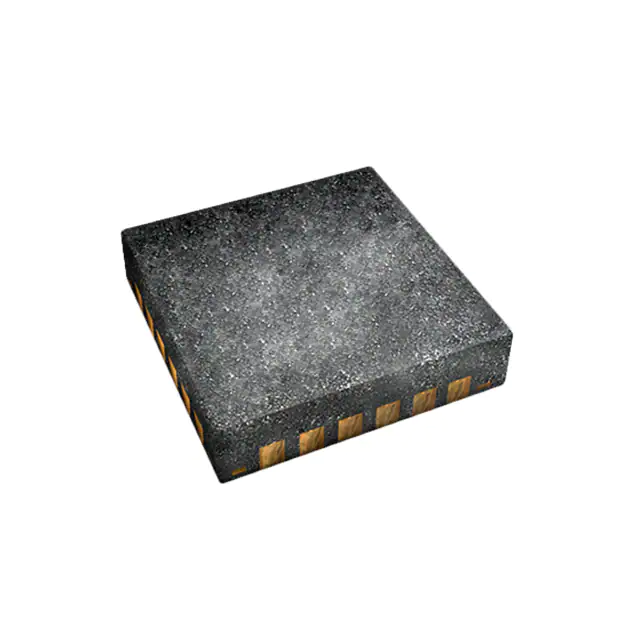

ICM-20648

ICM-20648 6-Axis MEMS MotionTracking™ Device with Enhanced EIS Support GENERAL DESCRIPTION APPLICATIONS The ICM-20648 a 6-axis MotionTracking device that is ideally suited for Smartphones, Tablets, Wearable Sensors, and IoT applications.     3-axis gyroscope, 3-axis accelerometer, 3-axis compass, TM and a Digital Motion Processor™ (DMP ) in a 3x3x0.9mm (24-pin QFN) package DMP offloads computation of motion processing algorithms from the host processor, improving system power performance Software drivers are fully compliant with Google’s latest Android release Enhanced FSYNC functionality to improve timing for applications like EIS 2 ICM-20648 supports an auxiliary I C interface to external sensors, on-chip 16-bit ADCs, programmable digital filters, an embedded temperature sensor, and programmable interrupts. The device features an operating voltage range 2 down to 1.71V. Communication ports include I C and high speed SPI at 7MHz.      Smartphones and Tablets Wearable Sensors IoT Applications Motion-based game controllers 3D remote controls for Internet connected DTVs and set top boxes, 3D mice FEATURES  3-Axis Gyroscope with Programmable FSR of ±250dps, ±500dps, ±1000dps and ±2000dps 3-Axis Accelerometer with Programmable FSR of ±2g, ±4g, ±8g and ±16g Onboard Digital Motion Processor (DMP) Android support 2 Auxiliary I C interface for external sensors On-Chip 16-bit ADCs and Programmable Filters 7MHz SPI or 400kHz Fast Mode I²C Digital-output temperature sensor VDD operating range of 1.71 to 3.6V MEMS structure hermetically sealed and bonded at wafer level RoHS and Green compliant           ORDERING INFORMATION PART TEMP RANGE PACKAGE ICM-20648† −40°C to +85°C 24-Pin QFN TYPICAL OPERATING CIRCUIT †Denotes RoHS and Green-Compliant Package INT2 AUX_DA RESV 20 22 21 SCL / SCLK SDA / SDI 24 19 GND NC 1 NC 2 NC 3 NC 4 15 NC NC 5 14 NC NC 6 13 VDD 18 17 NC 16 NC 11 12 INT1 FSYNC 9 REGOUT 10 SDO / AD0 VDDIO 7 C3, 0.1 µ F 8 ICM-20648 AUX_CL 1.71 – 3.6VDC 23 SCLK SDI nCS nCS BLOCK DIAGRAM C1, 0.1 mF SDO This document contains information on a pre-production product. InvenSense Inc. reserves the right to changespecifications and information herein without notice. InvenSense Inc. 1745 Technology Drive, San Jose, CA 95110 U.S.A +1(408) 988–7339 www.invensense.com Document Number: PB-ICM-20648-00 Revision: 1.0 Revision Date: 11/30/2015 1.71 – 3.6VDC C2, 0.1 mF
