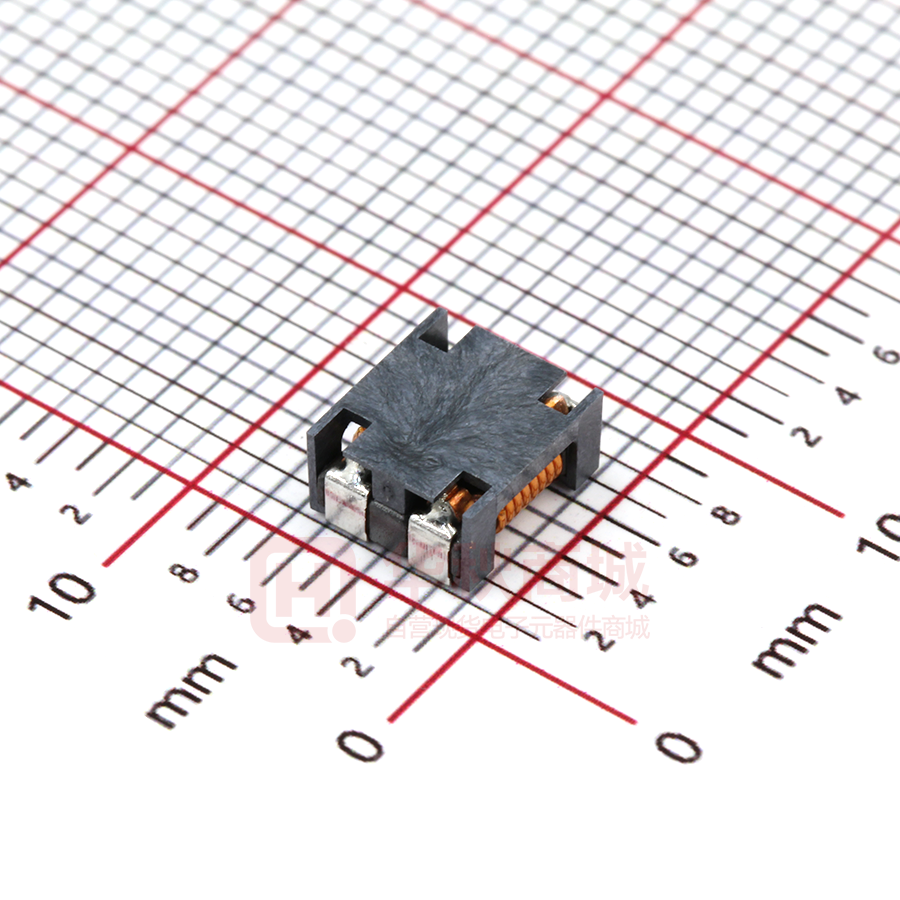

LCV70-701-2PL-TL00

E M C C o m p o n e n t s Common mode filters Automotive power line (for power train/safety) LCV series RoHS REACH SVHC-Free Cl Br Pb Halogen Free Lead Free AEC-Q200 LCV70 type FEATURES Excellent common mode noise suppression effect is realized by broadband and high common impedance characteristics. Effective not only for common mode noise but also for differential mode noise. The adoption of a square closed magnetic circuit core ensures compactness and thinness while retaining properties. Can be used up to max. 4A. Operating temperature range: –40 to +125°C (Does not include self-heating.) Higher quality thanks to the use of automated processes. Compliant with AEC-Q200 APPLICATION Measures against common mode noise in power lines for various DC power lines, multimedia devices, and various electronic devices, including automotive power trains and safety applications. PART NUMBER CONSTRUCTION LCV 70 - Series name L×W×H dimensions 7.0×6.0×3.5 mm 701 - Impedance () at 100MHz 2PL Number of lines - TL 00 Packaging style Internal code CHARACTERISTICS SPECIFICATION TABLE Common mode impedance DC resistance Rated current Rated voltage Insulation resistance Part No. [at 100MHz] ( )min. 500 [1 line] (m )max. 15 (A)max.125°C 4.0 (V)max. 80 (M )min. 10 LCV70-701-2PL-TL00 ( )typ. 700 Measurement equipment Measurement item Product No. Common mode impedance 4991A DC resistance 4338A Insulation resistance 4339A ＊ Equivalent measurement equipment may be used. Manufacturer Keysight Technologies Keysight Technologies Keysight Technologies Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (1/4) 20191203 cmf_automotive_power_lcv70_en.fm E M C C o m p o n e n t s LCV70 type IMPEDANCE VS. FREQUENCY CHARACTERISTICS 10000 1000 Impedance (Ω) 701 Common mode 701 Differential mode 100 10 1 1 10 100 1000 Frequency (MHz) Measurement equipment Product No. Manufacturer 4991A Keysight Technologies ＊ Equivalent measurement equipment may be used. Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (2/4) 20191203 cmf_automotive_power_lcv70_en.fm E M C C o m p o n e n t s LCV70 type SHAPE & DIMENSIONS PACKAGING STYLE REEL DIMENSIONS 7.0±0.2 2.0±0.5 4 2 3 2 typ. 6.0±0.2 1 1.5±0.2 ø100±1 4.0typ. 3.5max. 1.5±0.2 1.5±0.2 1.5±0.2 1.0 1.5±0.2 Dimensions in mm 16.4 +2 –0 ø13.0±0.2 ø21.0±0.8 20.4 typ. ø330±2 RECOMMENDED LAND PATTERN Dimensions in mm 9.0 4.0 4.0±0.1 Sprocket hole B 16.0±0.3 3.0 2.0±0.1 7.5±0.1 1.5 +0.1 –0 0.4±0.05 1.75±0.1 1.5 TAPE DIMENSIONS Dimensions in mm Cavity K A 8.0±0.1 Dimensions in mm CIRCUIT DIAGRAM 1 4 2 3 Type LCV70 A 6.6±0.1 B 7.6±0.1 K 3.6±0.1 • No polarity 500 to 560min. 160min. Taping 440min. RECOMMENDED REFLOW PROFILE Preheating Soldering Natural cooling Drawing direction Peak Dimensions in mm 245°C Temperature 230°C 230°C PACKAGE QUANTITY Package quantity 180°C 5s 150°C 60 to 120s 10 to 30s Time 1,500 pcs/reel TEMPERATURE RANGE, INDIVIDUAL WEIGHT Operating Storage Individual temperature range temperature range weight –40 to +125 °C –40 to +125 °C 0.35 g  The operating temperature range of this product does not include selfheating. The product can be used up to 150°C including self-heating. When using the product in an environment at 125°C, use the product within the current range shown in the table on page 1/4 of this catalog.  The storage temperature range is for after the assembly. Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (3/4) 20191203 cmf_automotive_power_lcv70_en.fm E M C C o m p o n e n t s REMINDERS FOR USING THESE PRODUCTS Before using these products, be sure to request the delivery specifications. SAFETY REMINDERS Please pay sufficient attention to the warnings for safe designing when using this products. REMINDERS The storage period is within 12 months. Be sure to follow the storage conditions (temperature: 5 to 40°C, humidity: 10 to 75% RH or less). If the storage period elapses, the soldering of the terminal electrodes may deteriorate. Do not use or store in locations where there are conditions such as gas corrosion (salt, acid, alkali, etc.). Before soldering, be sure to preheat components. The preheating temperature should be set so that the temperature difference between the solder temperature and chip temperature does not exceed 150°C. Soldering corrections after mounting should be within the range of the conditions determined in the specifications. If overheated, a short circuit, performance deterioration, or lifespan shortening may occur. When embedding a printed circuit board where a chip is mounted to a set, be sure that residual stress is not given to the chip due to the overall distortion of the printed circuit board and partial distortion such as at screw tightening portions. Self heating (temperature increase) occurs when the power is turned ON, so the tolerance should be sufficient for the set thermal design. Carefully lay out the coil for the circuit board design of the non-magnetic shield type. A malfunction may occur due to magnetic interference. Use a wrist band to discharge static electricity in your body through the grounding wire. Do not expose the products to magnets or magnetic fields. Do not use for a purpose outside of the contents regulated in the delivery specifications. The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition. The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society, person or property. If you intend to use the products in the applications listed below or if you have special requirements exceeding the range or conditions set forth in the each catalog, please contact us. (1) Aerospace/aviation equipment (2) Transportation equipment (electric trains, ships, etc.) (3) Medical equipment (4) Power-generation control equipment (5) Atomic energy-related equipment   (6) Seabed equipment (7) Transportation control equipment (8) Public information-processing equipment (9) Military equipment (10) Electric heating apparatus, burning equipment (11) Disaster prevention/crime prevention equipment (12) Safety equipment (13) Other applications that are not considered general-purpose applications When designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing protection circuit/device or providing backup circuits in your equipment. Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (4/4) 20191203 cmf_automotive_power_lcv70_en.fm
