MLH2012F22NKT000

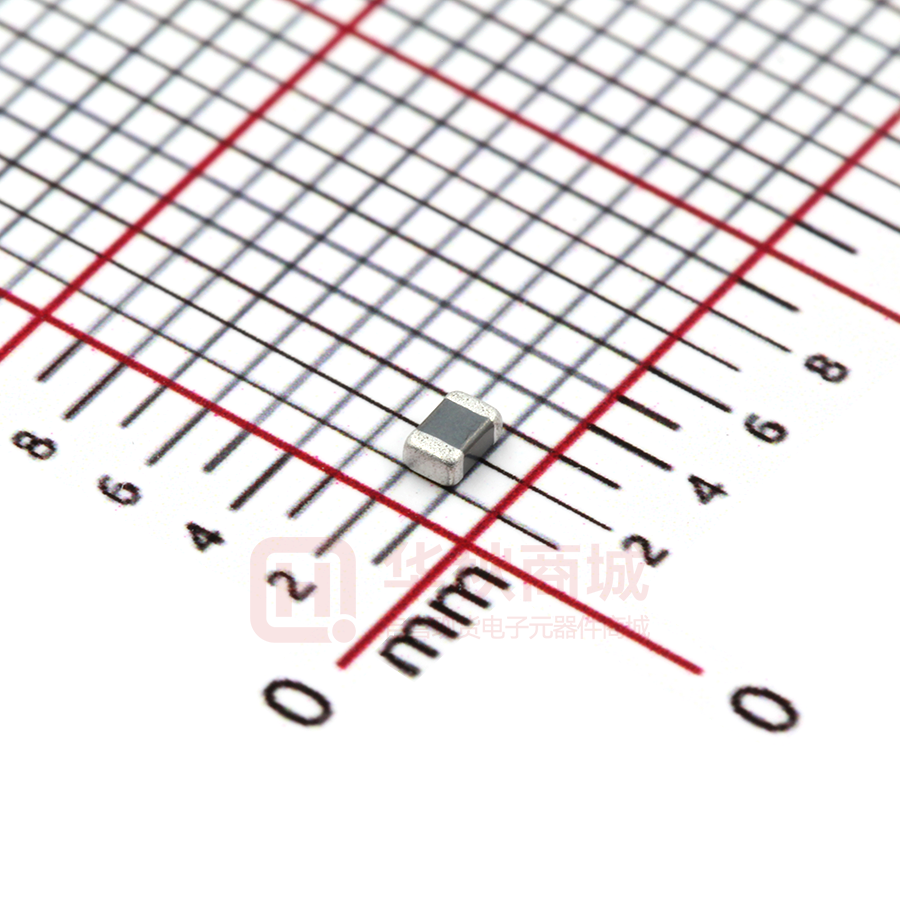

Multilayer Ferrite chip Inductor For High frequency K tolerance MLH2012 Multilayer Power Inductor Features Multilayer power inductor for High frequency. Inductance is 22nH. Completely lead-free product and support lead-free solder. Application MLH series The choke coil of power circuit usage. Especially, PA, mobile phone . Dimensions (in mm) Series L (mm) W (mm) MLH1005 1.0 +/-0.05 MLH2012 2.0 +/- 0.20 1.25 +/- 0.20 0.95 Max Thickness (T) T (mm) 0.50 +/- 0.05 0.55 Max Width (W) Length (L) Product Identification MLH 2012 F 22N K T (1) Series name Power Inductor MLH For High Freq. (2) Dimensions L x W size mm [inch] 1005 1.0 x 0.05 [0402] 2012 2.0 x 1.25 [0805] (4) (5) (6) Inductance Tolerance Inductance Characteristic type F Very High Frequency W High Frequency High Current 22N 22 nH 47N 47 nH M +/- 20% K +/- 10% (7) Packaging style T Taping reel Electrical Characteristics Case Size [mm] type LxW SRF DCR L [ｎH] [MHz] [mOhm] +/- 10% typ. +/-30% Item T 2012 0.95 Max Very High Frequency MLH2012F22NK 22 1000 44 Isat [A] Itemp [A] Typ. Rated Current 3.0 1.85 Isat : Depend on the Inductance Saturation. (-30% Reduction from Nominal value). Itemp : Depend on the self temperature rise. (40deg.C Max.) MLH2012 series : Feb 16, 2017 “ C213-H01 is a trademark or registered trademark of TDK Corporation. “ Multilayer Ferrite chip Inductor For High frequency MLH2012 Multilayer Power Inductor 2012 Characteristics data Frequency Characteristics ( Inductance ) Frequency Characteristics ( AC Resistance ) Frequency Characteristics ( Inductance ) Frequency Characteristics ( ACR ) 100 ACR [ohm] Inductance [nH] 100 10 F22N F22N 10 1 0.1 1 0.01 1 10 100 1000 Frequency [MHz] 10000 1 Frequency Characteristics ( Q factor ) Frequency Characteristics ( Q factor ) Impedance [ohm] 20 10 0 10 10000 Frequency Characteristics ( Impedance ) 30 1 100 1000 Frequency [MHz] 1000 F22N 40 10 Frequency Characteristics ( Impedance ) 50 100 1000 Frequency [MHz] 10000 F22N 100 10 1 0.1 1 10 100 1000 Frequency [MHz] 10000 Inductance vs. DC Bias Inductance vs DC Bias 100 F22N 80 Inductance [nH] Q factor K tolerance 60 40 20 0 0.0 1.0 2.0 3.0 DC Bias [A] MLH2012 series : Feb 16, 2017 “ C213-H01 is a trademark or registered trademark of TDK Corporation. “ Multilayer Ferrite chip Inductor For High frequency MLH2012 Multilayer Power Inductor Packaging & Data for mounting K tolerance PACKAGING MLH1005 t=0.55 mm Max : 10,000 pcs/reel MLH1608 t=0.95 mm Max : 4,000 pcs/reel MLH2012 t=0.95 mm Max : 4,000 pcs/reel Recommended Land Pattern (in mm) a b c 1005 0.5 0.4 0.5 1608 0.6 0.8 0.8 2012 0.8 1.0 1.2 c Type b a a RECOMMENDED SOLDERING CONDITION P.C board : 250 to 260 C 10 sec. 230+/-5 C 30 to 60sec. Soldering 10 sec. Temp. Deg.C 250 200 Natural cooling 150 150 - 180 deg.C 100 50 0 60 - 120 sec. MLH2012 series : Feb 16, 2017 “ 30-60 sec. C213-H01 is a trademark or registered trademark of TDK Corporation. “
