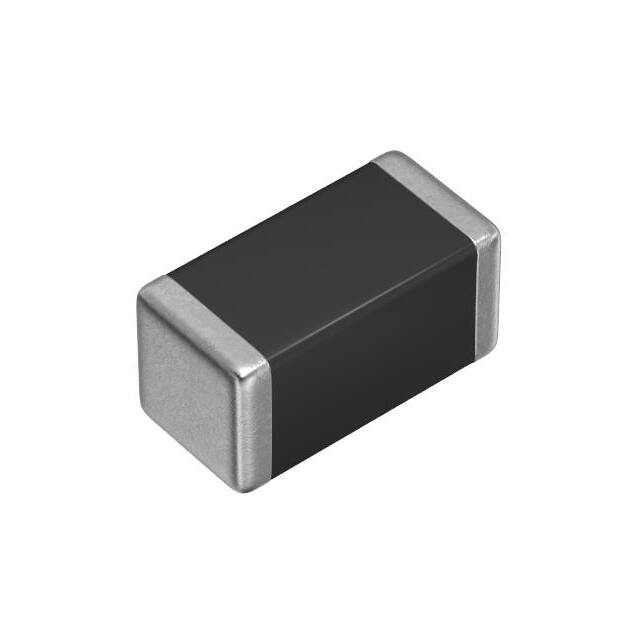

MLJ1005HXG91NJTD0B

I N D U C T O R S NFC circuit/Inductors for standard circuits Multilayer ferrite MLJ series RoHS REACH SVHC-Free Cl Br Pb Halogen Free Lead Free MLJ1005H type FEATURES The small multilayer inductor most suitable for a noise countermeasure of a NFC circuit. Magnetic shielding structure reduces leakage flux. Narrow tolerance correspondence by highly precise laminating is achieved. Ultra-low loss ferrite material contributes to the improvement of circuit efficiency. Operating temperature range: –55 to +125°C APPLICATION Smartphone, tablets, wearable equipment, NFC circuits for devices such as PCs Application guides: Smart phones/tablets PART NUMBER CONSTRUCTION MLJ 1005 H XG R16 J T D0B Series name L×W×H Dimensions 1.0×0.5×0.5 mm Characteristics Internal code Inductance (nH) Inductance Tolerance Packaging style Internal code CHARACTERISTICS SPECIFICATION TABLE L Q (nH) 56 82 91 160 180 200 Rated Tolerance ±4nH ±5% ±5% ±5% ±5% ±5% typ. 14 14 14 14 14 14 L, Q measuring conditions Frequency Current (MHz) 13.56 13.56 13.56 13.56 13.56 13.56 (mA) 1 1 1 1 1 1 DC resistance Rated current Part No. (Ω )max. 0.325 0.390 0.351 0.754 0.780 0.845 85°C (mA)max. 950 850 900 600 500 480 MLJ1005HXG56NETD0B MLJ1005HXG82NJTD0B MLJ1005HXG91NJTD0B MLJ1005HXGR16JTD0B MLJ1005HXGR18JTD0B MLJ1005HXGR20JTD0B current: current assumed when temperature has risen to 40°C max. Measurement equipment Measurement item Product No. 4294A+16034G L、Q Self-resonant frequency E4991A DC resistance Type-7561 ＊ Equivalent measurement equipment may be used. Manufacturer Keysight Technologies Keysight Technologies Yokogawa Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (1/4) 20210304 inductor_commercial_standard_mlj1005h_en.fm I N D U C T O R S MLJ1005H type L FREQUENCY CHARACTERISTICS 1000 HXGR20 HXGR18 HXGR16 Inductance (nH) HXG91N 100 HXG82N HXG56N 10 1 1 10 100 1000 Frequency(MHz) Measurement equipment Product No. Manufacturer E4991A+16197A Keysight Technologies ＊ Equivalent measurement equipment may be used. Q FREQUENCY CHARACTERISTICS 30 HXG56N HXGR16 25 HXGR20 20 HXG91N Q HXGR18 15 HXG82N 10 5 0 1 10 100 1000 Frequency(MHz) Measurement equipment Product No. Manufacturer E4991A+16197A Keysight Technologies ＊ Equivalent measurement equipment may be used. Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (2/4) 20210304 inductor_commercial_standard_mlj1005h_en.fm I N D U C T O R S MLJ1005H type SHAPE & DIMENSIONS PACKAGING STYLE REEL DIMENSIONS 1.0±0.1 0.6±0.05 ø60min. 0.6±0.05 2.0±0.5 1.0 8.4 +2.0 –0.0 ø13±0.2 0.1min. ø21±0.8 14.4max. ø180±2.0 Dimensions in mm Dimensions in mm 0.4 2.0±0.05 4.0±0.1 8.0±0.3 A K 0.5 1.5 +0.1 –0.0 B 0.66 Sprocket hole 3.5±0.05 RECOMMENDED LAND PATTERN 1.75±0.1 TAPE DIMENSIONS 0.5 Cavity 2.0±0.05 Dimensions in mm Type MLJ1005H 160min. A 0.75±0.1 Taping Dimensions in mm B 1.15±0.1 K 0.9max. 200min. RECOMMENDED REFLOW PROFILE Preheating Soldering Natural cooling 300min. Drawing direction Marking Peak Dimensions in mm 250 to 260°C Temperature 230°C 230°C PACKAGE QUANTITY Package quantity 180°C 10s max. 150°C 60 to 120s 30 to 60s 10000 pcs/reel TEMPERATURE RANGE, INDIVIDUAL WEIGHT Operating Storage Individual temperature range temperature range weight –55 to +125 °C –55 to +125 °C 1.8 mg  Operating temperature range includes self-temperature rise.  The storage temperature range is for after the assembly. Time Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (3/4) 20210304 inductor_commercial_standard_mlj1005h_en.fm I N D U C T O R S REMINDERS FOR USING THESE PRODUCTS Before using these products, be sure to request the delivery specifications. SAFETY REMINDERS Please pay sufficient attention to the warnings for safe designing when using these products. REMINDERS The storage period is less than 12 months. Be sure to follow the storage conditions (Temperature: 5 to 40°C, Humidity: 10 to 75% RH or less). If the storage period elapses, the soldering of the terminal electrodes may deteriorate. Do not use or store in locations where there are conditions such as gas corrosion (salt, acid, alkali, etc.). Before soldering, be sure to preheat components. The preheating temperature should be set so that the temperature difference between the solder temperature and chip temperature does not exceed 150°C. Soldering corrections after mounting should be within the range of the conditions determined in the specifications. If overheated, a short circuit, performance deterioration, or lifespan shortening may occur. When embedding a printed circuit board where a chip is mounted to a set, be sure that residual stress is not given to the chip due to the overall distortion of the printed circuit board and partial distortion such as at screw tightening portions. Self heating (temperature increase) occurs when the power is turned ON, so the tolerance should be sufficient for the set thermal design. Carefully lay out the coil for the circuit board design of the non-magnetic shield type. A malfunction may occur due to magnetic interference. Use a wrist band to discharge static electricity in your body through the grounding wire. Do not expose the products to magnets or magnetic fields. Do not use for a purpose outside of the contents regulated in the delivery specifications. The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition. The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society, person or property. If you intend to use the products in the applications listed below or if you have special requirements exceeding the range or conditions set forth in the each catalog, please contact us. (1) Aerospace/Aviation equipment (2) Transportation equipment (cars, electric trains, ships, etc.) (3) Medical equipment (4) Power-generation control equipment (5) Atomic energy-related equipment (6) Seabed equipment (7) Transportation control equipment (8) Public information-processing equipment (9) Military equipment (10) Electric heating apparatus, burning equipment (11) Disaster prevention/crime prevention equipment (12) Safety equipment (13) Other applications that are not considered general-purpose applications When designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing protection circuit/device or providing backup circuits in your equipment. Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. (4/4) 20210304 inductor_commercial_standard_mlj1005h_en.fm
