MMZ1005S121C

MMZ1005S121C

  • 厂商:

    TDK(东电化)

  • 封装:

  • 描述:

    MMZ1005S121C - Ferrite Beads SMD - TDK Electronics

  • 数据手册
  • 价格&库存
MMZ1005S121C 数据手册
(1/4) 005-01 / 20050905 / e9412_mmz1005.fm EMC Components Ferrite Beads SMD FEATURES • Size standardized for use by automatic assembly equipment. No preferred orientation. • Either flow or reflow soldering methods can be used due to electroplating of the terminal electrodes. • High reliability due to an entirely monolithic structure. • Closed magnetic circuit structure allows high-density installation while preventing crosstalk between circuits. • Low DC resistance structure of electrode prevents wasteful electric power consumption. • It is a product conforming to RoHS directive. APPLICATIONS PCs, CRTs, liquid crystal display panels, printers, hard disk drives, game machines, cellular phones, etc. PRODUCT IDENTIFICATION MMZ 1005 S 121 C T (1) (2) (3) (4) (5) (6) (1) Series name (2) Dimensions L×W (3) Material code (4) Nominal impedance 121:120Ω at 100MHz (5) Characteristic type (6) Packaging style T:Taping RECOMMENDED SOLDERING CONDITION REFLOW SOLDERING 10s max. 250 to 260˚C 230˚C Natural cooling MMZ Series MMZ1005 Type Size: JIS/IEC 1005, EIA 0402 MATERIAL CHARACTERISTICS B material: This type is perfectly suited for fast digital signals. By equalizing R components and X components that beads possess at a frequency of 5MHz, it is able to suppress overshooting, undershooting and ringing of fast digital signals. S material: Standard type that features impedance characteristics similar to those of a typical ferrite core. For signal line applications in which the blocking region is near 100MHz. Impedance values selected for effectiveness at 40 to 300MHz. Y material: High frequency range type intended for the 100MHz region and above. For signal line applications in which the signal frequency is far from the cutoff frequency. Impedance values selected for effectiveness at 80 to 400MHz. D material: For applications calling for low insertion loss at low frequencies and sharply increasing impedance at high frequencies. Designed for high impedance at high frequencies (200 to 500MHz) for signal line applications. F material: This new product inherits the characteristic of our Dmaterial, namely its sharp impedance rise time, and its impedance peak frequency has been shifted higher into range. The product offers excellent noise suppression from 600MHz to as high as in the GHz range. TYPICAL MATERIAL CHARACTERISTICS 1500 Impedance(Ω) 1000 Y S D F 500 180˚C 150˚C Preheating 60 to 120s Time(s) Soldering 30 to 60s 0 1 10 100 Frequency (MHz) 1000 10000 • Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications. • Please contact our Sales office when your application are considered the following: The device’s failure or malfunction may directly endanger human life (e.g. application for automobile/aircraft/medical/nuclear power devices, etc.) • All specifications are subject to change without notice. (2/4) 005-01 / 20050905 / e9412_mmz1005.fm EMC Components Ferrite Beads SMD SHAPES AND DIMENSIONS/RECOMMENDED PC BOARD PATTERN 1± 0.05 0.5 ± 0.05 0.5 MMZ Series MMZ1005 Type Size: JIS/IEC 1005, EIA 0402 ELECTRICAL CHARACTERISTICS Part No. MMZ1005B800C MMZ1005B121C MMZ1005B601C MMZ1005S800C MMZ1005S121C MMZ1005S241C MMZ1005S601C MMZ1005S102C MMZ1005Y400C MMZ1005Y800C MMZ1005Y121C MMZ1005Y241C MMZ1005Y301C MMZ1005Y471C MMZ1005Y601C MMZ1005Y102C MMZ1005Y152C MMZ1005A152E MMZ1005D100C MMZ1005D220C MMZ1005D330C MMZ1005D680C MMZ1005D121C MMZ1005D241C MMZ1005F330C MMZ1005F470C MMZ1005F560C Impedance (Ω)[100MHz] 80±25% 120±25% 600±25% 80±25% 120±25% 240±25% 600±25% 1000±25% 40±25% 80±25% 120±25% 240±25% 300±25% 470±25% 600±25% 1000±25% 1500±25% 1500±25% 10±5Ω 22±25% 33±25% 68±25% 120±25% 240±25% 33±25% 47±25% 56±25% DC resistance (Ω)max. 0.2 0.25 0.85 0.2 0.25 0.4 0.6 1 0.12 0.17 0.21 0.33 0.38 0.5 0.56 0.74 1.15 2 0.15 0.2 0.35 0.55 0.75 1.2 0.6 0.8 0.8 Rated current (mA)max. 450 400 200 500 500 400 300 200 550 450 400 300 250 250 250 200 100 100 500 400 400 400 350 200 200 100 100 0.1min. 0.5 ± 0.05 0.45 0.5 0.45 Weight: 1mg Dimensions in mm TEMPERATURE RANGES Operating/storage –55 to +125°C PACKAGING STYLE AND QUANTITIES Packaging style Taping Quantity 10000 pieces/reel TYPICAL ELECTRICAL CHARACTERISTICS Z, X, R vs. FREQUENCY CHARACTERISTICS MMZ1005B800C MMZ1005B121C 120 100 Z Impedance(Ω) Impedance(Ω) MMZ1005B601C 800 700 Impedance(Ω) 350 300 250 200 150 100 50 1 10 100 1000 Frequency (MHz) 10000 0 1 10 X 100 1000 Frequency (MHz) Z R 600 500 400 300 200 100 R X Z 80 R 60 40 20 0 X 10000 0 1 10 100 1000 Frequency (MHz) 10000 MMZ1005S800C 400 350 Impedance(Ω) MMZ1005S121C 400 350 Impedance(Ω) MMZ1005S241C 400 350 Impedance(Ω) 300 250 200 150 100 50 0 1 10 Z R X 300 250 200 150 100 50 X Z R 300 250 200 150 100 50 X Z R 100 1000 Frequency (MHz) 10000 0 1 10 100 1000 Frequency (MHz) 10000 0 1 10 100 1000 Frequency (MHz) 10000 • All specifications are subject to change without notice. (3/4) 005-01 / 20050905 / e9412_mmz1005.fm EMC Components Ferrite Beads SMD TYPICAL ELECTRICAL CHARACTERISTICS Z, X, R vs. FREQUENCY CHARACTERISTICS MMZ1005S601C MMZ1005S102C 1000 900 800 700 600 500 400 300 200 100 0 1 10 1600 1400 Impedance(Ω) MMZ Series MMZ1005 Type Size: JIS/IEC 1005, EIA 0402 MMZ1005Y400C 300 250 Impedance(Ω) Impedance(Ω) 1200 1000 800 600 400 X Z R 200 150 100 50 Z R X Z R X 200 10000 0 1 10 100 1000 Frequency (MHz) 100 1000 Frequency (MHz) 10000 0 1 10 100 1000 Frequency (MHz) 10000 MMZ1005Y800C 300 250 Impedance(Ω) MMZ1005Y121C 300 250 Impedance(Ω) MMZ1005Y241C 800 700 Impedance(Ω) 600 500 400 300 200 Z R X 200 150 100 50 0 1 10 Z R X 200 150 100 50 Z R X 100 10000 0 1 10 100 1000 Frequency (MHz) 10000 0 1 10 100 1000 Frequency (MHz) 100 1000 Frequency (MHz) 10000 MMZ1005Y301C 800 700 Impedance(Ω) MMZ1005Y471C 800 700 Impedance(Ω) MMZ1005Y601C 1000 900 800 700 600 500 400 300 200 100 0 1 10 500 400 300 200 100 0 1 10 X Z R 500 400 300 200 100 Z R Impedance(Ω) 600 600 Z R X X 100 1000 Frequency (MHz) 10000 0 1 10 100 1000 Frequency (MHz) 10000 100 1000 Frequency (MHz) 10000 MMZ1005Y102C 1600 1400 Impedance(Ω) MMZ1005Y152C 1800 1600 1400 Impedance(Ω) MMZ1005A152E 3000 2500 Z R Impedance(Ω) 1200 1000 800 600 400 200 0 1 10 100 1000 Frequency (MHz) 10000 X Z R 1200 1000 800 600 400 200 0 1 10 2000 1500 1000 500 Z R X X 100 1000 Frequency (MHz) 10000 0 1 10 100 1000 Frequency (MHz) 10000 • All specifications are subject to change without notice. (4/4) 005-01 / 20050905 / e9412_mmz1005.fm EMC Components Ferrite Beads SMD TYPICAL ELECTRICAL CHARACTERISTICS Z, X, R vs. FREQUENCY CHARACTERISTICS MMZ1005D100C MMZ1005D220C 70 60 Impedance(Ω) MMZ Series MMZ1005 Type Size: JIS/IEC 1005, EIA 0402 MMZ1005D330C 1000 900 800 700 600 500 400 300 200 100 0 1 10 Z Impedance(Ω) 40 30 20 10 0 1 10 R X R X Impedance(Ω) 50 100 1000 Frequency (MHz) 10000 200 180 160 140 120 100 80 60 40 20 0 Z Z R X 1 10 100 1000 Frequency (MHz) 10000 100 1000 Frequency (MHz) 10000 MMZ1005D680C 1000 900 800 700 600 500 400 300 200 100 0 1 10 MMZ1005D121C 1000 900 800 700 600 500 400 300 200 100 0 1 10 MMZ1005D241C 3000 2500 Z, X, R (Ω) Z R Impedance(Ω) Z, X, R (Ω) 2000 Z R 1500 1000 500 Z R X X 100 1000 Frequency (MHz) 10000 100 1000 Frequency (MHz) 10000 0 1 10 X 100 1000 Frequency (MHz) 10000 MMZ1005F330C 1000 900 800 700 600 500 400 300 200 100 0 1 MMZ1005F470C 1000 900 800 700 600 500 400 300 200 100 0 1 MMZ1005F560C 1200 1000 Impedance(Ω) Z R Impedance(Ω) Impedance(Ω) 800 600 Z Z R 400 200 R X 10 100 1000 Frequency (MHz) 10000 X 10 100 1000 Frequency (MHz) 10000 0 1 X 10 100 1000 Frequency (MHz) 10000 • All specifications are subject to change without notice.
MMZ1005S121C 价格&库存

很抱歉,暂时无法提供与“MMZ1005S121C”相匹配的价格&库存,您可以联系我们找货

免费人工找货

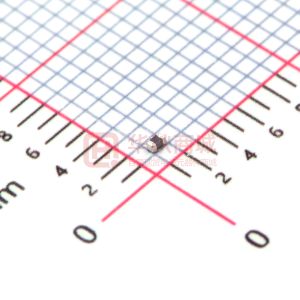

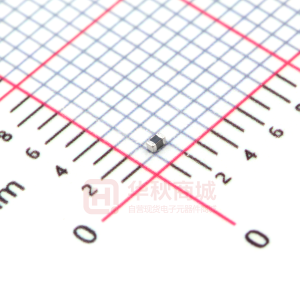

MMZ1005S121CT000
